E20HC3B42

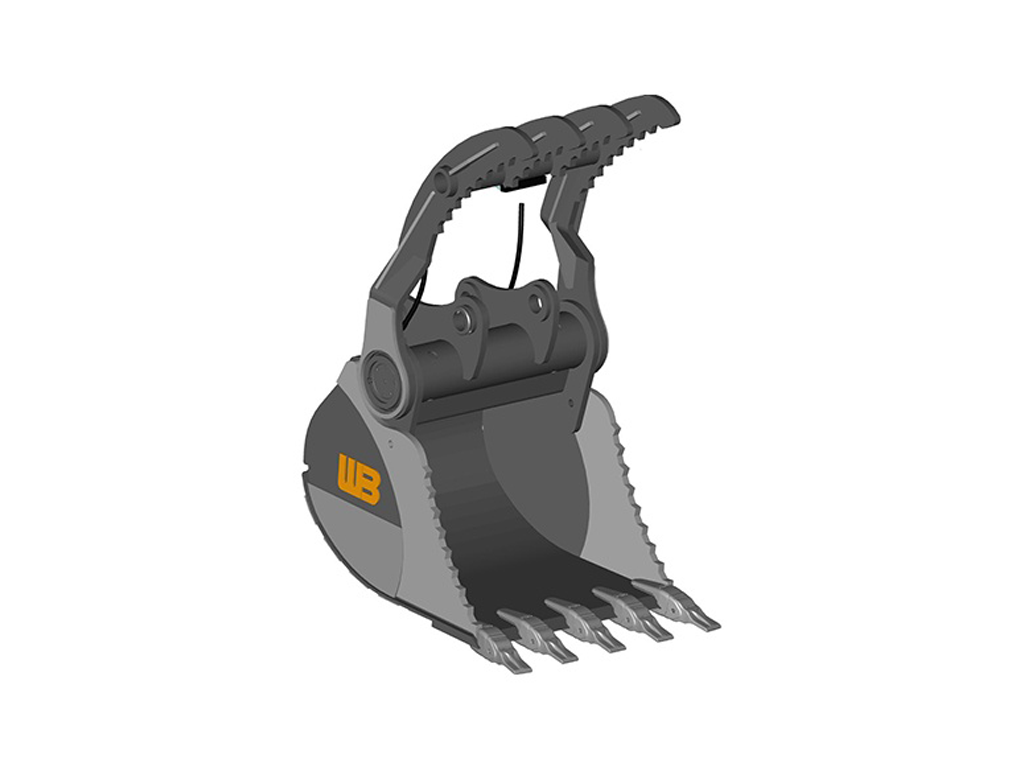

WERK BRAU Hydra-Clamp Bucket & rake for excavators 42,000 - 50,000 lbs (20MT)

$32,793.00 - $41,667.00

Business Financing Available

WIDTH
Style

1/24

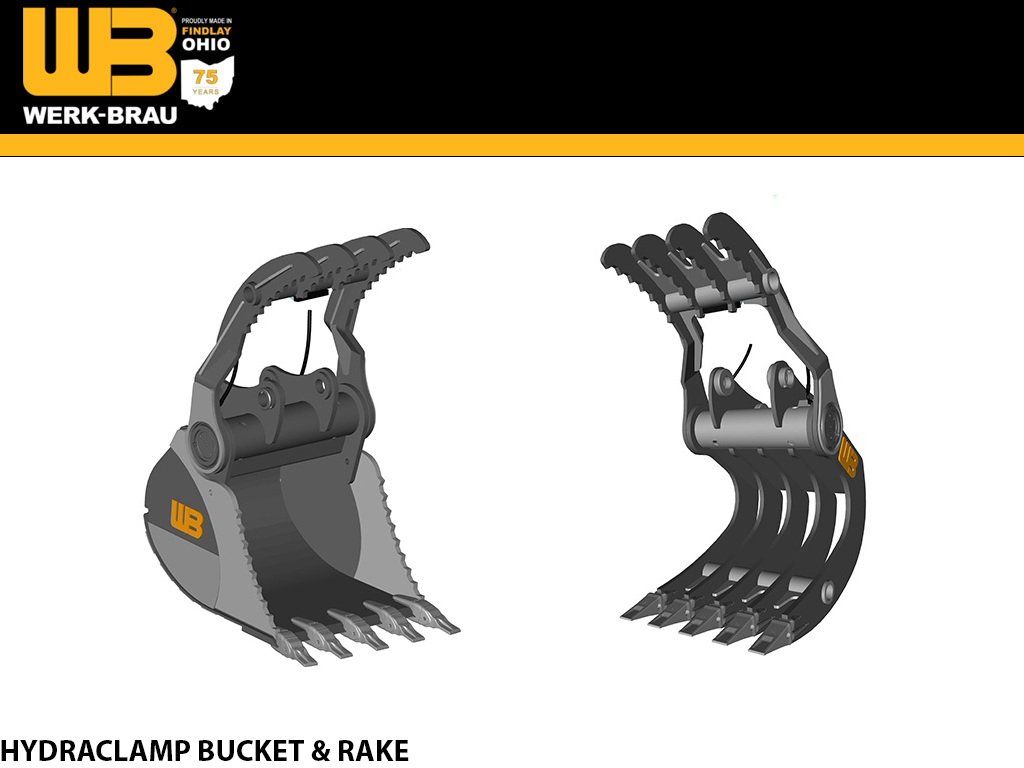

Hydra-Clamp bucket & rake

Recommended Applications

Confidently handle heavy, awkward loads, grab buckets of debris and clear away brush with the Hydra-clamp Bucket and Rake. The built-on rotary actuated thumb provides improved flexibility and precision by maintaining consistent clamping force on the load throughout the entire bucket rotation. The heavy duty design makes it perfect for demolition, picking/sorting applications and land clearing.

Quality Construction

Made of high quality T-1 and AR400 materials in all high stress & wear areas. Includes a plastic covering on thumb to protect the stick.

Additional Features

Easy, low cost installation. Nothing needs welded to the stick. Easily transferrable from machine to machine making it the perfect attachment for a rental fleet. It is powered by a fully enclosed rotary actuator. It has increased holding strength maintaining strong grip on material throughout rotation, versus the standard thumb and bucket. Operator can use 100% of excavator reach making it easier than ever to load trucks. The attachment requires very little maintenance requiring just two auxiliary maintenance lines.

Features
  • incorporated actuator; no exposed cylinders
  • more clamping force than any bucket-thumb combo
  • reduced overall weight compared to bucket-thumb combo
  • consistent clamping force throughout full rotation
  • Abrasion & wear resistant steel used throughout
  • severe duty set up
  • does not include jumper hose kit
PART # TYPE WIDTH # OF TEETH WEIGHT
E20HC3B42 BUCKET 42"
 5 2,900
E20HC3R42 RAKE 42"
 5
 2,900
E20HC3B48 BUCKET 48"
 5
 3,700
E20HC3R48
 RAKE 48"
 5
 3,700
E20HC3B54 BUCKET 54" 5 3,900
E20HC3R54 RAKE 54" 5 3,900


20 METRIC TONS

MAKE / WEIGHT CLASS 20MT (42,000 - 50,000 LBS.)
CASE CX210, CX220E, CX235, CX245
CAT 320, 321, M322F, 323 (B-Linkage)
DOOSAN DX210W-5, DX225LC-5, DX225LC-5SLR, DX235LCR-5
HITACHI ZX180, ZX200, ZX210, ZX245
HYUNDAI HX220, HX235
JOHN DEERE 210G, 245G, 180P, 210P, 190GW, 230GW
KOBELCO SK210, SK230SR, SK260, SK270SR
KOMATSU PC210-11, PC228, PC238
LIEBHERR R 920 L, 922 L
LINK BELT 210X4, 234X4, 245X4
SANY SY215
TAKEUCHI
VOLVO EC200, EW210, EC210, EC220, ECR235
