E25HC3B42

WERK BRAU Hydra-Clamp Bucket & rake for excavators 50,000 - 69,000 lbs (25MT)

WIDTH
Style

11/24

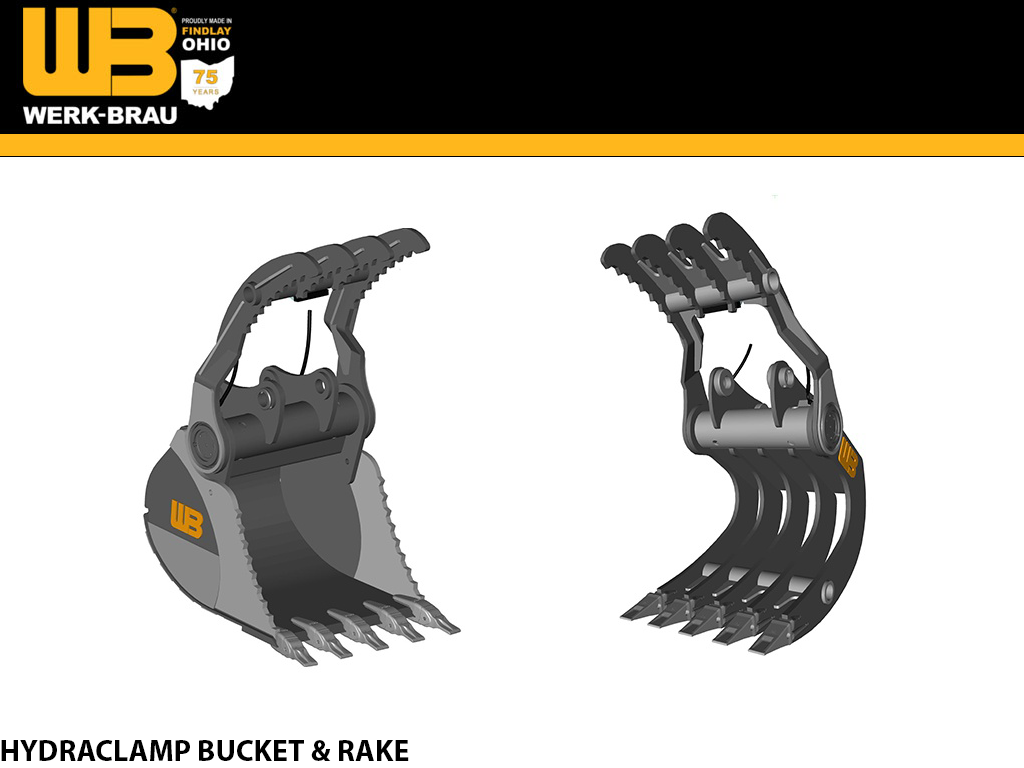

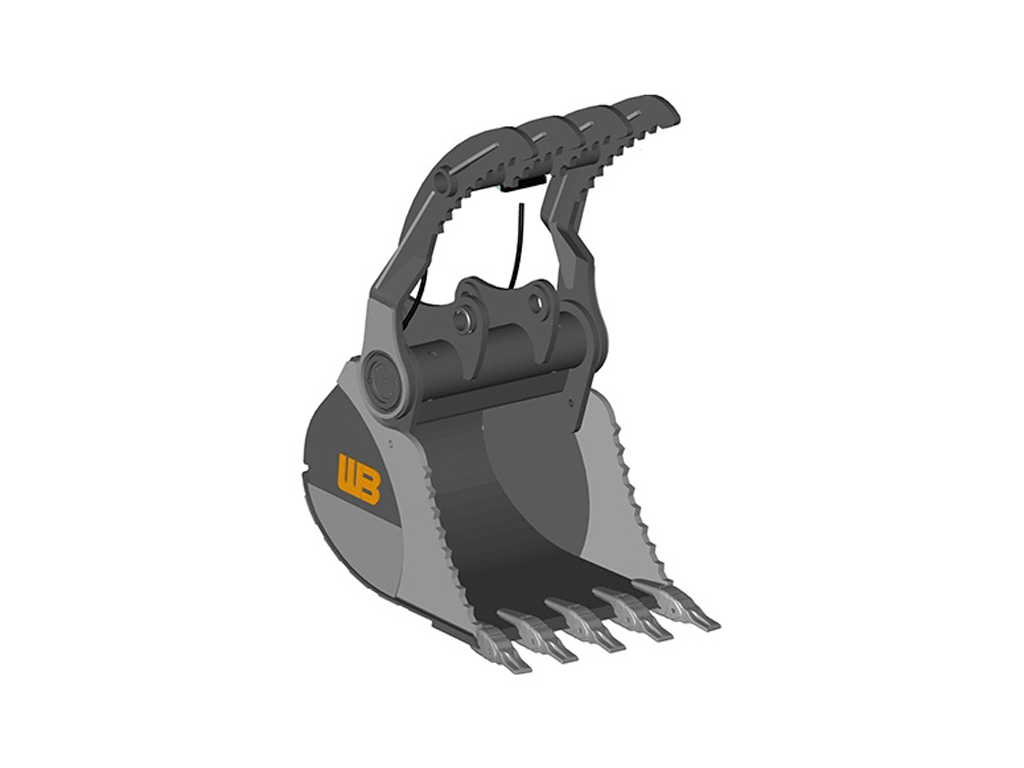

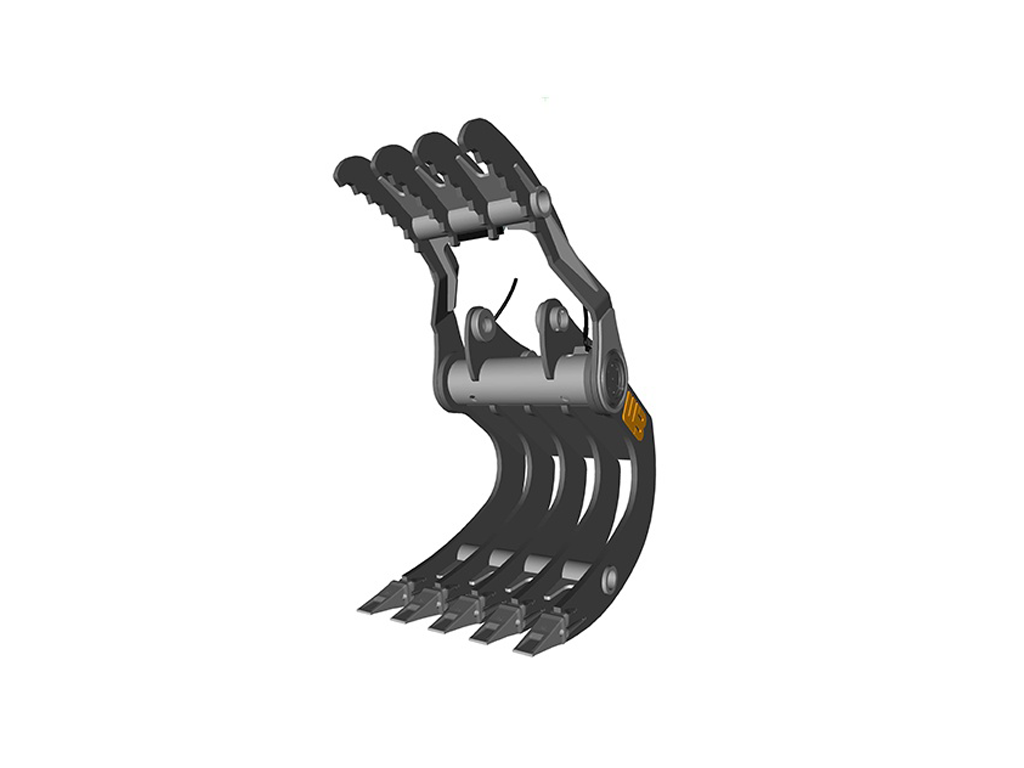

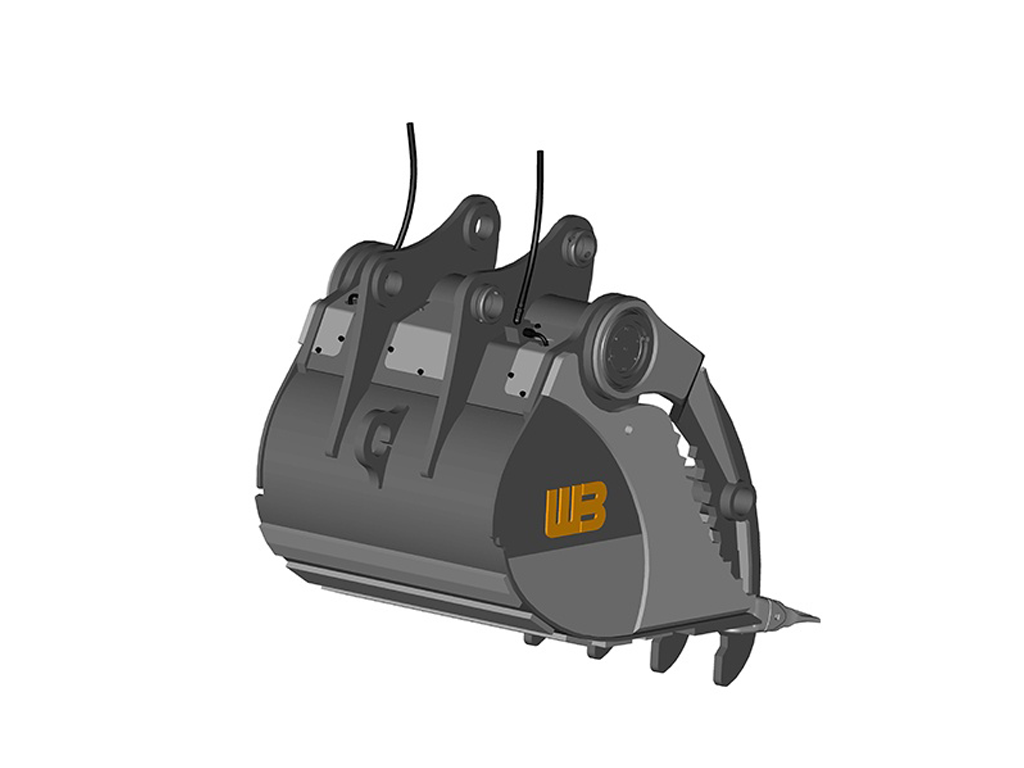

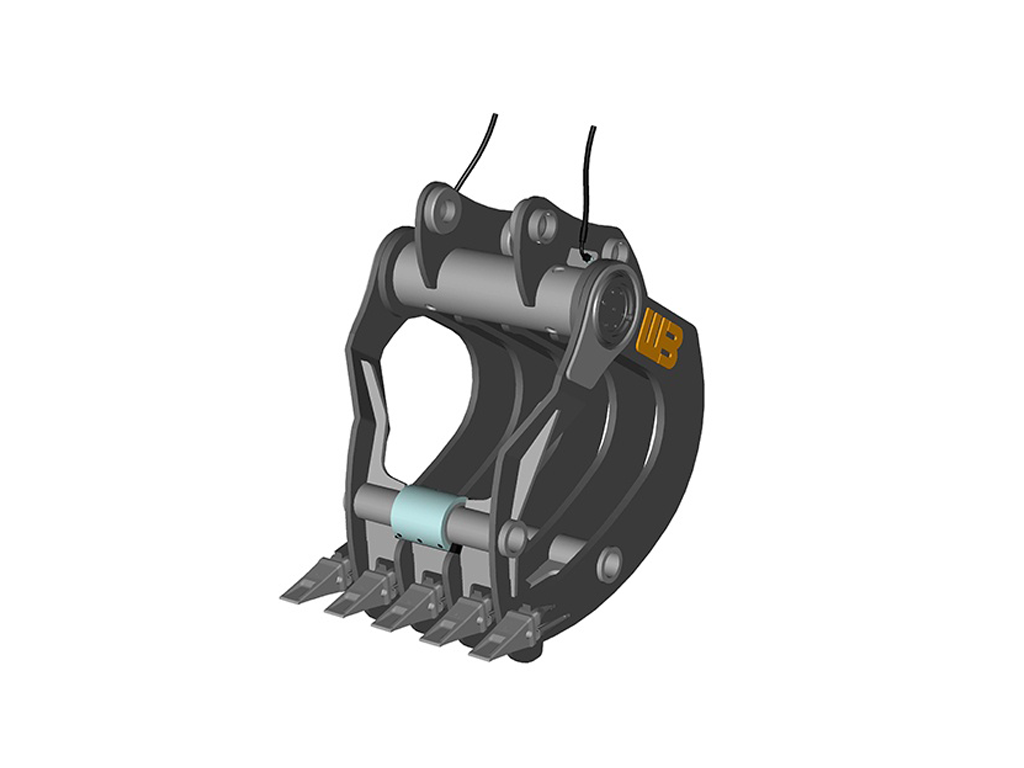

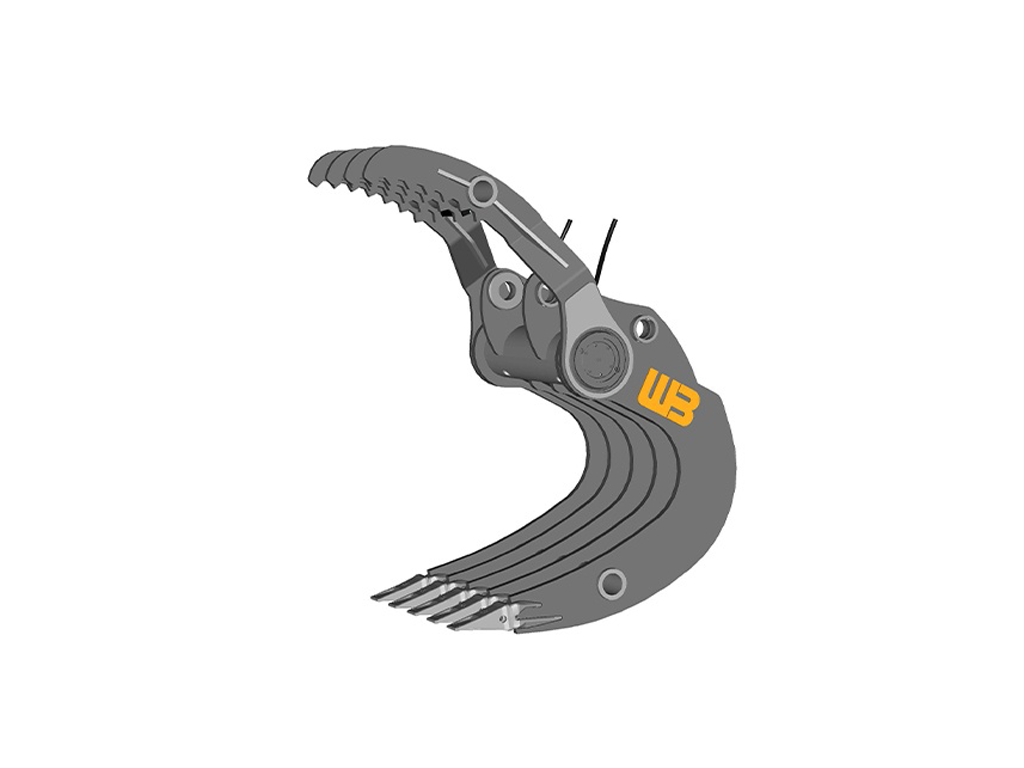

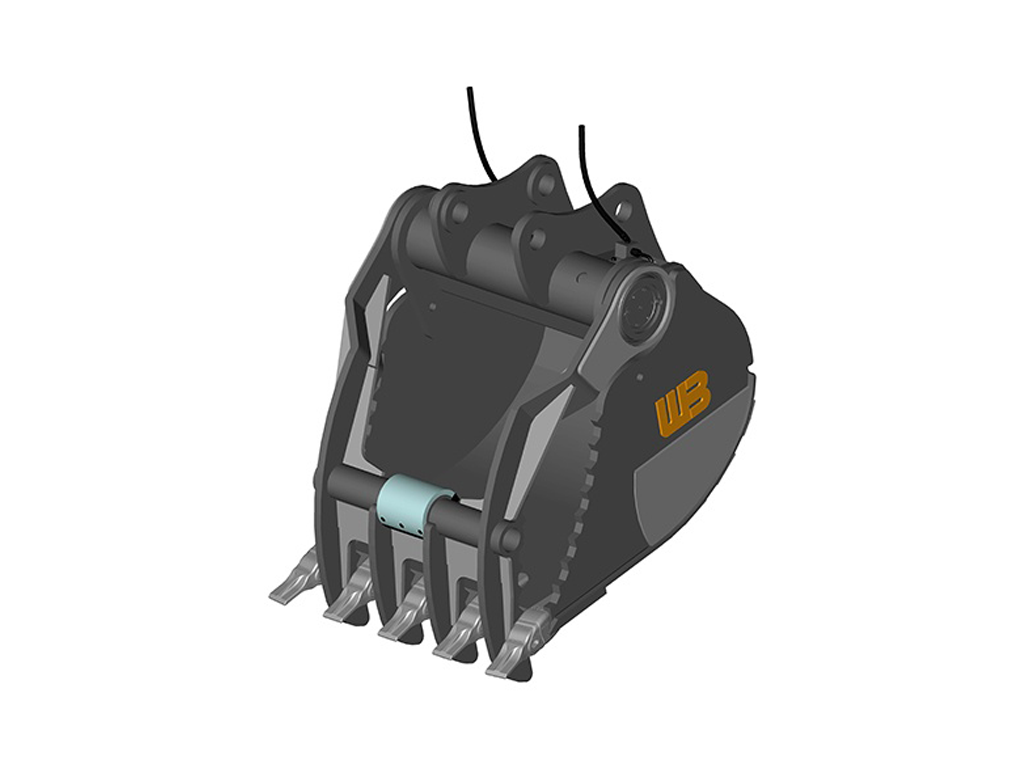

Hydra-Clamp bucket & rake

Recommended Applications

Confidently handle heavy, awkward loads, grab buckets of debris and clear away brush with the Hydra-clamp Bucket and Rake. The built-on rotary actuated thumb provides improved flexibility and precision by maintaining consistent clamping force on the load throughout the entire bucket rotation. The heavy duty design makes it perfect for demolition, picking/sorting applications and land clearing.

Quality Construction

Made of high quality T-1 and AR400 materials in all high stress & wear areas. Includes a plastic covering on thumb to protect the stick.

Additional Features

Easy, low cost installation. Nothing needs welded to the stick. Easily transferrable from machine to machine making it the perfect attachment for a rental fleet. It is powered by a fully enclosed rotary actuator. It has increased holding strength maintaining strong grip on material throughout rotation, versus the standard thumb and bucket. Operator can use 100% of excavator reach making it easier than ever to load trucks. The attachment requires very little maintenance requiring just two auxiliary maintenance lines.

Features


  • incorporated actuator; no exposed cylinders
  • more clamping force than any bucket-thumb combo
  • reduced overall weight compared to bucket-thumb combo
  • consistent clamping force throughout full rotation
  • Abrasion & wear resistant steel used throughout
  • severe duty set up
  • does not include jumper hose kit
PART # TYPE WIDTH # OF TEETH WEIGHT
E25HC3B42 BUCKET 42" 5 4,000
E25HC3R42 RAKE 42" 5 4,000
E25HC3B48 BUCKET 48"
5
4,255
E25HC3R48
RAKE 48"
5
4,255


25 METRIC TONS

MAKE / WEIGHT CLASS 25MT (50,000 - 59,000 LBS.)
CASE CX250, CX260E
CAT 325, 326F
DOOSAN DX255LC-5
HITACHI ZX240, ZX250
HYUNDAI HX260
JOHN DEERE 250G, 250P
KOBELCO SK260LC
KOMATSU PC240
LIEBHERR R 916 L, R 924 L, R 934 CD
LINK BELT 250X3, 250X4
SANY SY235, SY265
TAKEUCHI
VOLVO EC240, EC250
