WTB3-36-100
WERK-BRAU Hydraulic Actuator Tilt Bucket for 11,000 - 14,000 lbs. Backhoes
$12,660.00 - $13,545.00
8/25

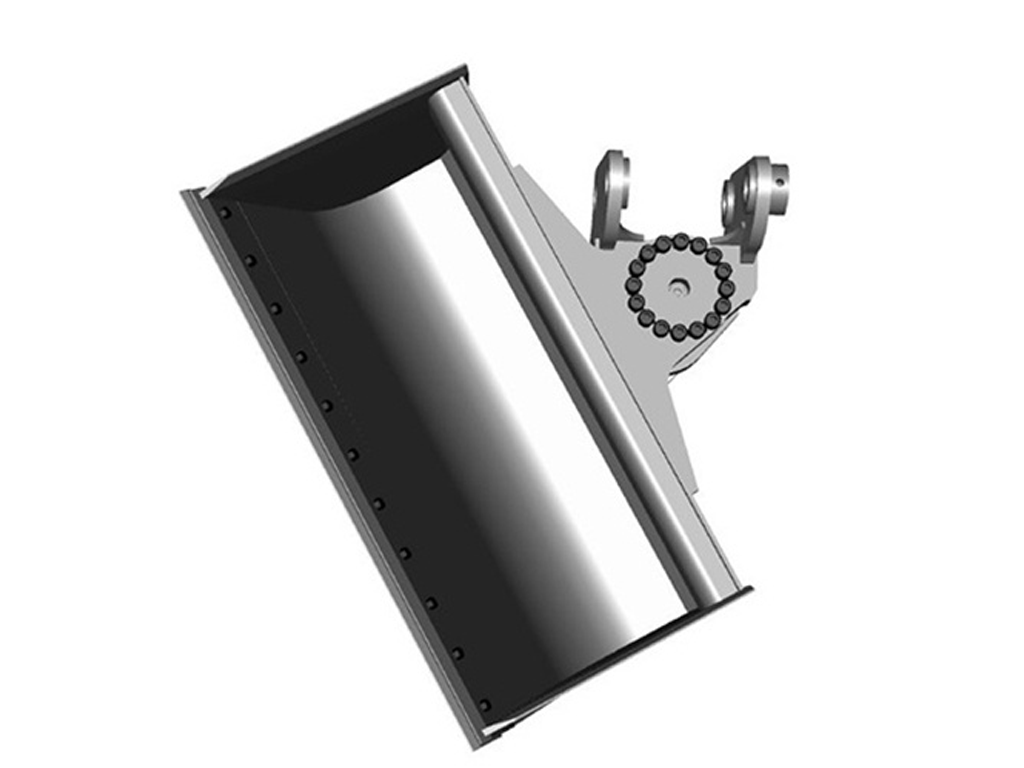

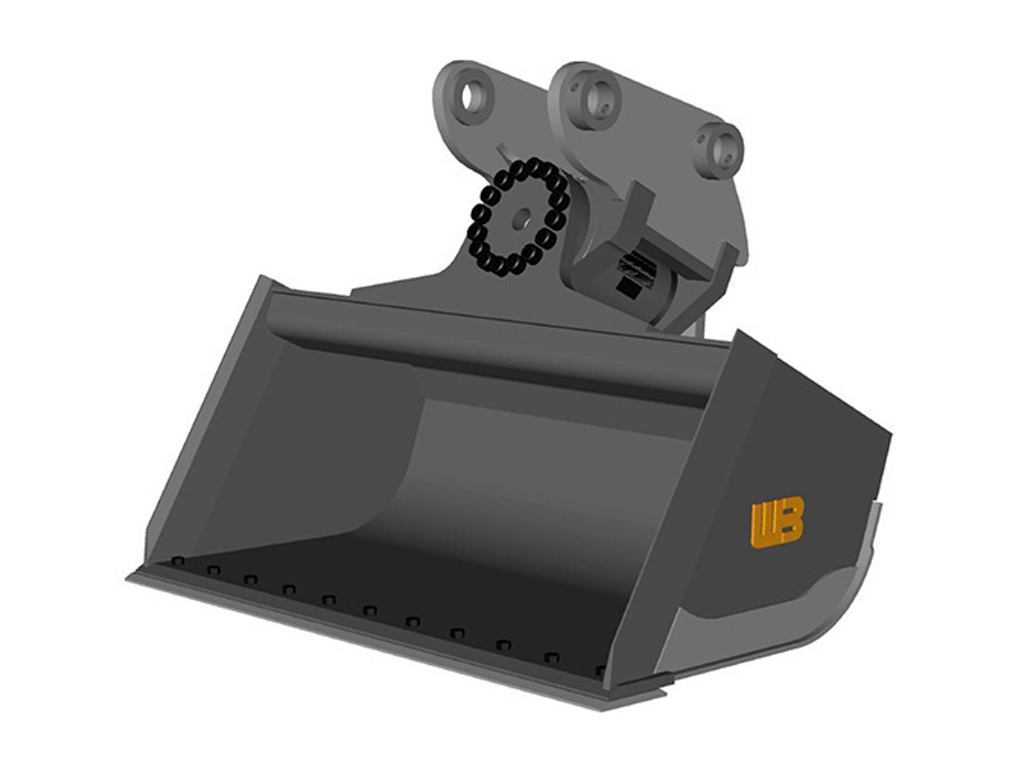

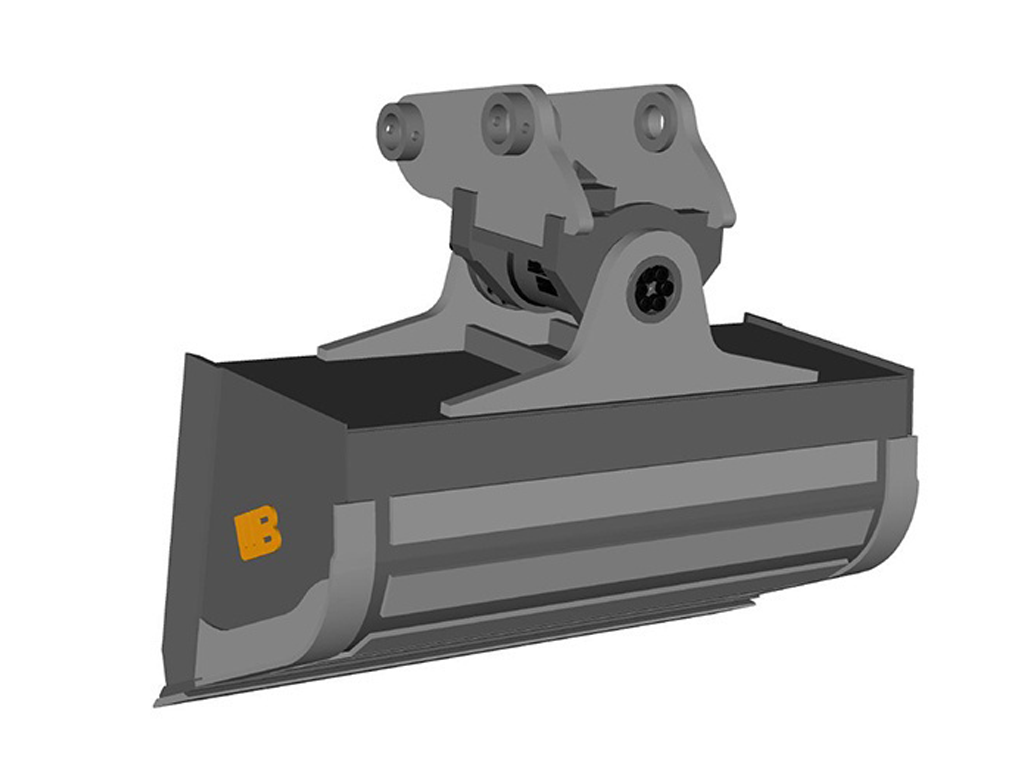

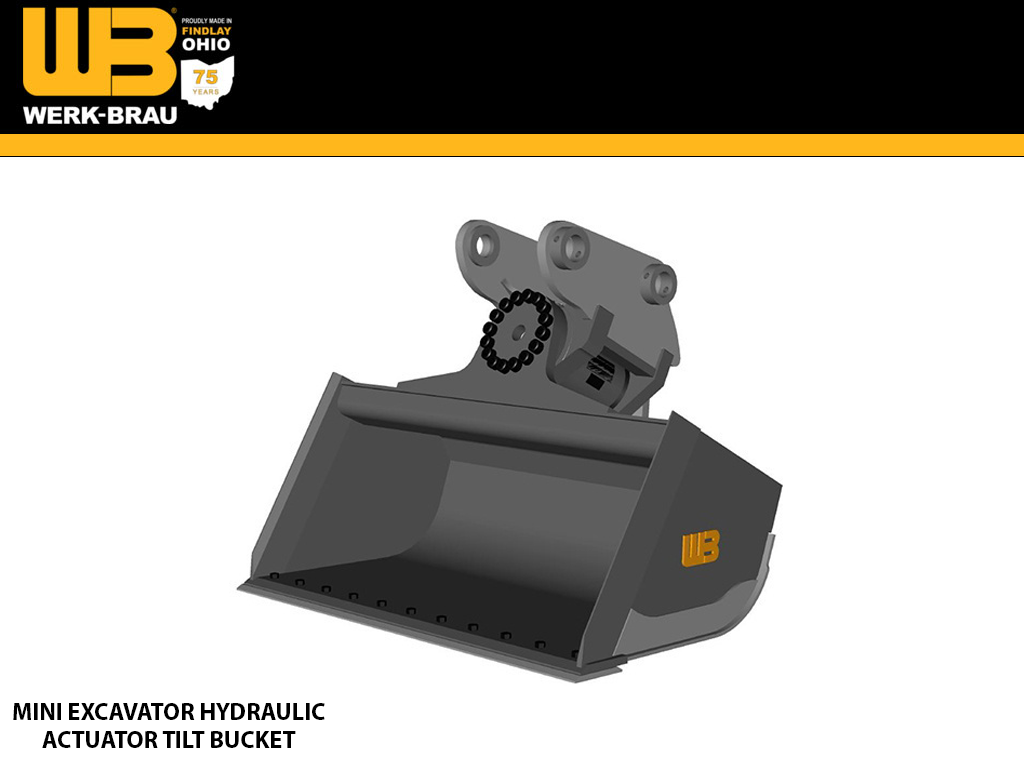

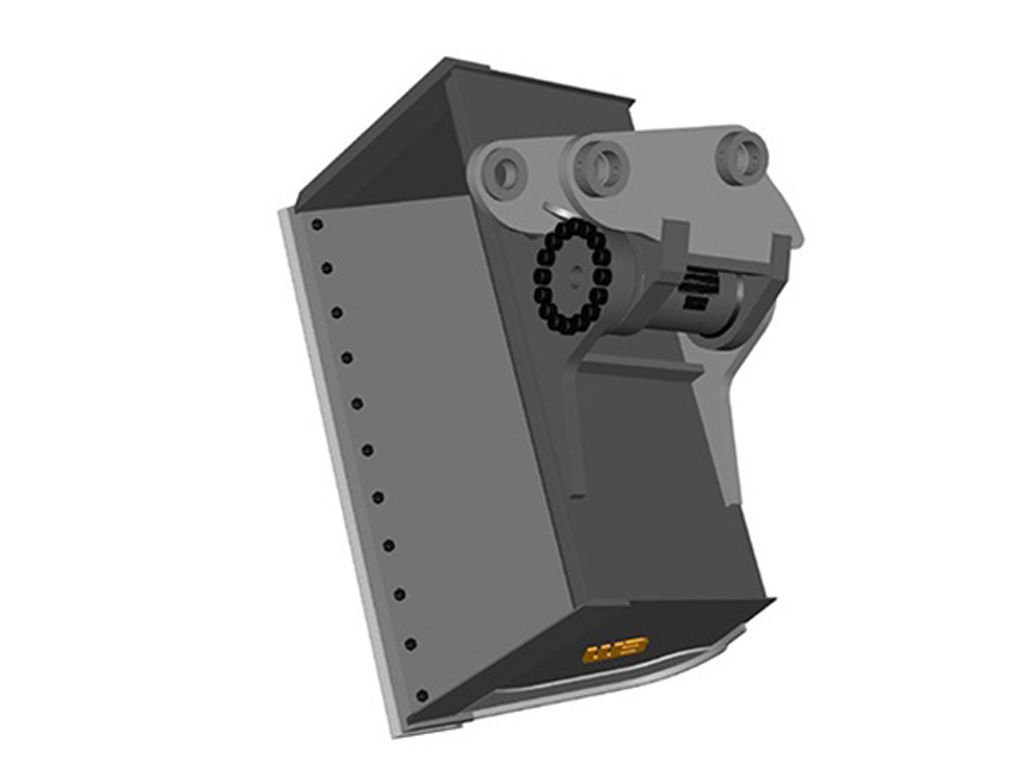

WERK-BRAU HYDRAULIC ACTUATOR TILT BUCKETS
Recommended Applications
With the Werk-Brau Actuator Tilt Ditching bucket, you can tilt any bucket up to 90 degrees each way (180 degrees total) vs. 45 degrees each way in a cylinder design. This bucket design eliminates minimum width constraints like a typical cylinder version.
Key Features
Instead of tilt cylinders, Werk-Brau offers their tilting grade bucket with a rotary actuator to achieve more tilting range of motion, tilting force, and also less downtime and maintenance. Productivity can increase by up to 50% by simply tilting your attachments. The tilting function is powered by a fully enclosed rotary actuator with improved tilt holding force. With no exposed cylinders, this bucket reduces downtime.
| PART # | WIDTH | CAPACITY | WEIGHT |
| WTB3-42-100 | 42" | 8.75 | 834 |
| WTB3-48-100 | 48" | 10.00 | 872 |
| MAKE | MODEL |
| CASE | 480, 570MXT, 580, 590, 680 |
| CAT | 416B, 416C, 426B, 426C. 428B, 428C, 428D, 436B, 436C, 438 |
| FORD | 455, 555, 575, 655, 675 |
| JCB | 1400, 1500, 217-3/S-3 |
| JOHN DEERE | 310A/B, 310C/D, 310SE/410E, 310SG-SL, 410G-L, 320P |
| NEW HOLLAND | LB75/ .B, 555E, 575E, LB90, LB110, 655E, 675E, 115, 115B, B95, LV80 |
| TEREX | TX750, TX760, TX860 |
| VOLVO | BL70, BL71, BL60 |
