WTB5-48-100

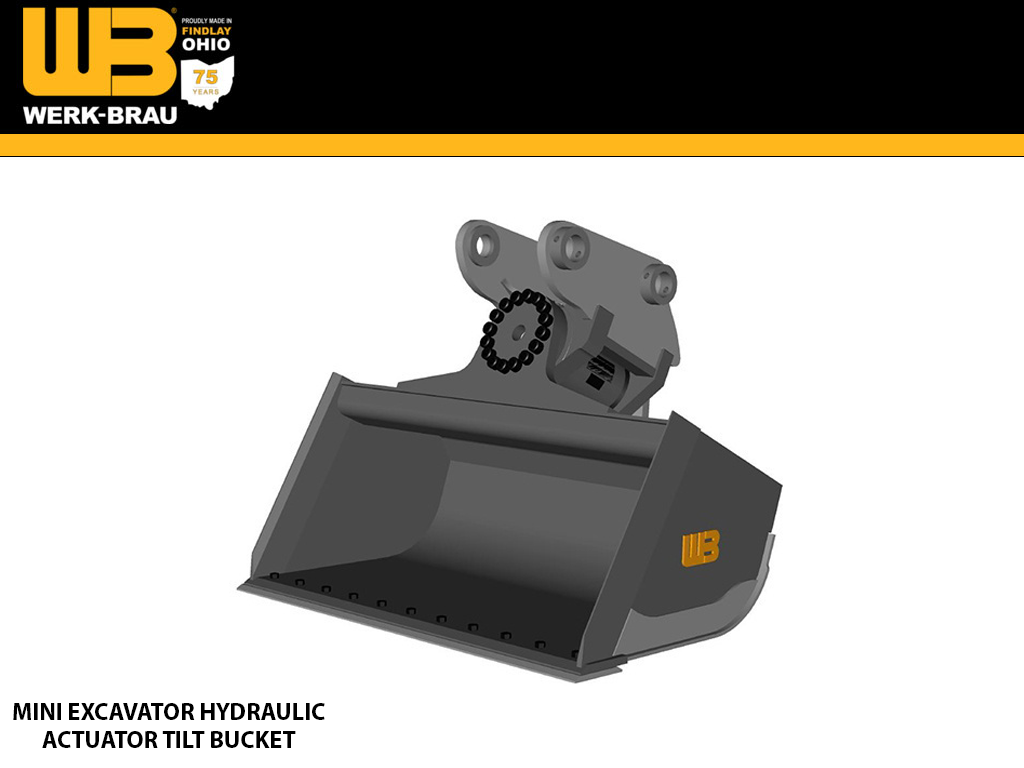

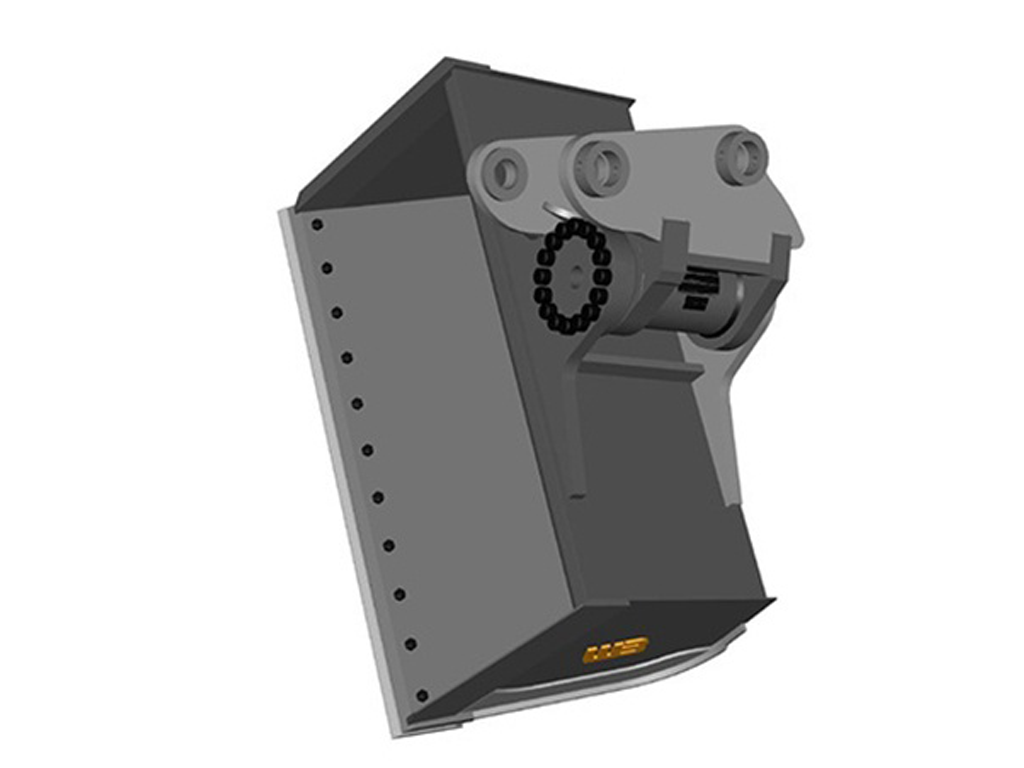

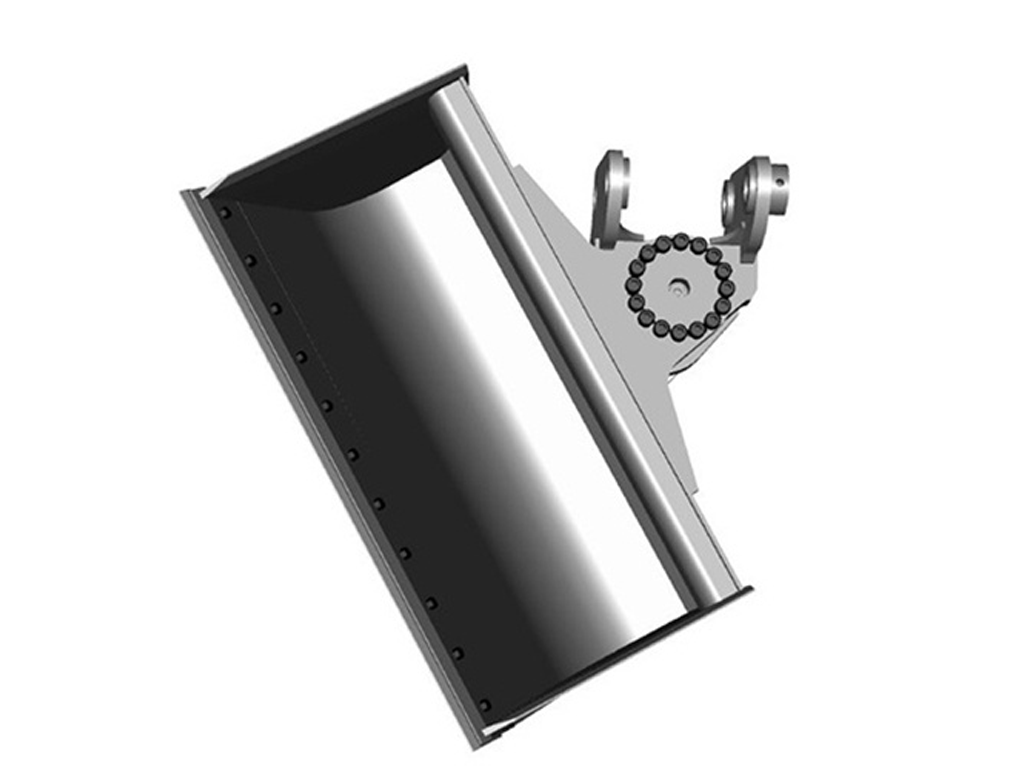

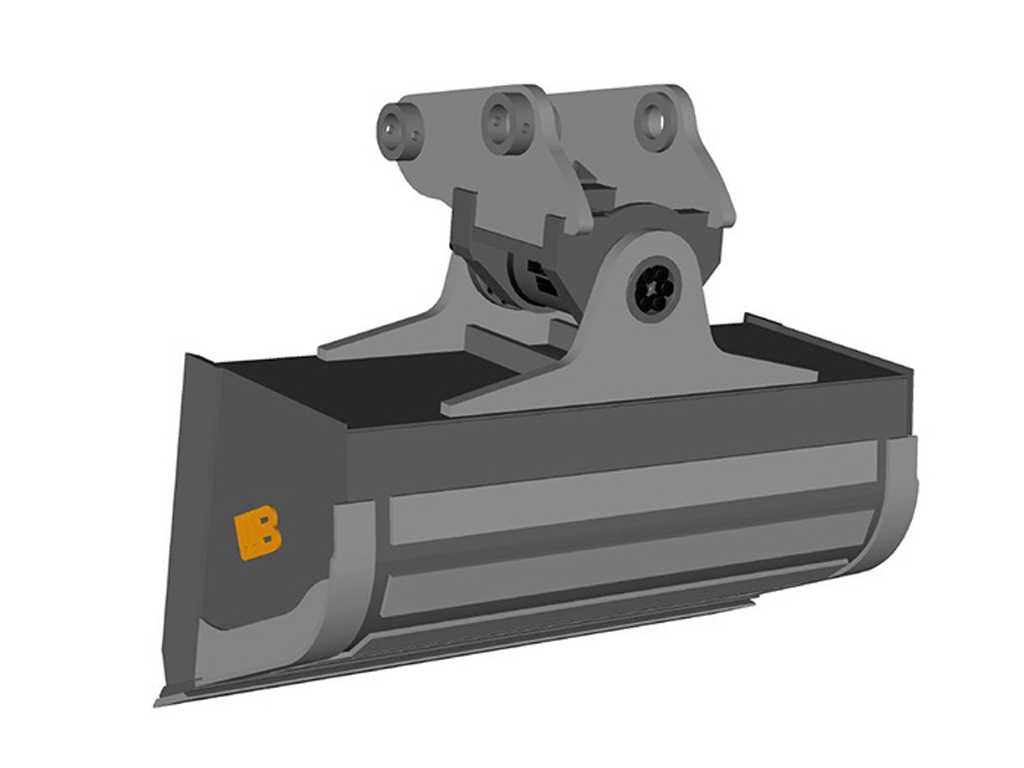

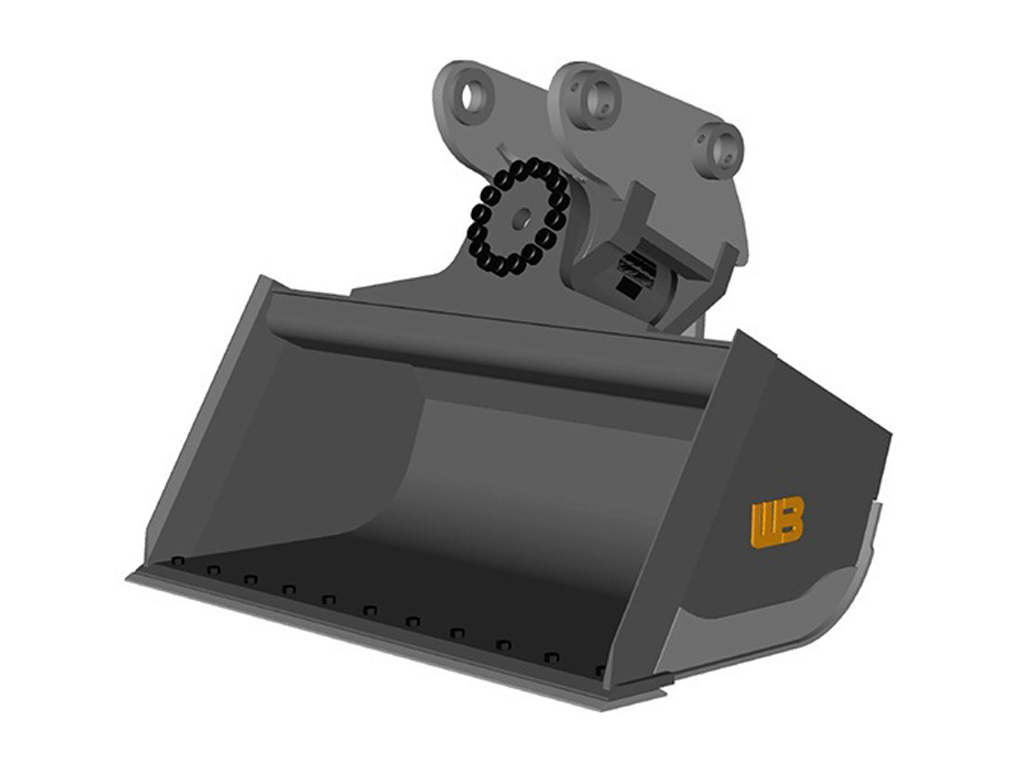

WERK-BRAU Hydraulic Actuator Tilt Bucket for 14,000 - 25,000 lbs. Excavators. (Mini 4 & 5)
$13,173.00 - $13,507.00
1/24
WERK-BRAU HYDRAULIC ACTUATOR TILT BUCKETS
Recommended Applications
With the Werk-Brau Actuator Tilt Ditching bucket, you can tilt any bucket up to 90 degrees each way (180 degrees total) vs. 45 degrees each way in a cylinder design. This bucket design eliminates minimum width constraints like a typical cylinder version.
Key Features
Instead of tilt cylinders, Werk-Brau offers their tilting grade bucket with a rotary actuator to achieve more tilting range of motion, tilting force, and also less downtime and maintenance. Productivity can increase by up to 50% by simply tilting your attachments. The tilting function is powered by a fully enclosed rotary actuator with improved tilt holding force. With no exposed cylinders, this bucket reduces downtime.
| PART # | WIDTH | CAPACITY | WEIGHT |
| WTB5-48-100 | 48" | 10.00 |
934 |
| WTB5-54-100 | 54" | 11.20 | 994 |
MINI 4
| MAKE / WEIGHT CLASS | MINI 4 (14,000 - 16,000 LBS.) |
| BOBCAT | |
| CASE | CX75, CX80 |
| CAT | 307.5, 308CR, 308CRVAB, 309CR, 309CRVAB |
| DOOSAN | DX85SR-3 |
| DITCH WITCH | |
| GEHL | |
| HITACHI | ZX75, ZX80 |
| HYUNDAI | R80 |
| IHI | |
| JCB | 8080 |
| JOHN DEERE | 75G, 85G |
| KOBELCO | 70SR, 75SR, 80CS, SK85 |
| KOMATSU | |
| KUBOTA | KX080 |
| LINK BELT | 75, 80 |
| MUSTANG | |
| NEW HOLLAND | E70, E80 |
| SANY | SY75, SY80 |
| TAKEUCHI | TB070, TB175, TB180FR, TB285, TB290 |
| VOLVO | EC70, ECR88 |
| YANMAR | SV100, Vio-70, Vio75-a, Vio-80, B7-5A |
| WACKER NEUSON |
MINI 5
| MAKE / WEIGHT CLASS | MINI 5 (16,000 - 25,000 LBS.) |
| BOBCAT | 7X125 |
| CASE | |
| CAT | 310 |
| DOOSAN | |
| DITCH WITCH | |
| GEHL | GE1202 |
| HITACHI | ZX90, ZX100 |
| HYUNDAI | |
| IHI | |
| JCB | |
| JOHN DEERE | |
| KOBELCO | |
| KOMATSU | |
| KUBOTA | |
| LINK BELT | |
| MUSTANG | ME12002 |
| NEW HOLLAND | E90 |
| SANY | |
| TAKEUCHI | |
| VOLVO | |
| YANMAR | |
| WACKER NEUSON |
