HPL3100400
2/24

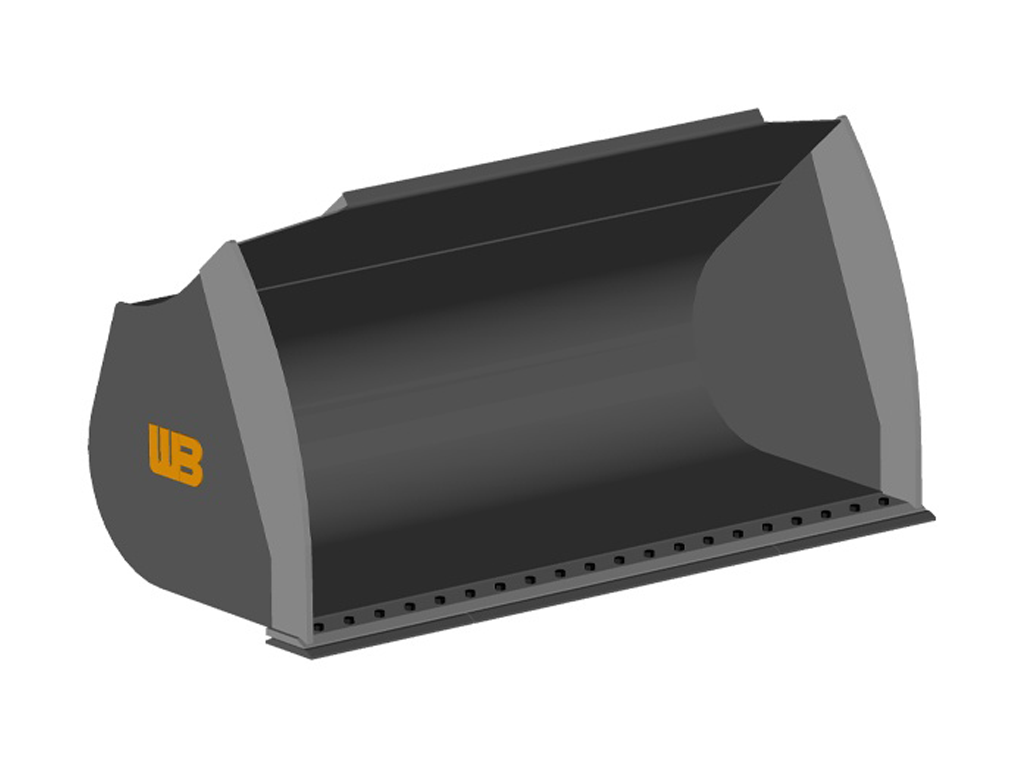

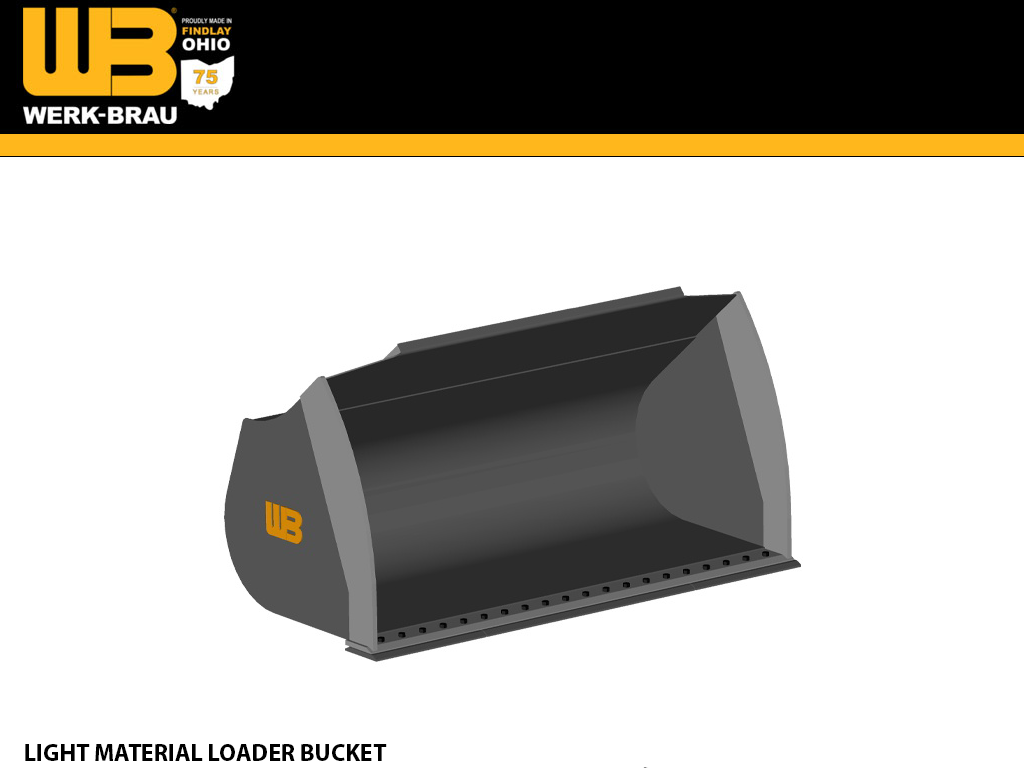

Specifically designed to dig in virgin soil and re-handle materials up to 2,000 lbs/cubic yard in density.
High-strength, abrasion-resistant steel is utilized in all critical components. All seams are welded solid for extra durability. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.
Auxiliary edge and teeth are available upon request.
7/8 cu. yd. to 6-1/2 cu. yd. of various widths are available. Special designs and capacities available upon request.
Bucket design incorporates an inclined bottom to reduce loading forces. Strong top design withstands high-digging forces exerted by today's machines. Special designs and capacities are available
PART # | WIDTH | CAPACITY | WEIGHT |
HPL3100400 | 100" | 4.00 | 2,750 |
HPL4100450 | 100" | 4.50 | 2,900 |
HPL3100500 | 100" | 5.00 | 3,050 |
HPL3100600 | 100" | 6.00 | 3,350 |
HPL3100650 | 100" | 6.50 | 3,525 |
CLASS 3 (26,000 - 30,000 LBS) | MODEL |
CASE | 621G |
CAT | 935, 936 |
DEVELON | DL220-5, DL220-7 |
HITACHI | ZW150 |
HYUNDAI | HL750 |
JCB | 426, 427 |
JOHN DEERE | 524, 544 |
KOMATSU | WA250, WA270 |
KUBOTA | |
LIEBHERR | L538 |
LINK-BELT | L140 |
NEW HOLLAND | LW130 |
SANY | SW305 |
TAKEUCHI | |
VOLVO | L70 |
WACKER NEUSON | |
YANMAR |
