HPL6132800

WERK-BRAU Light Material Loader buckets for Wheel loaders 51,000 - 68,000 lbs. (class 6)

Capacity

2/24

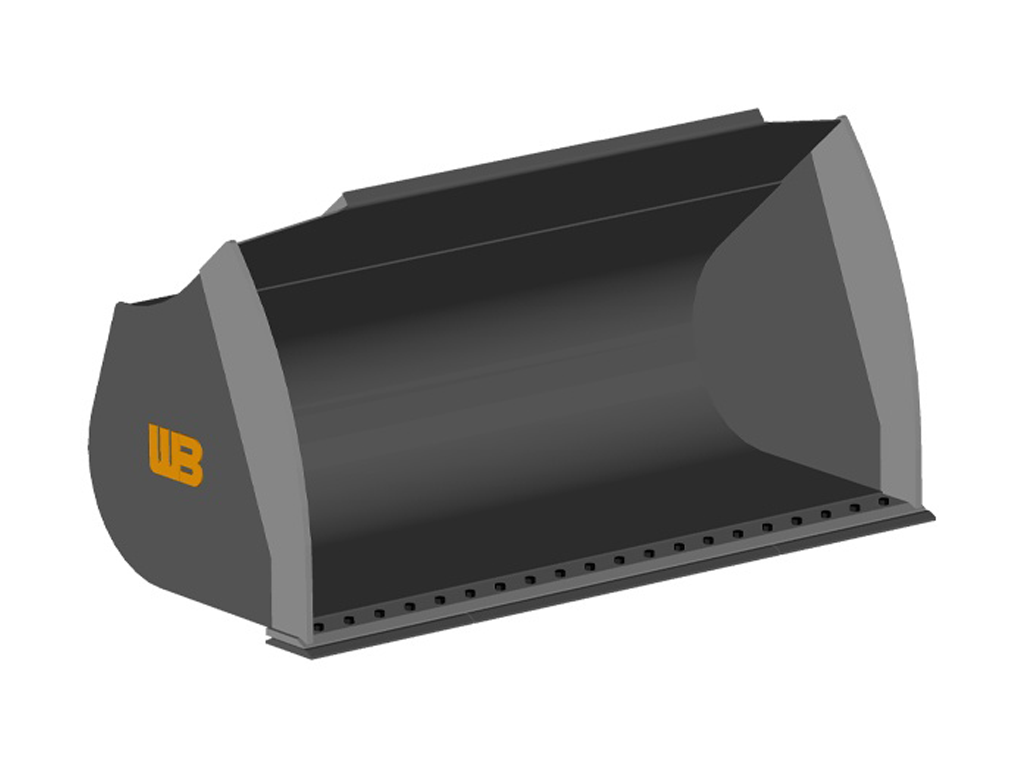

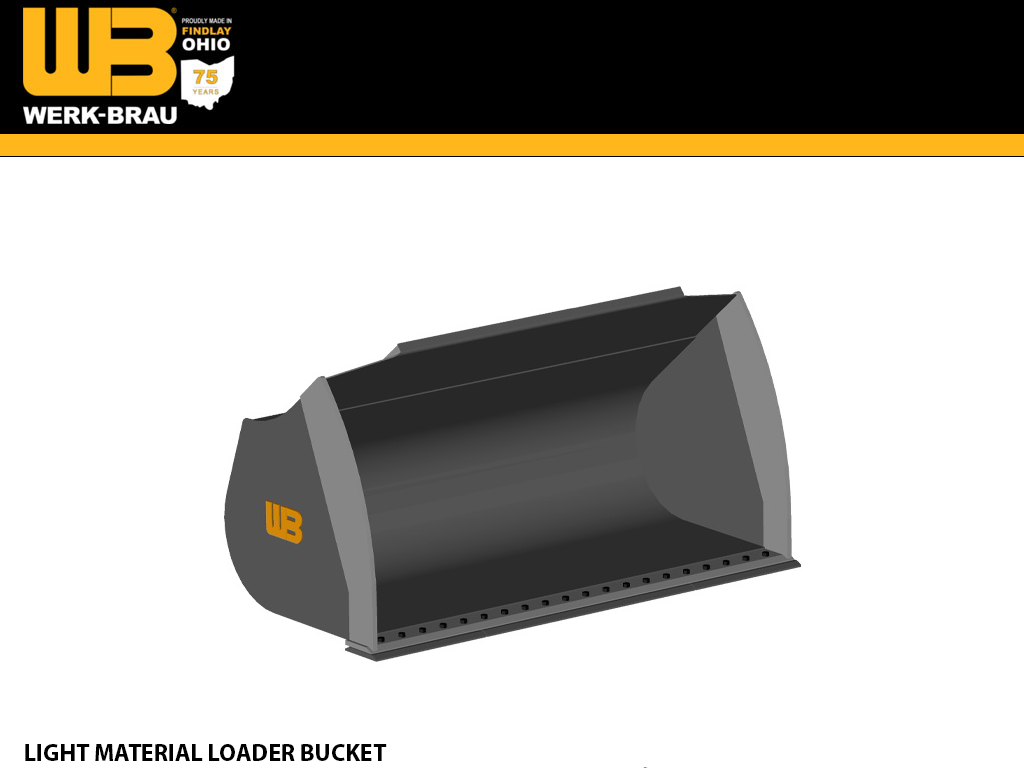

LIGHT MATERIAL LOADER BUCKET

Recommended Applications

Specifically designed to dig in virgin soil and re-handle materials up to 2,000 lbs/cubic yard in density.

Quality Construction

High-strength, abrasion-resistant steel is utilized in all critical components. All seams are welded solid for extra durability. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.

Cutting Equipment Options

Auxiliary edge and teeth are available upon request.

Standard Sizes

7/8 cu. yd. to 6-1/2 cu. yd. of various widths are available. Special designs and capacities available upon request.

Additional Features

Bucket design incorporates an inclined bottom to reduce loading forces. Strong top design withstands high-digging forces exerted by today's machines. Special designs and capacities are available

Features


  • Light material Design with enhanced high-performance profile
  • Ideal for material up to 2,000 lb/cy
  • Curved side plates & increased roll back angle allow for greater material retention
  • 5% + greater material retention
  • Ideal for fertilizer & feed applications to prevent spillage
  • Designed for handling materials such as corn, silage, hay, cottonseed, and other lightweight materials
  • Inclined bottom to reduce loading force

PART # WIDTH CAPACITY WEIGHT
HPL6132800 132" 8.00 6,400
HPL6132900 132" 9.00 6,600
HPL61381000 138" 10.00 6,850
CLASS 6
CLASS 6 (51,000 - 68,000 LBS) MODEL
CASE 1221
CAT 972, 980
DEVELON DL480-7, DL550-5, DL550-7
HITACHI ZW370
HYUNDAI HL780
JCB
JOHN DEERE 844
KOMATSU WA500
KUBOTA
LIEBHERR L576X, L580X, L586X
LINK-BELT
NEW HOLLAND
SANY
TAKEUCHI
VOLVO L180, L220
WACKER NEUSON
YANMAR
