EZG5MT-2H

WERK-BRAU Main Pin hydraulic thumb for excavators 16,000 - 25,000 lbs. (mini 5)

Style
Tines

1/24

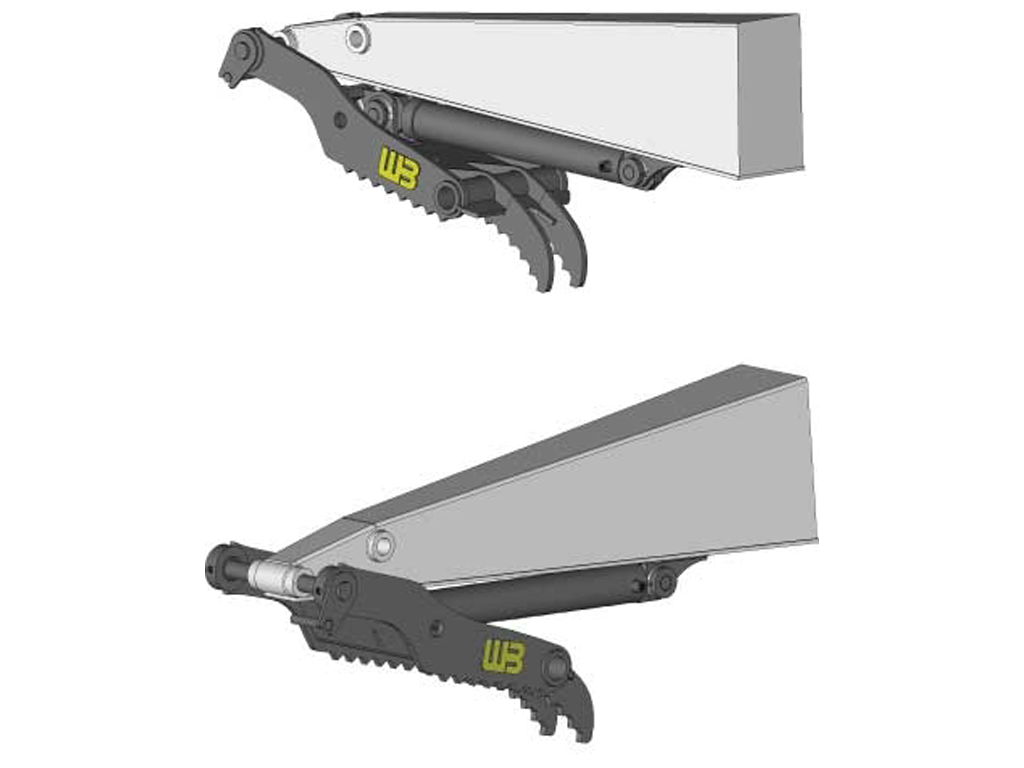

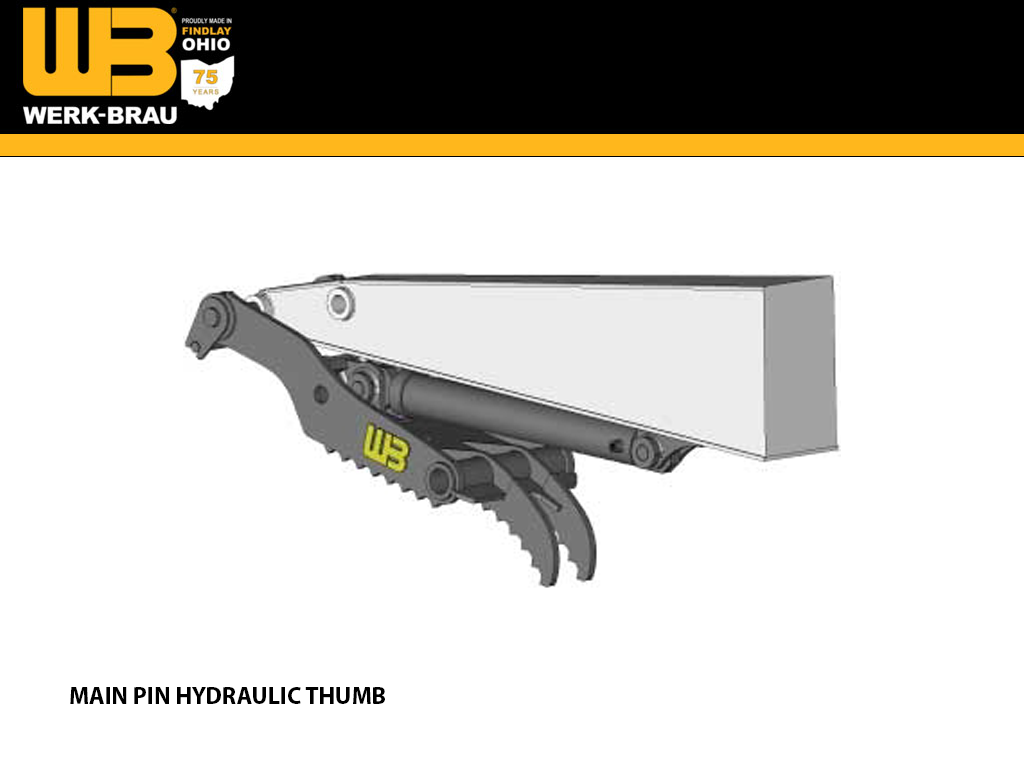

MAIN PIN HYDRAULIC THUMBS

Recommended Applications

Specifically designed to aid in handling or loading irregular shaped objects, debris, rocks, or anything that cannot be handled with a bucket alone. Because it retracts against the stick, it can be left on the machine during normal excavation. Not recommended for prying.

Quality Construction

High strength steel is used throughout.

Standard Sizes

Each unit is custom designed to match the bucket width and tip radius. This information is required when ordering.

Additional Features

Additional tines optional. Hydraulic or Rigid style available upon request. Special designs are available, please request a quote from your local dealer.

PART # DESCRIPTION WEIGHT
EZG5MT-2H 2 Tine main pin thumb (Hydraulic) 350
EZG5MT-3H 3 Tine main pin thumb (Hydraulic) 370
EZG5MT-4H 4 Tine main pin thumb (Hydraulic) 390

MINI 5

MAKE / WEIGHT CLASS MINI 5 (16,000 - 25,000 LBS.)
BOBCAT ZX125
CASE
CAT 310
DOOSAN
DITCH WITCH
GEHL GE1202
HITACHI ZX90, ZX100
HYUNDAI
IHI
JCB
JOHN DEERE
KOBELCO
KOMATSU
KUBOTA
LINK BELT
MUSTANG ME12002
NEW HOLLAND E90
SANY
TAKEUCHI
VOLVO
YANMAR
WACKER NEUSON
