EZG05MT-2H

WERK-BRAU Main Pin hydraulic thumb for excavators 2,100 - 5,000 lbs. (mini 05)

Style
Tines

1/24

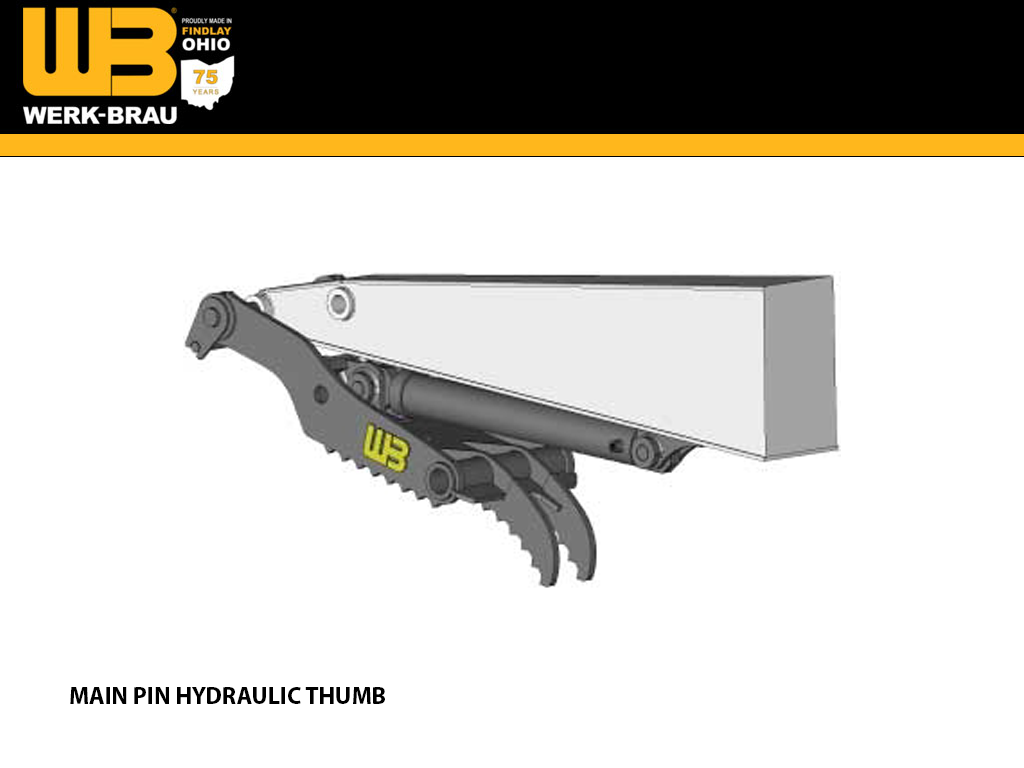

MAIN PIN HYDRAULIC THUMBS

Recommended Applications

Specifically designed to aid in handling or loading irregular shaped objects, debris, rocks, or anything that cannot be handled with a bucket alone. Because it retracts against the stick, it can be left on the machine during normal excavation. Not recommended for prying.

Quality Construction

High strength steel is used throughout.

Standard Sizes

Each unit is custom designed to match the bucket width and tip radius. This information is required when ordering.

Additional Features

Additional tines optional. Hydraulic or Rigid style available upon request. Special designs are available, please request a quote from your local dealer.

PART # DESCRIPTION WEIGHT
EZG05MT-2H 2 Tine main pin thumb (Hydraulic) 100
EZG05MT-3H 3 Tine main pin thumb (Hydraulic) 100
EZG05MT-2R 3 Tine main pin thumb (Rigid) 100
EZG05MT-3R 3 Tine main pin thumb (Rigid) 100


MINI 05

MAKE / WEIGHT CLASS MINI 05 (2,100 - 4,900 LBS.)
BOBCAT 323
CASE CX17B
CAT 301.5, 301.7CR, 301.8, 302CR
DOOSAN S015
DITCH WITCH XT850
GEHL GE153
HITACHI EX17U
HYUNDAI R16
IHI 15NX-2
JCB 8018
JOHN DEERE 17G
KOBELCO 17SR
KOMATSU PC18MR-3
KUBOTA KX018, U17
LINK BELT ME1503
MUSTANG E15, E18B
NEW HOLLAND SY16
SANY TB016, TB216
TAKEUCHI EC15B
VOLVO EC20B
YANMAR Vio17, SV08-1, Vio20-3
WACKER NEUSON EZ17, 1404, ET20
