EZG76MT-2H

WERK-BRAU Main Pin hydraulic thumb for excavators 2,100 - 5,000 lbs. (mini 76)

Style
Tines

1/24

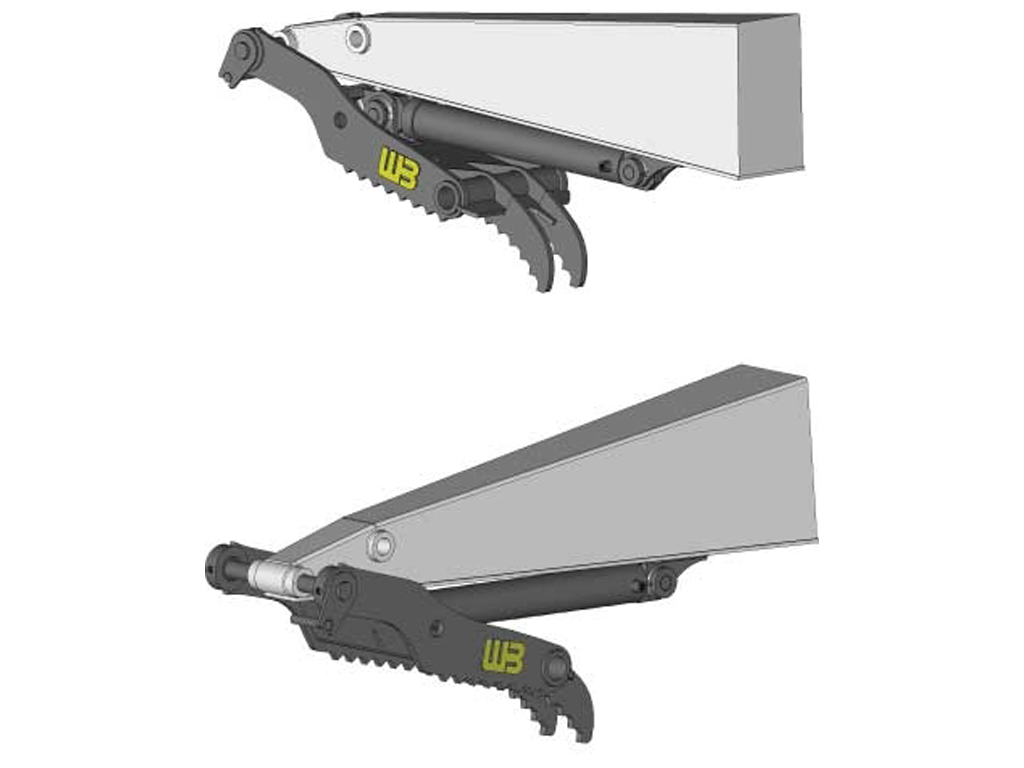

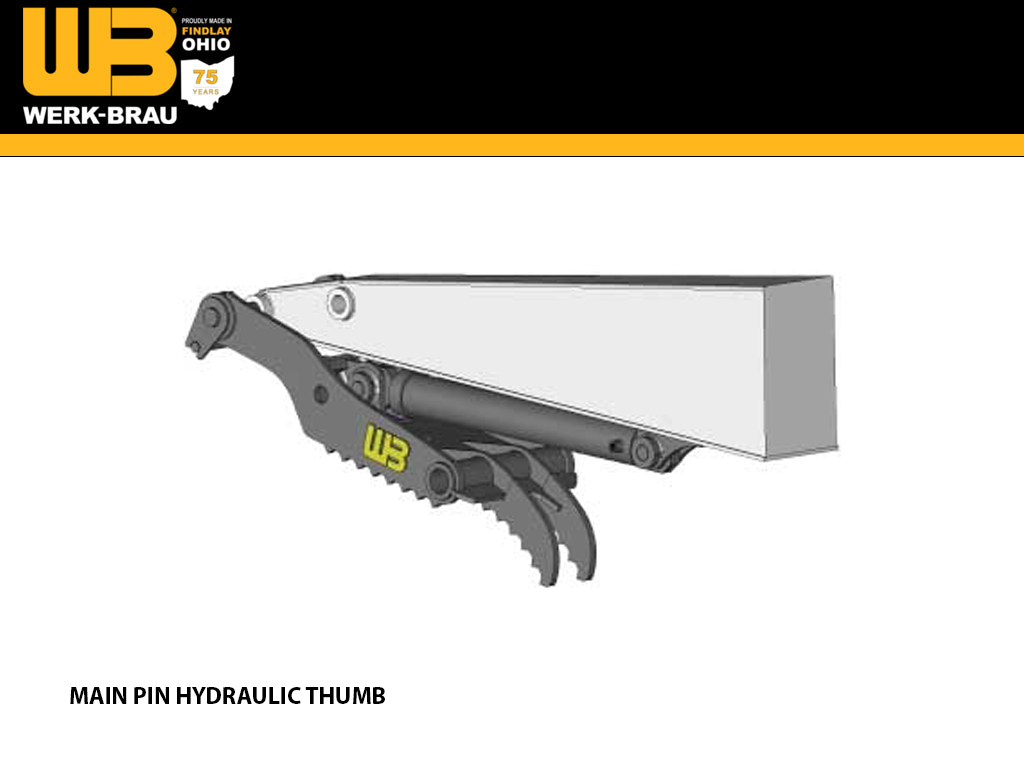

MAIN PIN HYDRAULIC THUMBS

Recommended Applications

Specifically designed to aid in handling or loading irregular shaped objects, debris, rocks, or anything that cannot be handled with a bucket alone. Because it retracts against the stick, it can be left on the machine during normal excavation. Not recommended for prying.

Quality Construction

High strength steel is used throughout.

Standard Sizes

Each unit is custom designed to match the bucket width and tip radius. This information is required when ordering.

Additional Features

Additional tines optional. Hydraulic or Rigid style available upon request. Special designs are available, please request a quote from your local dealer.

PART # DESCRIPTION WEIGHT
EZG76MT-2H 2 Tine main pin thumb (Hydraulic) 150
EZG76MT-3H 3 Tine main pin thumb (Hydraulic) 160
EZG76MT-2R 3 Tine main pin thumb (Rigid) 150
EZG76MT-3R 3 Tine main pin thumb (Rigid) 160


MINI 76

MAKE / WEIGHT CLASS MINI 76 (2,100 - 5,000 LBS.)
BOBCAT
CASE CX27B
CAT 302.5, 302.7
DOOSAN DX27
DITCH WITCH
GEHL GE223
HITACHI ZX27U-2
HYUNDAI R22
IHI 20JX(NX), 25(NX), 28(NX), 30JX(NX)
JCB 8025
JOHN DEERE 26G, 27G
KOBELCO 27SR
KOMATSU PC20MR-2
KUBOTA U25, U27
LINK BELT
MUSTANG ME2203
NEW HOLLAND E27
SANY
TAKEUCHI
VOLVO EC25, EC30, ECR28, ECR38
YANMAR
WACKER NEUSON
