EZG-EX12-2

WERK-BRAU Main Pin hydraulic thumb for excavators 24,000 - 33,000 lbs. (12MT)

Tines

1/24

MAIN PIN HYDRAULIC THUMBS

Recommended Applications

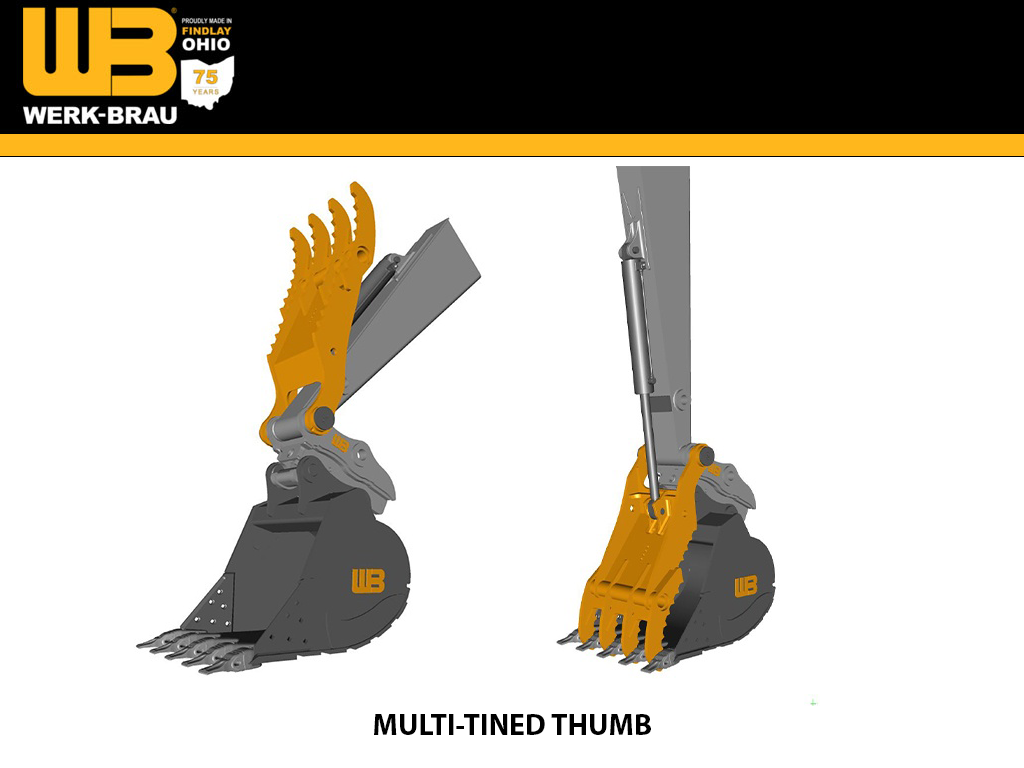

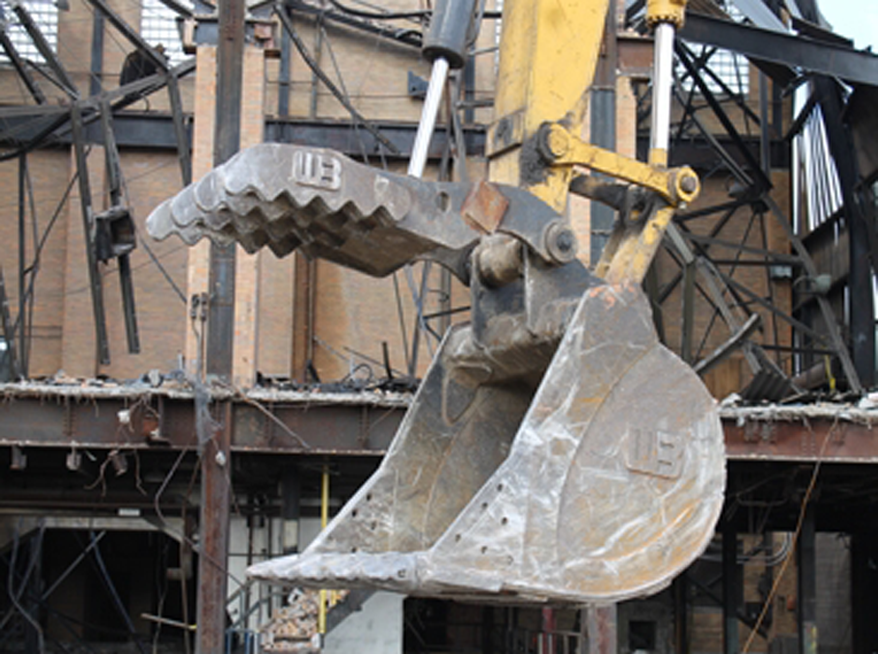

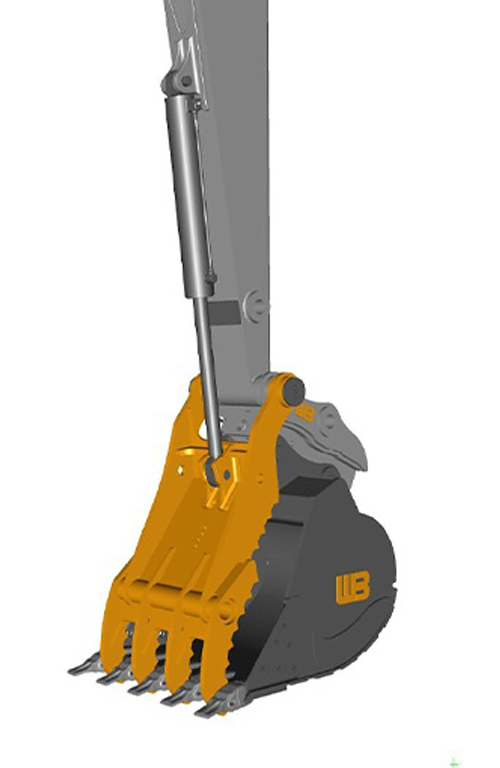

Werk-Brau's Multi-Tined Thumb for Excavators is specifically engineered to aid in handling or loading irregular shaped objects, debris, logs, rocks, or anything that cannot be handled with a bucket alone. Because it retracts against the stick, it can be left on the machine during normal excavation. This thumb is not recommended for prying. Each thumb has a standard 120 degree rotation.

Quality Construction

Each thumb is custom designed to match the tip radius of the bucket it is being paired with. High strength steel is used throughout entire weldment. This thumb features hardened pins, and greasable bushings at all pivot points.

Standard Sizes

Each unit is custom designed to match the bucket width and tip radius. This information is required when ordering.

Features

  • 120 degree standard rotation
  • does not include jumper hose kit
  • info form must be completed when thumb is working with any non Werk-Brau attachment

PART # NUMBER OF TINES WEIGHT
EZG-EX12-2 2 620
EZG-EX12-3
670
EZG-EX12-4
4
740
MAKE / WEIGHT CLASS 12MT (24,000 - 33,000 LBS.)
CASE CX130, CX145D, CX140E
CAT 311, 313, 314F, 315F (A-Linkage)
DOOSAN DX140LC-5, DX140LCR-5, DX140W-5
HITACHI ZX130
HYUNDAI HX140, HX145, HX220 LR
JOHN DEERE 130G, 135G, 130P
KOBELCO SK140, ED160
KOMATSU PC138
LIEBHERR
LINK BELT 130X4, 145X4, 210X4 LR
SANY SY135, SY235 LR, SY265 LR
TAKEUCHI TB1140, TB2150
VOLVO EW140, EC140, ECR145
