EZG-EX15-2

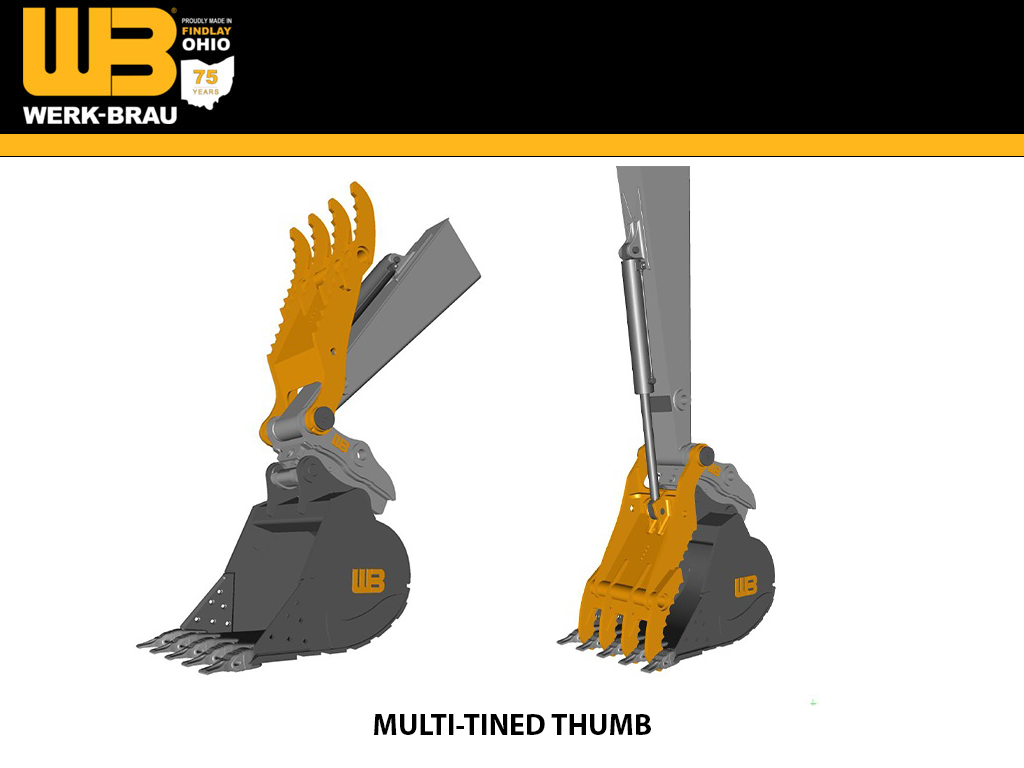

WERK-BRAU Main Pin hydraulic thumb for excavators 33,000 - 42,000 lbs. (15MT)

Tines

1/24

MAIN PIN HYDRAULIC THUMBS

Recommended Applications

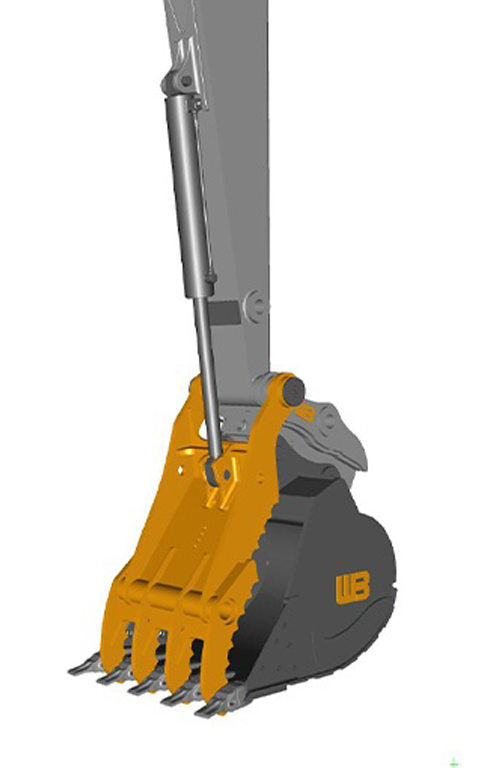

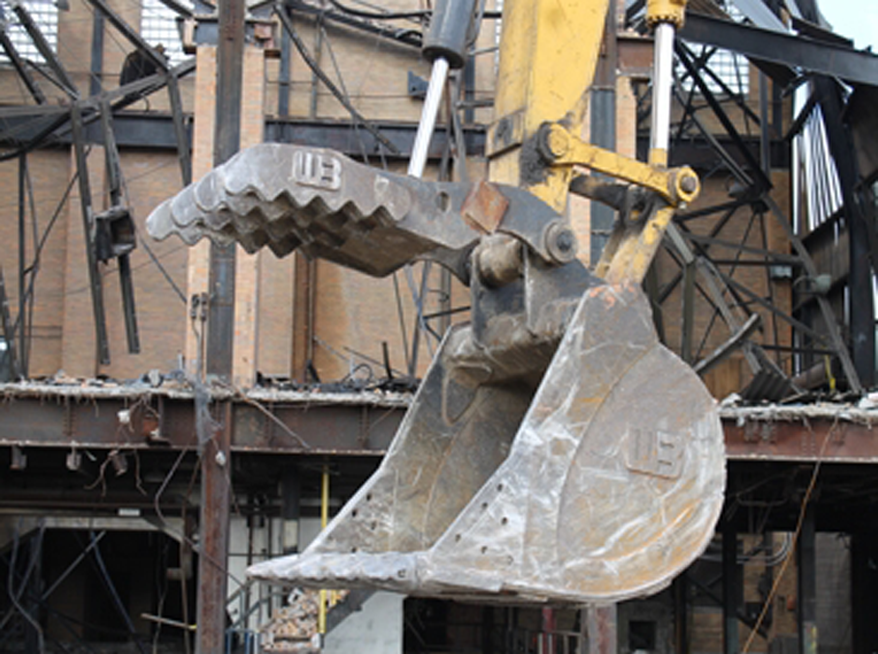

Werk-Brau's Multi-Tined Thumb for Excavators is specifically engineered to aid in handling or loading irregular shaped objects, debris, logs, rocks, or anything that cannot be handled with a bucket alone. Because it retracts against the stick, it can be left on the machine during normal excavation. This thumb is not recommended for prying. Each thumb has a standard 120 degree rotation.

Quality Construction

Each thumb is custom designed to match the tip radius of the bucket it is being paired with. High strength steel is used throughout entire weldment. This thumb features hardened pins, and greasable bushings at all pivot points.

Standard Sizes

Each unit is custom designed to match the bucket width and tip radius. This information is required when ordering.

Features

  • 120 degree standard rotation
  • does not include jumper hose kit
  • info form must be completed when thumb is working with any non Werk-Brau attachment
PART # NUMBER OF TINES WEIGHT
EZG-EX15-2 2 700
EZG-EX15-3
750
EZG-EX15-4
4
800
MAKE / WEIGHT CLASS 15MT (33,000 - 42,000 LBS.)
CASE CX160, CX170E, CX190E
CAT 315D, 316F, 318F, M318F
DOOSAN DX180LC-5, DX190W-5
HITACHI ZX160
HYUNDAI HX160, HX180
JOHN DEERE 160G, 160P
KOBELCO ED195, SK170
KOMATSU PC170
LIEBHERR
LINK BELT 160X4
SANY
TAKEUCHI
VOLVO EW160, EW180, EC160, EC180
