EZG1MT-2H

WERK-BRAU Main Pin hydraulic thumb for excavators 5,000 - 11,000 lbs. (mini 1 ) (mini 15) (mini 2)

Style
Tines

1/24

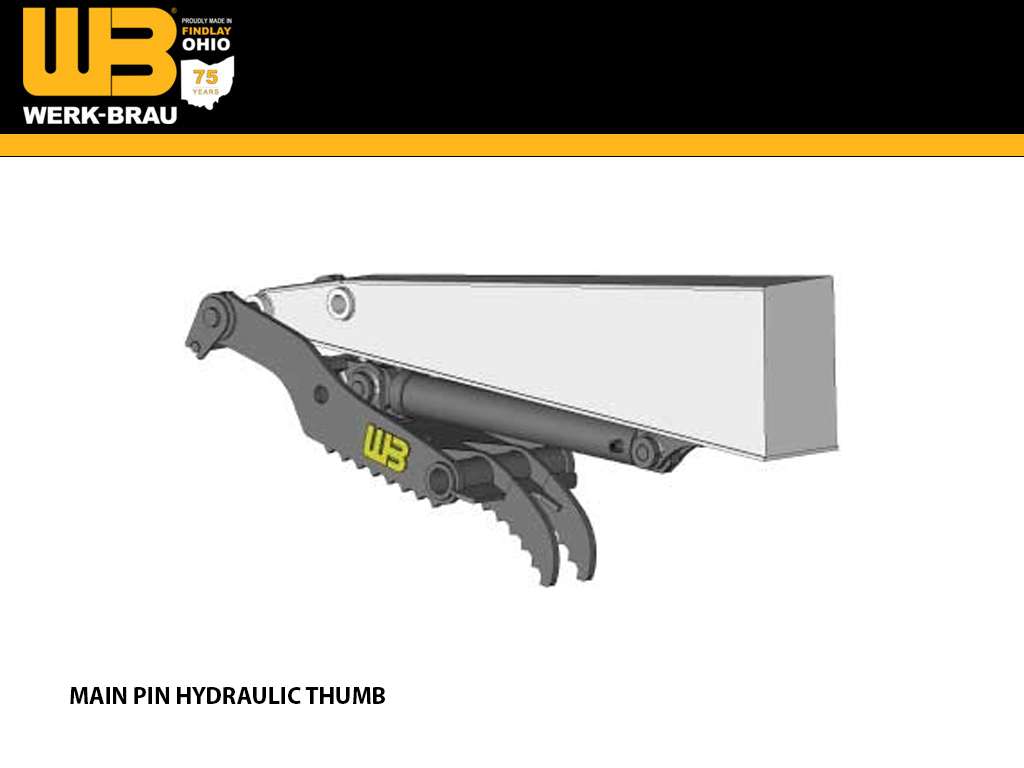

MAIN PIN HYDRAULIC THUMBS

Recommended Applications

Specifically designed to aid in handling or loading irregular shaped objects, debris, rocks, or anything that cannot be handled with a bucket alone. Because it retracts against the stick, it can be left on the machine during normal excavation. Not recommended for prying.

Quality Construction

High strength steel is used throughout.

Standard Sizes

Each unit is custom designed to match the bucket width and tip radius. This information is required when ordering.

Additional Features

Additional tines optional. Hydraulic or Rigid style available upon request. Special designs are available, please request a quote from your local dealer.

PART # DESCRIPTION WEIGHT
EZG1MT-2H 2 Tine main pin thumb (Hydraulic) 200
EZG1MT-3H 3 Tine main pin thumb (Hydraulic) 210
EZG1MT-4H 4 Tine main pin thumb (Hydraulic) 225
EZG1MT-2R 2 Tine main pin thumb (Rigid) 200
EZG1MT-3R 3 Tine main pin thumb (Rigid) 210
EZG1MT-4R 4 Tine main pin thumb (Rigid) 225


MINI 1

MAKE / WEIGHT CLASS MINI 1 (5,000 - 7,500 LBS.)
BOBCAT 325, 328(D), 331(D/E), 334(D), 430, 329, E35, 425
CASE CX31B, CX36B, CX37C
CAT 302.7DCR, 303ECR
DOOSAN DX30, DX35
DITCH WITCH XT1600
GEHL GE283X, GE303, GE353, GE383Z
HITACHI ZX35U-2
HYUNDAI R35, R36
IHI 35N-2
JCB 2CX, 8030, 8035, MIDI
JOHN DEERE 35G
KOBELCO 30SR, 35SR
KOMATSU PC27MR-3, PC35MR-3
KUBOTA U35, U48, KX033, KX040, KX71
LINK BELT
MUSTANG ME3003, 2803ZT, ME3503, ME3703, 3803ZT
NEW HOLLAND E30, E35
SANY SY26, SY35
TAKEUCHI TB125, TB135, TB228, TB240, TB138FR, TB235
VOLVO EC35C, ECR48C
YANMAR Vio27-5, Vio35-5, Vio45-5, Vio-50
WACKER NEUSON EZ28, EZ38, 3503



MINI 15

MAKE / WEIGHT CLASS MINI 15 (7,500 - 11,000 LBS.)
BOBCAT 335, 337, 341, 435, E45, E50, E55, E60
CASE CX50B, CX55B, CX57C, CX60C
CAT 303.5E2CR, 304E2CR, 304.5E2XTC, 305E2CR, 305.5E2CR
DOOSAN DX60, DX63-3
DITCH WITCH
GEHL GE503Z, GE603
HITACHI ZX50, AX60
HYUNDAI R55, R60
IHI 40JX, 45JX
JCB 8040, 8045, 8052
JOHN DEERE 50G
KOBELCO 50SR, 55SRX
KOMATSU PC45MR-3, PC55MR-3, PC58UU-3
KUBOTA U55, KX057
LINK BELT
MUSTANG 5003ZT, 6003
NEW HOLLAND E50, E55BX
SANY SY50, SY60
TAKEUCHI TB145, TB153FR, TB250, TB260
VOLVO EC55B, ECR58
YANMAR Vio55-5
WACKER NEUSON ET65, EW65, EZ53, 6003



MINI 2

MAKE / WEIGHT CLASS MINI 2 (7,500 - 11,000 LBS.)
BOBCAT
CASE
CAT
DOOSAN
DITCH WITCH
GEHL
HITACHI
HYUNDAI
IHI
JCB
JOHN DEERE 60G
KOBELCO
KOMATSU
KUBOTA
LINK BELT
MUSTANG
NEW HOLLAND
SANY
TAKEUCHI
VOLVO
YANMAR
WACKER NEUSON
