EZG-EX25-3
11/24

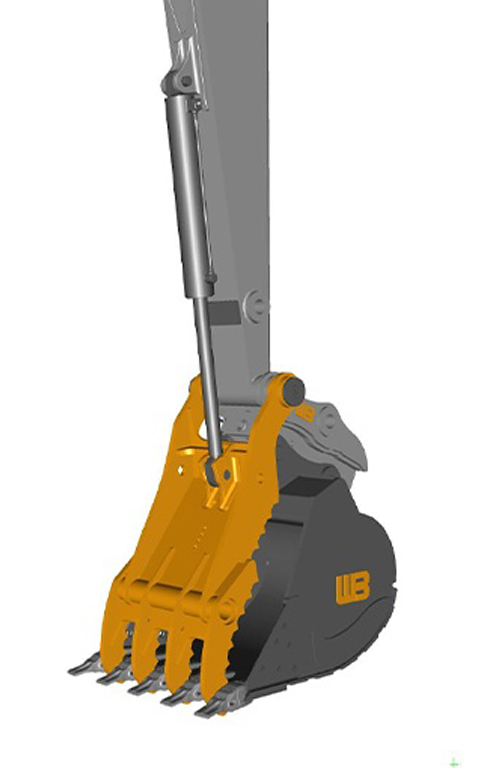

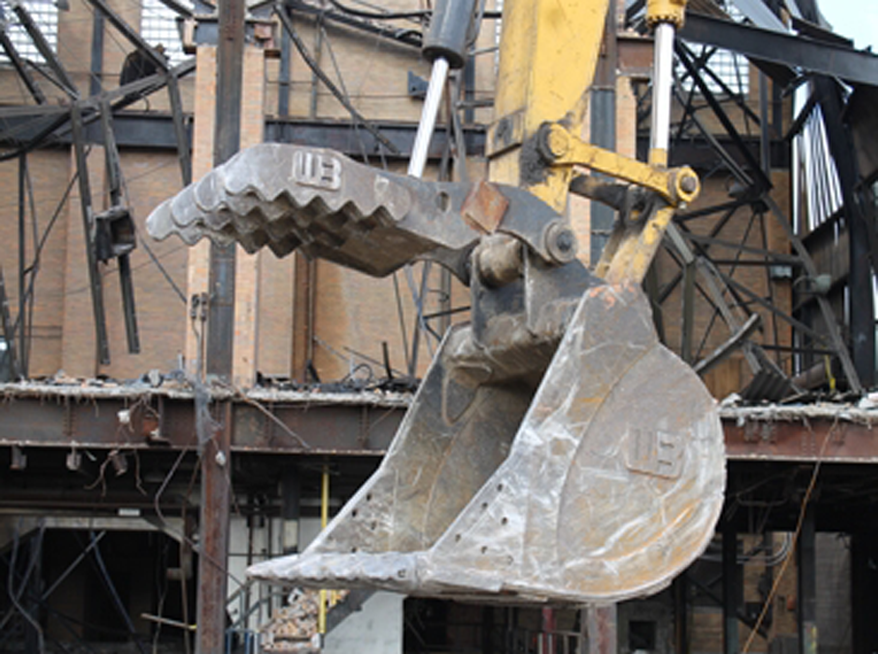

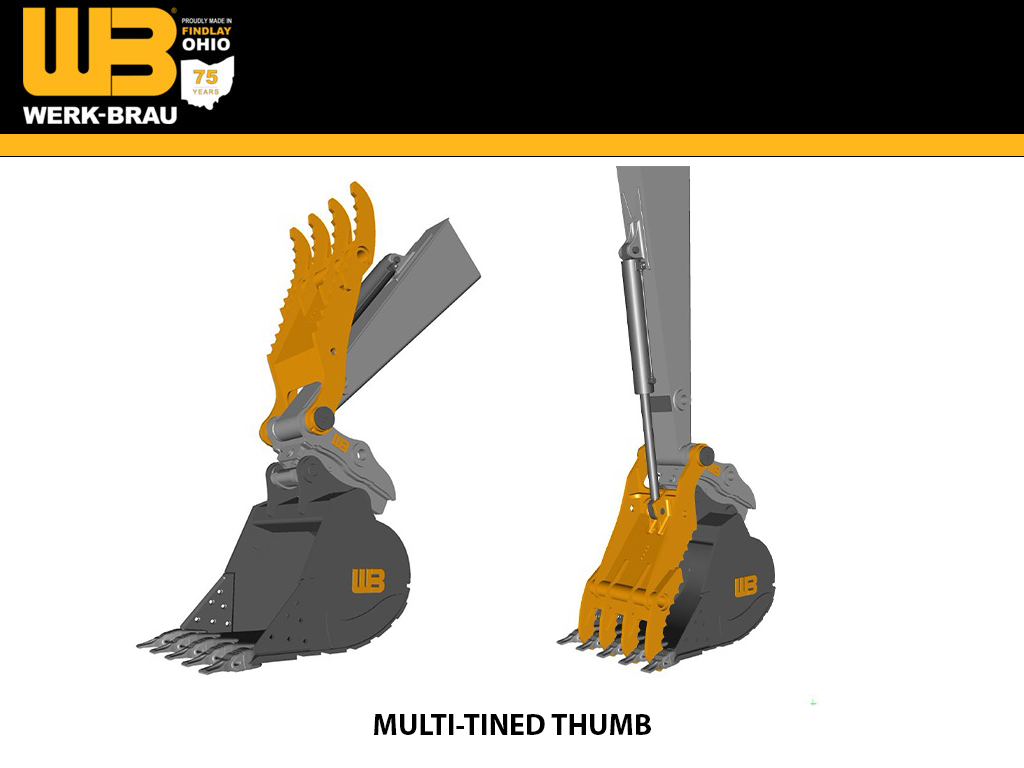

Werk-Brau's Multi-Tined Thumb for Excavators is specifically engineered to aid in handling or loading irregular shaped objects, debris, logs, rocks, or anything that cannot be handled with a bucket alone. Because it retracts against the stick, it can be left on the machine during normal excavation. This thumb is not recommended for prying. Each thumb has a standard 120 degree rotation.
Each thumb is custom designed to match the tip radius of the bucket it is being paired with. High strength steel is used throughout entire weldment. This thumb features hardened pins, and greasable bushings at all pivot points.
Each unit is custom designed to match the bucket width and tip radius. This information is required when ordering.
PART # | NUMBER OF TINES | WEIGHT |
EZG-EX25-3 | 3 |
1240 |
EZG-EX25-4 |
4 |
1280 |
EZG-EX25-5 | 5 | 1380 |
MAKE / WEIGHT CLASS | 25MT (50,000 - 59,000 LBS.) |
CASE | CX250, CX260E |
CAT | 325, 326F |
DOOSAN | DX255LC-5 |
HITACHI | ZX240, ZX250 |
HYUNDAI | HX260 |
JOHN DEERE | 250G, 250P |
KOBELCO | SK260LC |
KOMATSU | PC240 |
LIEBHERR | R 916 L, R 924 L, R 934 CD |
LINK BELT | 250X3, 250X4 |
SANY | SY235, SY265 |
TAKEUCHI | |
VOLVO | EC240, EC250 |
