EZG-EX30-3

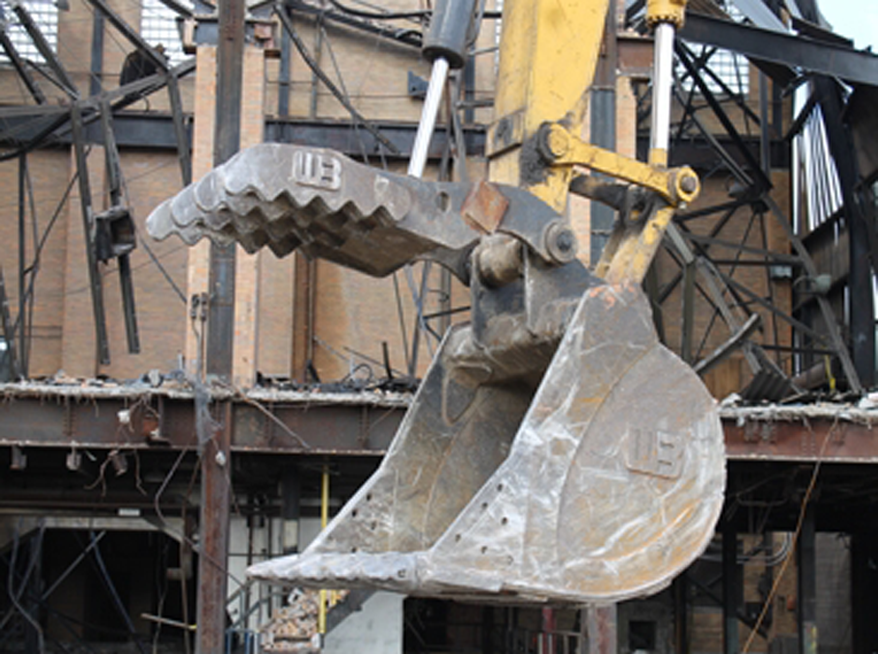

WERK-BRAU Main Pin hydraulic thumb for excavators 59,000 - 68,000 lbs. (30MT)

Tines

1/24

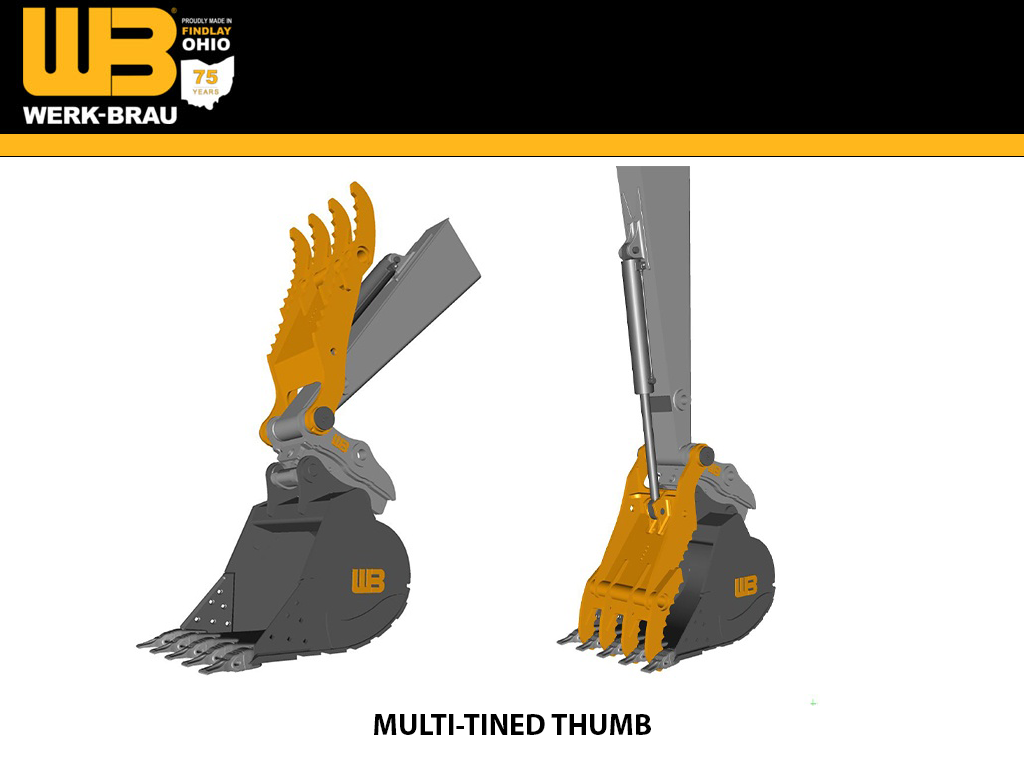

MAIN PIN HYDRAULIC THUMBS

Recommended Applications

Werk-Brau's Multi-Tined Thumb for Excavators is specifically engineered to aid in handling or loading irregular shaped objects, debris, logs, rocks, or anything that cannot be handled with a bucket alone. Because it retracts against the stick, it can be left on the machine during normal excavation. This thumb is not recommended for prying. Each thumb has a standard 120 degree rotation.

Quality Construction

Each thumb is custom designed to match the tip radius of the bucket it is being paired with. High strength steel is used throughout entire weldment. This thumb features hardened pins, and greasable bushings at all pivot points.

Standard Sizes

Each unit is custom designed to match the bucket width and tip radius. This information is required when ordering.

Features

  • 120 degree standard rotation
  • does not include jumper hose kit
  • info form must be completed when thumb is working with any non Werk-Brau attachment
PART # NUMBER OF TINES WEIGHT
EZG-EX30-3
1,260
EZG-EX30-4
4
1,320
MAKE / WEIGHT CLASS 30MT (59,500 - 68,000 LBS.)
CASE CX300, CX365E
CAT 326, 328, 329, 335F, CB-LINKAGE
DOOSAN DX300LC-5, DX300LC-5SLR
HITACHI ZX300, ZX345
HYUNDAI HX300
JOHN DEERE 300G, 345G, 300P
KOBELCO SK300
KOMATSU PC270, PC290, PC308
LIEBHERR
LINK BELT 300X3, 300X4, 355X4
SANY SY365
TAKEUCHI
VOLVO EC330, EC340, EC350, EC360, EC380
