WLFC4-96-2 / FK4.5-60

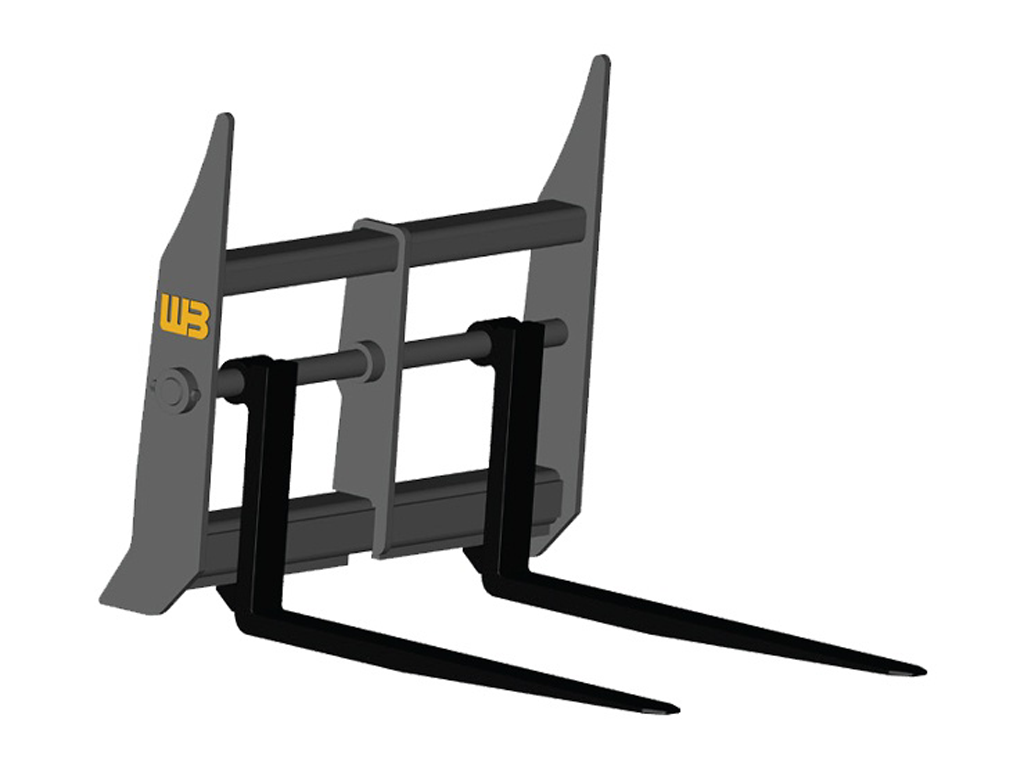

WERK-BRAU Manual Adjustable Forks for Wheel loaders 33,000 - 43,000 lbs. (class 4)
$15,606.00 - $24,253.00
3/24

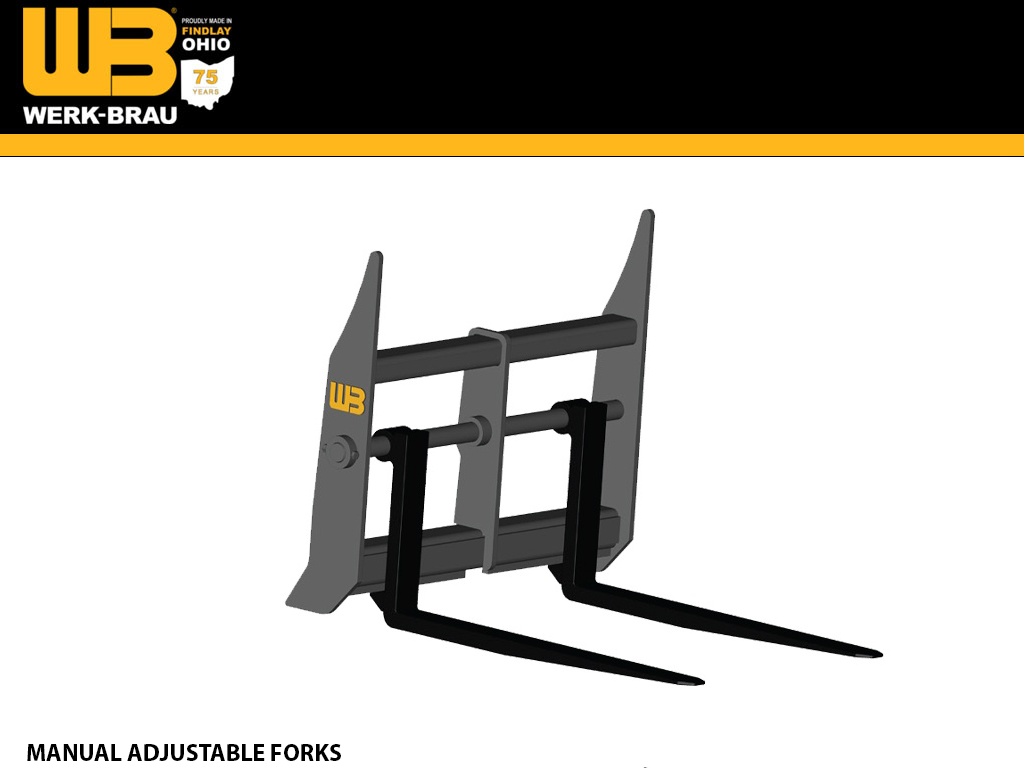

MANUAL ADJUSTABLE FORKS
Recommended Applications
For the removal or displacement of palletized material and/or pipe.
Quality Construction
High strength steel construction with high tensile strength forged forks for long wear. Tines are tapered to prevent wedging.
Standard Sizes
Tine lengths range from 48"-96" -- Tine width placements range from 12"-96"
Additional Features
Available with Werk-Brau front coupler or pin-up connection. For carriage information, see chart blow or call and speak to a sales rep. Anti-swing is standard, see chart below or call to speak to a sales representative. Special designs and capacities are available
- Tines are manually adjustable
- Anti-swing (standard)
- Forks exceed ISO 2330 and ASME standards
- Tapered tines for easier loading
- Lock out position bolt standard
Carriage
| PART # | WIDTH | BAR DIAMETER | WEIGHT |
| WBLCF4-96-2 | 96" | 4.0" | 1400 |
| WBLCF4-105-2 | 105" | 4.0" | 1500 |
Forks
| PART # | TINE LENGTH | TINE THICKNESS | TINE WIDTH | BAR DIA | BACK HEIGHT | WEIGHT PER/TOTAL | CAP @ 24" | CAP @ 36" | CAP @ 48" |
| FK4.5-60 | 60" | 3.0" | 7.0" | 4.00" | 36.0" | 510/1020 | 34,200 | 22,800 | 17,000 |
| FK4.5-72 | 72" | 3.0" | 7.0" | 4.00" | 36.0" | 590/1180 | 34,200 | 22,800 | 17,000 |
| FK4.5-84 | 84" | 3.0" | 7.0" | 4.00" | 36.0" | 980/1960 | 34,200 | 22,800 | 17,000 |
| FK4.5-96 | 96" | 3.0" | 7.0" | 4.00" | 36.0" | 980/1960 | 34,200 | 22,800 | 17,000 |
| CLASS 4 (33,000 - 43,000 LBS) | MODEL |
| CASE | 821G, 921G |
| CAT | 950, 960, 962, IT62 |
| DEVELON | DL300-5, DL320-7, DL350-5, DL380-7 |
| HITACHI | ZW220, ZW250 |
| HYUNDAI | HL960, HL760 |
| JCB | 456, 457 |
| JOHN DEERE | 644, 724 |
| KOMATSU | WA380, WA430 |
| KUBOTA | |
| LIEBHERR | L556X |
| LINK-BELT | L150 |
| NEW HOLLAND | LW190 |
| SANY | SW405 |
| TAKEUCHI | |
| VOLVO | L110, L120 |
| WACKER NEUSON | |
| YANMAR |
