QB1WL100-1.25

WERK-BRAU Multi-Purpose Quad Bucket for Wheel loaders 14,000 - 19,000 lbs. (class 1)

Capacity

2/24

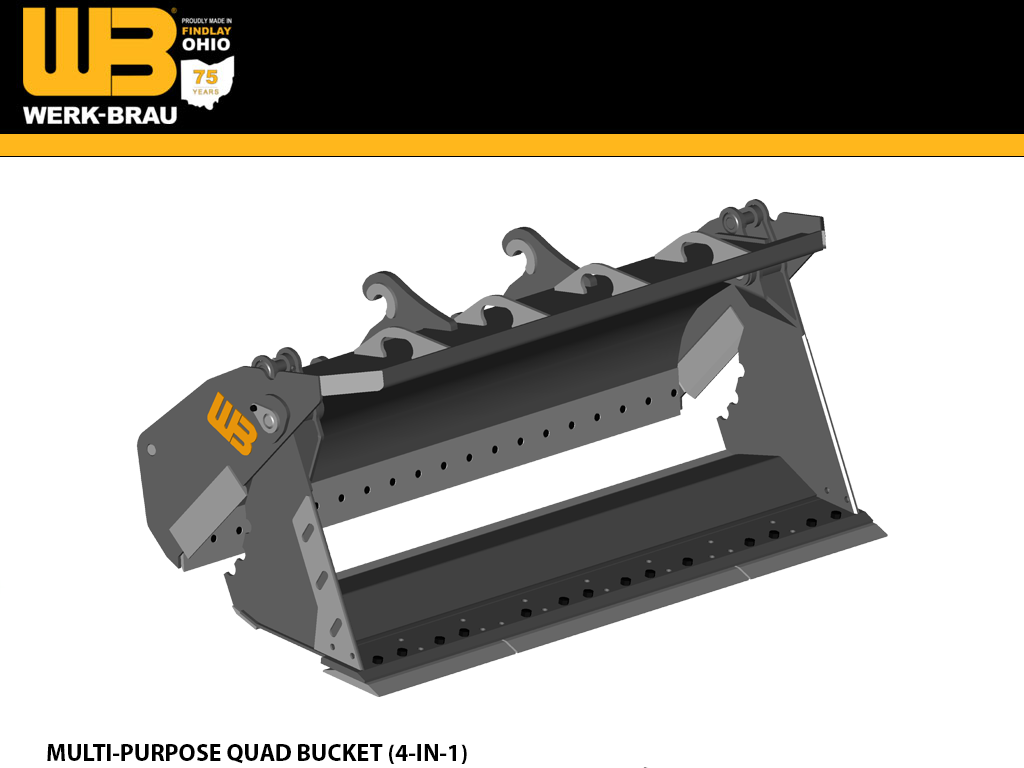

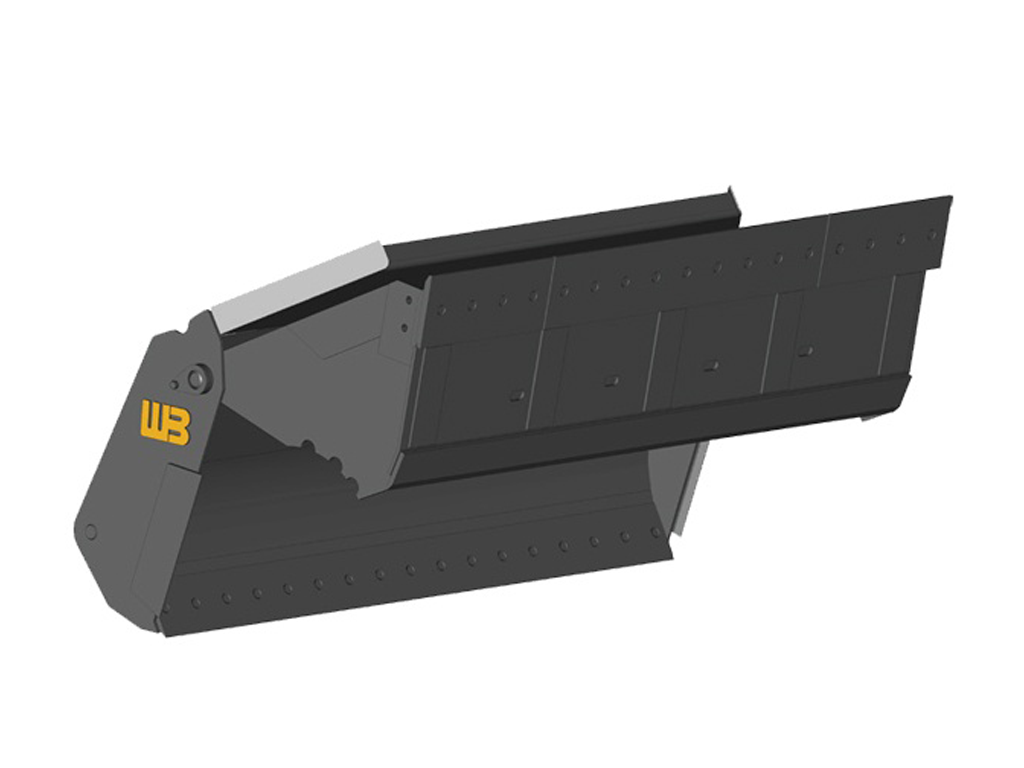

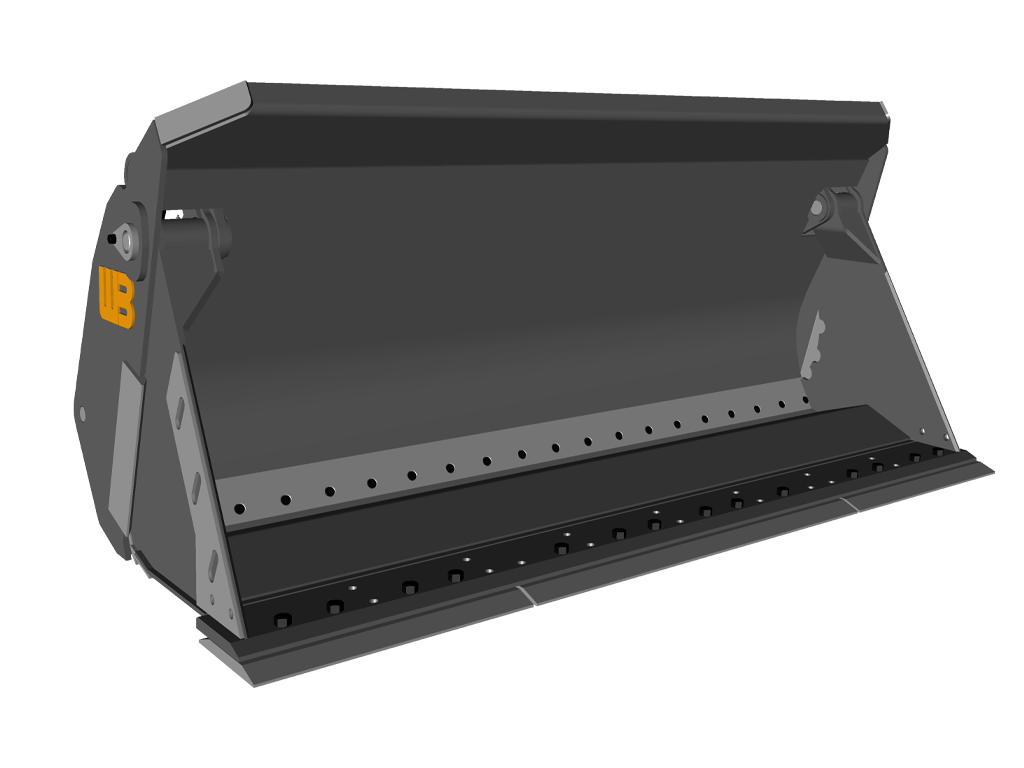

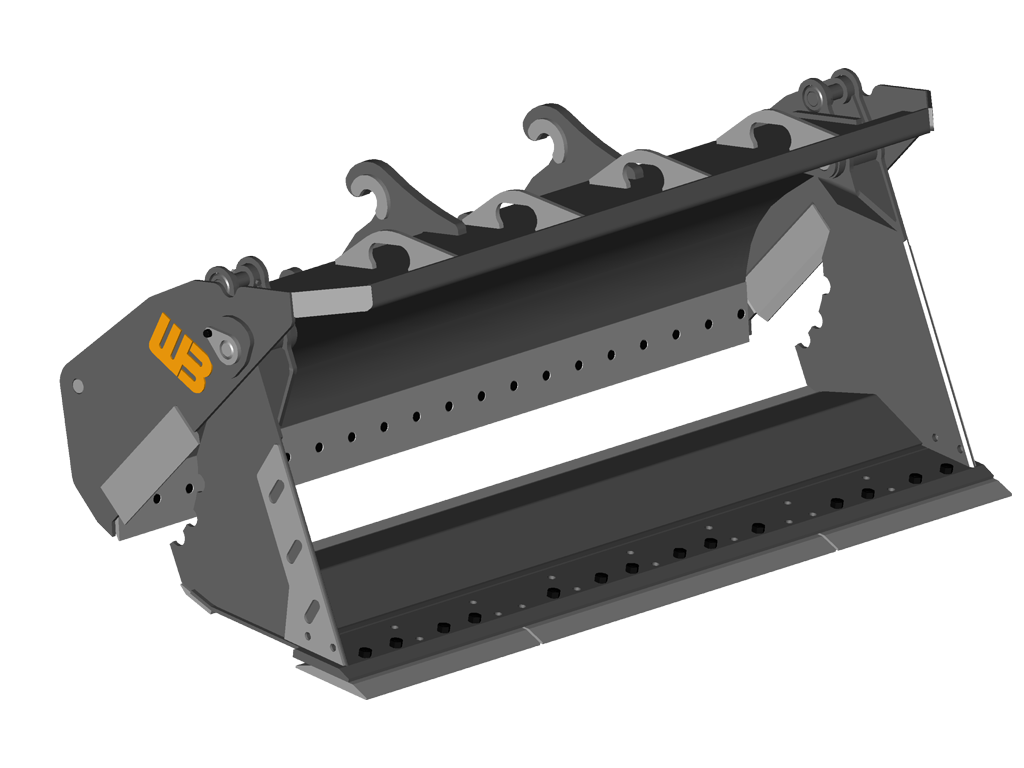

MULTI-PURPOSE QUAD BUCKET (4-IN-1)

Recommended Applications

Specifically designed to add versatility to a standard loader bucket. Can be used for light grading, backfilling, material handling as well as loading. Not designed to be used in heavy rock applications.

Quality Construction

High strength, wear resistant steel is used in cutting edges. High quality cylinders are utilized in all models. All pivot points are greaseable and lined with hardened bushings. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.

Tooth Equipment Options

Cutting edge can be drilled to accept bolt-on teeth or a replaceable bolt-on edge.

Standard Sizes

Specific widths and capacities made to meet customer requirements.

Additional Features

All models fitted with attaching ears that meet all pertinent OEM specifications. Dozer edge is equipped with replaceable bolt on edge.

  • Designed for multipurpose application jobs
  • Lifting Loops
  • 90° clam rotation
  • Dual replaceable edges - Dozer and Clam front edges
  • includes bolt on cutting edge
  • does not include hose kit
PART # WIDTH CAPACITY WEIGHT
QB1WL100-1.25 100" 1.25 2,175
QB1WL100-1.50 100" 1.50 2,475
QB1WL100-1.75 100" 1.75 2,775

 CLASS 1 (14,000-19,000 LBS) MODEL
CASE 321G
CAT 914
DEVELON 160
HITACHI ZW120
HYUNDAI HL720
JCB 217-3//S-3, 408, 409B ZX, 411
JOHN DEERE 710, 244, 304, 324, 344
KOMATSU WA70, WA80, WA100
KUBOTA R430, R530, R630
LIEBHERR L509, L514, L518
LINK-BELT L125
NEW HOLLAND
SANY
TAKEUCHI TW80
VOLVO L45G, L50G
WACKER NEUSON
YANMAR
