EZG-EX12-PRO

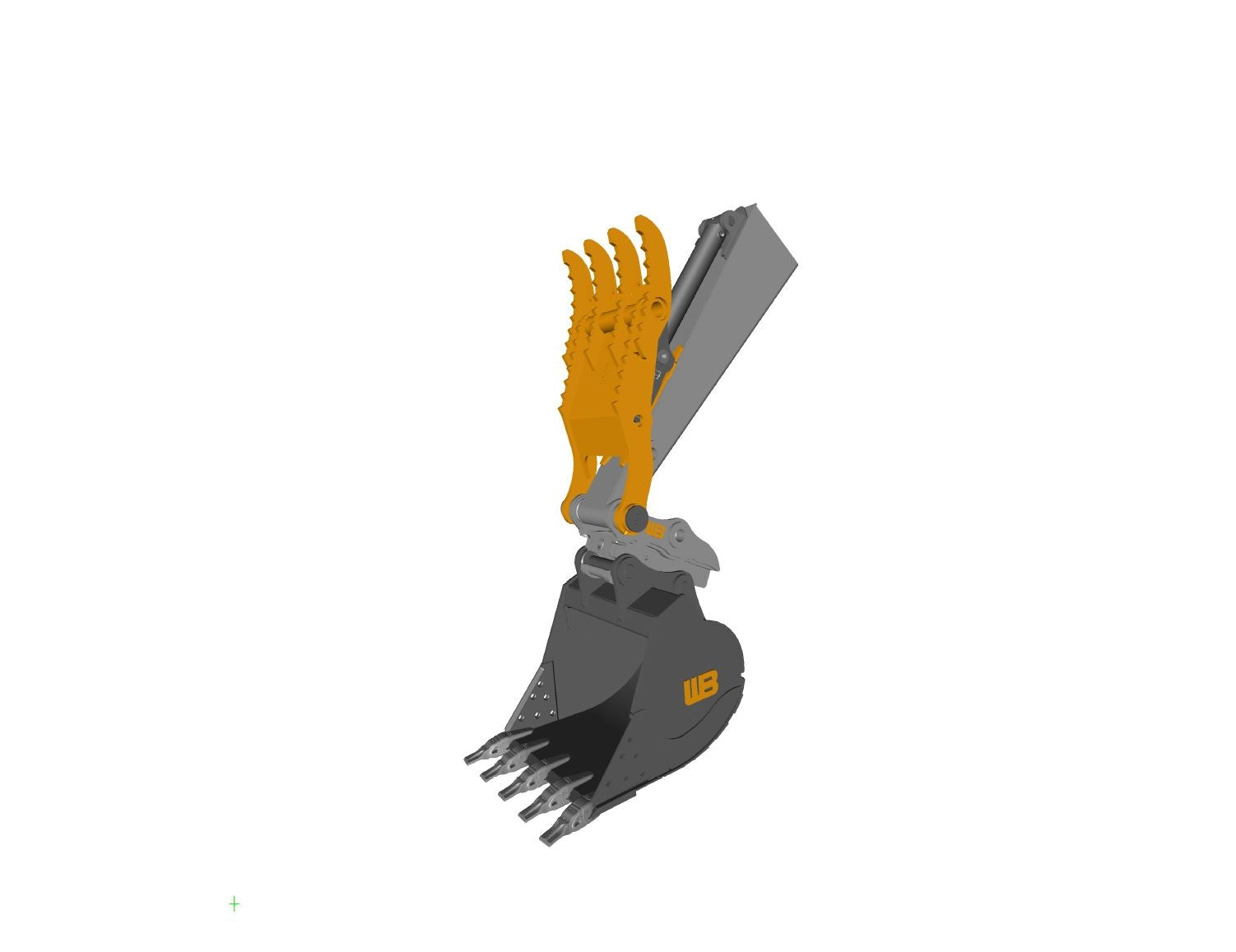

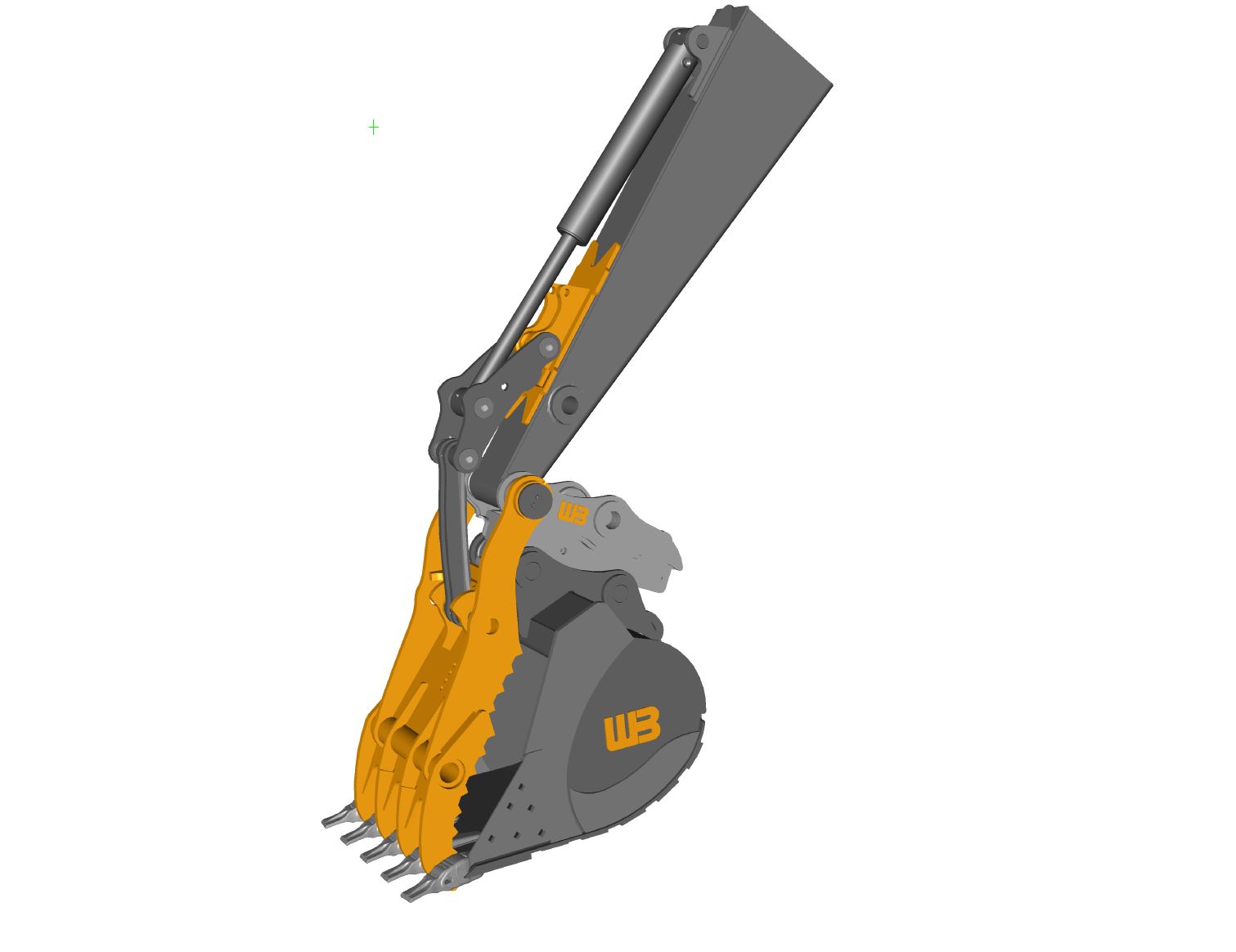

WERK-BRAU Progressive Link hydraulic thumb for excavators 24,000 - 33,000 lbs. (12MT)

1/24

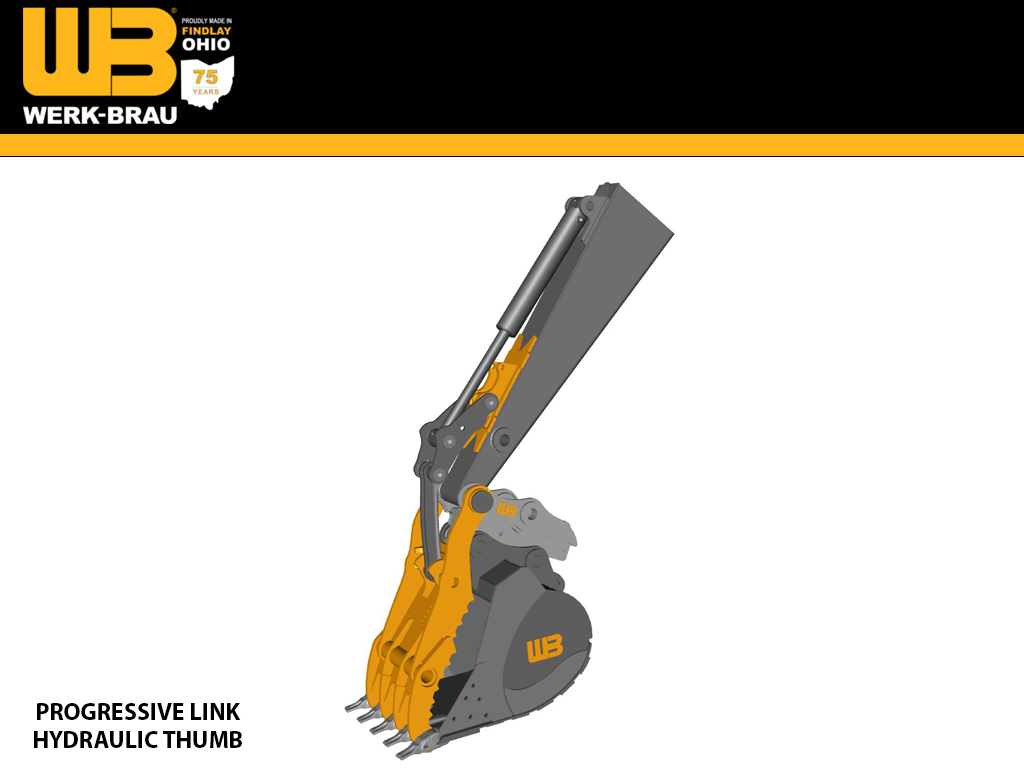

PROGRESSIVE LINK HYDRAULIC THUMBS

Recommended Applications

The Werk-Brau Progressive Linkage (Pro-Link) Thumb features a full 180 degrees of rotation making it ideal for handling and manipulating a wide variety of material, debris, rocks, logs, and irregular shaped objects. Each tine has a minimum 3 points of grip to keep materials secure.

Quality Construction

T-1 steel is used in all critical and high wear components. The Pro-Link features hardened pins and bushing used at all pivot points.

Sizes Available

Various models available to match machines capacities.

Features

  • 180 degree standard rotation
  • linkage is self contained
  • does not include jumper hose kit
  • info form must be completed when thumb is working with any non Werk-Brau attachment





PART # DESCRIPTION WEIGHT
EZG-EX12-PRO Multi Tine Pro Link Thumb - 180° standard rotation 1,050
MAKE / WEIGHT CLASS 12MT (24,000 - 33,000 LBS.)
CASE CX130, CX145D, CX140E
CAT 311, 313, 314F, 315F (A-Linkage)
DOOSAN DX140LC-5, DX140LCR-5, DX140W-5
HITACHI ZX130
HYUNDAI HX140, HX145, HX220 LR
JOHN DEERE 130G, 135G, 130P
KOBELCO SK140, ED160
KOMATSU PC138
LIEBHERR
LINK BELT 130X4, 145X4, 210X4 LR
SANY SY135, SY235 LR, SY265 LR
TAKEUCHI TB1140, TB2150
VOLVO EW140, EC140, ECR145
