EZG-EX15-PRO

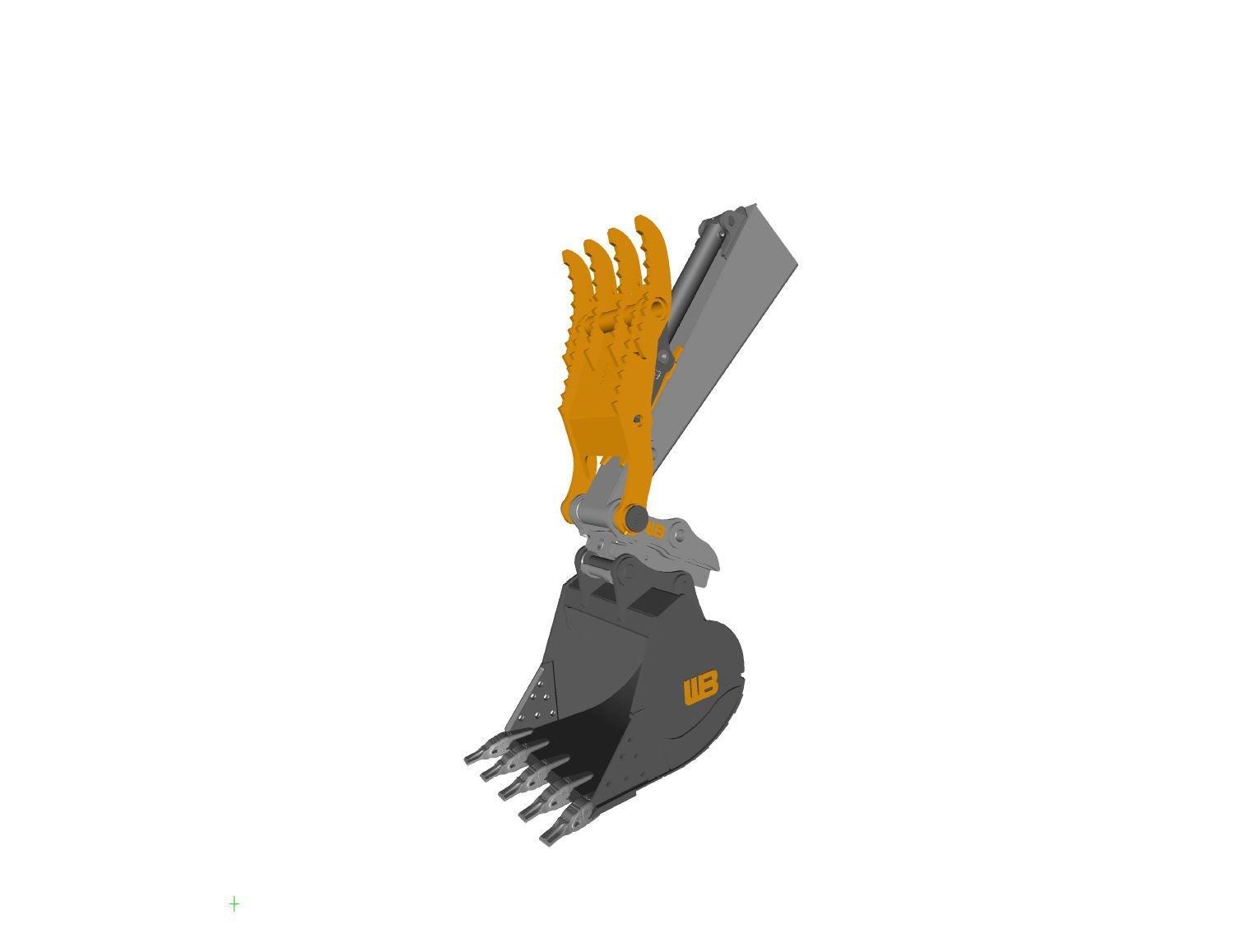

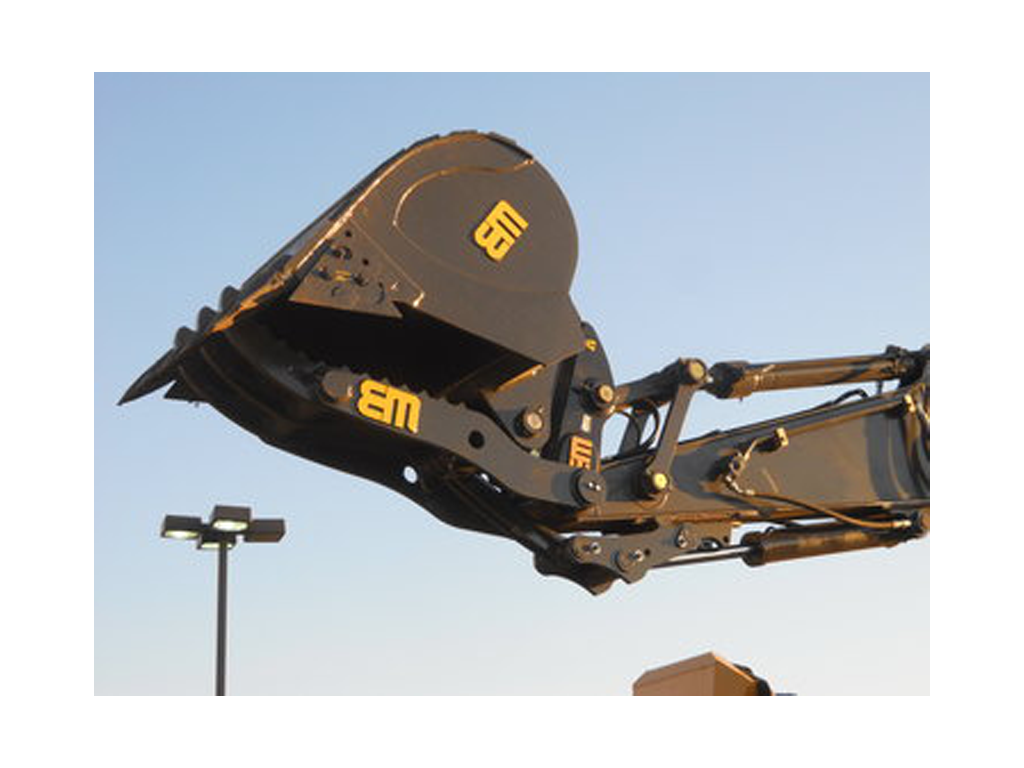

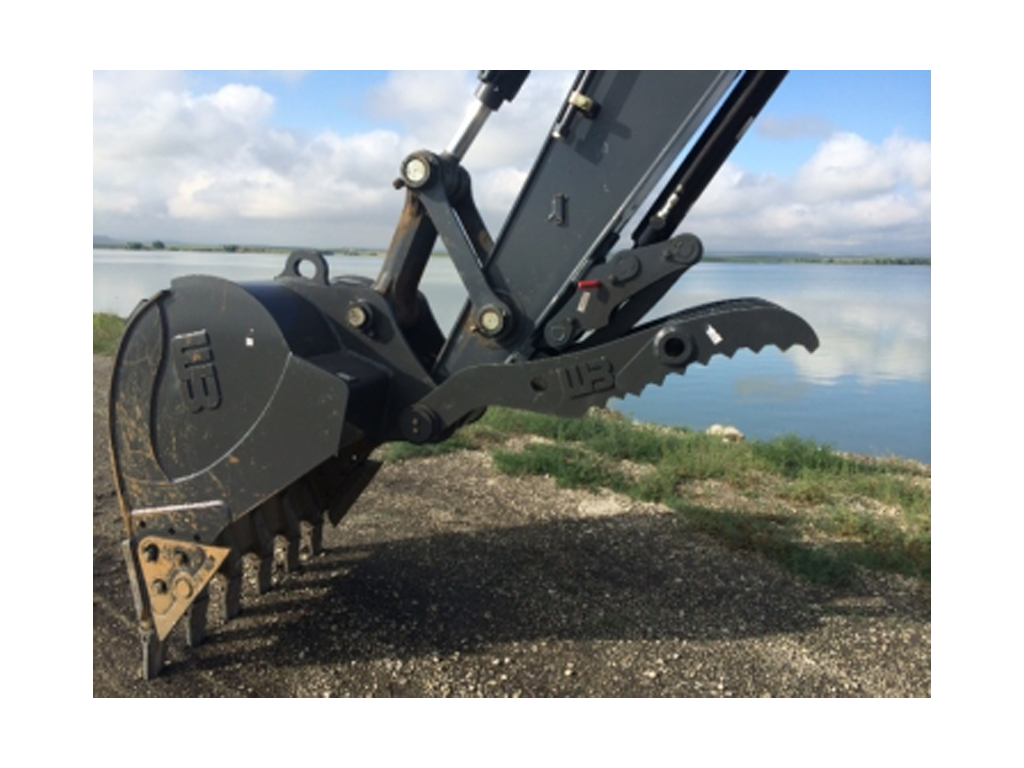

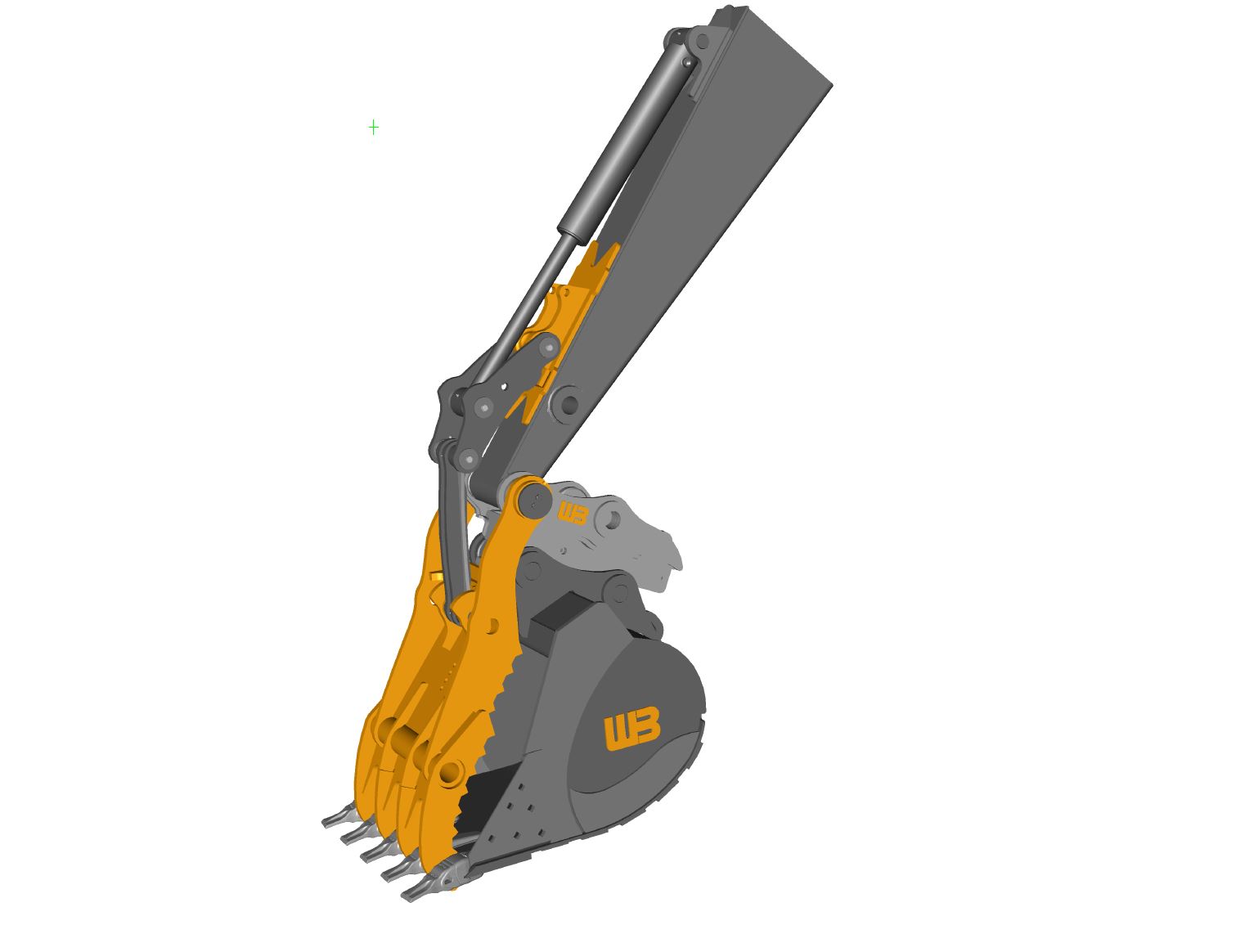

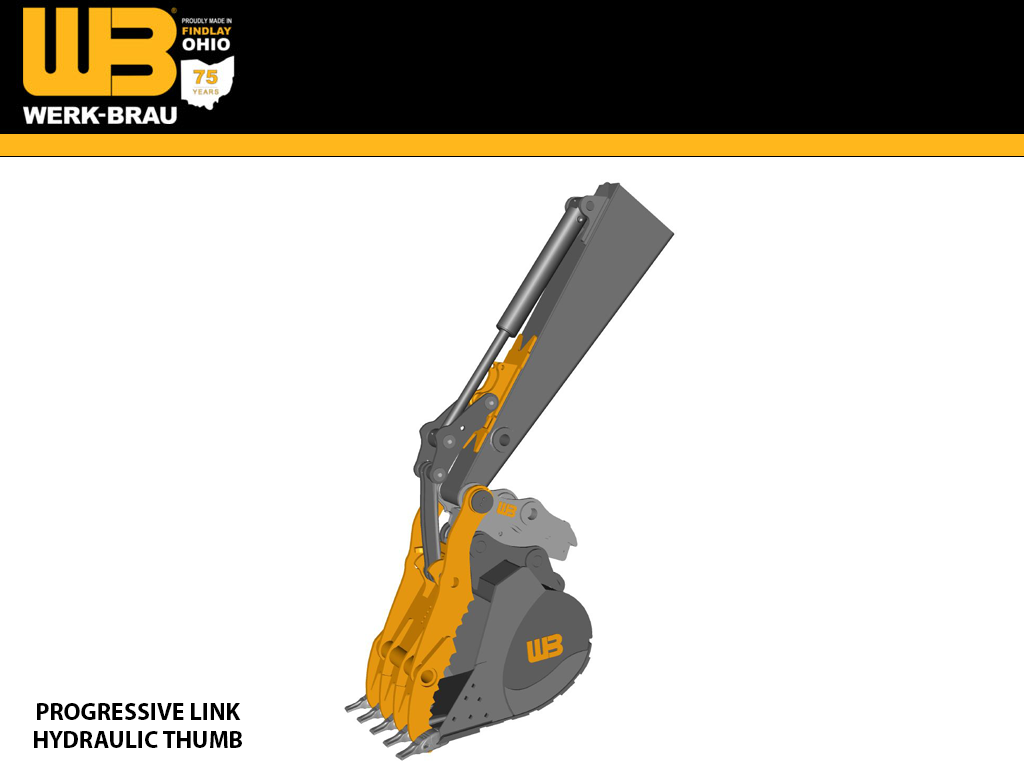

WERK-BRAU Progressive Link hydraulic thumb for excavators 33,000 - 42,000 lbs. (15MT)

1/24

PROGRESSIVE LINK HYDRAULIC THUMBS

Recommended Applications

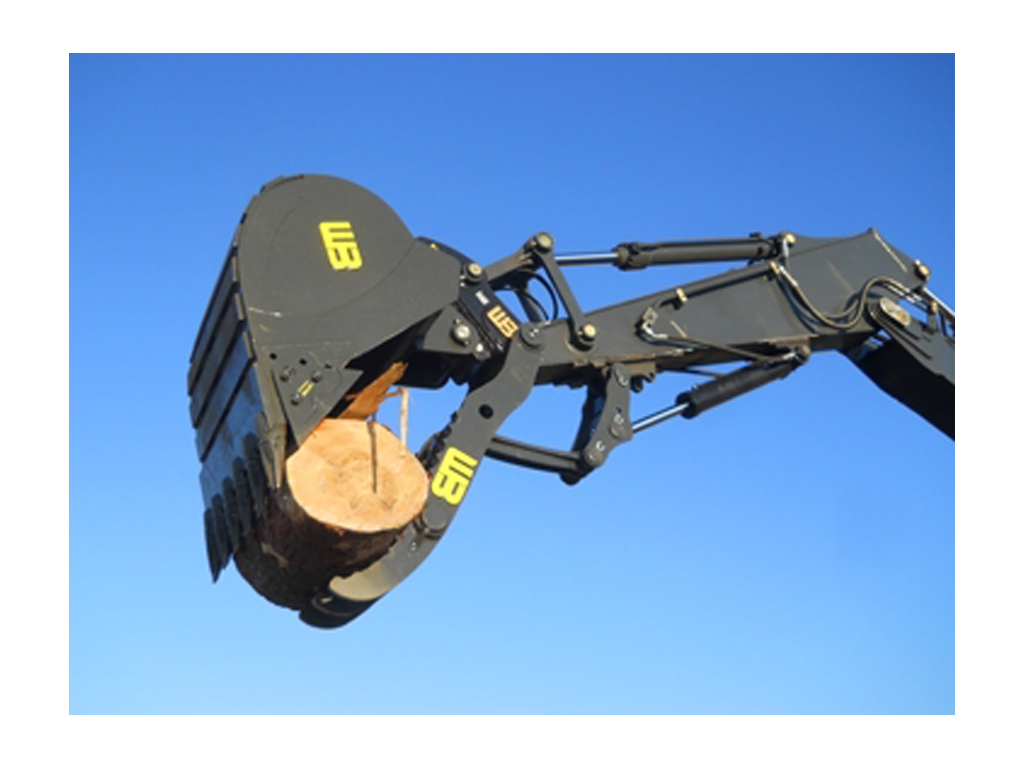

The Werk-Brau Progressive Linkage (Pro-Link) Thumb features a full 180 degrees of rotation making it ideal for handling and manipulating a wide variety of material, debris, rocks, logs, and irregular shaped objects. Each tine has a minimum 3 points of grip to keep materials secure.

Quality Construction

T-1 steel is used in all critical and high wear components. The Pro-Link features hardened pins and bushing used at all pivot points.

Sizes Available

Various models available to match machines capacities.

Features

  • 180 degree standard rotation
  • linkage is self contained
  • does not include jumper hose kit
  • info form must be completed when thumb is working with any non Werk-Brau attachment



PART # DESCRIPTION WEIGHT
EZG-EX15-PRO Multi Tine Pro Link Thumb - 180° standard rotation 1,100
MAKE / WEIGHT CLASS 15MT (33,000 - 42,000 LBS.)
CASE CX160, CX170E, CX190E
CAT 315D, 316F, 318F, M318F
DOOSAN DX180LC-5, DX190W-5
HITACHI ZX160
HYUNDAI HX160, HX180
JOHN DEERE 160G, 160P
KOBELCO ED195, SK170
KOMATSU PC170
LIEBHERR
LINK BELT 160X4
SANY
TAKEUCHI
VOLVO EW160, EW180, EC160, EC180
