EZG-EX35-PRO

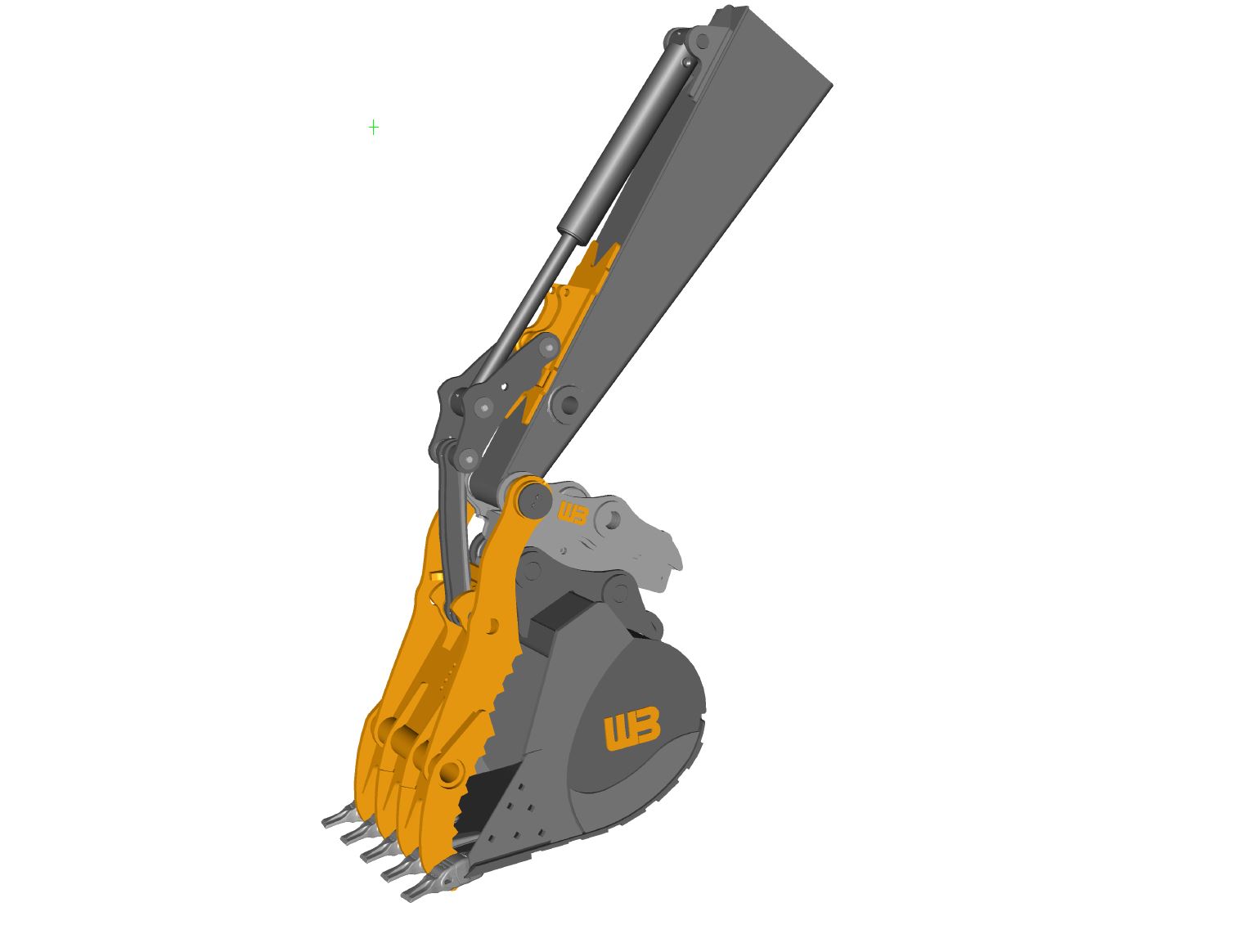

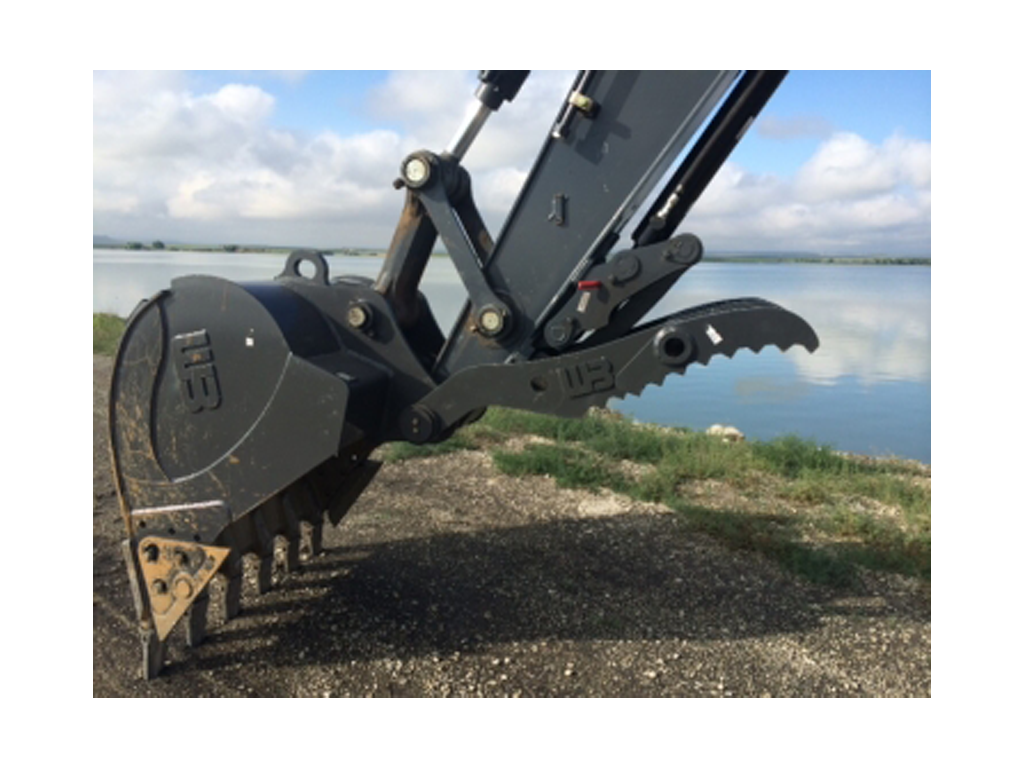

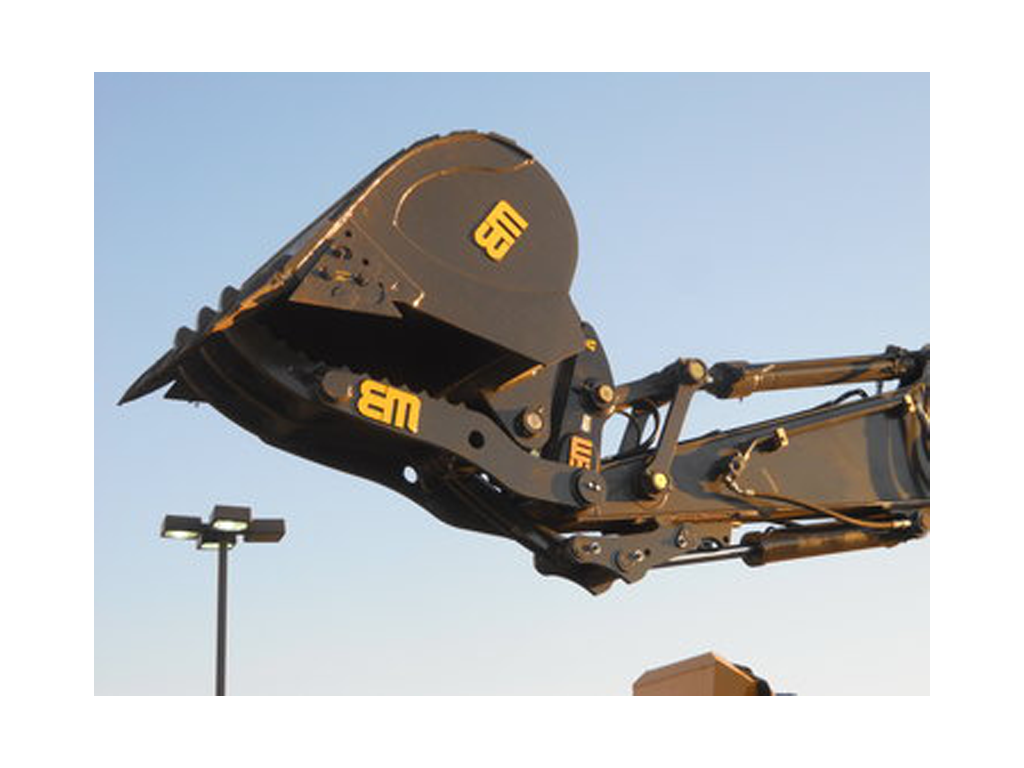

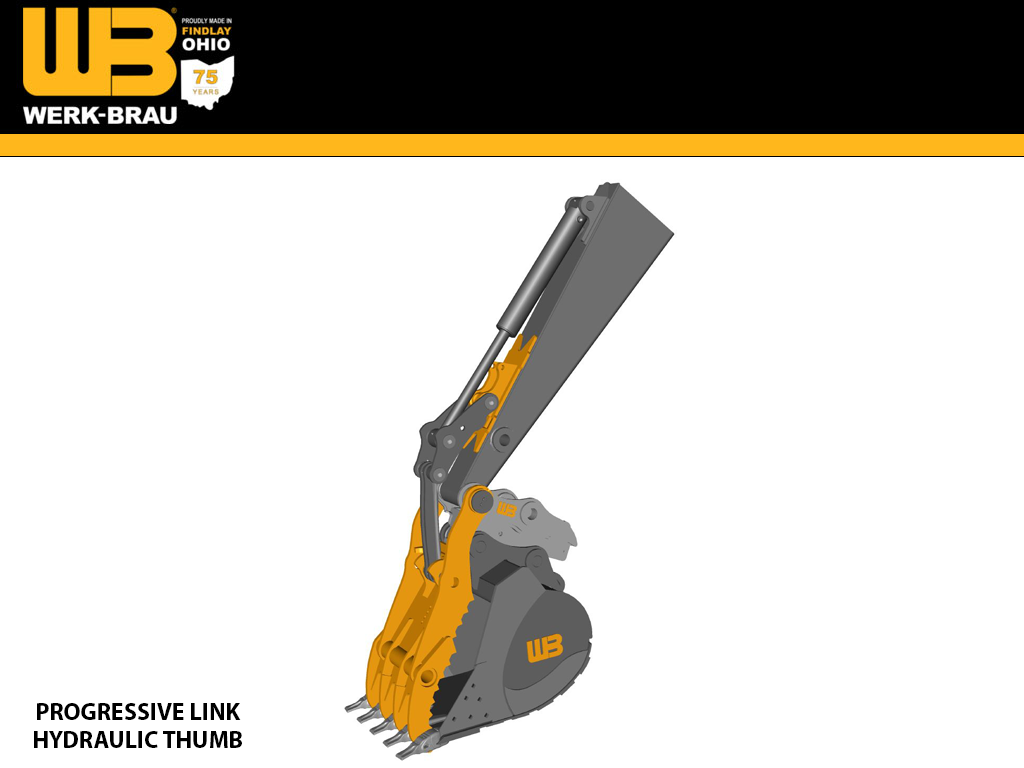

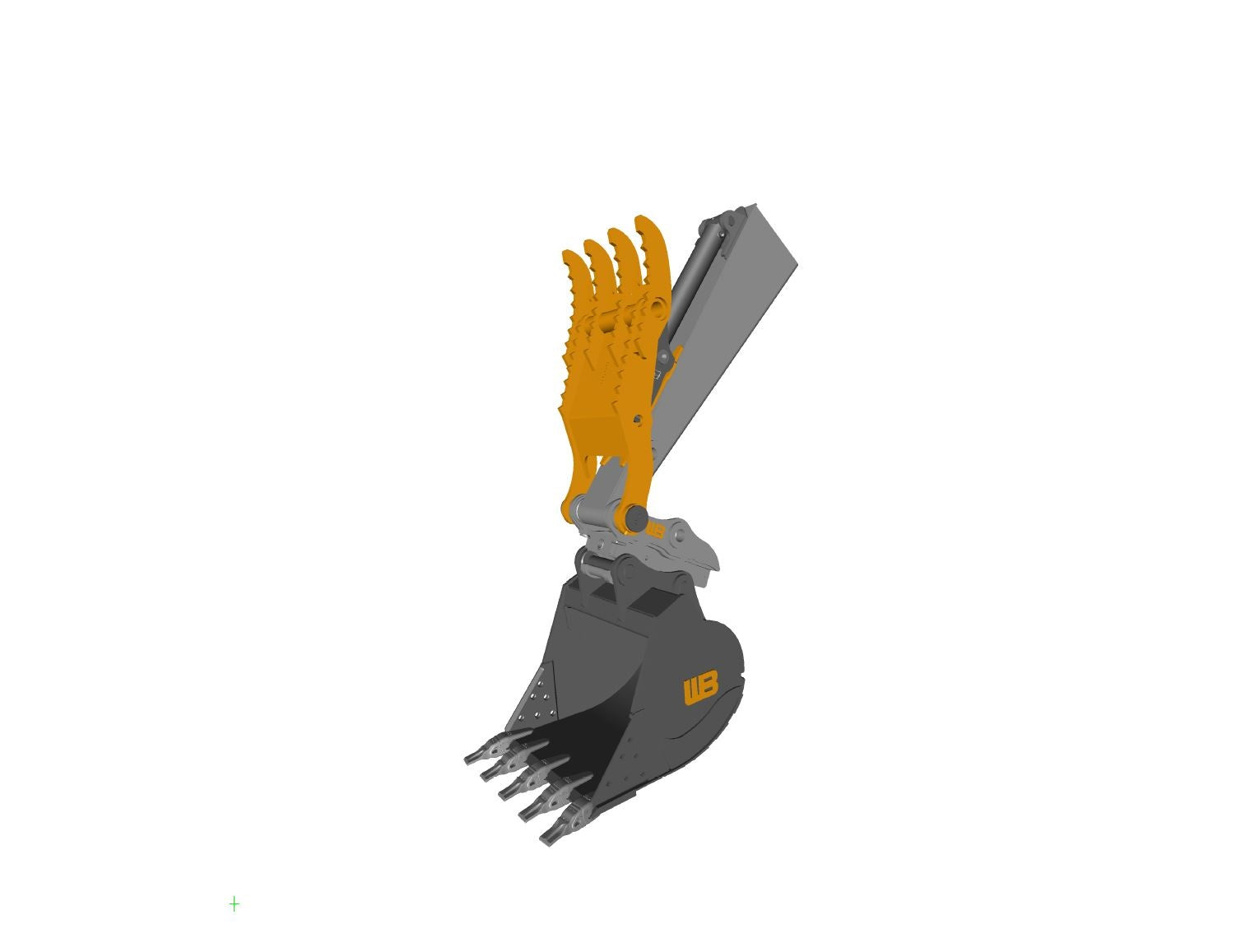

WERK-BRAU Progressive Link hydraulic thumb for excavators 68,000 - 82,000 lbs. (35MT)
$19,907.00
1/24
PROGRESSIVE LINK HYDRAULIC THUMBS
Recommended Applications

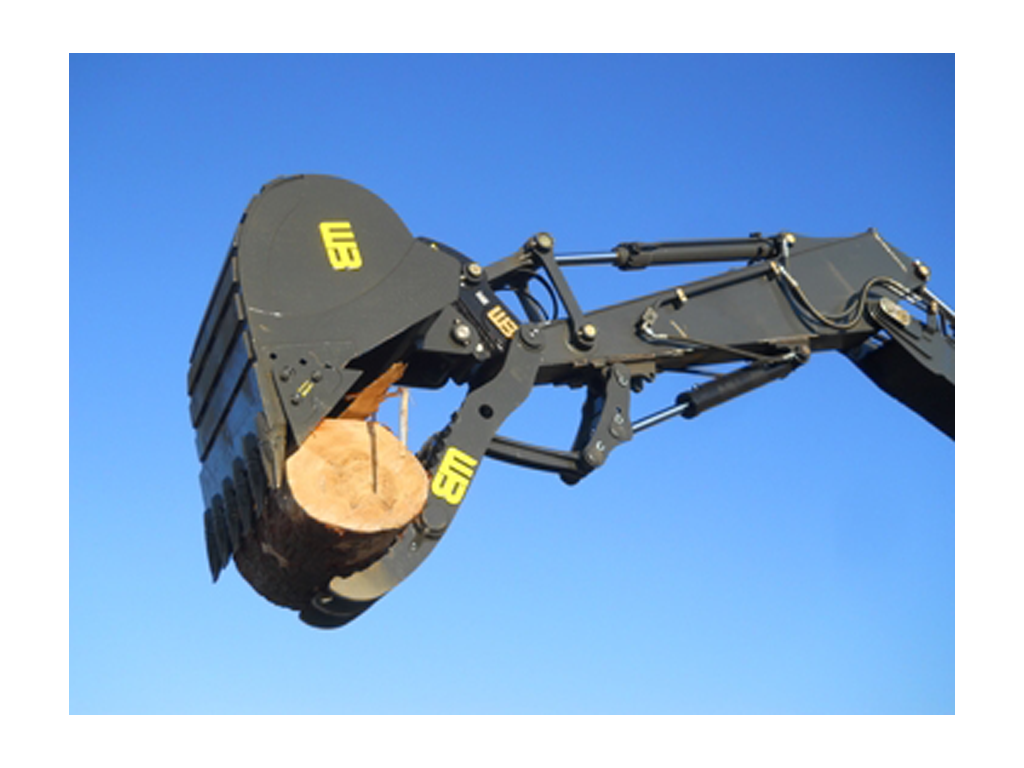

The Werk-Brau Progressive Linkage (Pro-Link) Thumb features a full 180 degrees of rotation making it ideal for handling and manipulating a wide variety of material, debris, rocks, logs, and irregular shaped objects. Each tine has a minimum 3 points of grip to keep materials secure.
Quality Construction
T-1 steel is used in all critical and high wear components. The Pro-Link features hardened pins and bushing used at all pivot points.
Sizes Available
Various models available to match machines capacities.
Features
- 180 degree standard rotation
- linkage is self contained
- does not include jumper hose kit
- info form must be completed when thumb is working with any non Werk-Brau attachment
| PART # | DESCRIPTION | WEIGHT |
| EZG-EX35-PRO | Multi Tine Pro Link Thumb - 180° standard rotation | 1,900 |
| MAKE / WEIGHT CLASS | 35MT (68,500 - 82,000 LBS.) |
| CASE | CX350 |
| CAT | 330, 335, 336F DB-LINKAGE |
| DOOSAN | DX350LC-5, DX420LC-5 |
| HITACHI | ZX350, ZX380 |
| HYUNDAI | HX330, HX350, HX380 |
| JOHN DEERE | 350G, 380G, 350P |
| KOBELCO | SK350 |
| KOMATSU | PC300, PC350, PC360, PC390 |
| LIEBHERR | R 934 CL, R 924 C, R936 |
| LINK BELT | 350X4 |
| SANY | SY365 |
| TAKEUCHI | |
| VOLVO | EC330, EC340, EC350, EC360, EC380 |
