EZG-EX40-PRO

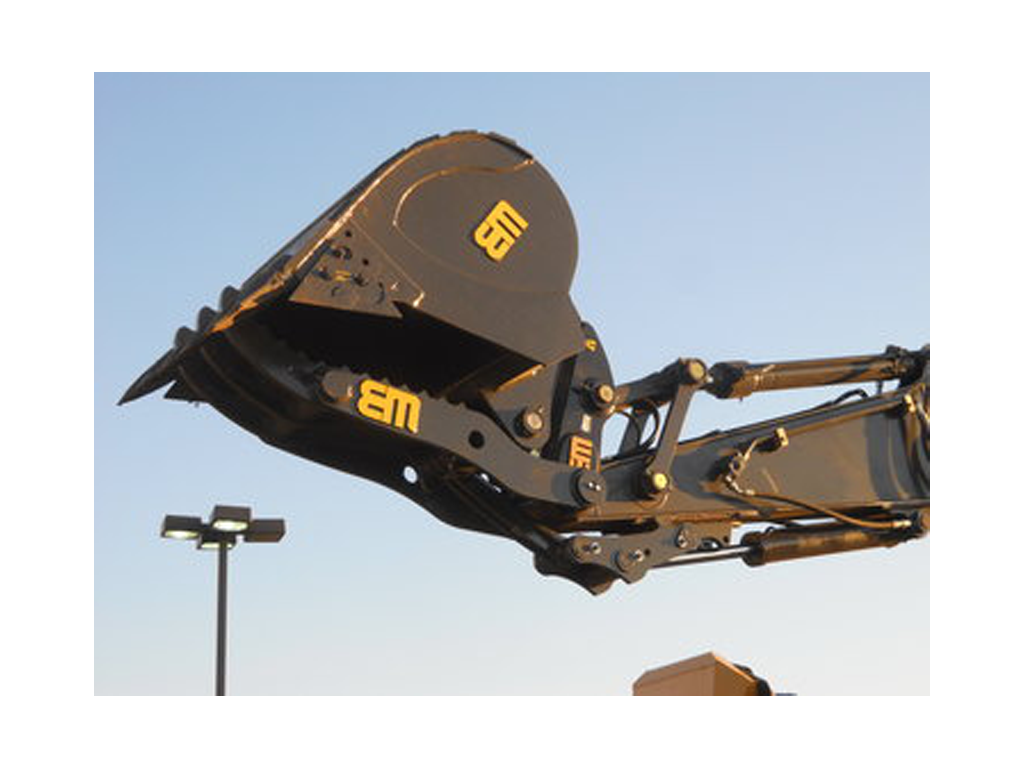

WERK-BRAU Progressive Link hydraulic thumb for excavators 82,000 - 105,000 lbs. (40MT)
$21,040.00
1/24

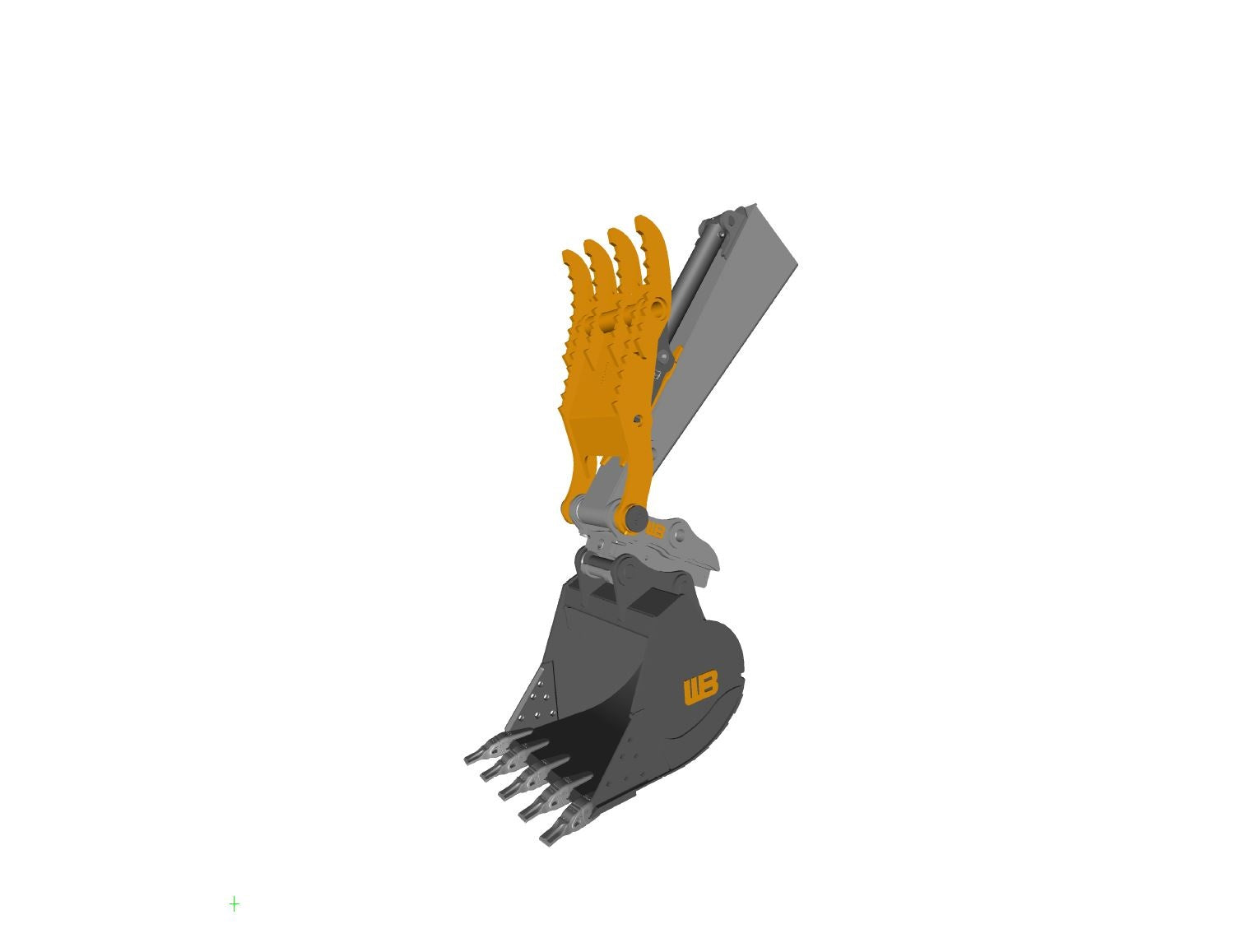

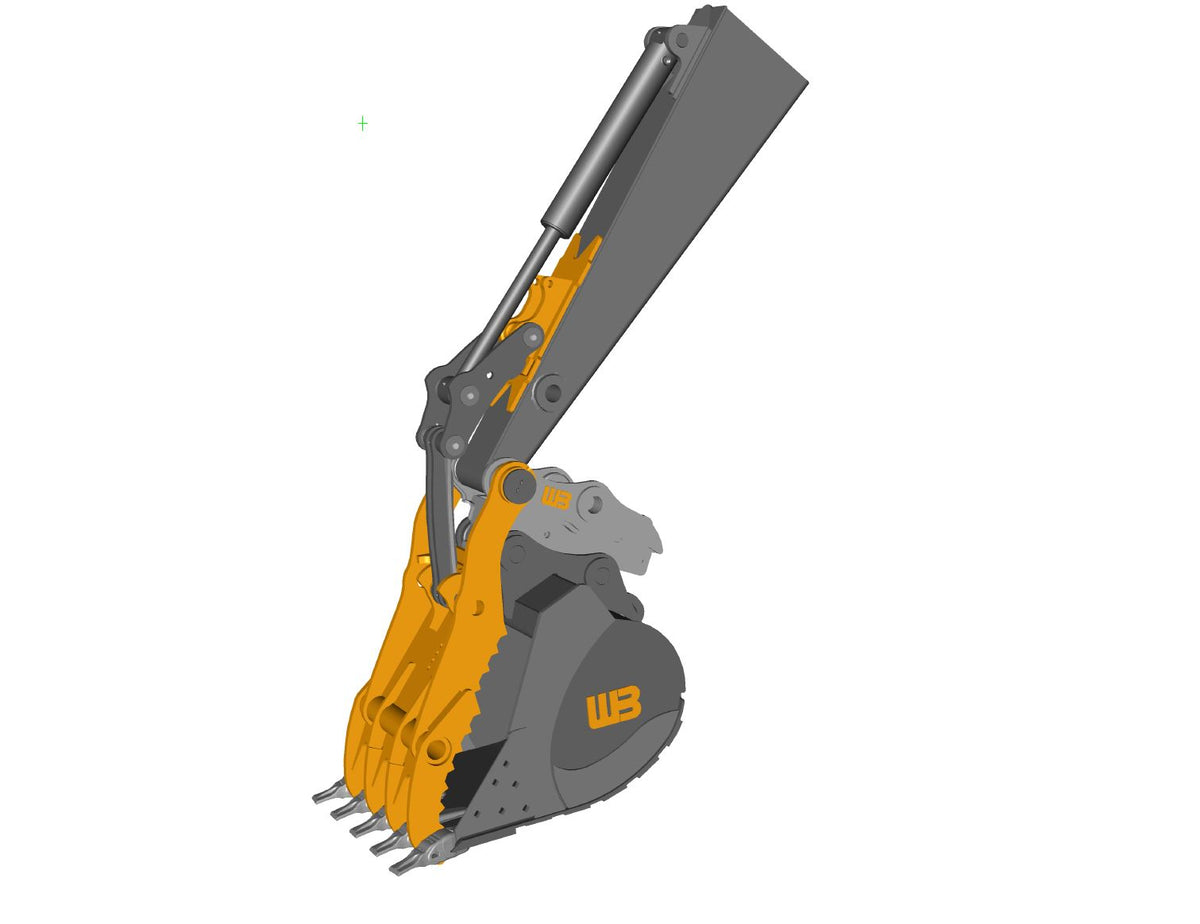

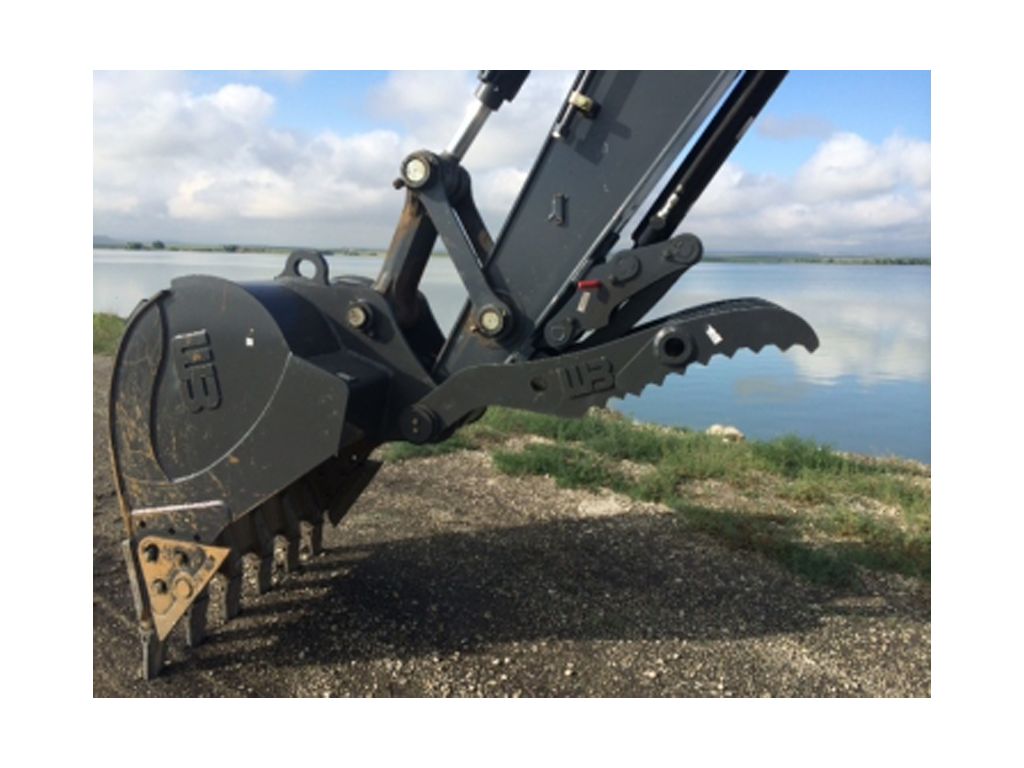

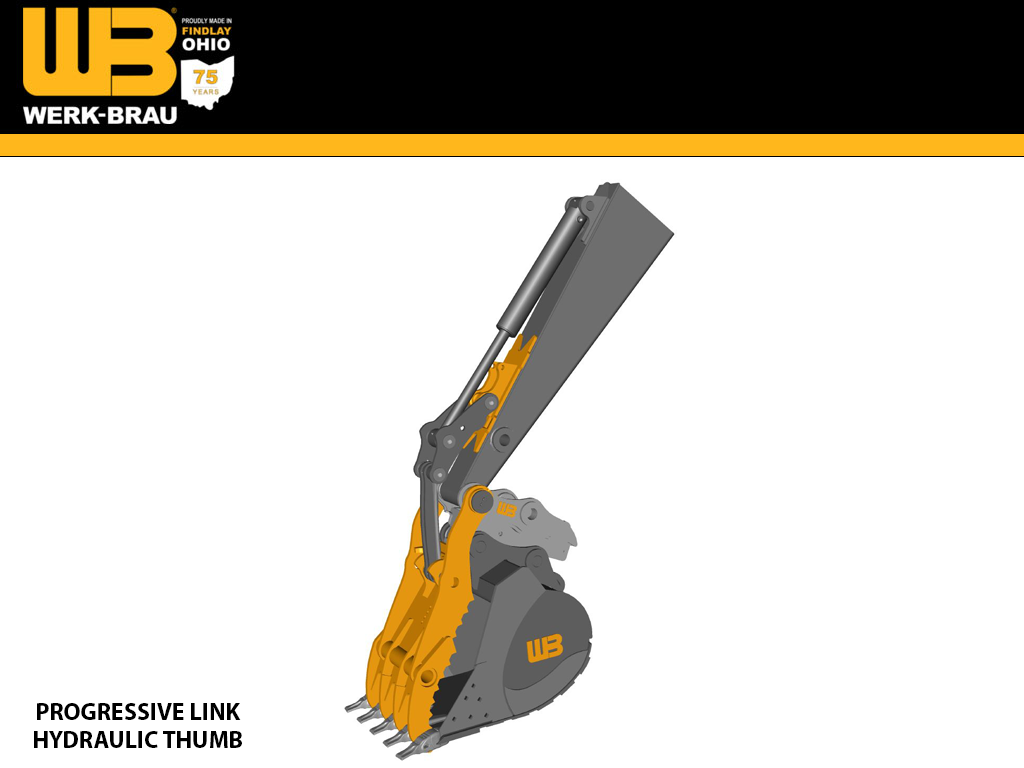

PROGRESSIVE LINK HYDRAULIC THUMBS
Recommended Applications

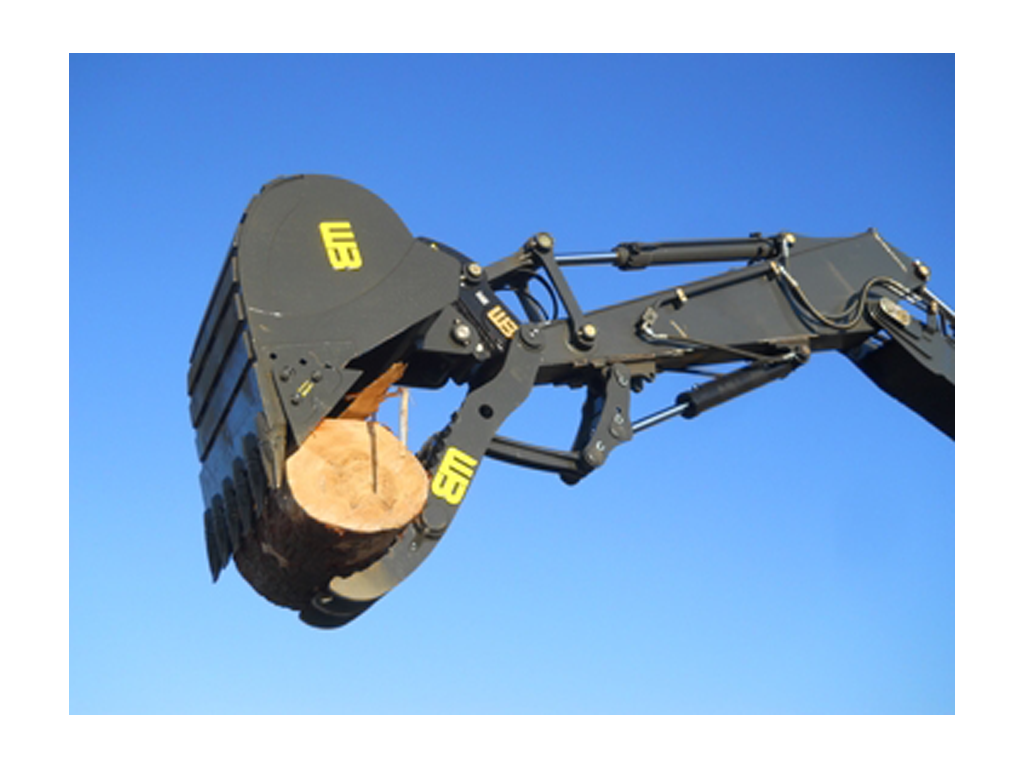

The Werk-Brau Progressive Linkage (Pro-Link) Thumb features a full 180 degrees of rotation making it ideal for handling and manipulating a wide variety of material, debris, rocks, logs, and irregular shaped objects. Each tine has a minimum 3 points of grip to keep materials secure.
Quality Construction
T-1 steel is used in all critical and high wear components. The Pro-Link features hardened pins and bushing used at all pivot points.
Sizes Available
Various models available to match machines capacities.
Features
- 180 degree standard rotation
- linkage is self contained
- does not include jumper hose kit
- info form must be completed when thumb is working with any non Werk-Brau attachment
| PART # | DESCRIPTION | WEIGHT |
| EZG-EX40-PRO | Multi Tine Pro Link Thumb - 180° standard rotation | 1,970 |
| MAKE / WEIGHT CLASS | 40MT (82,500 - 105,000 LBS.) |
| CASE | CX470, CX490 |
| CAT | 349F |
| DOOSAN | DX480, DX490LC-5 |
| HITACHI | ZX450, ZX470, ZX490 |
| HYUNDAI | HX480 |
| JOHN DEERE | 470G, 470P |
| KOBELCO | SK480, SK485, SK500 |
| KOMATSU | PC400, PC450, PC490 |
| LIEBHERR | R 944 |
| LINK BELT | 460, 470, 490X4 |
| SANY | SY500 |
| TAKEUCHI | |
| VOLVO | EC460, EC480 |
