WBRT3

Werk-brau Ripper shank for excavators 50,000-82,000 lbs. Excavator (25, 30 & 35MT)

MODEL

1/24

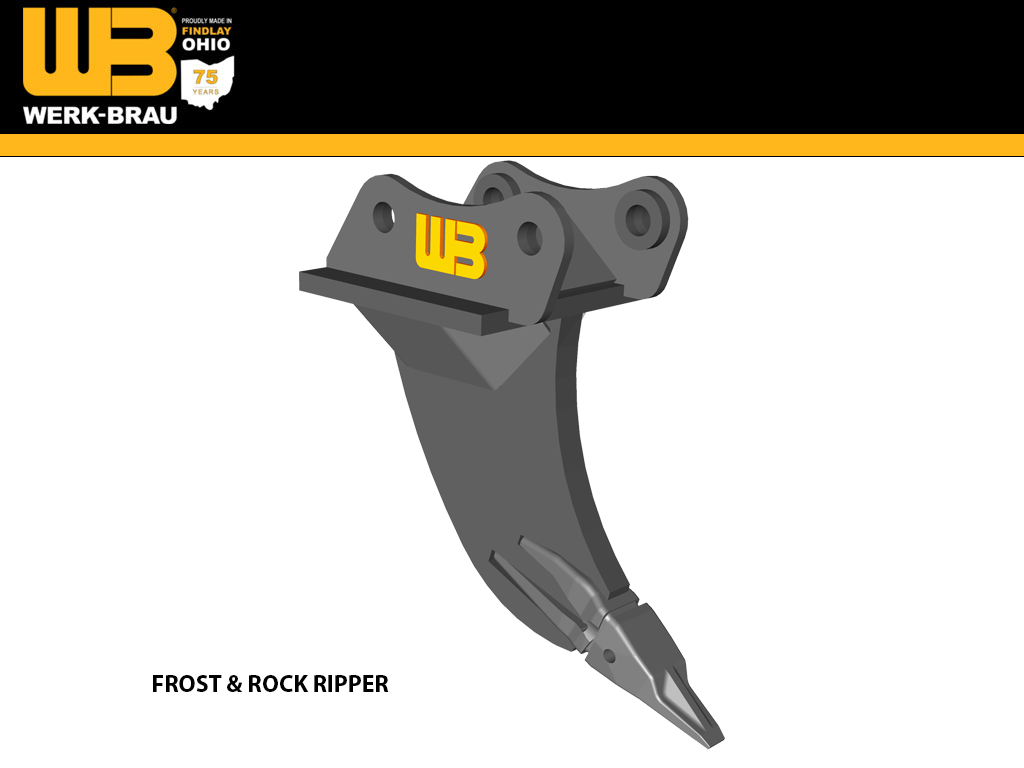

FROST & ROCK RIPPERS

Recommended Applications

Werk-Brau's Ripper is specifically engineered to pre-rip frozen ground, pavement, or other tough soil that exceeds a bucket's recommended duty. The Ripper is highly versatile attachment. The Ripper's single point tooth style is ideal for penetration of various tough environments.

Quality Construction

Werk-Brau uses T-1 steel in all critical or high wear components to ensure that the ripper has a long operation life. The ripper body is supported by rigid gussets for extra rugged applications. The upper gussets, and shank are designed for heavy duty applications in tough working conditions.

Cutting Equipment Options

A single point tooth is used to maximize the machine's penetrating power. A selection of high quality brands are available to choose from.

Standard Sizes

A selection of sizes are available to match each machine.

Features

  • heavy duty ripper shank
  • extra heavy duty upper channel
  • optimized arc for best rip
  • CAT tooth installed standard
PART # LENGTH WIDTH TOOTH APPROX WEIGHT
WBRT3 30"
2-3/4"
9W-8459 1,000
WBRT3-2 30" 2-3/4" (2) 9W-8459 1,400

25MT

MAKE / WEIGHT CLASS 25MT (50,000 - 59,000 LBS.)
CASE CX250, CX260E
CAT 325, 326F
DOOSAN DX255LC-5
HITACHI ZX240, ZX250
HYUNDAI HX260
JOHN DEERE 250G, 250P
KOBELCO SK260LC
KOMATSU PC240
LIEBHERR R 916 L, R 924 L, R 934 CD
LINK BELT 250X3, 250X4
SANY SY235, SY265
TAKEUCHI
VOLVO EC240, EC250



30MT

MAKE / WEIGHT CLASS 30MT (59,500 - 68,000 LBS.)
CASE CX300, CX365E
CAT 326, 328, 329, 335F, CB-LINKAGE
DOOSAN DX300LC-5, DX300LC-5SLR
HITACHI ZX300, ZX345
HYUNDAI HX300
JOHN DEERE 300G, 345G, 300P
KOBELCO SK300
KOMATSU PC270, PC290, PC308
LIEBHERR
LINK BELT 300X3, 300X4, 355X4
SANY SY365
TAKEUCHI
VOLVO EC330, EC340, EC350, EC360, EC380



35MT

MAKE / WEIGHT CLASS 35MT (68,500 - 82,000 LBS.)
CASE CX350
CAT 330, 335, 336F DB-LINKAGE
DOOSAN DX350LC-5, DX420LC-5
HITACHI ZX350, ZX380
HYUNDAI HX330, HX350, HX380
JOHN DEERE 350G, 380G, 350P
KOBELCO SK350
KOMATSU PC300, PC350, PC360, PC390
LIEBHERR R 934 CL, R 924 C, R936
LINK BELT 350X4
SANY SY365
TAKEUCHI
VOLVO EC330, EC340, EC350, EC360, EC380
