WBRT4

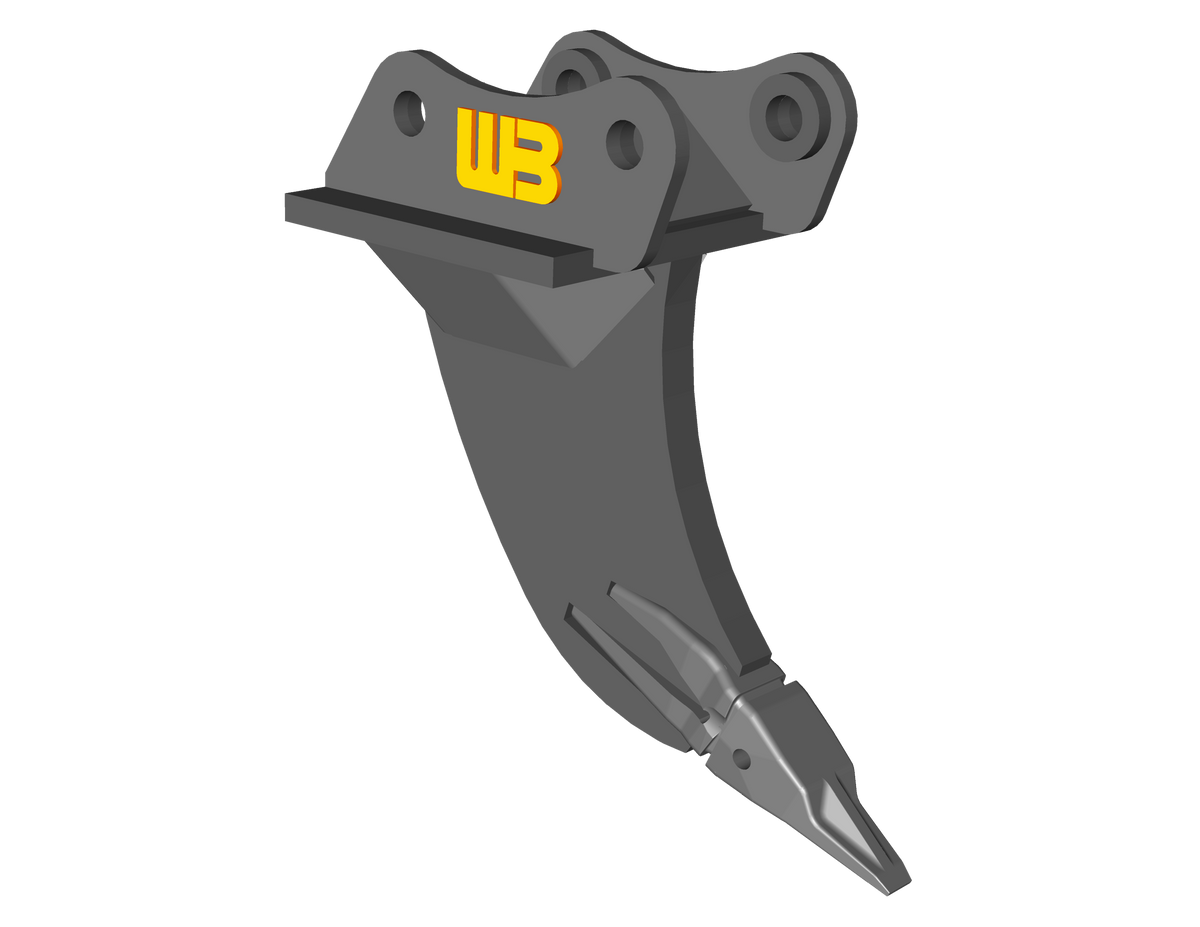

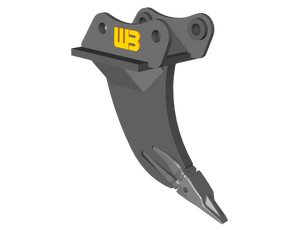

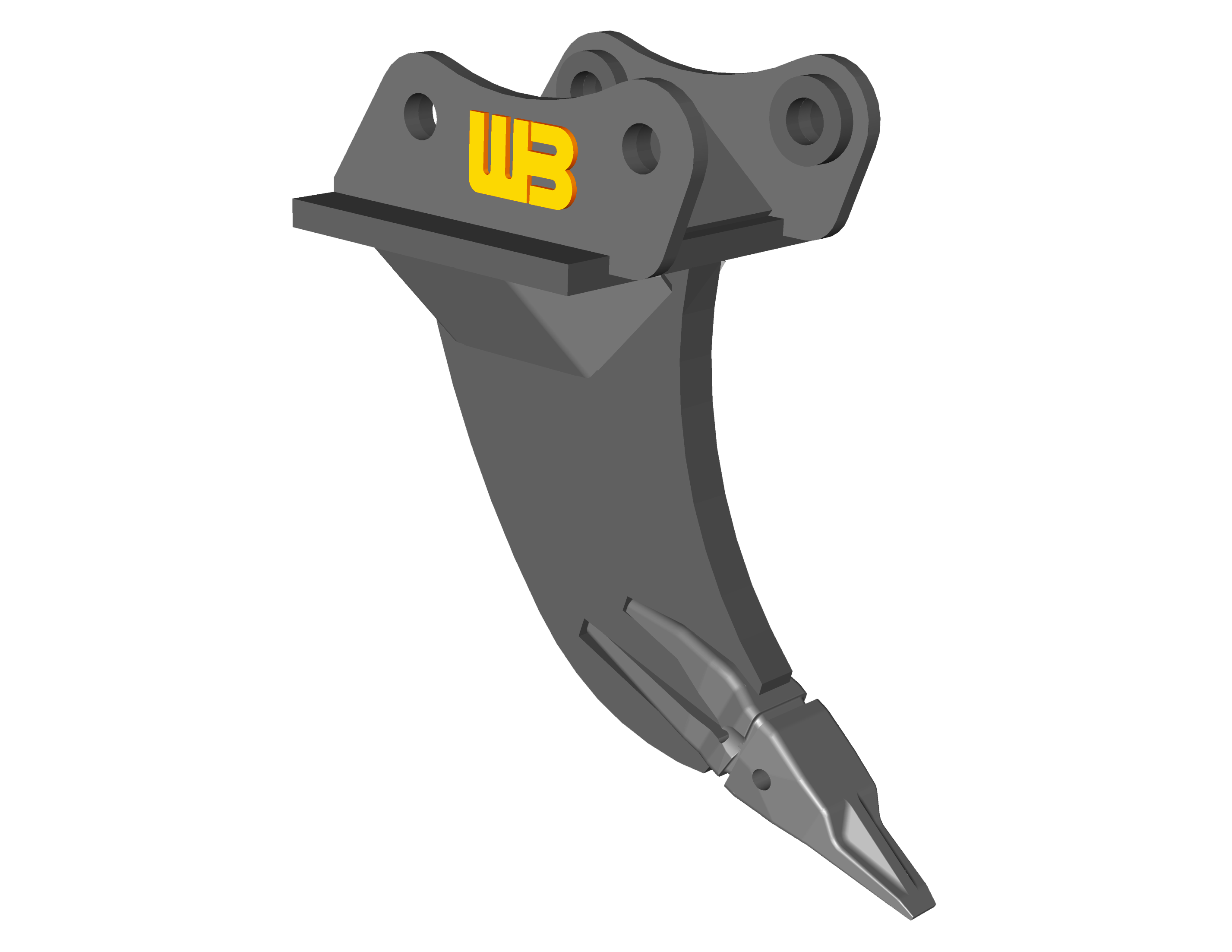

Werk-brau Ripper shank for excavators 82,000-125,000 lbs. Excavator (40 & 50MT)
$13,547.00 - $20,227.00
1/24

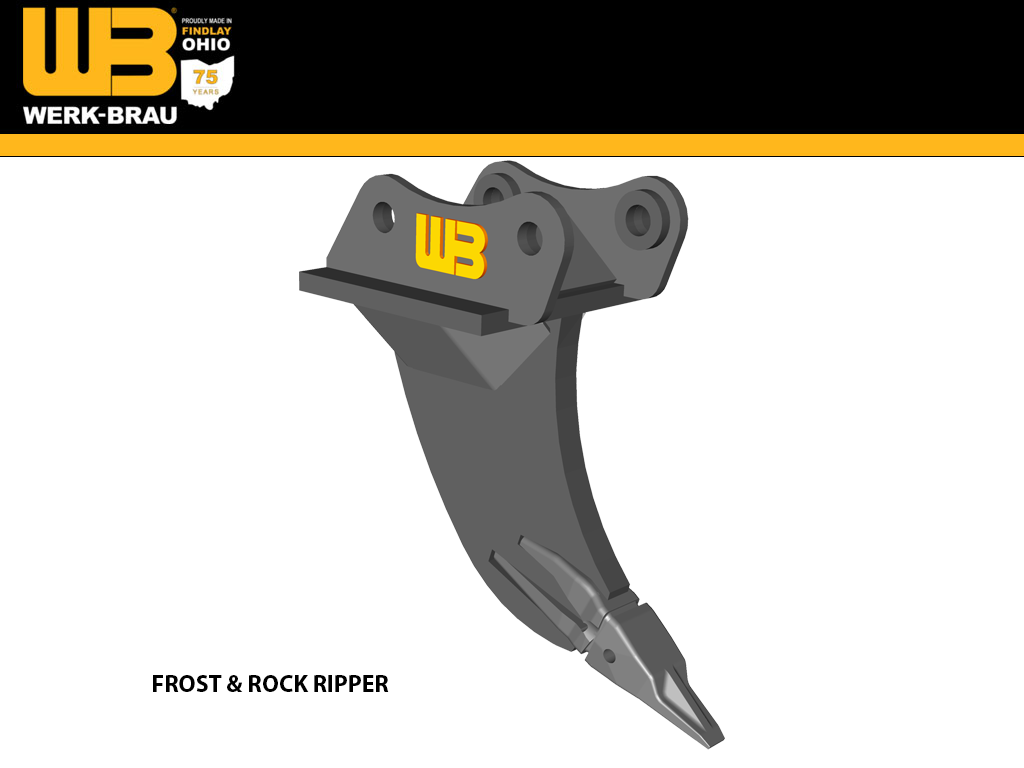

FROST & ROCK RIPPERS
Recommended Applications

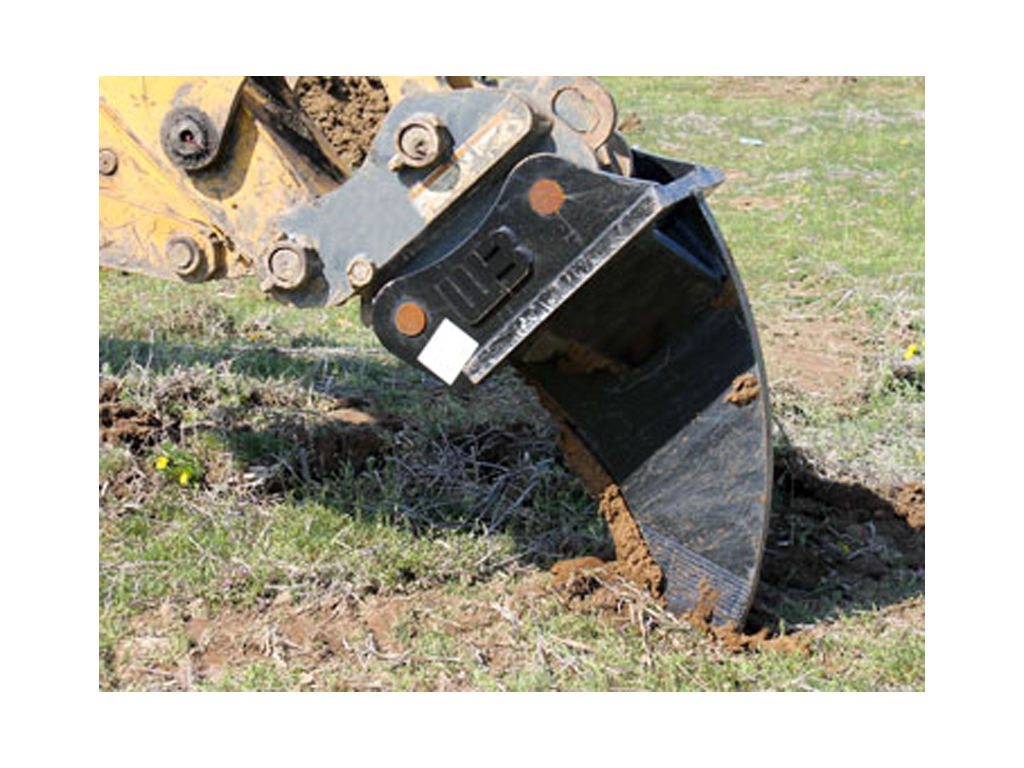

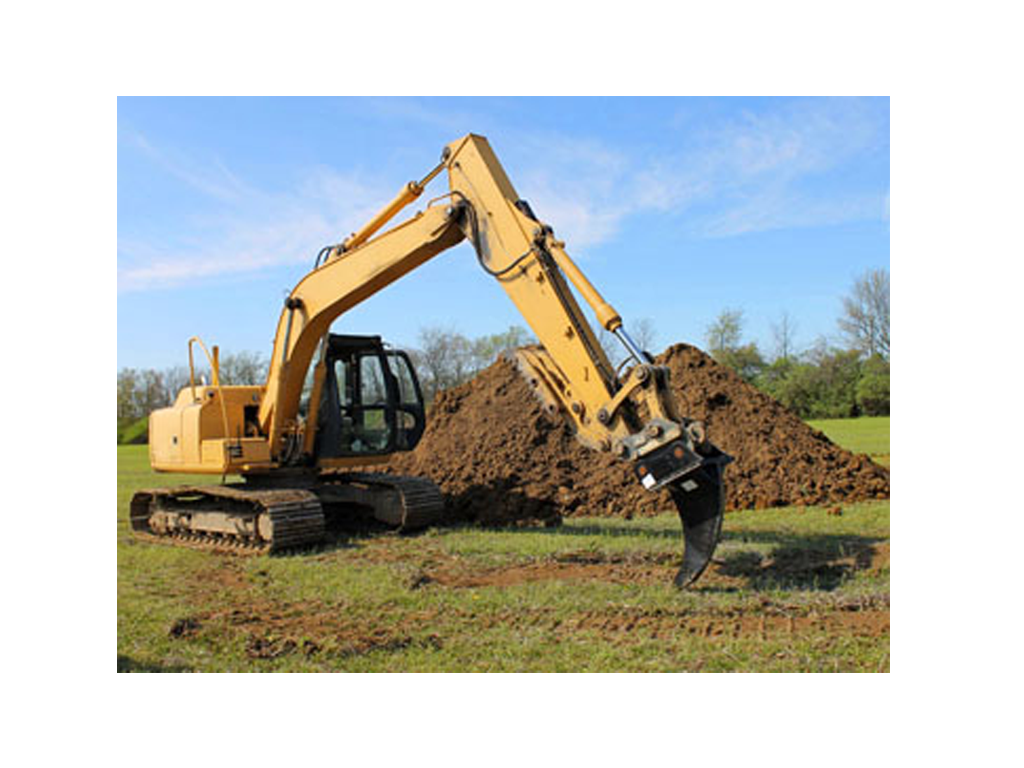

Werk-Brau's Ripper is specifically engineered to pre-rip frozen ground, pavement, or other tough soil that exceeds a bucket's recommended duty. The Ripper is highly versatile attachment. The Ripper's single point tooth style is ideal for penetration of various tough environments.
Quality Construction
Werk-Brau uses T-1 steel in all critical or high wear components to ensure that the ripper has a long operation life. The ripper body is supported by rigid gussets for extra rugged applications. The upper gussets, and shank are designed for heavy duty applications in tough working conditions.
Cutting Equipment Options
A single point tooth is used to maximize the machine's penetrating power. A selection of high quality brands are available to choose from.
Standard Sizes
A selection of sizes are available to match each machine.
Features
- heavy duty ripper shank
- extra heavy duty upper channel
- optimized arc for best rip
- CAT tooth installed standard
| PART # | LENGTH | WIDTH | TOOTH | APPROX WEIGHT |
| WBRT4 | 48" |
4" |
9W-8559 | 2000 |
| WBRT4-2 | 48" |
4" |
(2) 9W-8559 | 2,800 |
40MT
| MAKE / WEIGHT CLASS | 40MT (82,500 - 105,000 LBS.) |
| CASE | CX470, CX490 |
| CAT | 349F |
| DOOSAN | DX480, DX490LC-5 |
| HITACHI | ZX450, ZX470, ZX490 |
| HYUNDAI | HX480 |
| JOHN DEERE | 470G, 470P |
| KOBELCO | SK480, SK485, SK500 |
| KOMATSU | PC400, PC450, PC490 |
| LIEBHERR | R 944 |
| LINK BELT | 460, 470, 490X4 |
| SANY | SY500 |
| TAKEUCHI | |
| VOLVO | EC460, EC480 |
50MT
| MAKE / WEIGHT CLASS | 50MT (105,000 - 125,000 LBS.) |
| CASE | |
| CAT | 352F |
| DOOSAN | DX490, DX530LC-5, DX530LC-5SLR |
| HITACHI | |
| HYUNDAI | HX520 |
| JOHN DEERE | |
| KOBELCO | |
| KOMATSU | |
| LIEBHERR | R 954 C, R956 C |
| LINK BELT | |
| SANY | |
| TAKEUCHI | |
| VOLVO |
