6SDDCG60

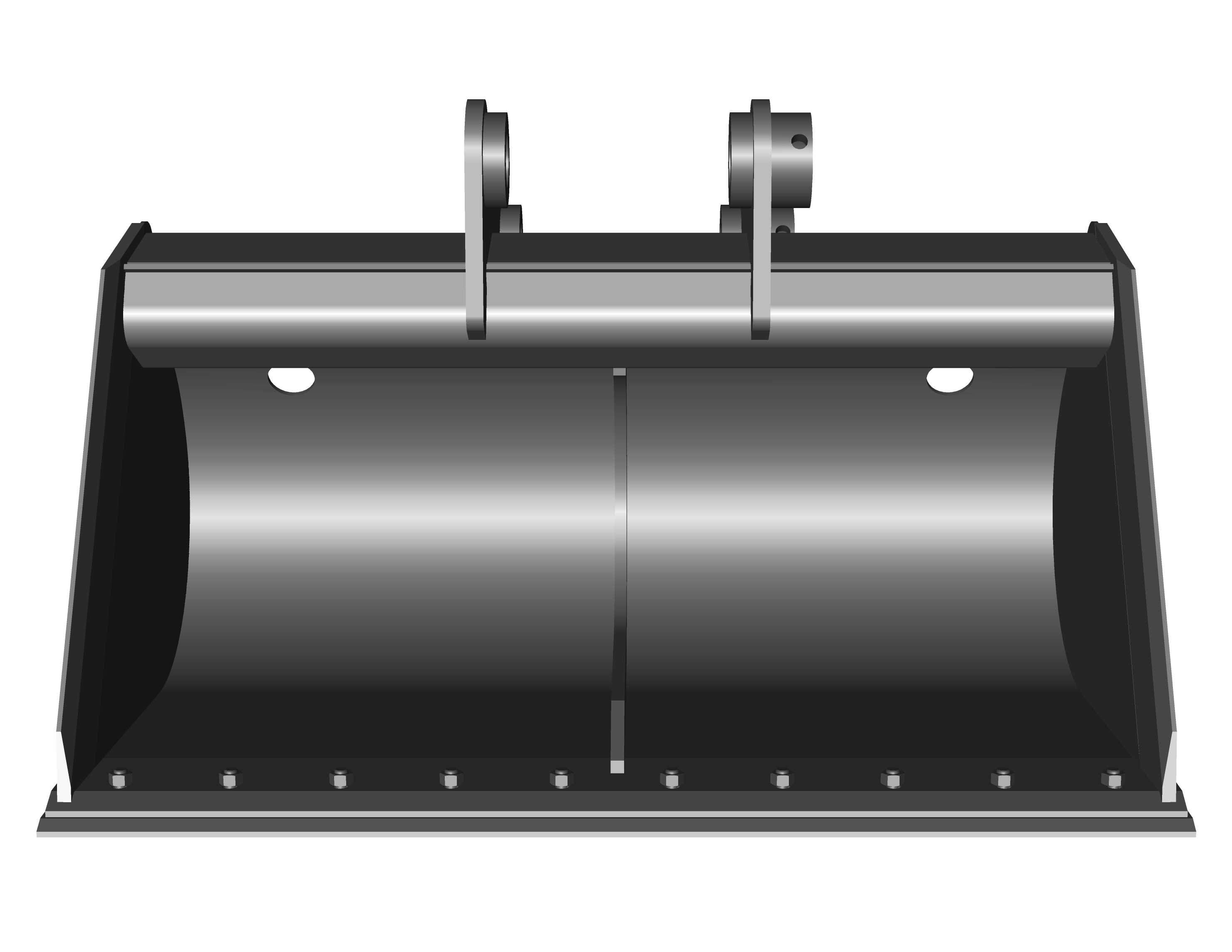

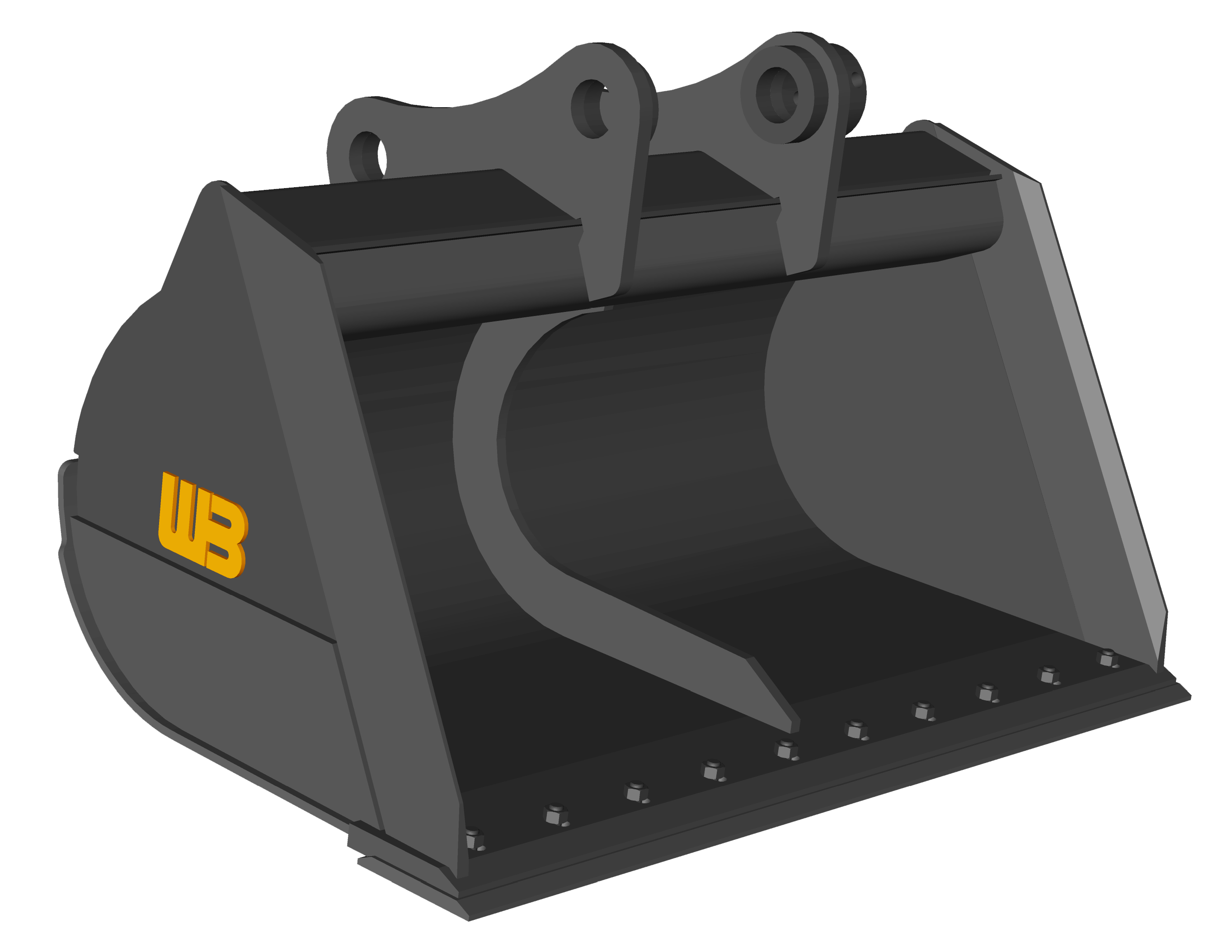

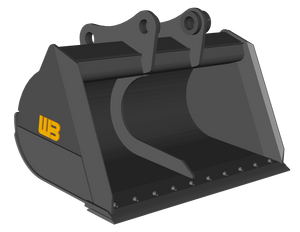

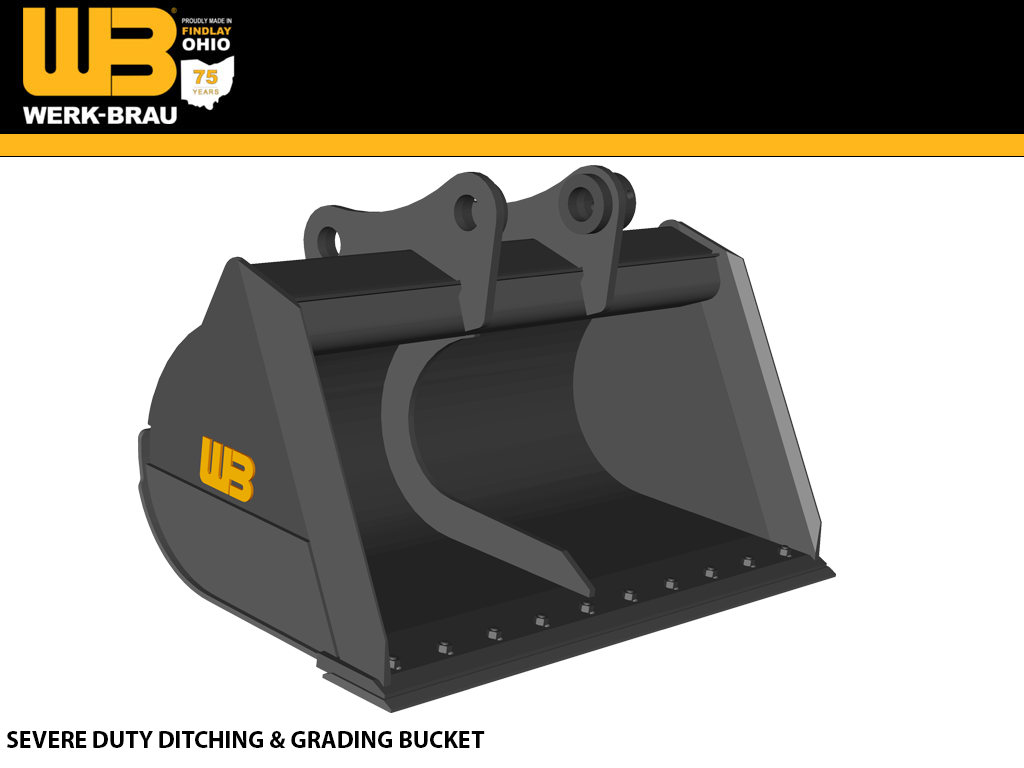

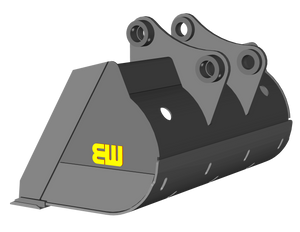

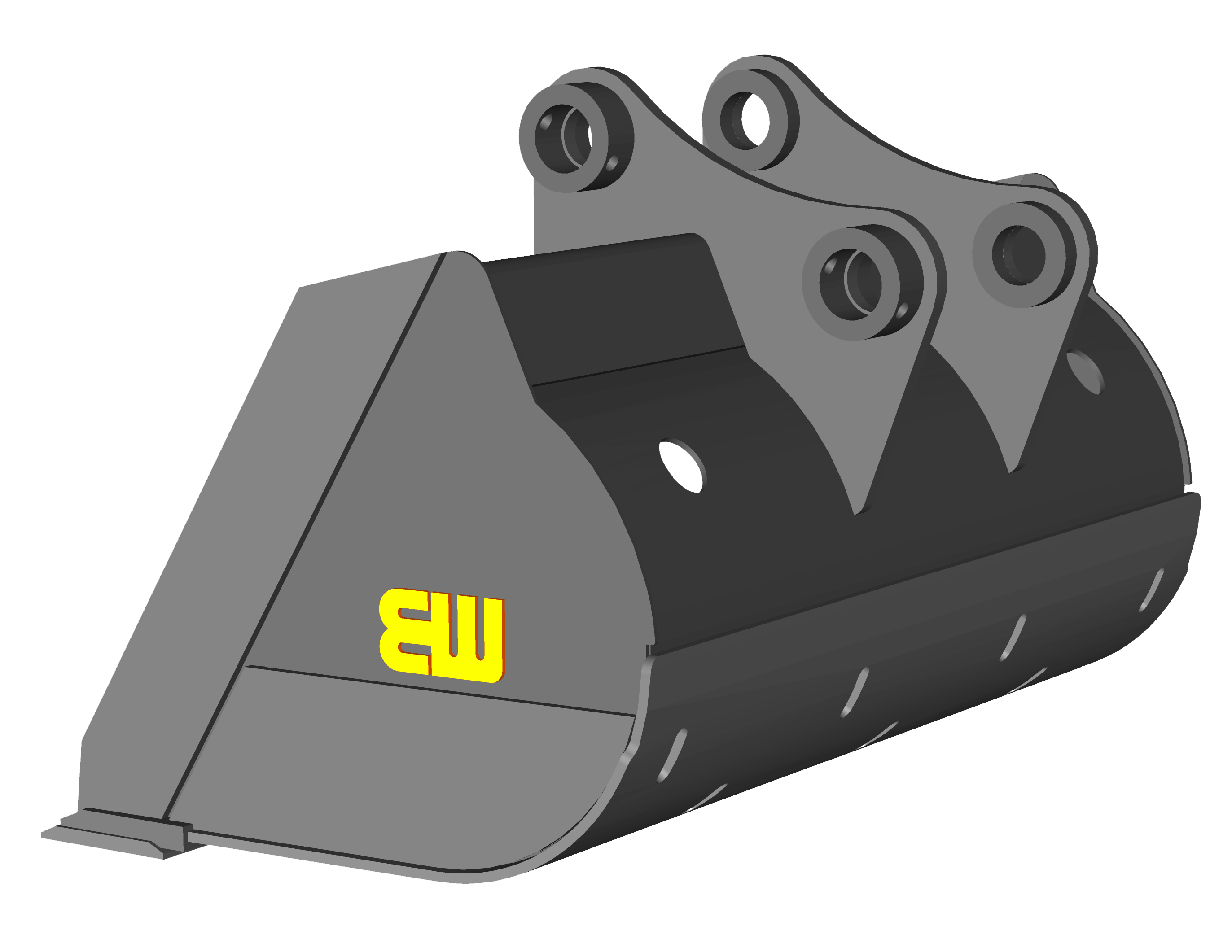

Werk-Brau Severe Duty Ditching & Grading Bucket for 105,000-125,000 lbs. Excavators (50MT)

WIDTH

1/24

SEVERE DUTY DITCHING & GRADING BUCKETS

Recommended Applications

Specifically designed for ditch maintenance and construction. Also useful in grading and slope work.

Construction

T-1 steel is utilized in all high wear components. A rigid top section assures structural stability in the wider sizes. This bucket features a double bottom, side wear guards, and a center rib. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.

Cutting Equipment Options

Teeth are not used on these buckets due to the application.

Standard Sizes

Standard widths range from 48" - 84", and capacities of .64 cu. yd. - 4.0 cu. yd.

Additional Features

The Severe duty features all the same features as the standard duty, but is built to handle greater stress. This bucket features a double bottom, side wear guards, and a center rib.

PART # WIDTH CAPACITY WEIGHT
6SDDCG60 60" 1.78
4,225
6SDDCG66 66"
1.95
4,450
6SDDCG72 72" 2.13
4,750
6SDDCG78 78" 2.31
4,975
6SDDCG84 84" 2.84
5,275
MAKE / WEIGHT CLASS 50MT (105,000 - 125,000 LBS.)
CASE
CAT 352F
DOOSAN DX490, DX530LC-5, DX530LC-5SLR
HITACHI
HYUNDAI HX520
JOHN DEERE
KOBELCO
KOMATSU
LIEBHERR R 954 C, R956 C
LINK BELT
SANY
TAKEUCHI
VOLVO
