1SDDCG48

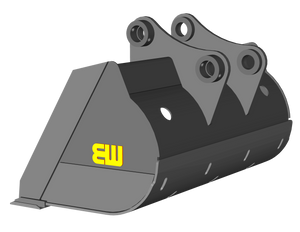

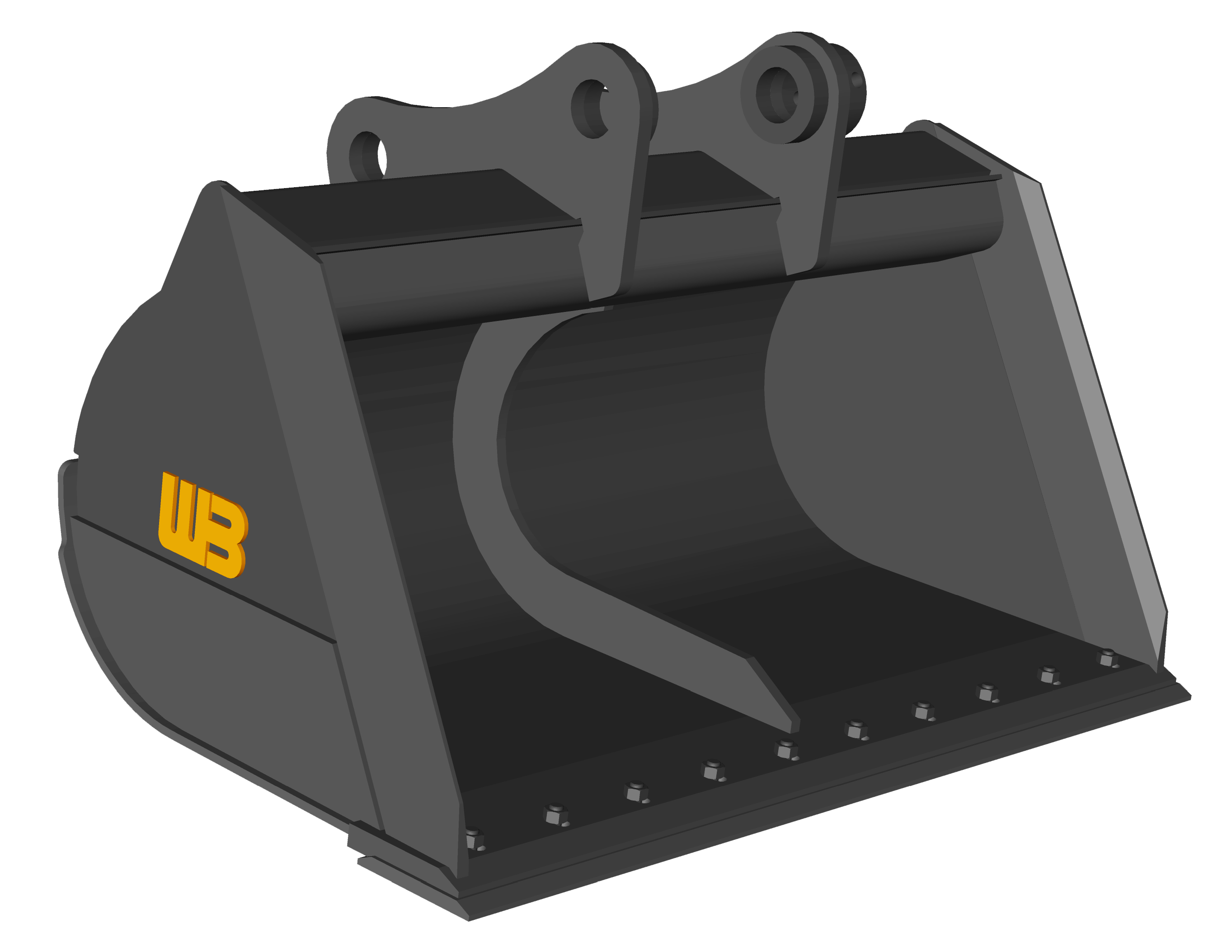

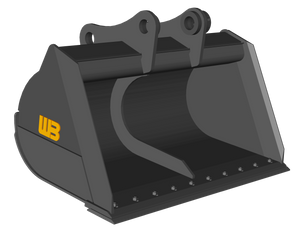

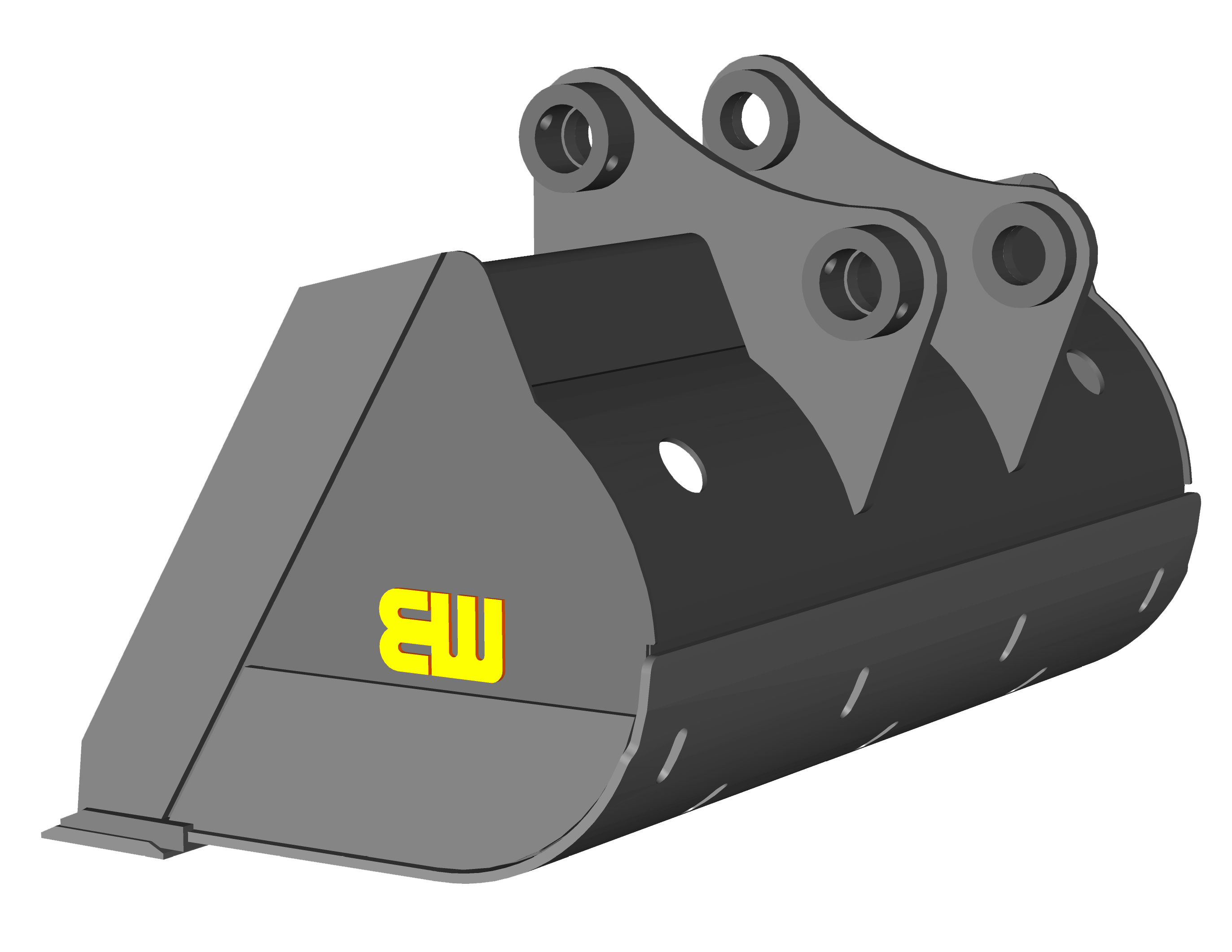

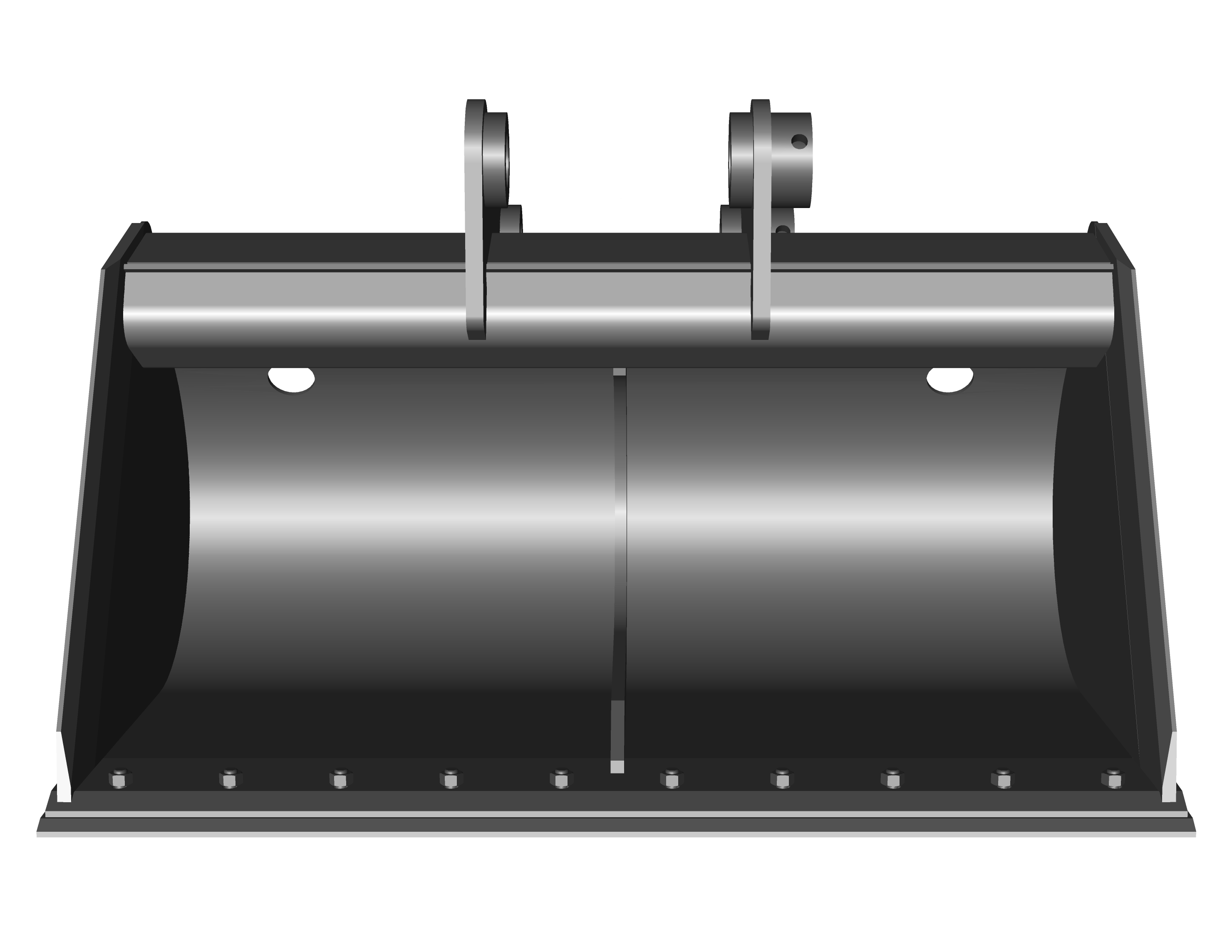

Werk-Brau Severe Duty Ditching & Grading Bucket for 24,000-50,000 lbs. Excavators (12, 15 & 20MT)

WIDTH

1/24

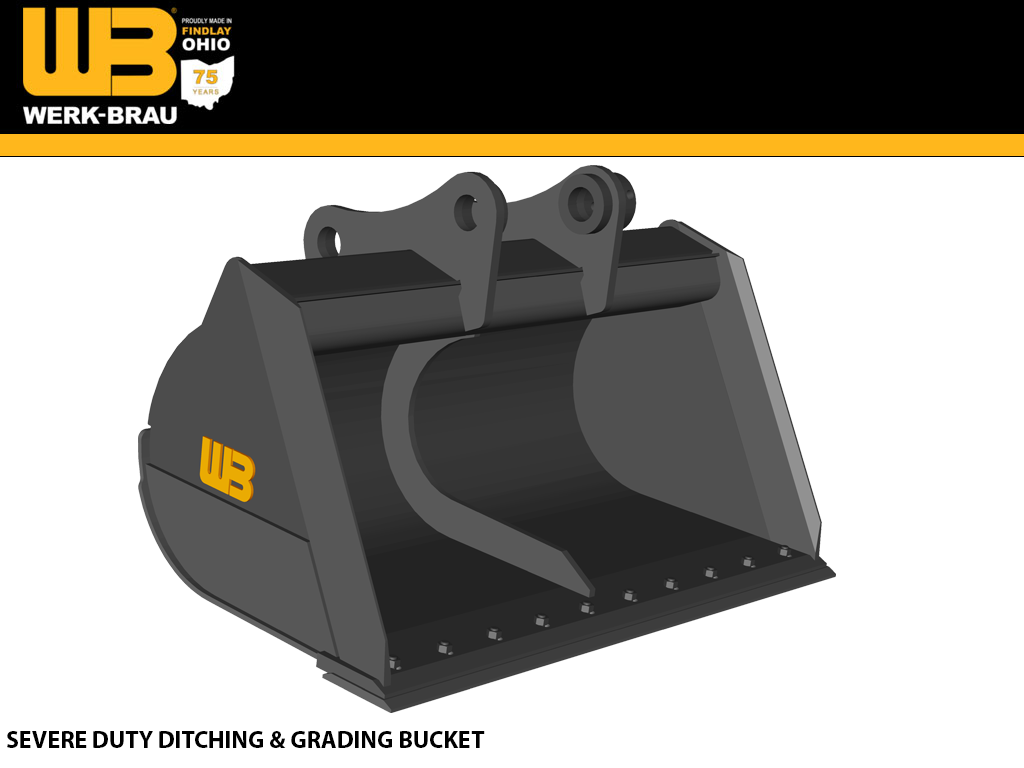

SEVERE DUTY DITCHING & GRADING BUCKETS

Recommended Applications

Specifically designed for ditch maintenance and construction. Also useful in grading and slope work.

Construction

T-1 steel is utilized in all high wear components. A rigid top section assures structural stability in the wider sizes. This bucket features a double bottom, side wear guards, and a center rib. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.

Cutting Equipment Options

Teeth are not used on these buckets due to the application.

Standard Sizes

Standard widths range from 48" - 84", and capacities of .64 cu. yd. - 4.0 cu. yd.

Additional Features

The Severe duty features all the same features as the standard duty, but is built to handle greater stress. This bucket features a double bottom, side wear guards, and a center rib.

PART # WIDTH CAPACITY WEIGHT
1SDDCG48
48"
0.58
1,075
1SDDCG54 54" 0.65 1,125
1SDDCG60 60" 0.73 1,250
1SDDCG66 66"
0.80 1,350
1SDDCG72 72" 0.87
1,425

12MT

MAKE / WEIGHT CLASS 12MT (24,000 - 33,000 LBS.)
CASE CX130, CX145D, CX140E
CAT 311, 313, 314F, 315F (A-Linkage)
DOOSAN DX140LC-5, DX140LCR-5, DX140W-5
HITACHI ZX130
HYUNDAI HX140, HX145, HX220 LR
JOHN DEERE 130G, 135G, 130P
KOBELCO SK140, ED160
KOMATSU PC138
LIEBHERR
LINK BELT 130X4, 145X4, 210X4 LR
SANY SY135, SY235 LR, SY265 LR
TAKEUCHI TB1140, TB2150
VOLVO EW140, EC140, ECR145



15MT

MAKE / WEIGHT CLASS 15MT (33,000 - 42,000 LBS.)
CASE CX160, CX170E, CX190E
CAT 315D, 316F, 318F, M318F
DOOSAN DX180LC-5, DX190W-5
HITACHI ZX160
HYUNDAI HX160, HX180
JOHN DEERE 160G, 160P
KOBELCO ED195, SK170
KOMATSU PC170
LIEBHERR
LINK BELT 160X4
SANY
TAKEUCHI
VOLVO EW160, EW180, EC160, EC180



20MT

MAKE / WEIGHT CLASS 20MT (42,000 - 50,000 LBS.)
CASE CX210, CX220E, CX235, CX245
CAT 320, 321, M322F, 323 (B-Linkage)
DOOSAN DX210W-5, DX225LC-5, DX225LC-5SLR, DX235LCR-5
HITACHI ZX180, ZX200, ZX210, ZX245
HYUNDAI HX220, HX235
JOHN DEERE 210G, 245G, 180P, 210P, 190GW, 230GW
KOBELCO SK210, SK230SR, SK260, SK270SR
KOMATSU PC210-11, PC228, PC238
LIEBHERR R 920 L, 922 L
LINK BELT 210X4, 234X4, 245X4
SANY SY215
TAKEUCHI
VOLVO EC200, EW210, EC210, EC220, ECR235
