3SDDCG54

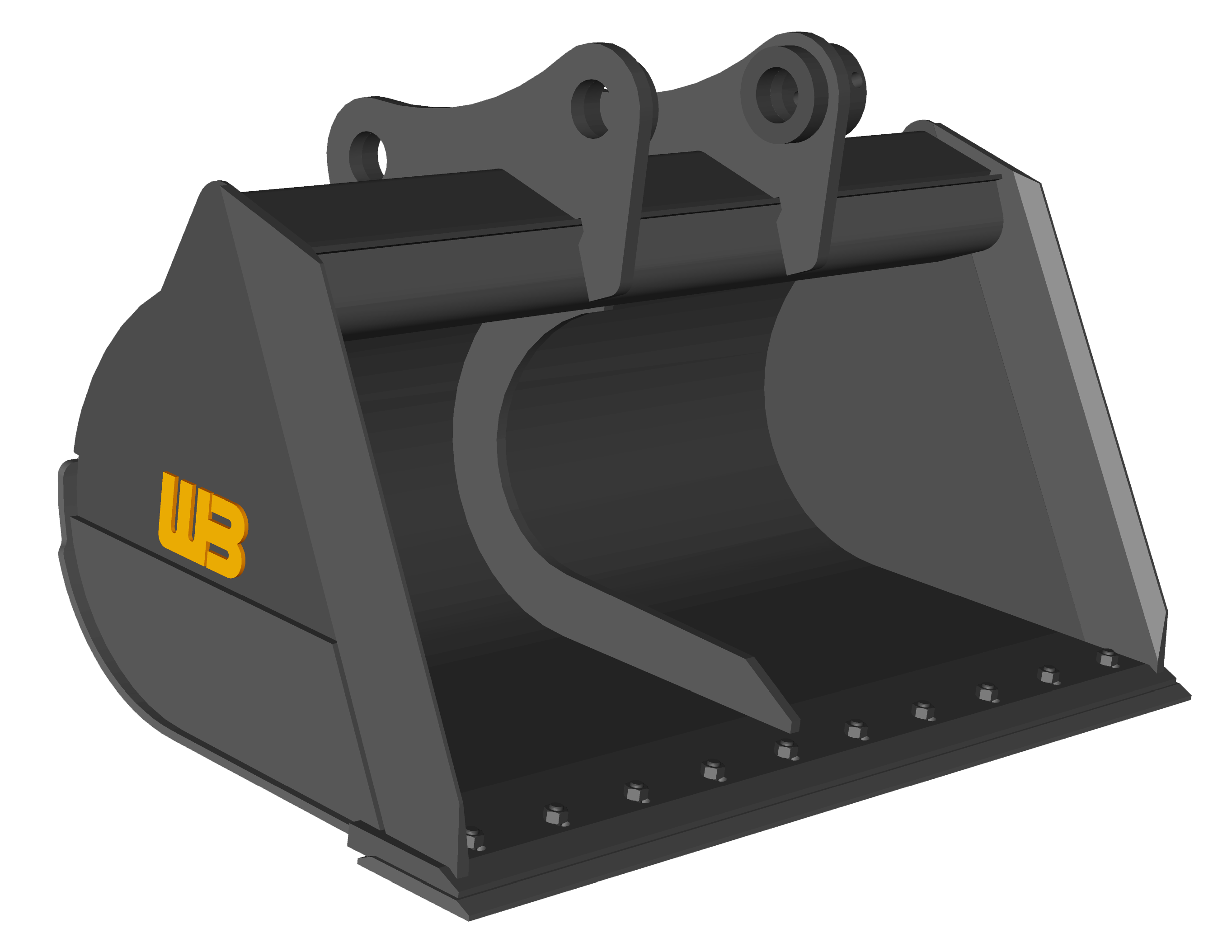

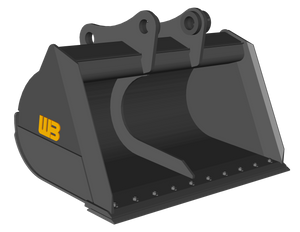

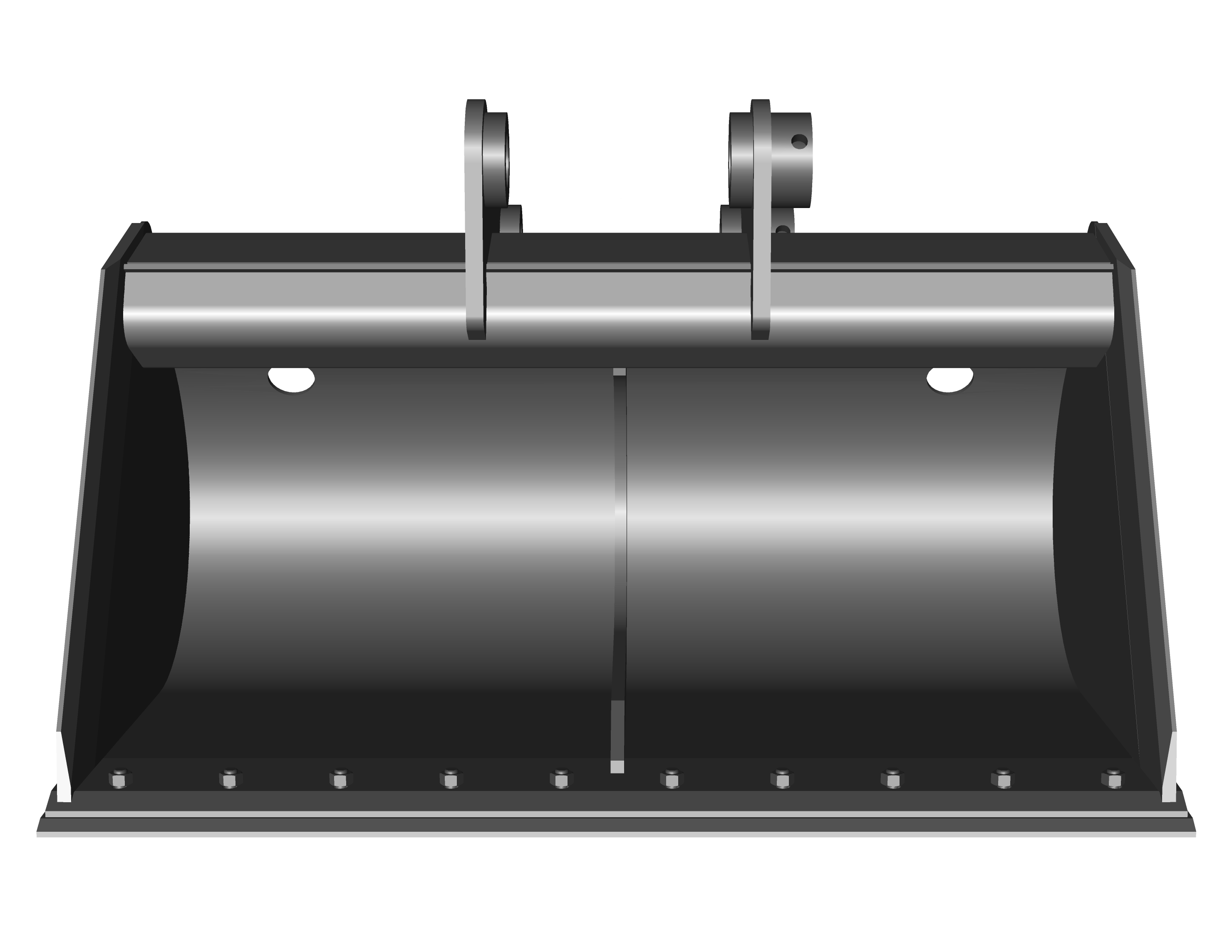

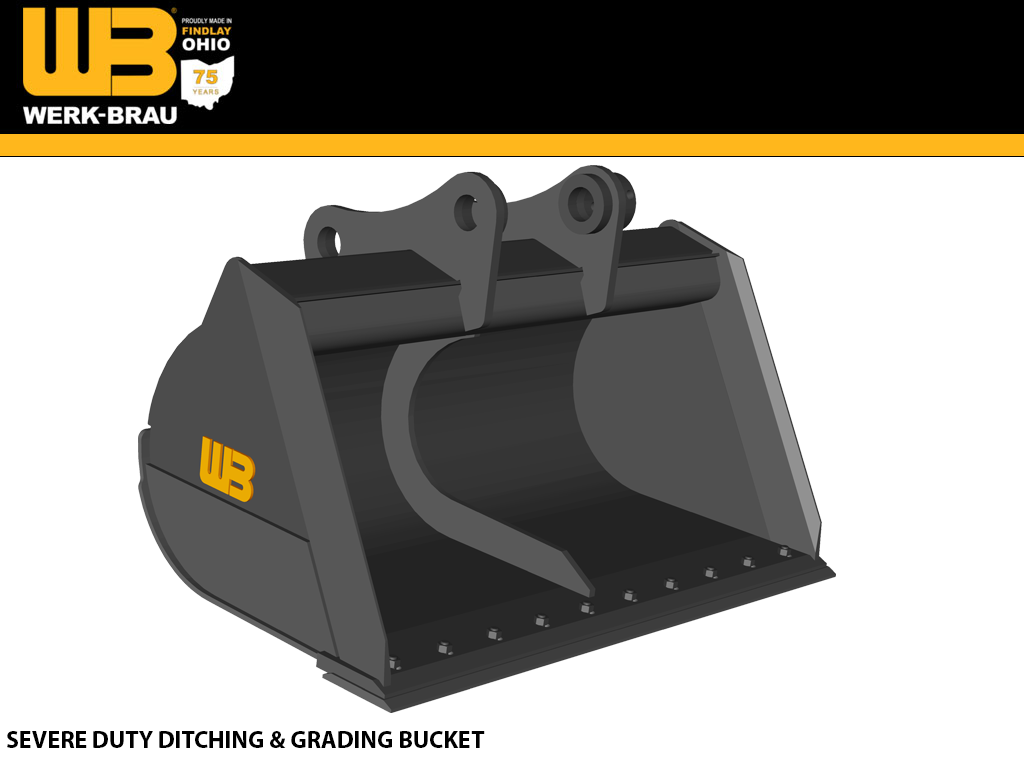

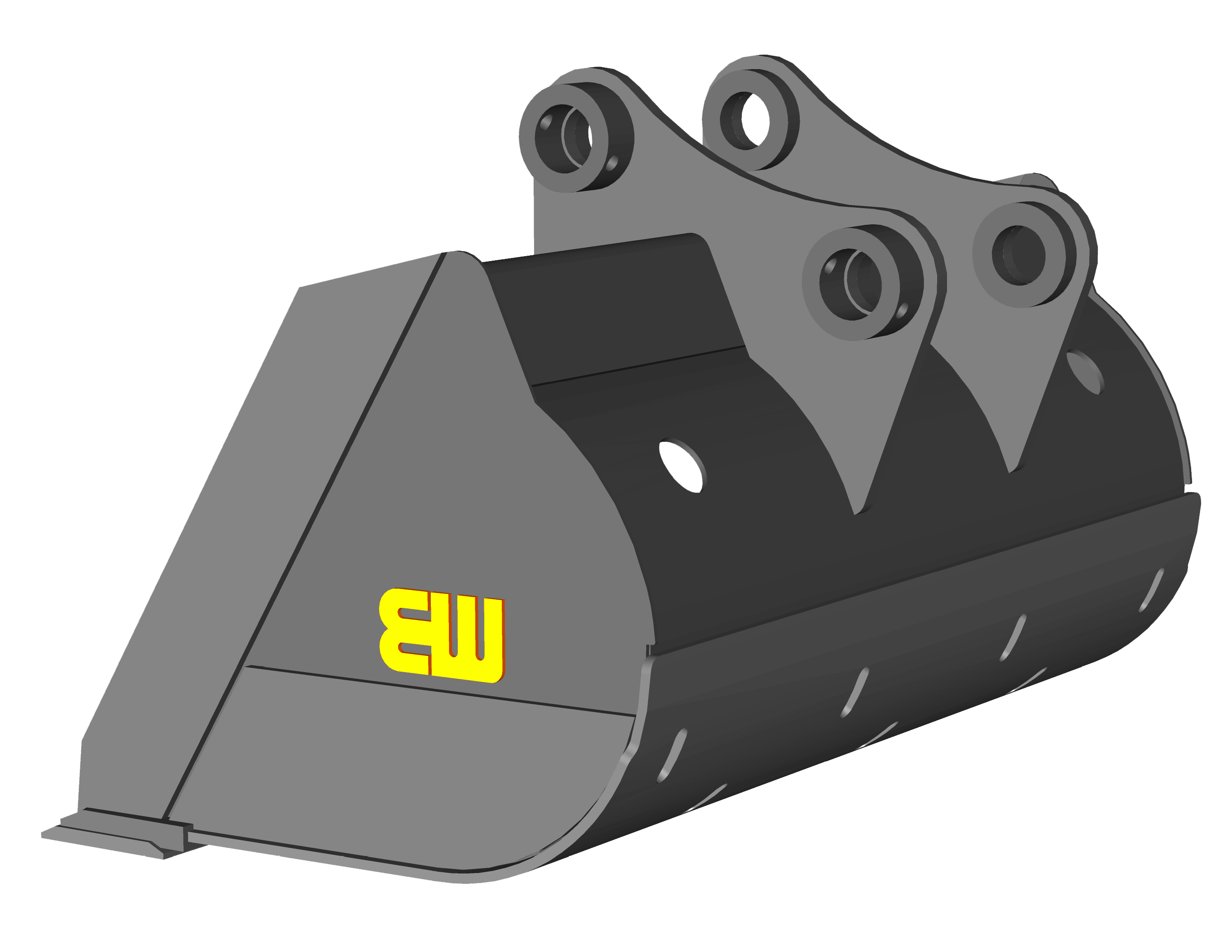

Werk-Brau Severe Duty Ditching & Grading Bucket for 59,000-68,000 lbs. Excavators (30MT)

WIDTH

1/24

SEVERE DUTY DITCHING & GRADING BUCKETS

Recommended Applications

Specifically designed for ditch maintenance and construction. Also useful in grading and slope work.

Construction

T-1 steel is utilized in all high wear components. A rigid top section assures structural stability in the wider sizes. This bucket features a double bottom, side wear guards, and a center rib. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.

Cutting Equipment Options

Teeth are not used on these buckets due to the application.

Standard Sizes

Standard widths range from 48" - 84", and capacities of .64 cu. yd. - 4.0 cu. yd.

Additional Features

The Severe duty features all the same features as the standard duty, but is built to handle greater stress. This bucket features a double bottom, side wear guards, and a center rib.

PART # WIDTH CAPACITY WEIGHT
3SDDCG54 54" 1.13
2,250
3SDDCG60 60" 1.25
2,425
3SDDCG66 66"
1.38
2,625
3SDDCG72 72" 1.51
2,800
MAKE / WEIGHT CLASS 30MT (59,500 - 68,000 LBS.)
CASE CX300, CX365E
CAT 326, 328, 329, 335F, CB-LINKAGE
DOOSAN DX300LC-5, DX300LC-5SLR
HITACHI ZX300, ZX345
HYUNDAI HX300
JOHN DEERE 300G, 345G, 300P
KOBELCO SK300
KOMATSU PC270, PC290, PC308
LIEBHERR
LINK BELT 300X3, 300X4, 355X4
SANY SY365
TAKEUCHI
VOLVO EC330, EC340, EC350, EC360, EC380
