4SDDCG54
1/24

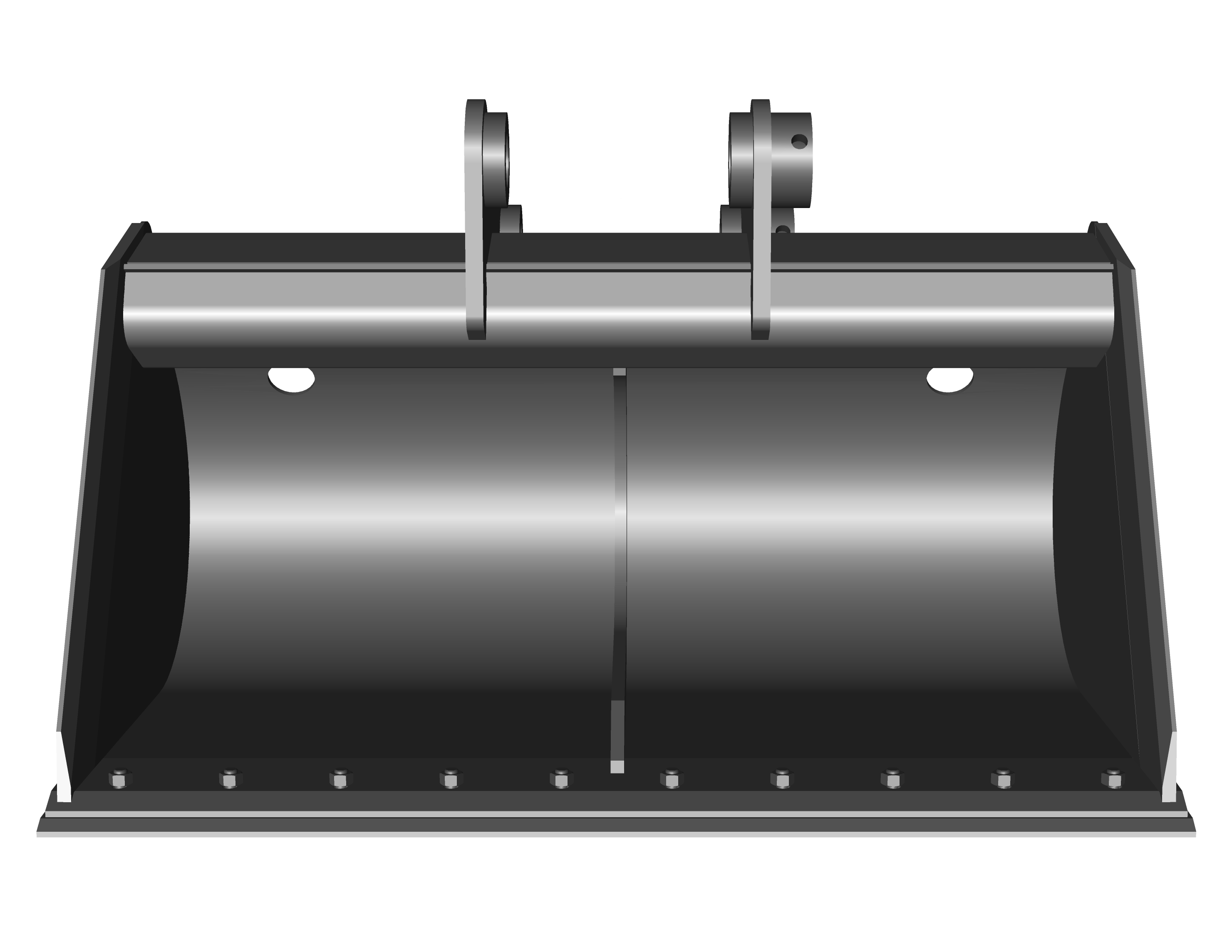

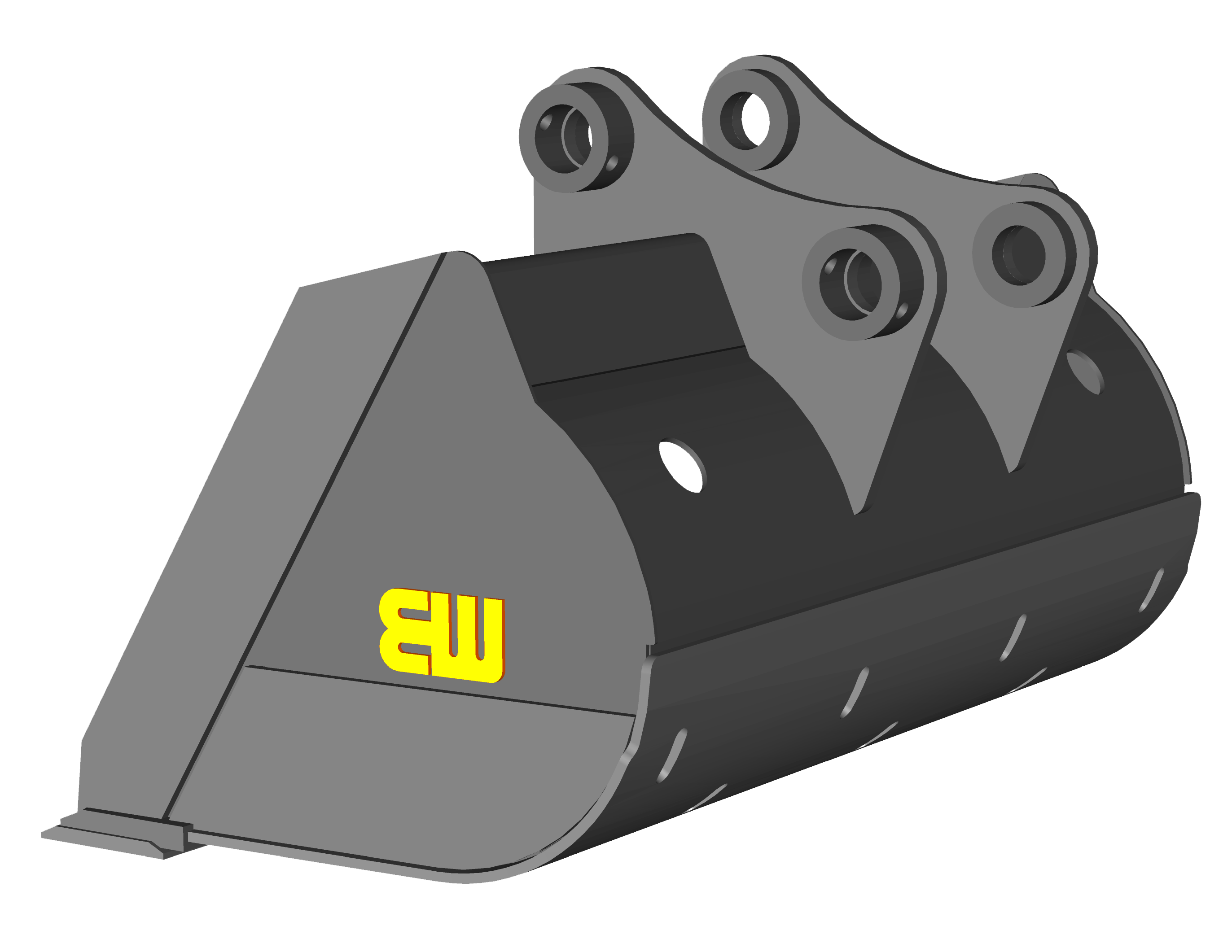

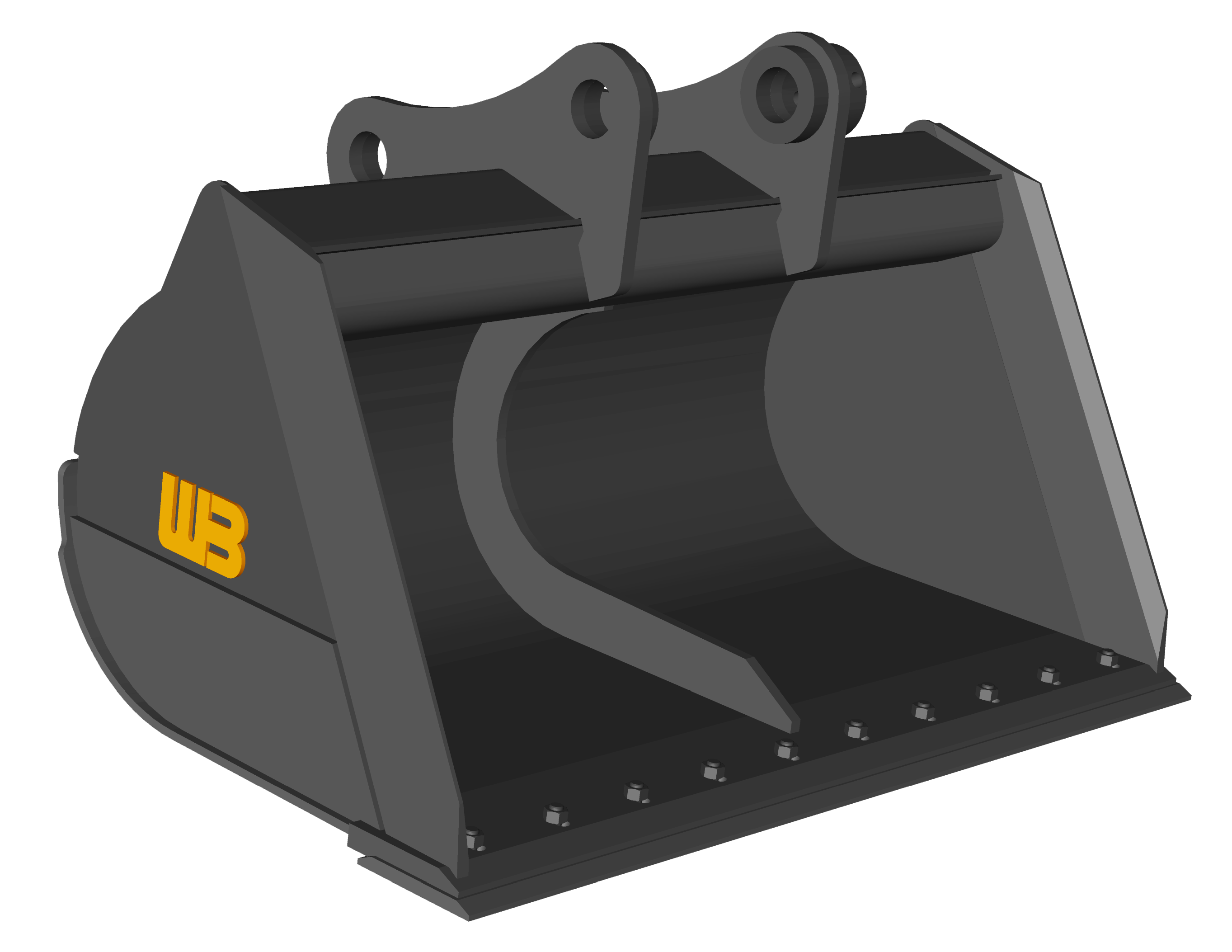

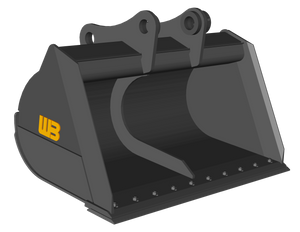

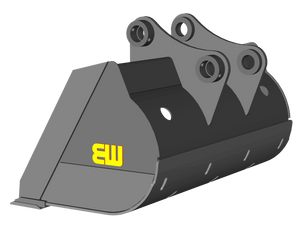

Specifically designed for ditch maintenance and construction. Also useful in grading and slope work.
T-1 steel is utilized in all high wear components. A rigid top section assures structural stability in the wider sizes. This bucket features a double bottom, side wear guards, and a center rib. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.
Teeth are not used on these buckets due to the application.
Standard widths range from 48" - 84", and capacities of .64 cu. yd. - 4.0 cu. yd.

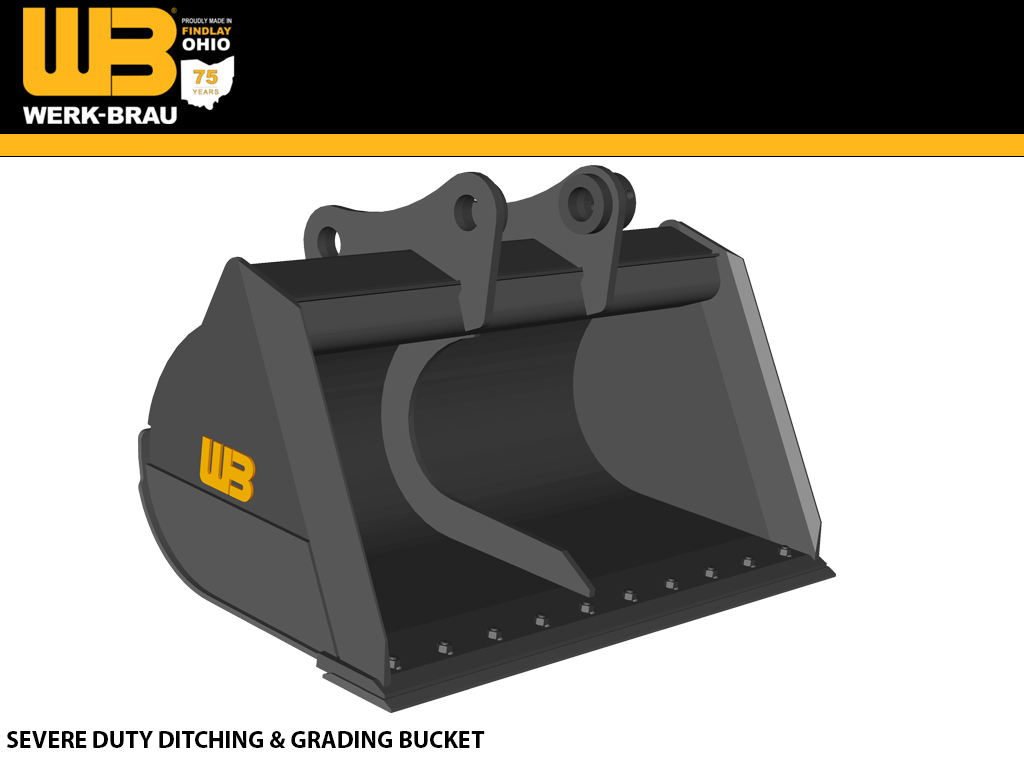

The Severe duty features all the same features as the standard duty, but is built to handle greater stress. This bucket features a double bottom, side wear guards, and a center rib.
PART # | WIDTH | CAPACITY | WEIGHT |
4SDDCG54 | 54" | 1.24 |
2,800 |
4SDDCG60 | 60" | 1.38 |
2,975 |
4SDDCG66 | 66" |
1.51 |
3,000 |
4SDDCG72 | 72" | 1.61 |
3,175 |
4SDDCG78 | 78" | 1.79 | 3,350 |
MAKE / WEIGHT CLASS | 35MT (68,500 - 82,000 LBS.) |
CASE | CX350 |
CAT | 330, 335, 336F DB-LINKAGE |
DOOSAN | DX350LC-5, DX420LC-5 |
HITACHI | ZX350, ZX380 |
HYUNDAI | HX330, HX350, HX380 |
JOHN DEERE | 350G, 380G, 350P |
KOBELCO | SK350 |
KOMATSU | PC300, PC350, PC360, PC390 |
LIEBHERR | R 934 CL, R 924 C, R936 |
LINK BELT | 350X4 |
SANY | SY365 |
TAKEUCHI | |
VOLVO | EC330, EC340, EC350, EC360, EC380 |
