5SDDCG60

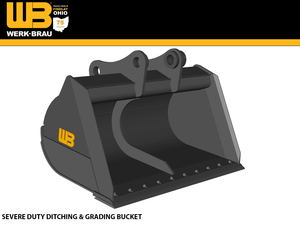

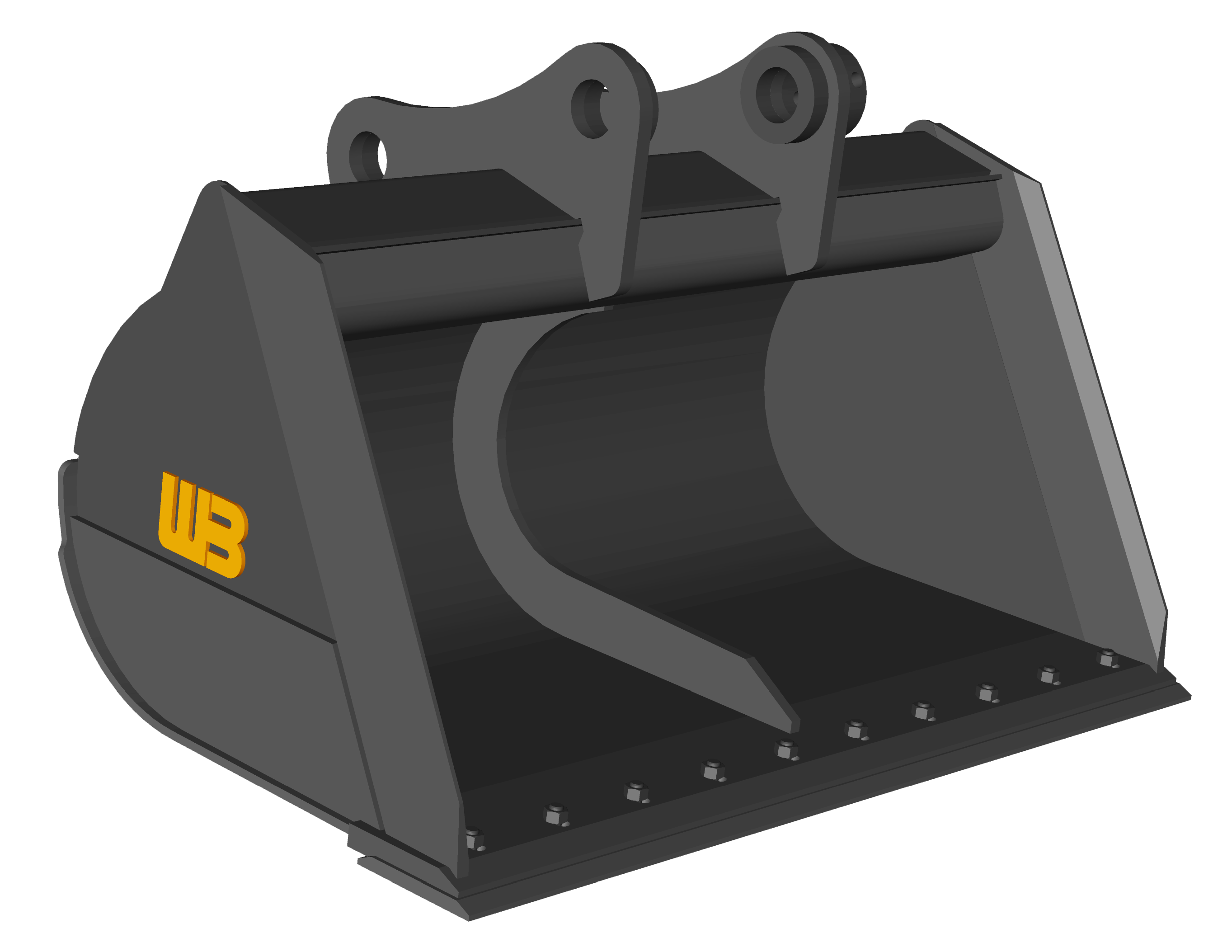

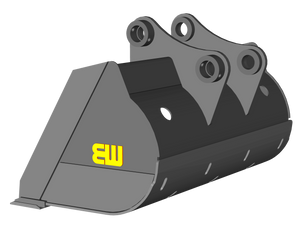

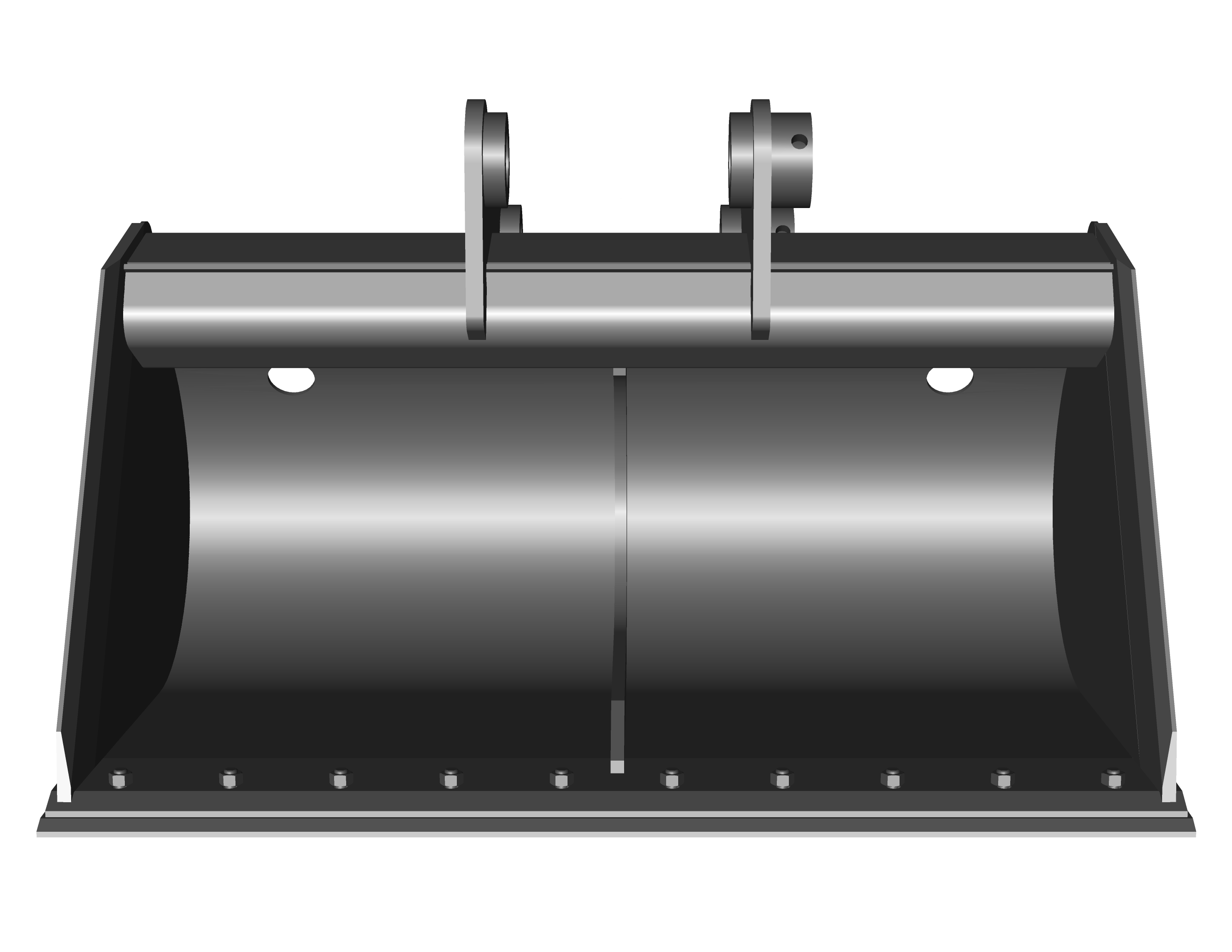

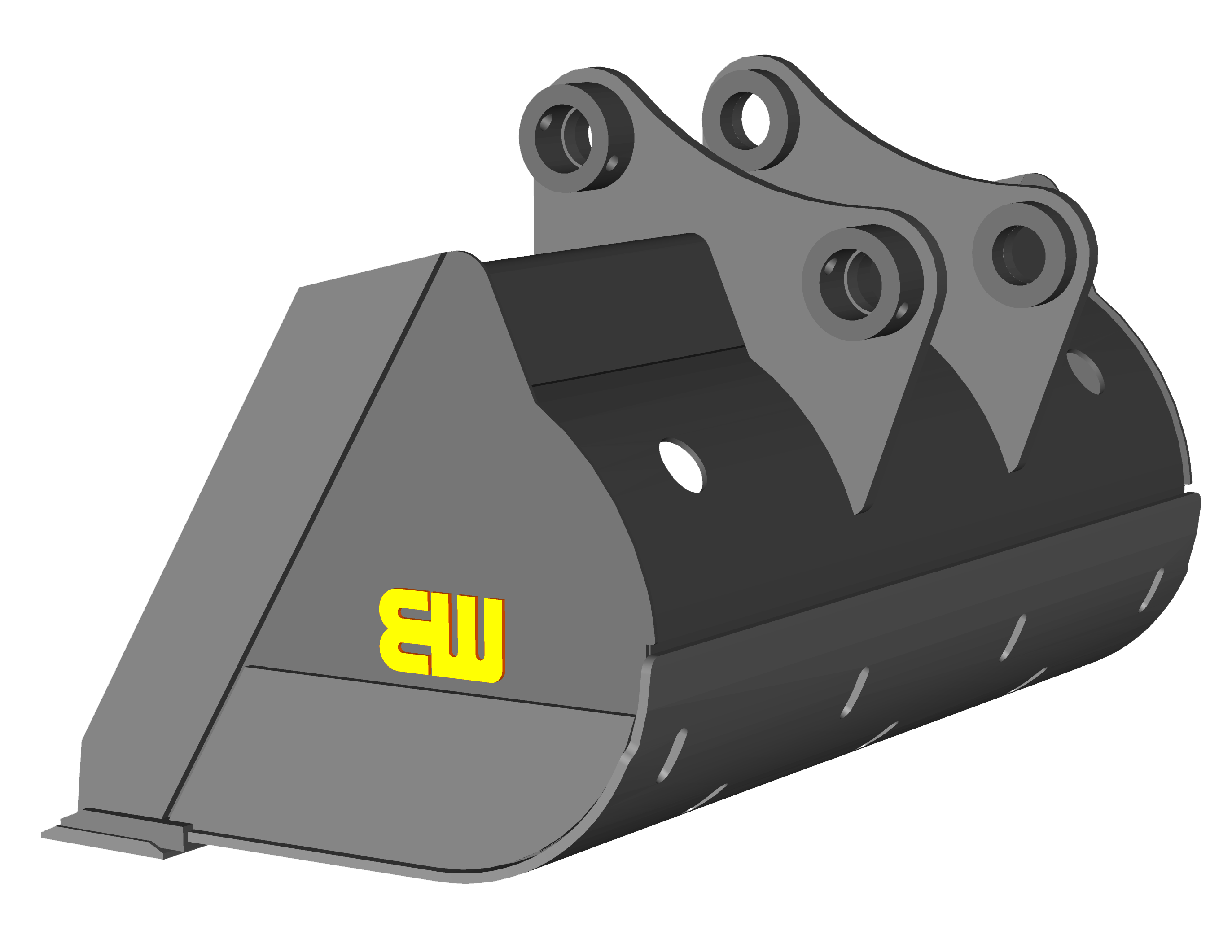

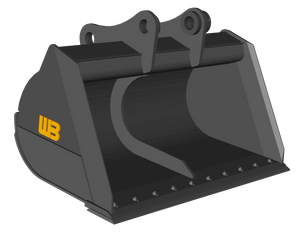

Werk-Brau Severe Duty Ditching & Grading Bucket for 82,000-105,000 lbs. Excavators (40MT)
$15,913.00 - $17,927.00
1/24
SEVERE DUTY DITCHING & GRADING BUCKETS
Recommended Applications
Specifically designed for ditch maintenance and construction. Also useful in grading and slope work.
Construction
T-1 steel is utilized in all high wear components. A rigid top section assures structural stability in the wider sizes. This bucket features a double bottom, side wear guards, and a center rib. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.
Cutting Equipment Options
Teeth are not used on these buckets due to the application.
Standard Sizes
Standard widths range from 48" - 84", and capacities of .64 cu. yd. - 4.0 cu. yd.
Additional Features
The Severe duty features all the same features as the standard duty, but is built to handle greater stress. This bucket features a double bottom, side wear guards, and a center rib.
| PART # | WIDTH | CAPACITY | WEIGHT |
| 5SDDCG60 | 60" | 1.48 |
3,475 |
| 5SDDCG66 | 66" |
1.63 |
3,700 |
| 5SDDCG72 | 72" | 1.78 |
3,975 |
| 5SDDCG78 | 78" | 1.92 |
4,200 |
| 5SDDCG84 | 84" | 2.07 | 4,225 |
| MAKE / WEIGHT CLASS | 40MT (82,500 - 105,000 LBS.) |
| CASE | CX470, CX490 |
| CAT | 349F |
| DOOSAN | DX480, DX490LC-5 |
| HITACHI | ZX450, ZX470, ZX490 |
| HYUNDAI | HX480 |
| JOHN DEERE | 470G, 470P |
| KOBELCO | SK480, SK485, SK500 |
| KOMATSU | PC400, PC450, PC490 |
| LIEBHERR | R 944 |
| LINK BELT | 460, 470, 490X4 |
| SANY | SY500 |
| TAKEUCHI | |
| VOLVO | EC460, EC480 |
