3MSD16

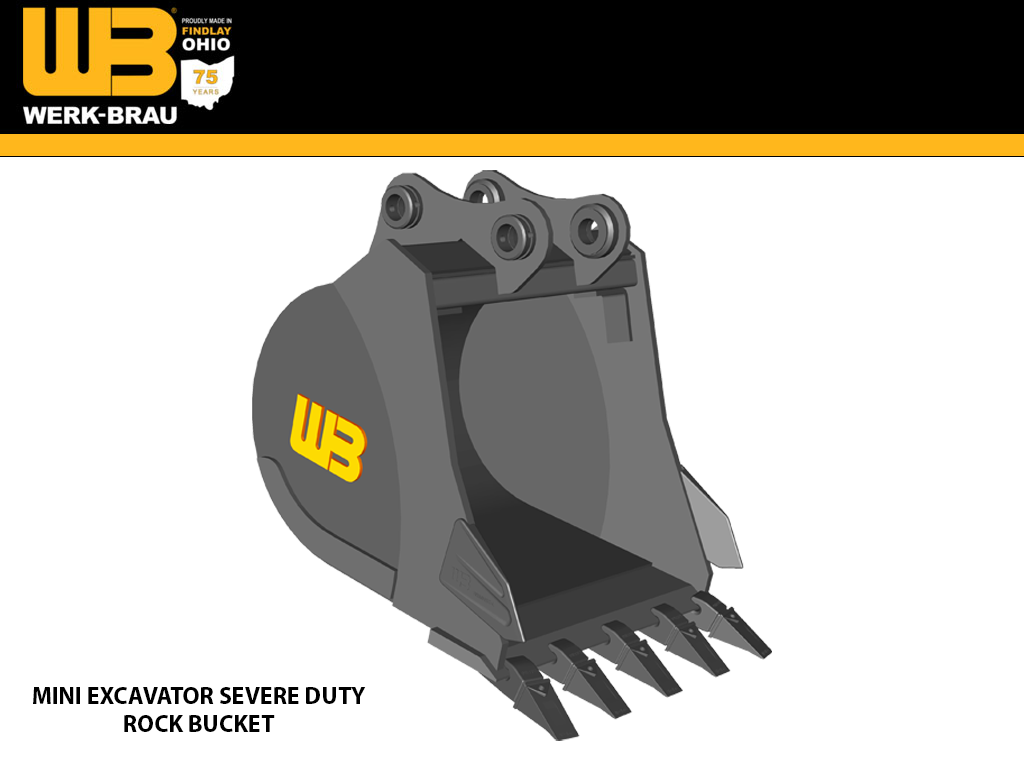

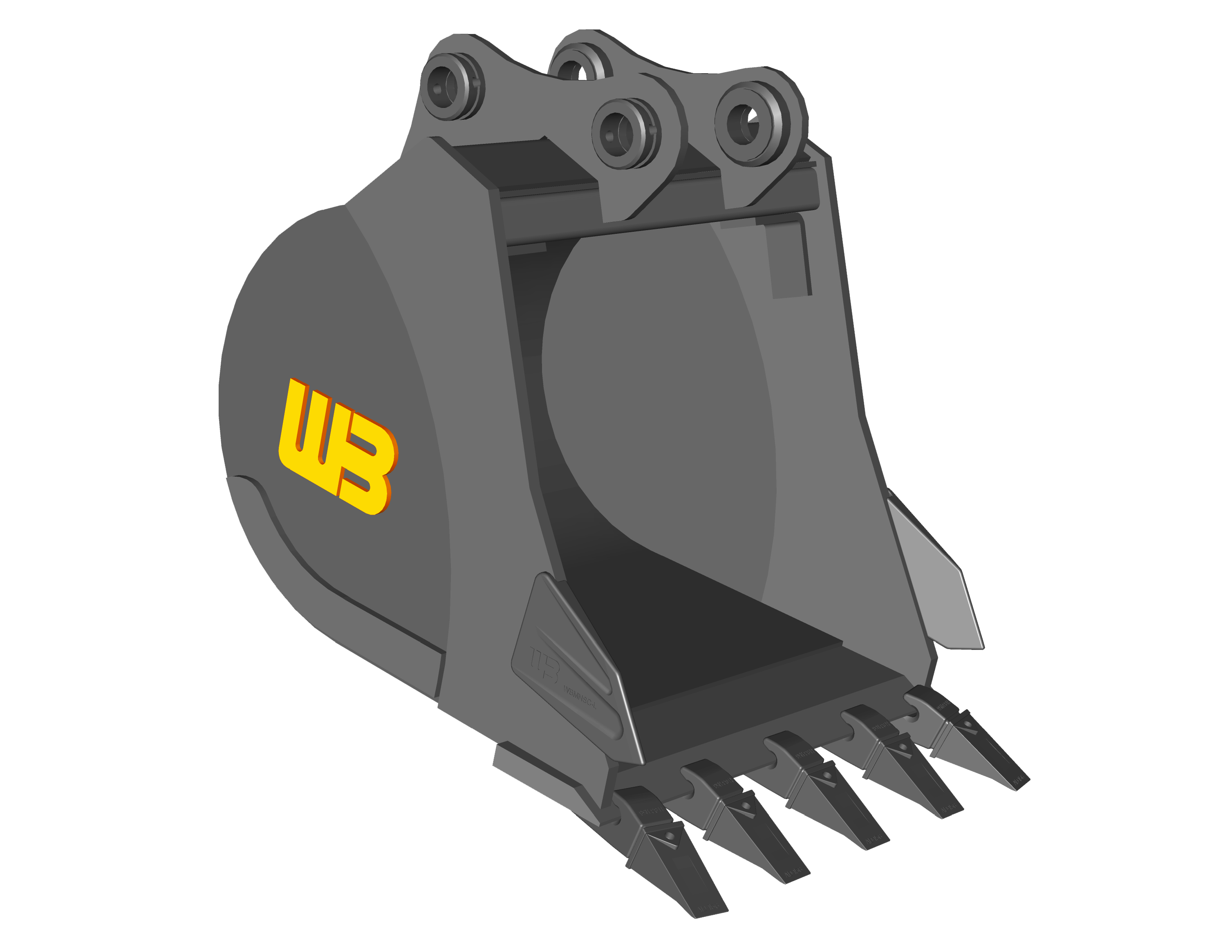

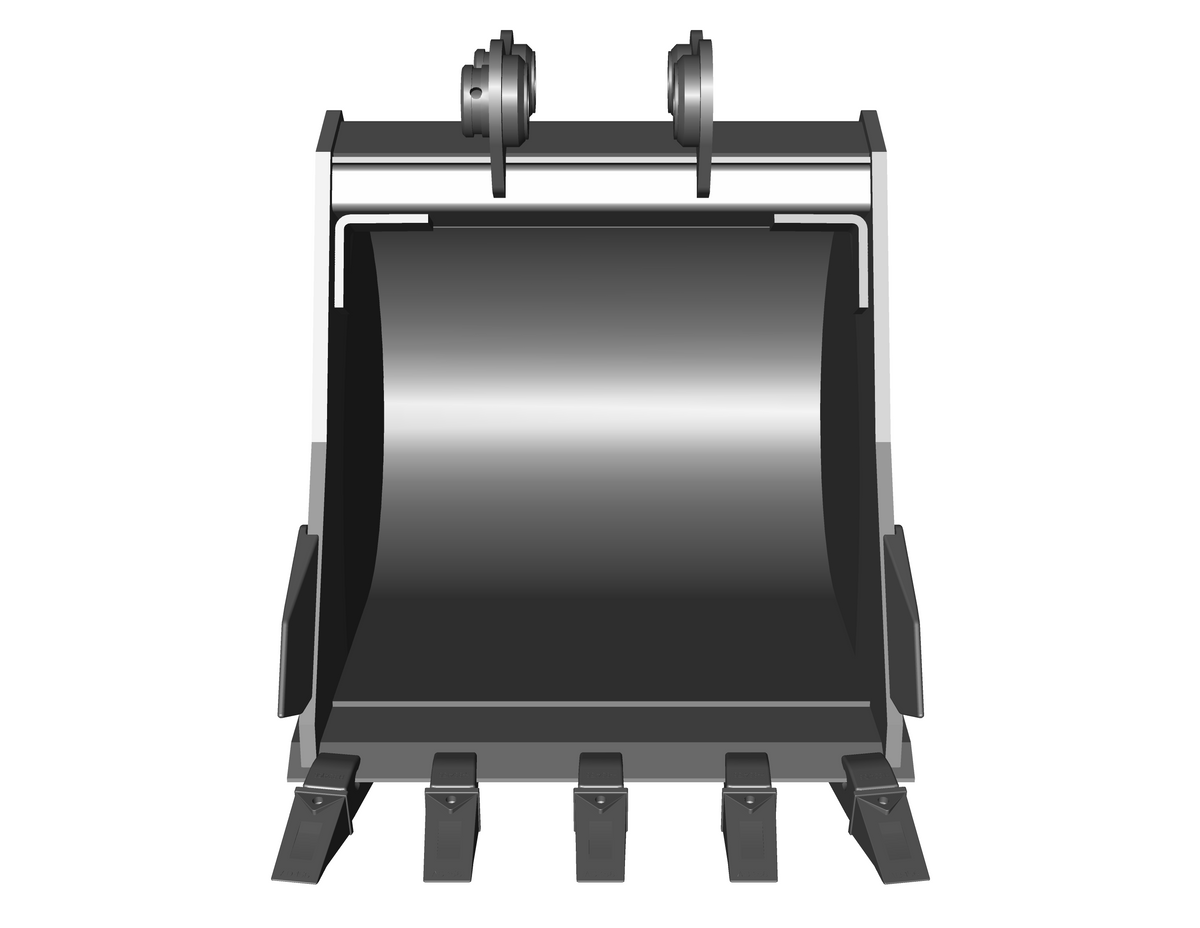

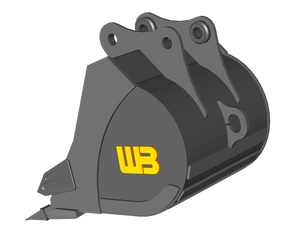

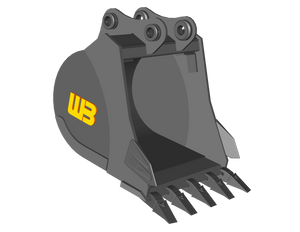

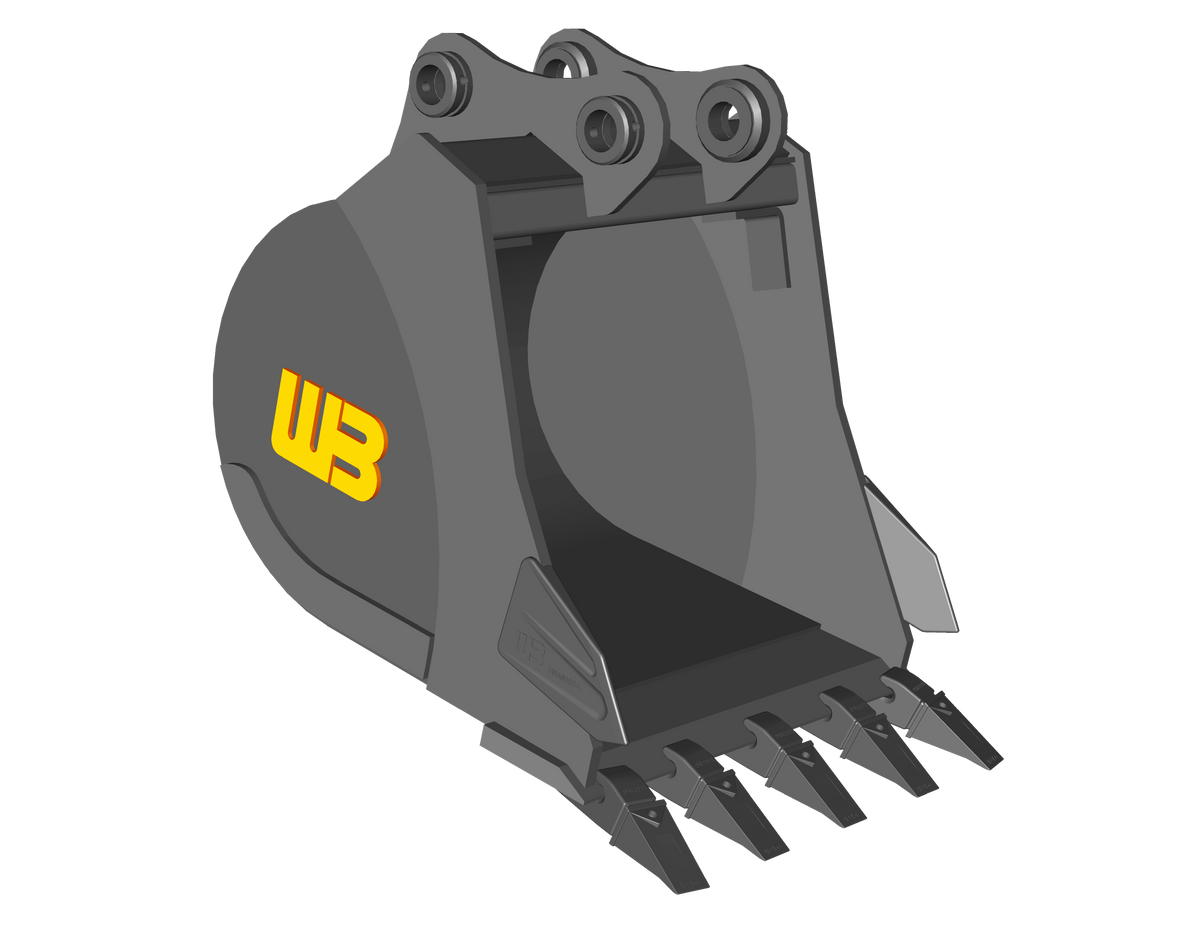

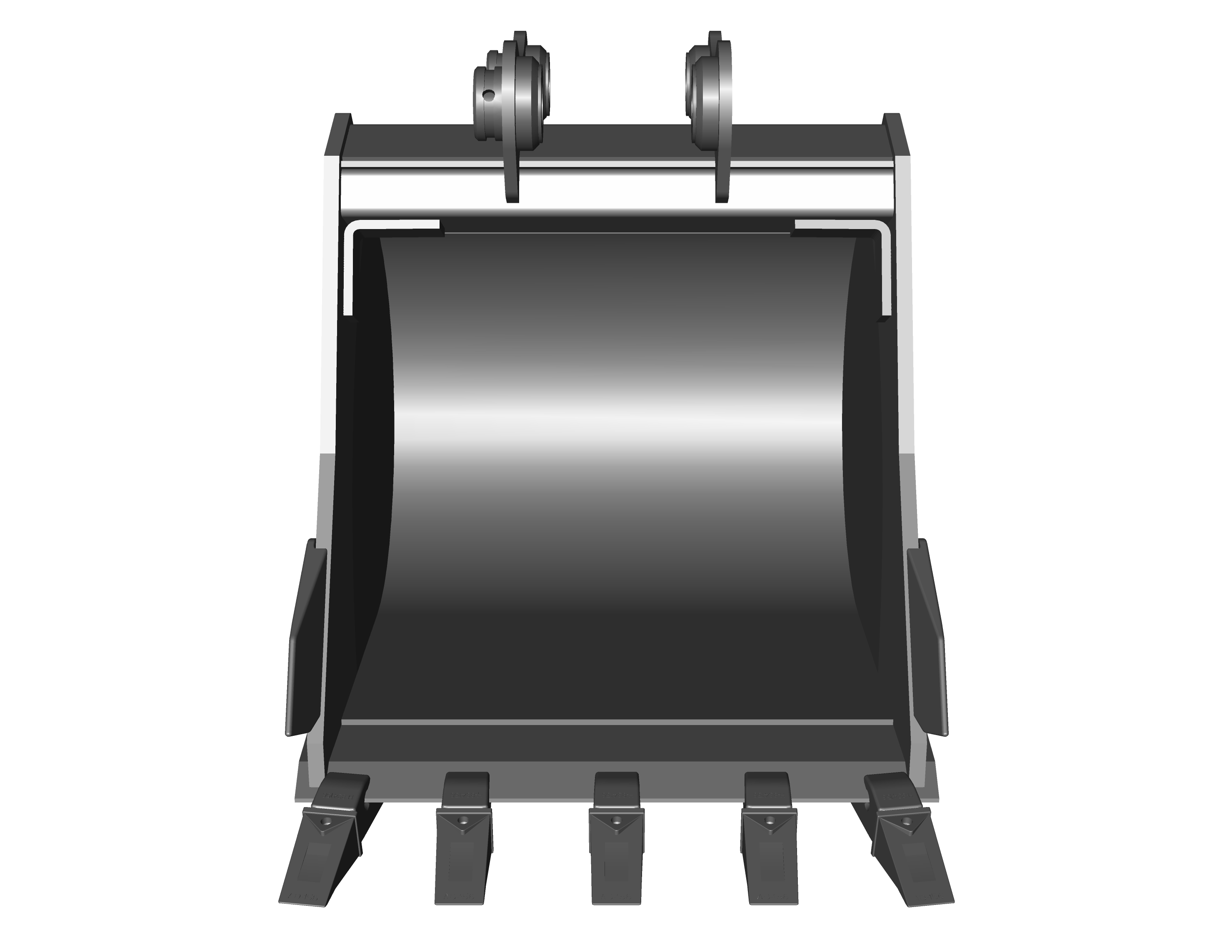

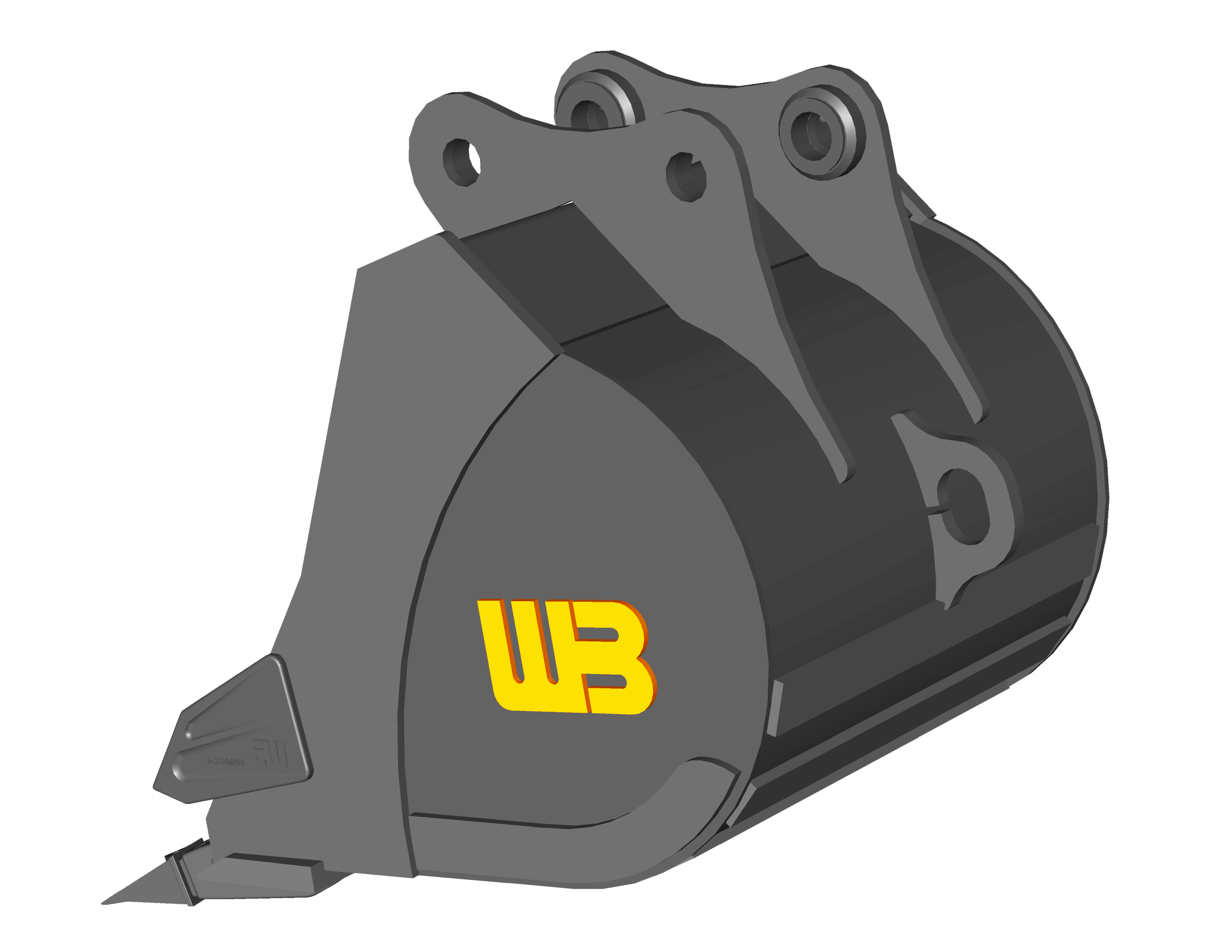

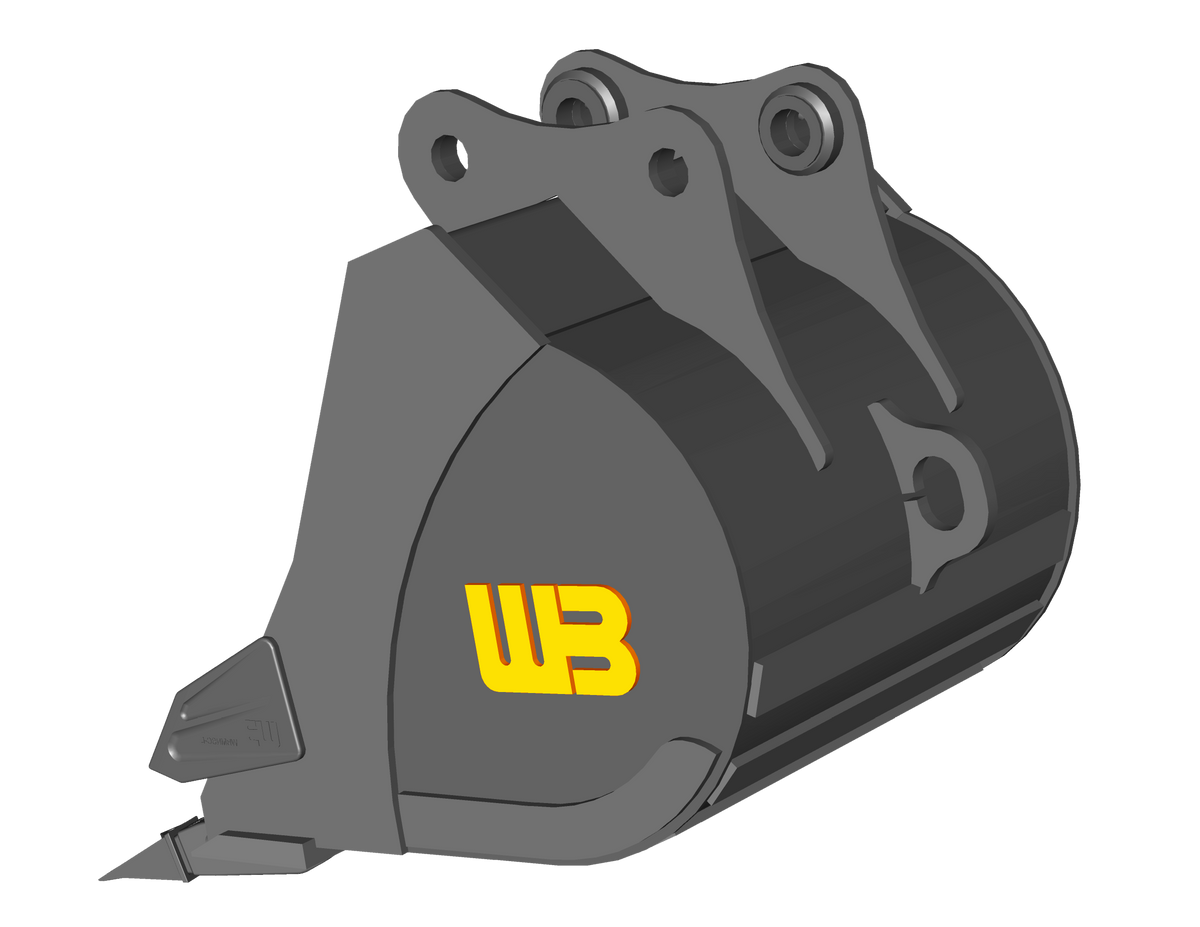

WERK-BRAU Severe Duty Rock Bucket for 11,000 - 14,000 lbs. Excavators. (Mini 3)

Size
Weld on side cutter

1/24

WERK-BRAU SEVERE DUTY ROCK BUCKETS

MINI EXCAVATOR



Recommended Applications

Werk-Brau's severe duty buckets are specifically designed with an aggressive dig angle to effectively excavate in the toughest conditions. Ideal applications for this bucket include but are not limited to demolition work, shot rock, high abrasive applications, and moderate prying. When paired with a thumb, this bucket can also be used for material handling.

Quality Construction

Increased material thickness in most components add life and durability in the most extreme digging conditions. T-1 steel is utilized in all critical or high wear components. This bucket features tapered side plates, horizontal wear straps, and an extra thick cutting edge is backed by a wear plate that covers the entire bucket bottom. The cutter bit is made from heavy duty cast material. Side wear plates protect the bucket sides in the high wear areas and extend the buckets operation life. The tip radius on the severe duty excavator bucket is to or within O.E.M. specifications. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.

Cutting Equipment Options

Oversized OEM approved cast teeth and shanks are standard.

Standard Sizes

Standard widths range from 12" to 36" in 6" increments -- special widths available on request. Standard capacity available in all most popular widths.

Additional Features

Bolt-on side cutters are highly recommended for added endurance. Adjustable bushings are available upon request. Box rippers are available and can be installed upon request. Special designs and capacities are available, please request a quote from your local dealer.

PART # WIDTH CAPACITY NO. TEETH WEIGHT
3MSD16 16" 4.00
3 440
3MSD18 18" 4.60
4 495
3MSD20 20" 5.00
4
530
3MSD24 24" 6.20
5 560
3MSD30 30" 8.00
5
690
3MSD36 36" 9.50
6 750
MAKE / WEIGHT CLASS MINI 3 (11,000 - 14,000 LBS.)
BOBCAT E80, E85
CASE
CAT 306CR
DOOSAN DX80
DITCH WITCH
GEHL GE753Z, GE803
HITACHI
HYUNDAI R75
IHI 55N-2, 55NX, 65NX, 80NX
JCB 8060
JOHN DEERE
KOBELCO
KOMATSU PC78, PC95, PC88MR-8
KUBOTA
LINK BELT
MUSTANG 8003, 7503ZT
NEW HOLLAND
SANY
TAKEUCHI HR32
VOLVO
YANMAR
WACKER NEUSON ET90, EW100, 8003
