5MSD18

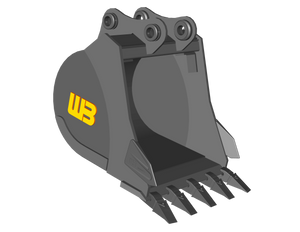

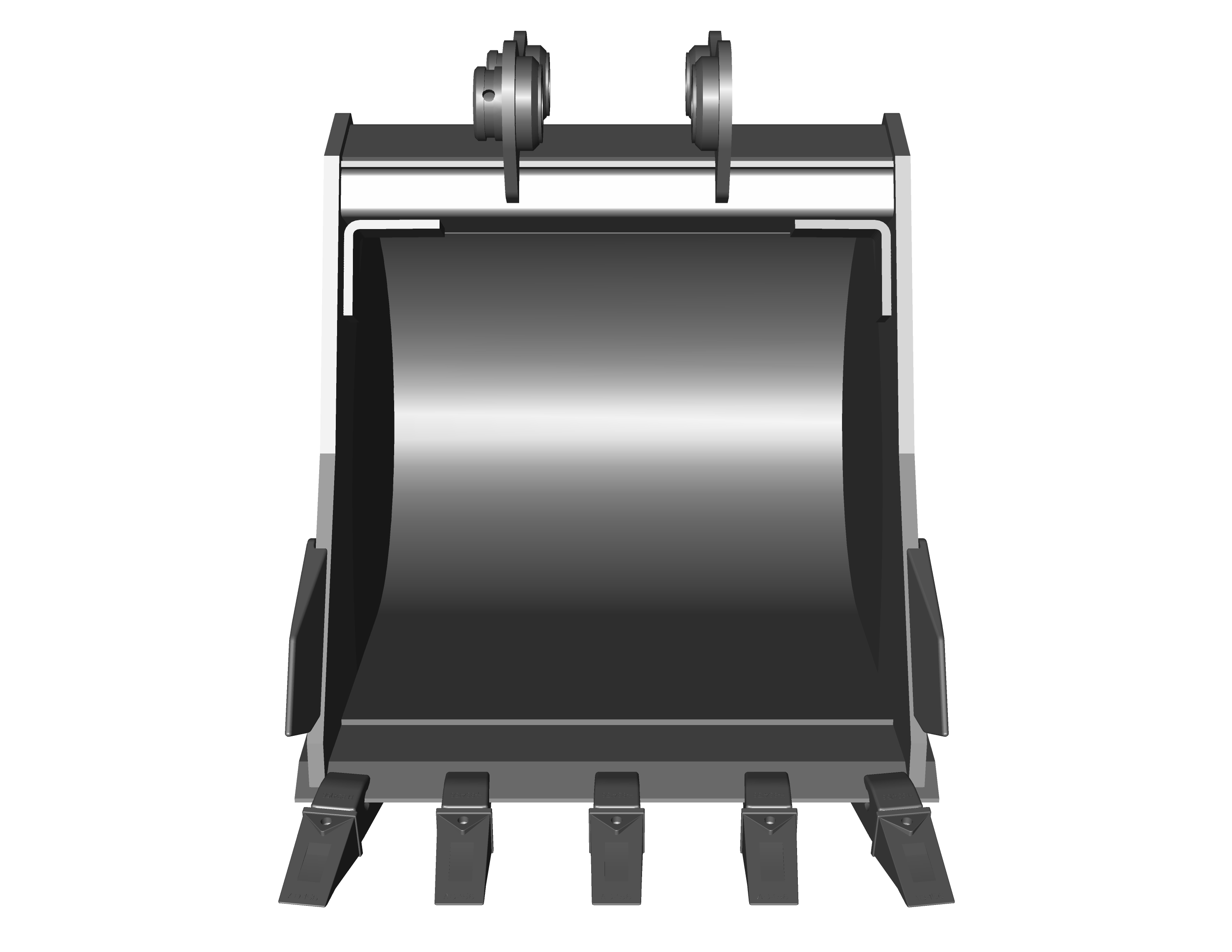

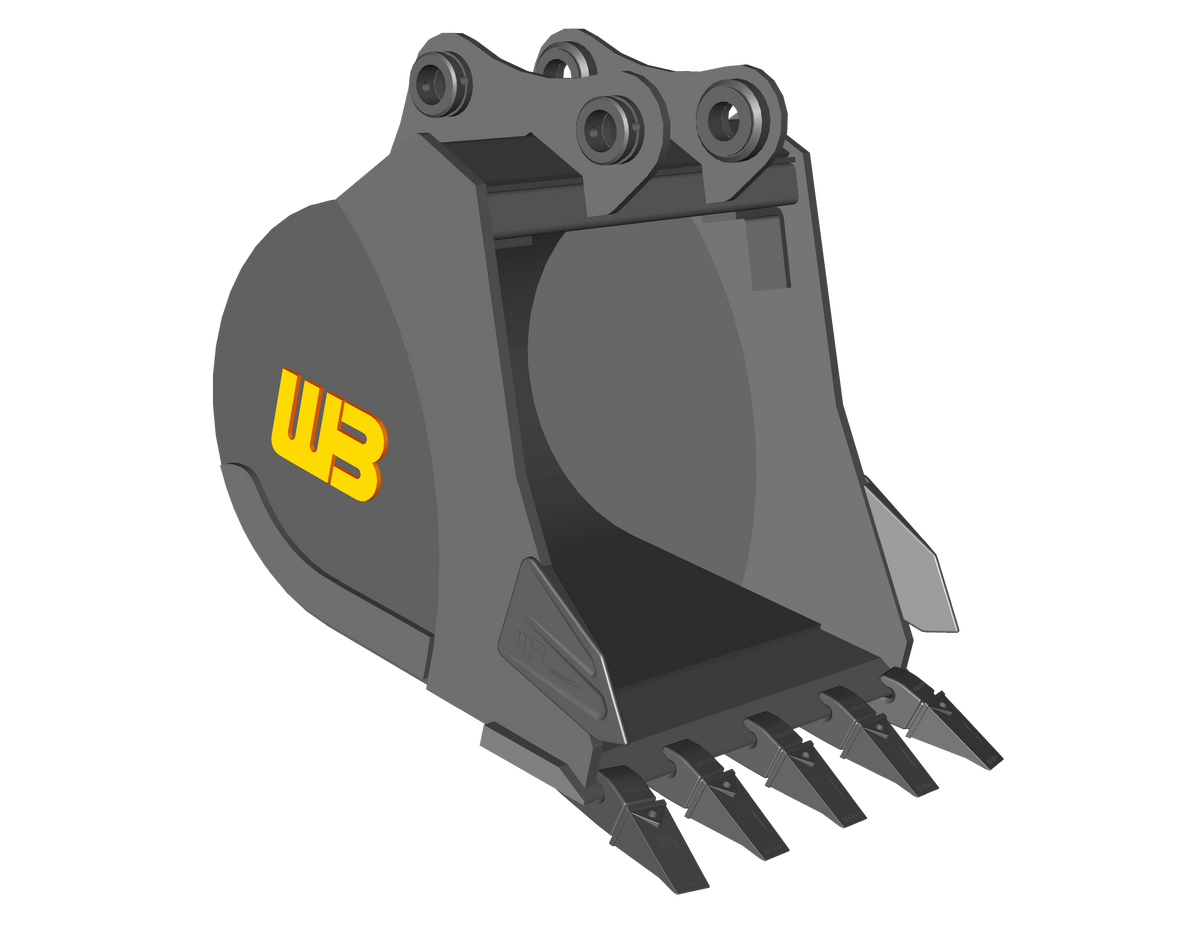

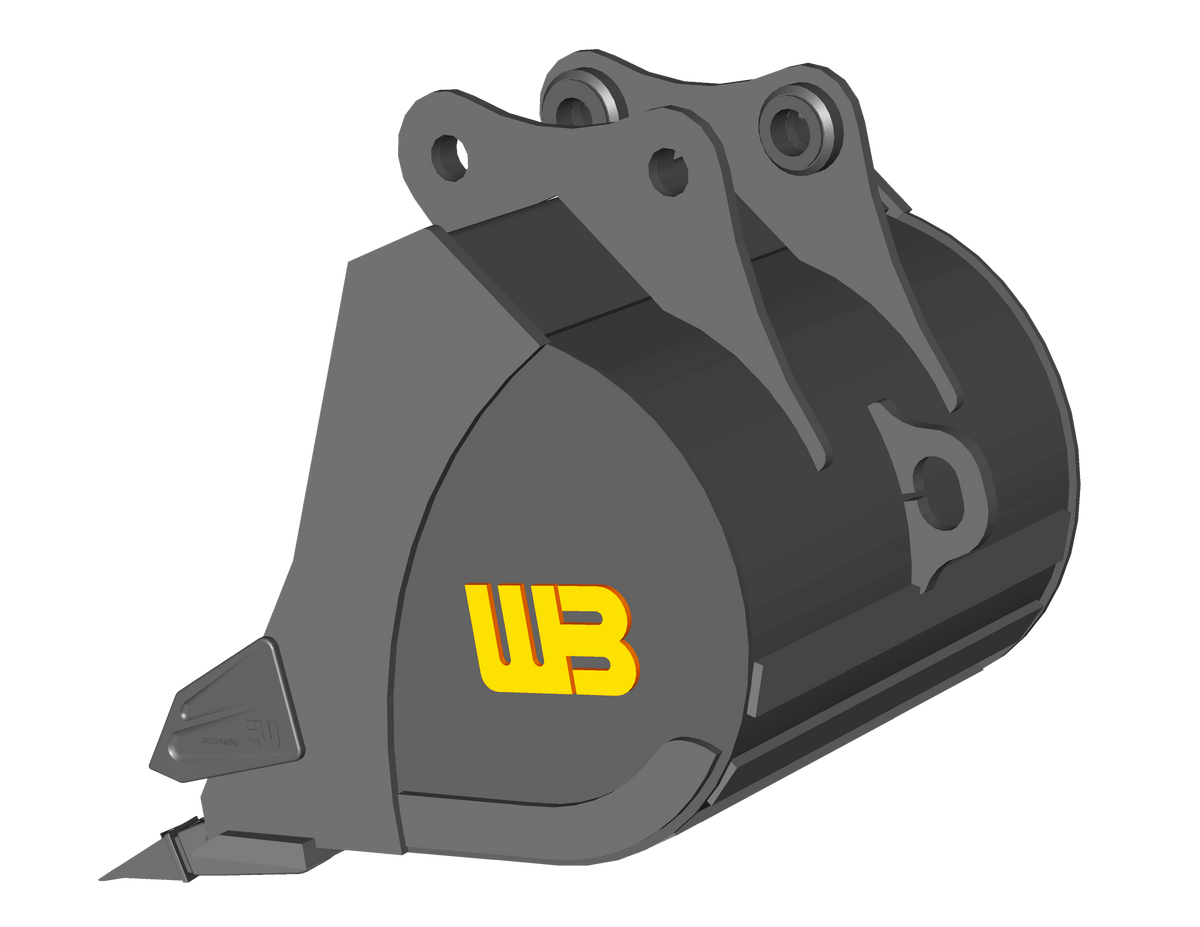

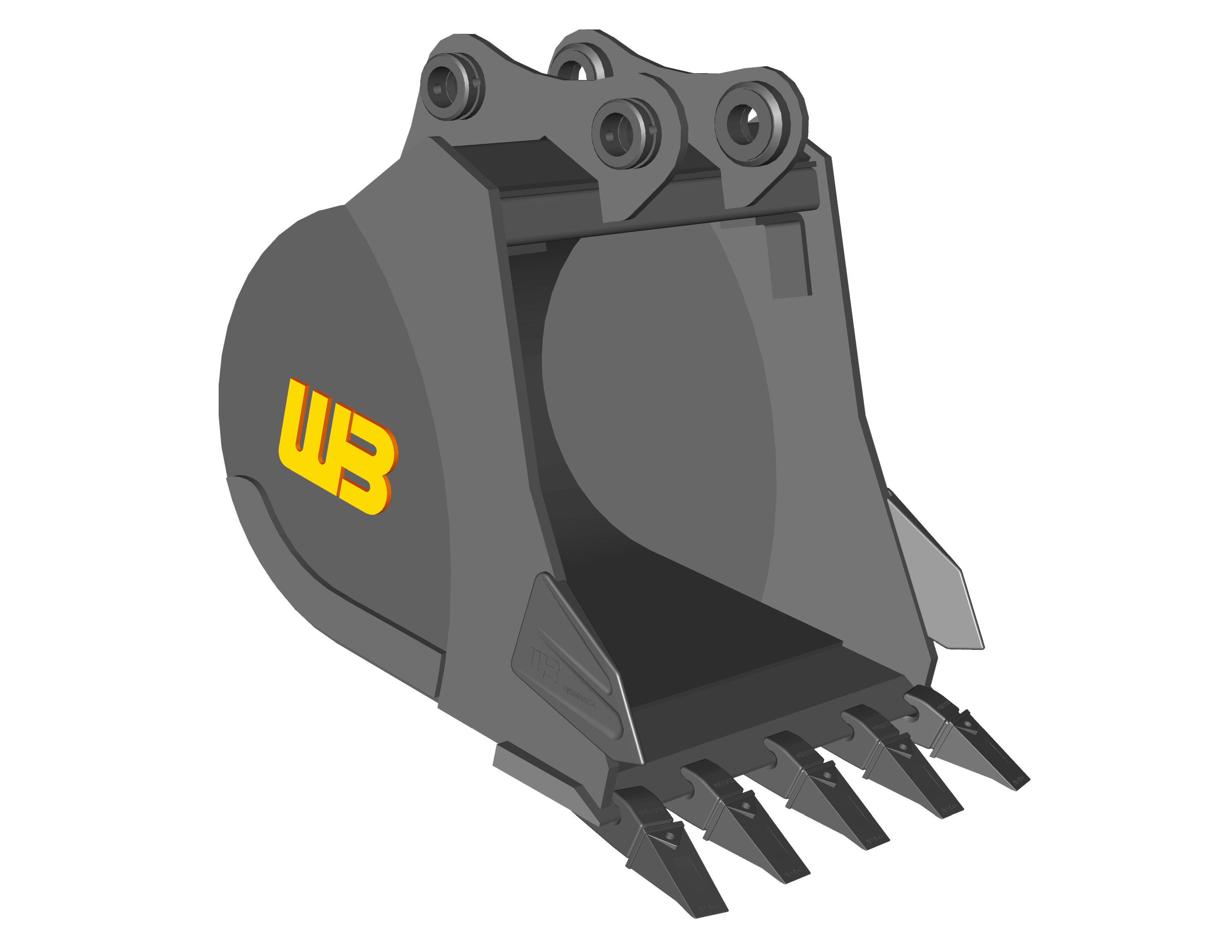

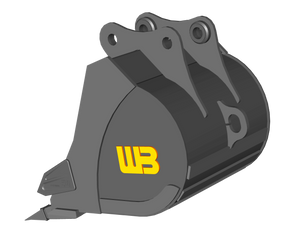

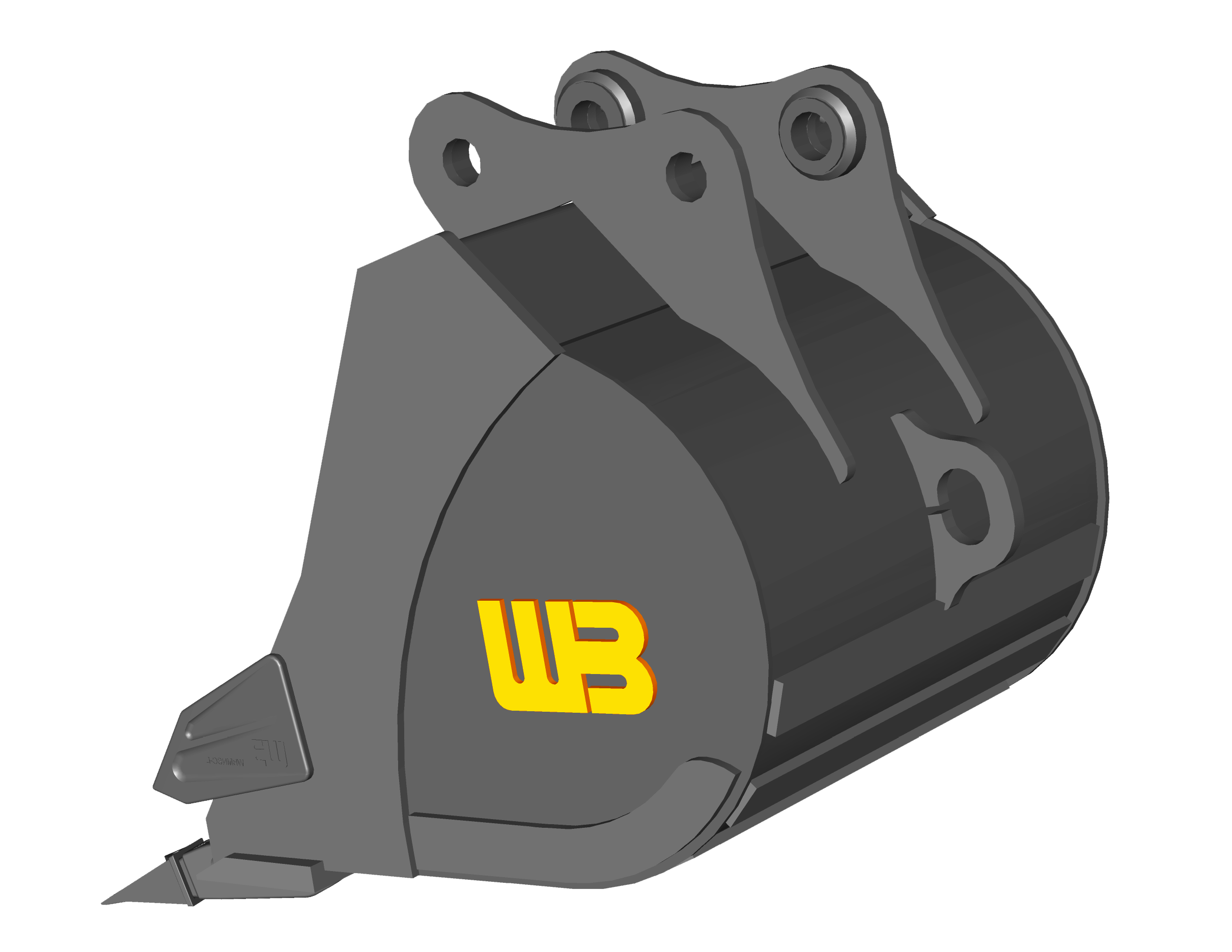

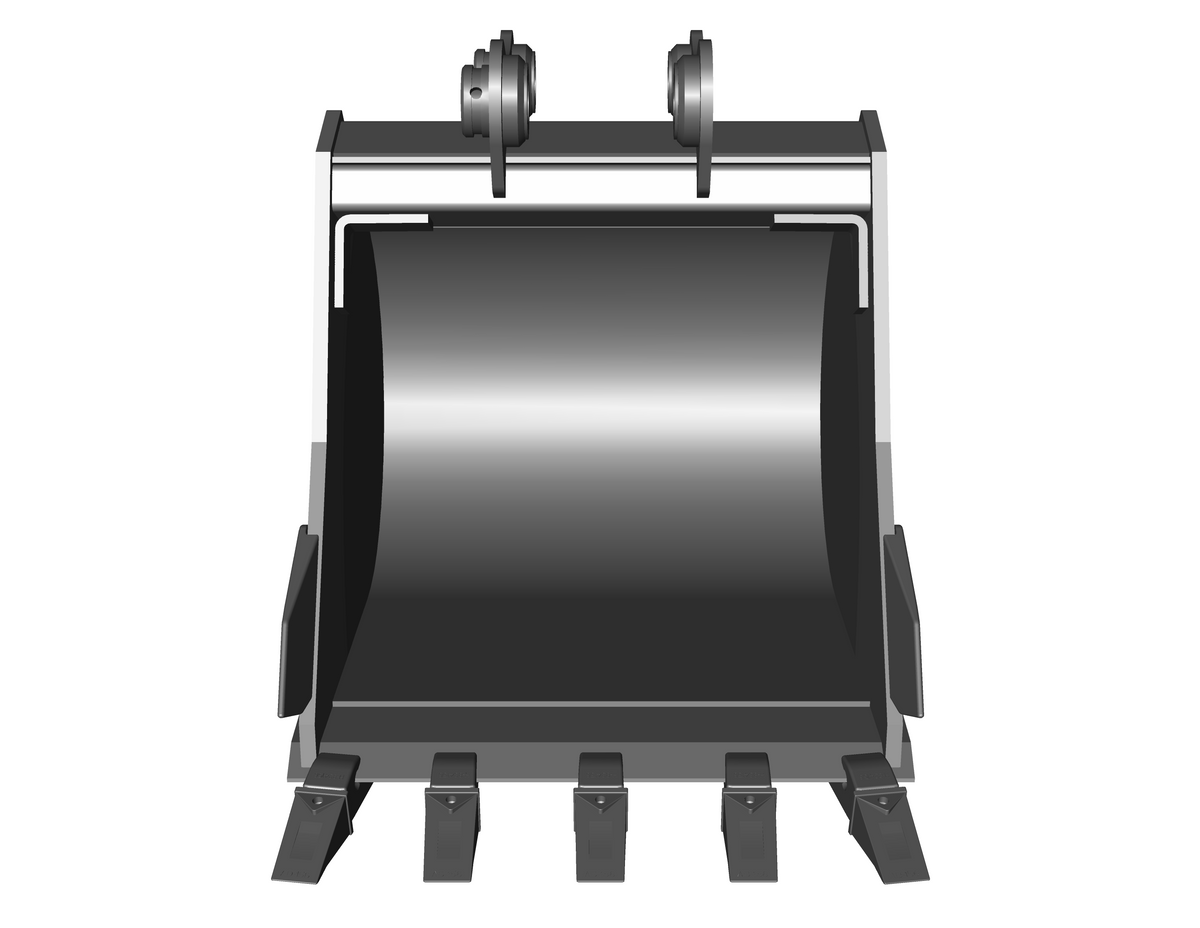

WERK-BRAU Severe Duty Rock Bucket for 16,000 - 25,000 lbs. Excavators. (Mini 5)

Size
Bolt on side cutters

1/24

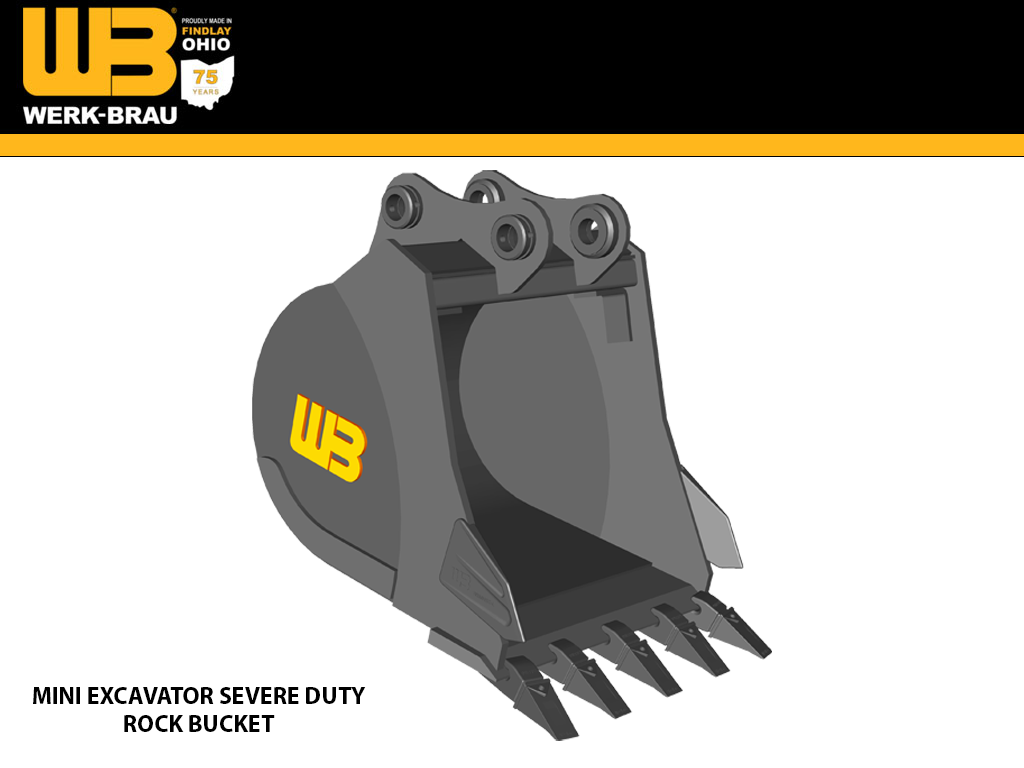

WERK-BRAU SEVERE DUTY ROCK BUCKETS

MINI EXCAVATOR



Recommended Applications

Werk-Brau's severe duty buckets are specifically designed with an aggressive dig angle to effectively excavate in the toughest conditions. Ideal applications for this bucket include but are not limited to demolition work, shot rock, high abrasive applications, and moderate prying. When paired with a thumb, this bucket can also be used for material handling.

Quality Construction

Increased material thickness in most components add life and durability in the most extreme digging conditions. T-1 steel is utilized in all critical or high wear components. This bucket features tapered side plates, horizontal wear straps, and an extra thick cutting edge is backed by a wear plate that covers the entire bucket bottom. The cutter bit is made from heavy duty cast material. Side wear plates protect the bucket sides in the high wear areas and extend the buckets operation life. The tip radius on the severe duty excavator bucket is to or within O.E.M. specifications. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.

Cutting Equipment Options

Oversized OEM approved cast teeth and shanks are standard.

Standard Sizes

Standard widths range from 12" to 36" in 6" increments -- special widths available on request. Standard capacity available in all most popular widths.

Additional Features

Bolt-on side cutters are highly recommended for added endurance. Adjustable bushings are available upon request. Box rippers are available and can be installed upon request. Special designs and capacities are available, please request a quote from your local dealer.

PART # WIDTH CAPACITY NO. TEETH WEIGHT
5MSD18 18" 6.80
3 615
5MSD20 20" 7.50
3
640
5MSD24 24" 9.00
4
655
5MSD30 30" 11.30
5
685
5MSD36 36" 13.50
5 760
5MSD42 42" 15.80
6 810
MAKE / WEIGHT CLASS MINI 5 (16,000 - 25,000 LBS.)
BOBCAT 7X125
CASE
CAT 310
DOOSAN
DITCH WITCH
GEHL GE1202
HITACHI ZX90, ZX100
HYUNDAI
IHI
JCB
JOHN DEERE
KOBELCO
KOMATSU
KUBOTA
LINK BELT
MUSTANG ME12002
NEW HOLLAND E90
SANY
TAKEUCHI
VOLVO
YANMAR
WACKER NEUSON
