1MSD12

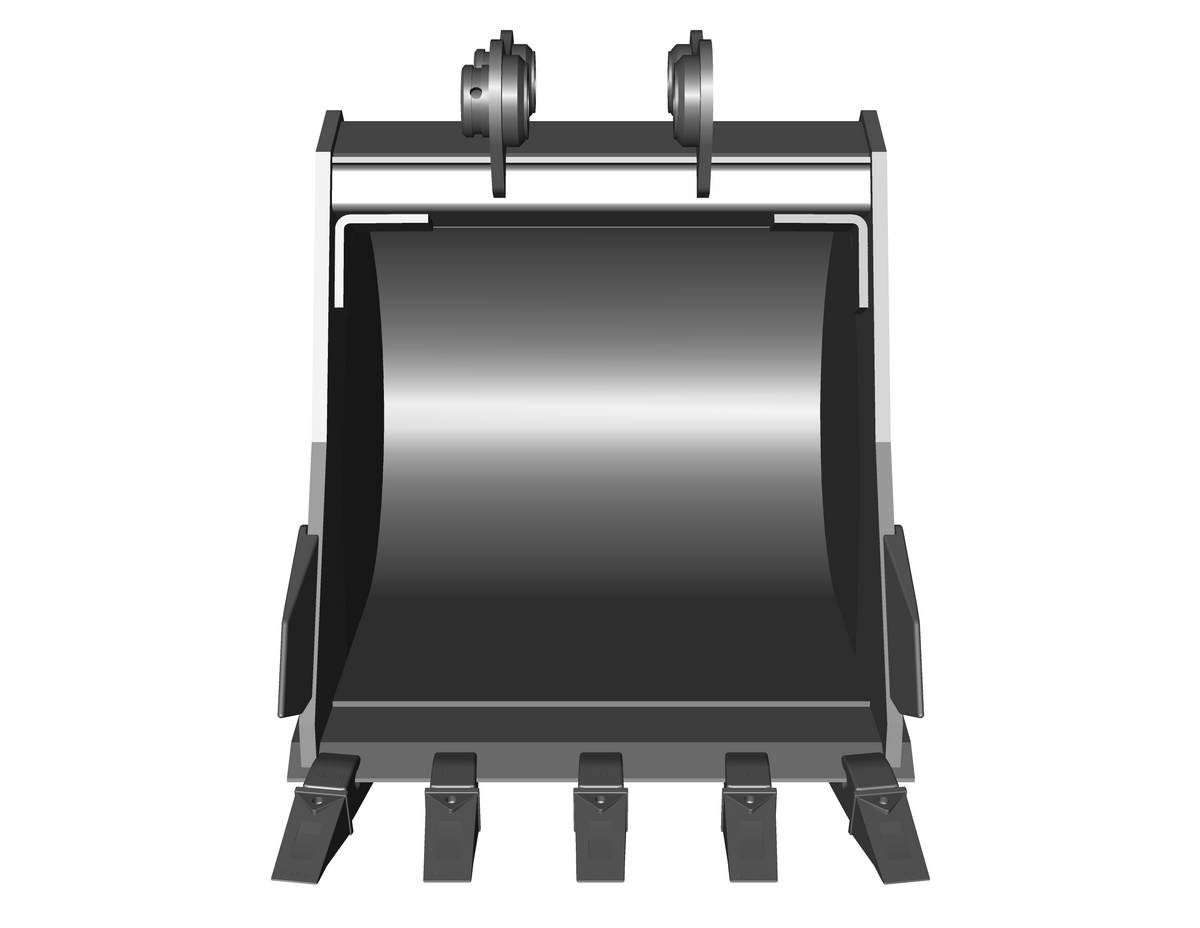

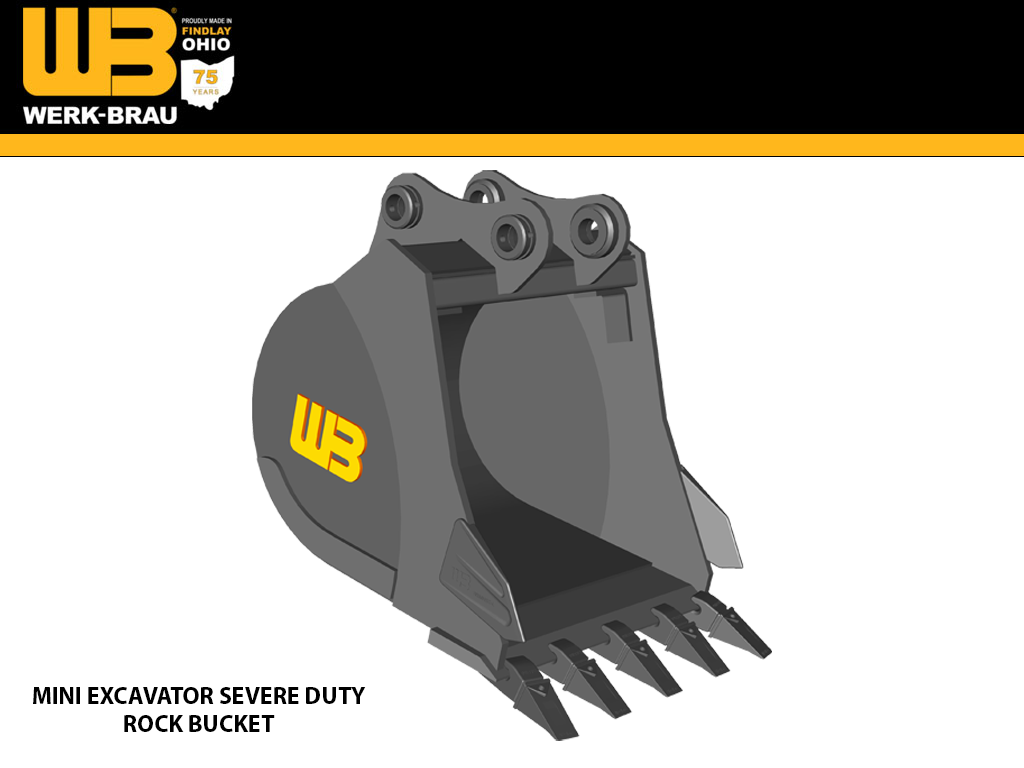

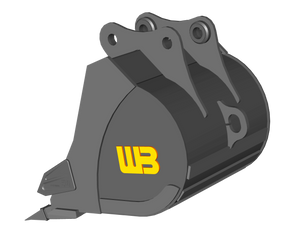

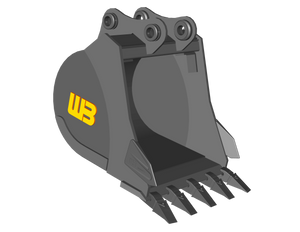

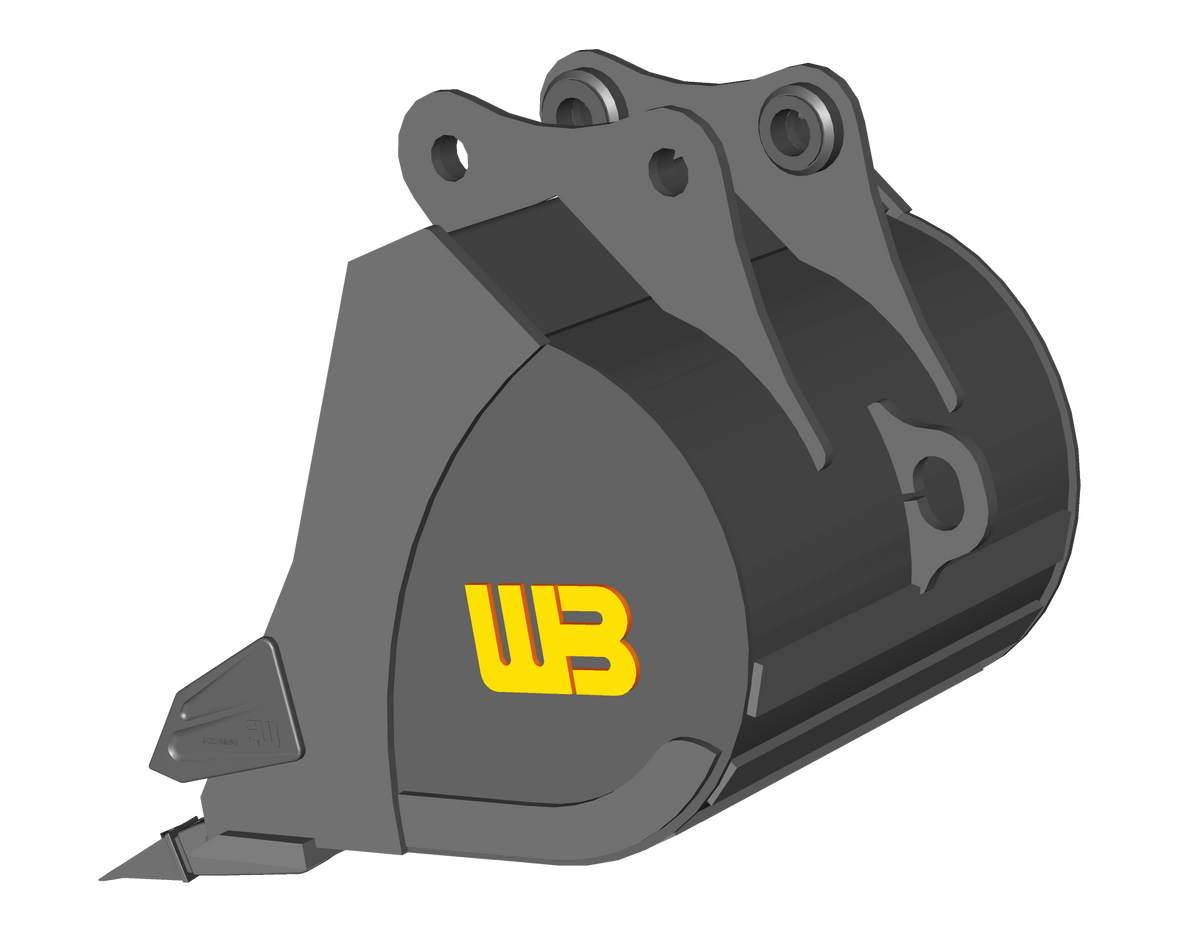

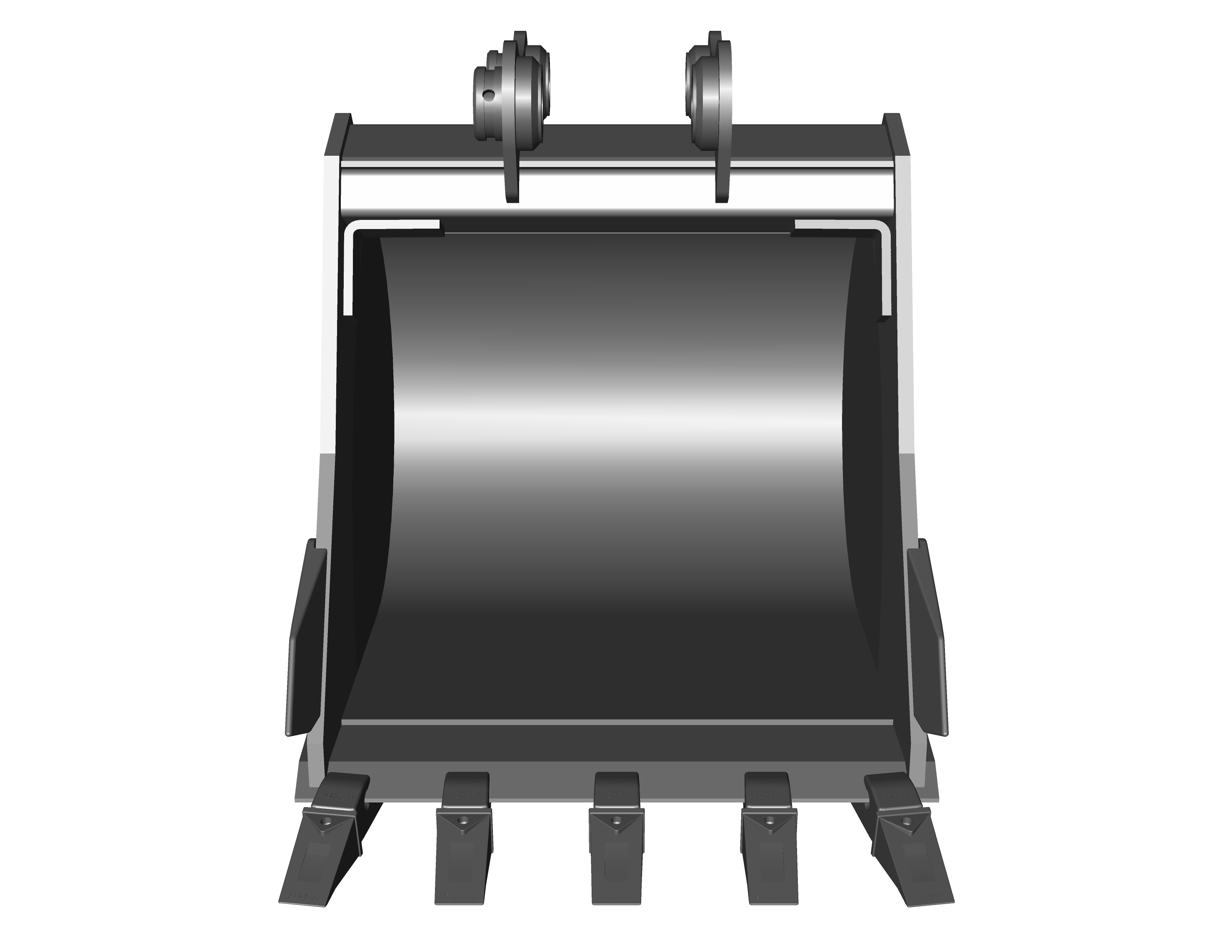

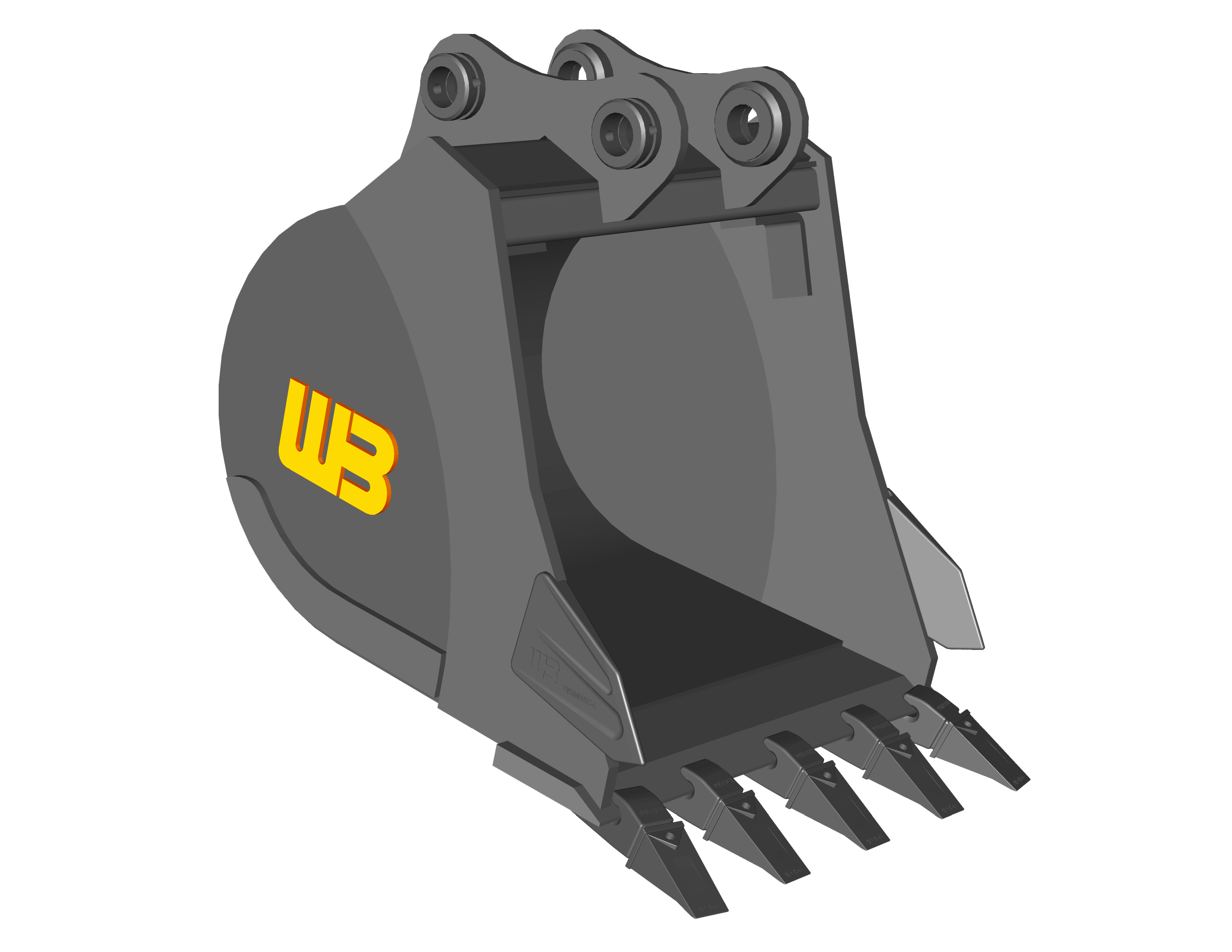

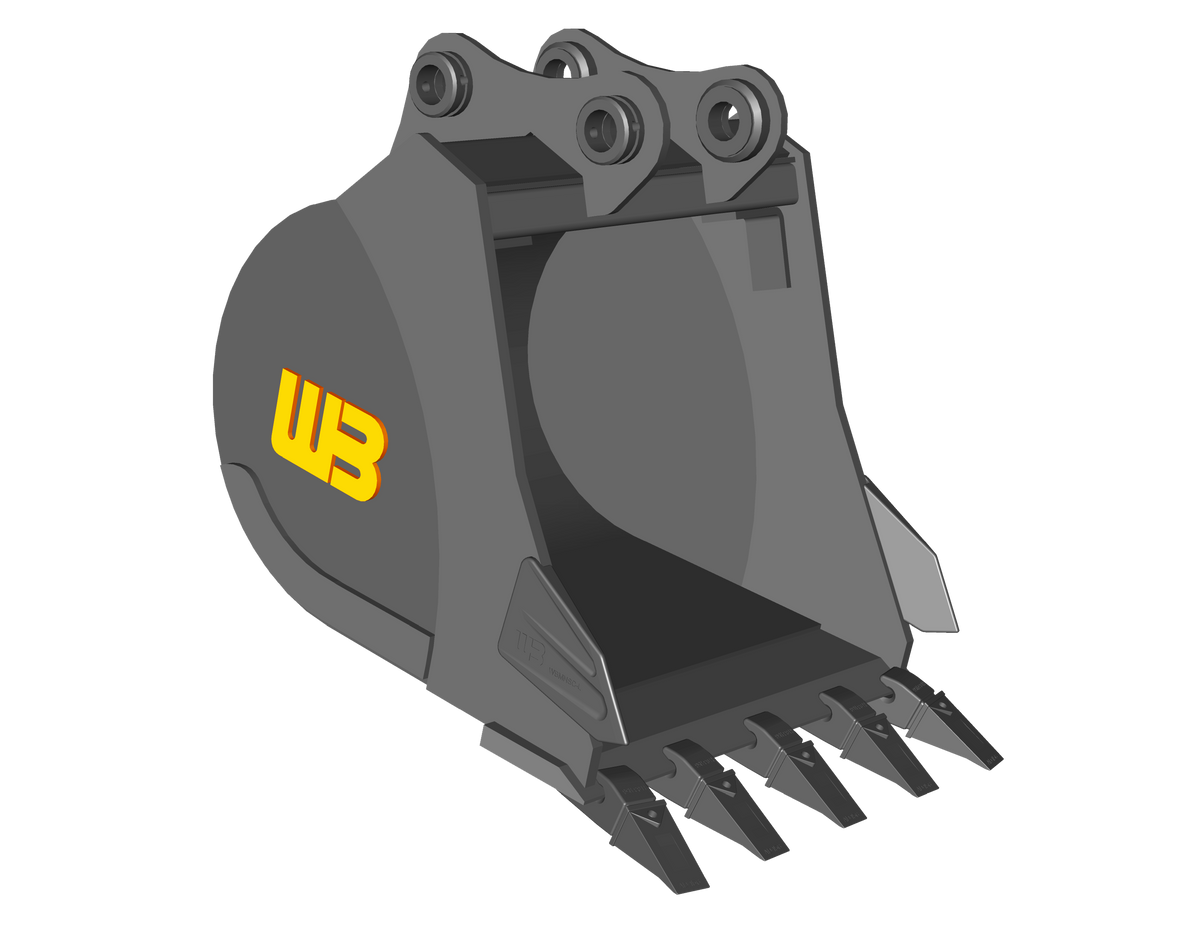

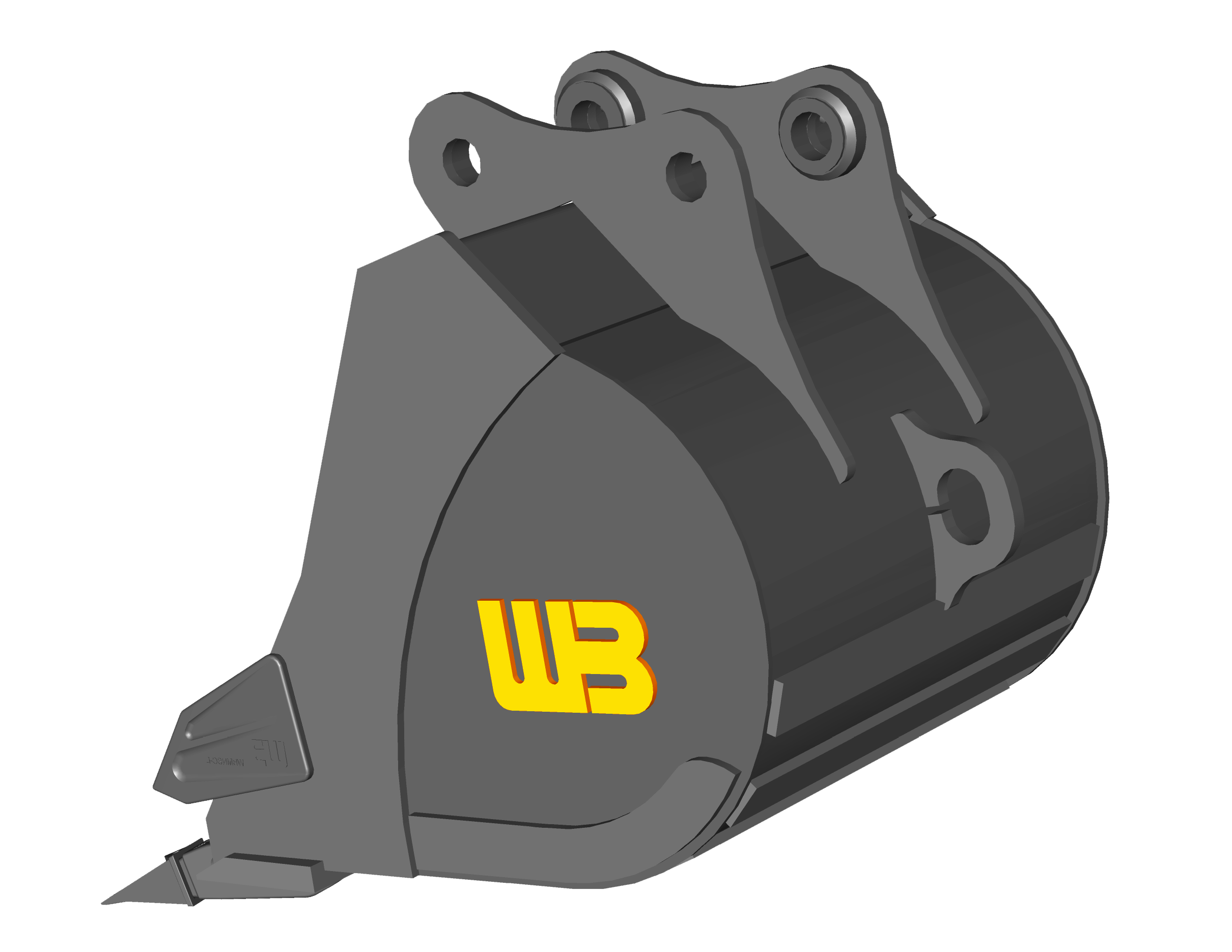

WERK-BRAU Severe Duty Rock Bucket for 5,000 - 7,500 lbs. Excavators. (Mini 1)

Size
Weld on Side Cutters

1/24

WERK-BRAU SEVERE DUTY ROCK BUCKETS

MINI EXCAVATOR



Recommended Applications

Werk-Brau's severe duty buckets are specifically designed with an aggressive dig angle to effectively excavate in the toughest conditions. Ideal applications for this bucket include but are not limited to demolition work, shot rock, high abrasive applications, and moderate prying. When paired with a thumb, this bucket can also be used for material handling.

Quality Construction

Increased material thickness in most components add life and durability in the most extreme digging conditions. T-1 steel is utilized in all critical or high wear components. This bucket features tapered side plates, horizontal wear straps, and an extra thick cutting edge is backed by a wear plate that covers the entire bucket bottom. The cutter bit is made from heavy duty cast material. Side wear plates protect the bucket sides in the high wear areas and extend the buckets operation life. The tip radius on the severe duty excavator bucket is to or within O.E.M. specifications. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.

Cutting Equipment Options

Oversized OEM approved cast teeth and shanks are standard.

Standard Sizes

Standard widths range from 12" to 36" in 6" increments -- special widths available on request. Standard capacity available in all most popular widths.

Additional Features

Bolt-on side cutters are highly recommended for added endurance. Adjustable bushings are available upon request. Box rippers are available and can be installed upon request. Special designs and capacities are available, please request a quote from your local dealer.

PART # WIDTH CAPACITY NO. TEETH WEIGHT
1MSD12 12" 1.77
3 205
1MSD16 16" 2.36
3 235
1MSD18 18" 2.66
4 245
1MSD20 20" 2.96
4 260
1MSD24 24" 3.54
5 290
MAKE / WEIGHT CLASS MINI 1 (5,000 - 7,500 LBS.)
BOBCAT 325, 328(D), 331(D/E), 334(D), 430, 329, E35, 425
CASE CX31B, CX36B, CX37C
CAT 302.7DCR, 303ECR
DOOSAN DX30, DX35
DITCH WITCH XT1600
GEHL GE283X, GE303, GE353, GE383Z
HITACHI ZX35U-2
HYUNDAI R35, R36
IHI 35N-2
JCB 2CX, 8030, 8035, MIDI
JOHN DEERE 35G
KOBELCO 30SR, 35SR
KOMATSU PC27MR-3, PC35MR-3
KUBOTA U35, U48, KX033, KX040, KX71
LINK BELT
MUSTANG ME3003, 2803ZT, ME3503, ME3703, 3803ZT
NEW HOLLAND E30, E35
SANY SY26, SY35
TAKEUCHI TB125, TB135, TB228, TB240, TB138FR, TB235
VOLVO EC35C, ECR48C
YANMAR Vio27-5, Vio35-5, Vio45-5, Vio-50
WACKER NEUSON EZ28, EZ38, 3503
