EX15SD18

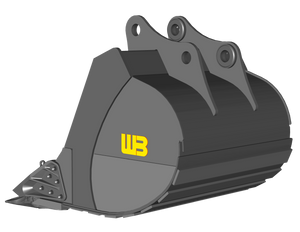

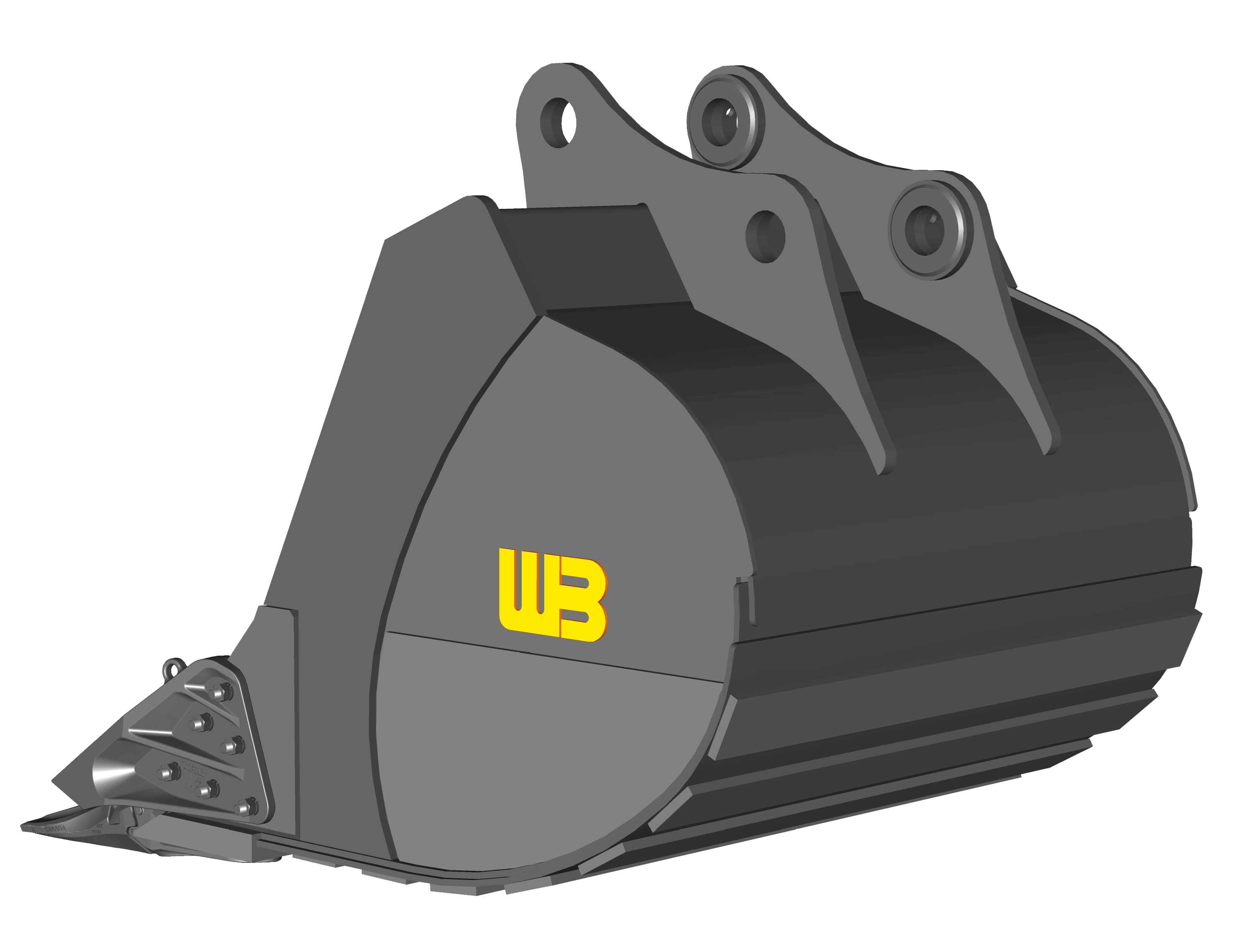

WERK-BRAU Severe duty Rock Buckets for 33,000 - 42,000 lbs. Excavators (15MT)

Style
Size

1/24

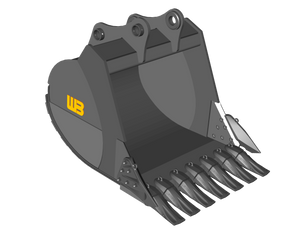

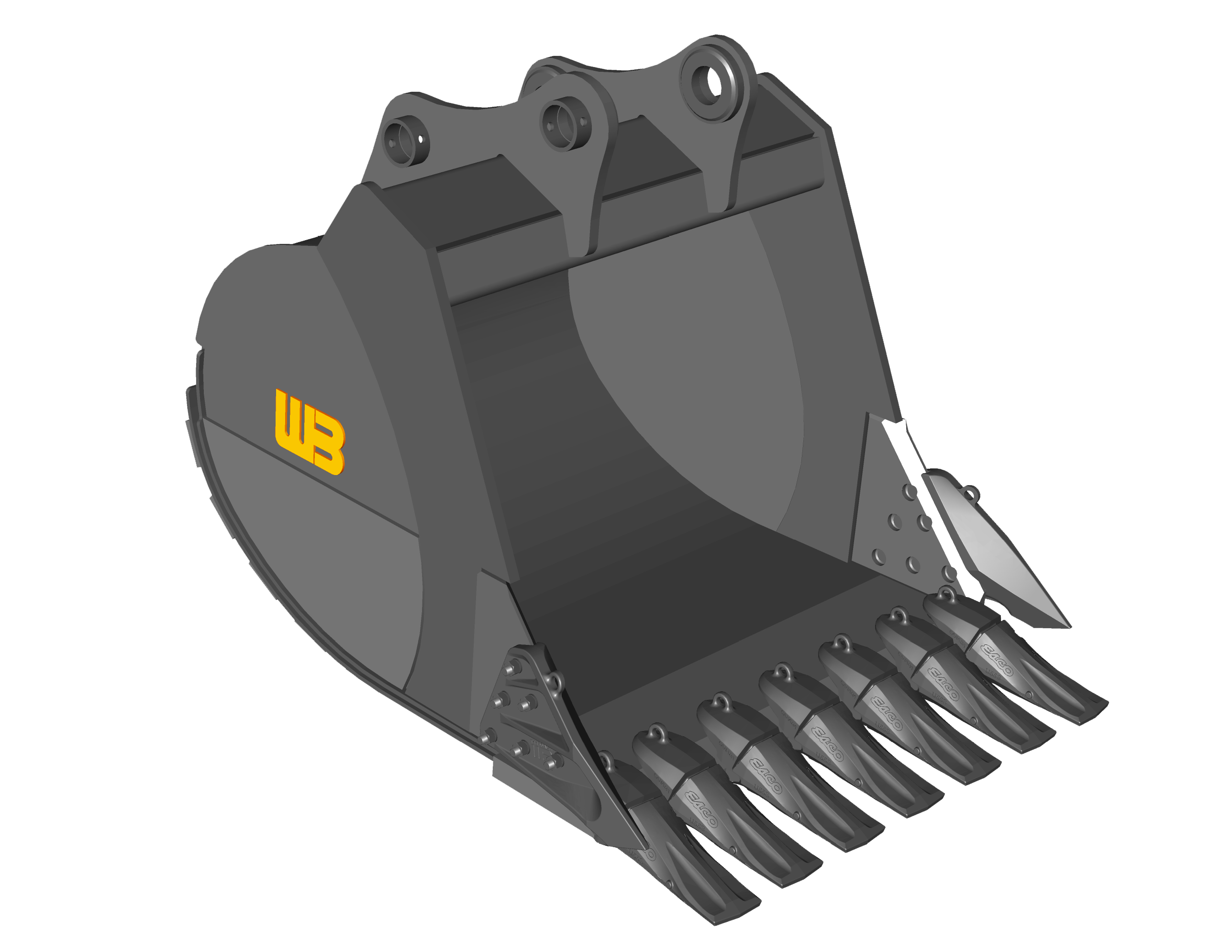

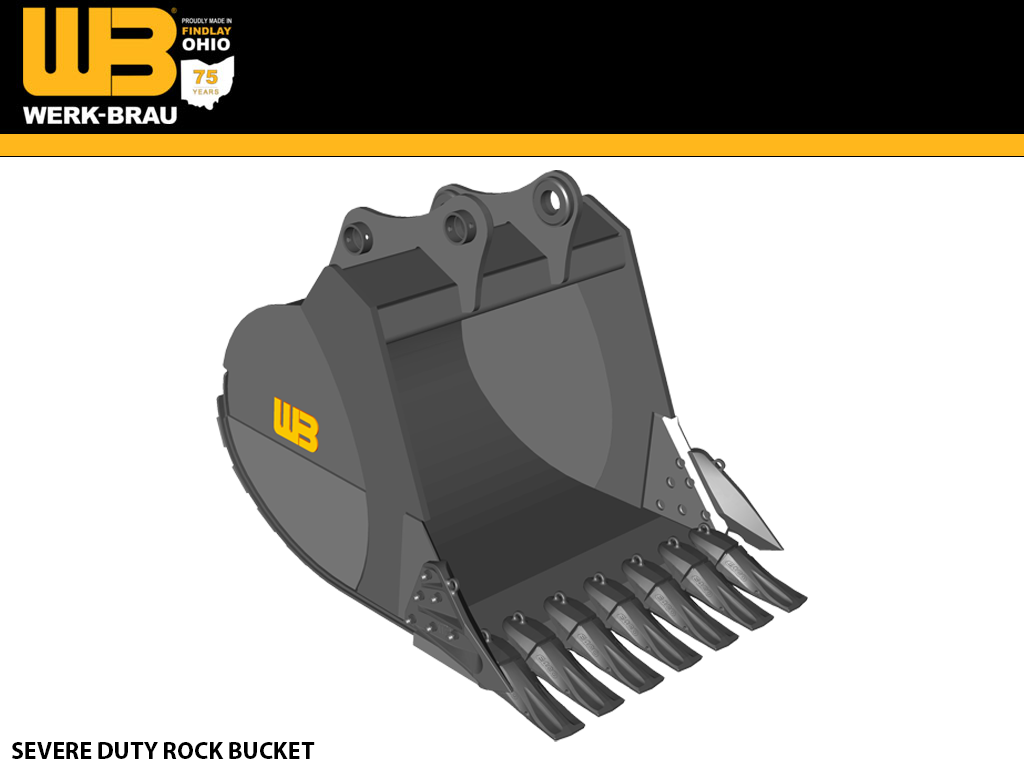

SEVERE DUTY ROCK BUCKETS

Recommended Applications

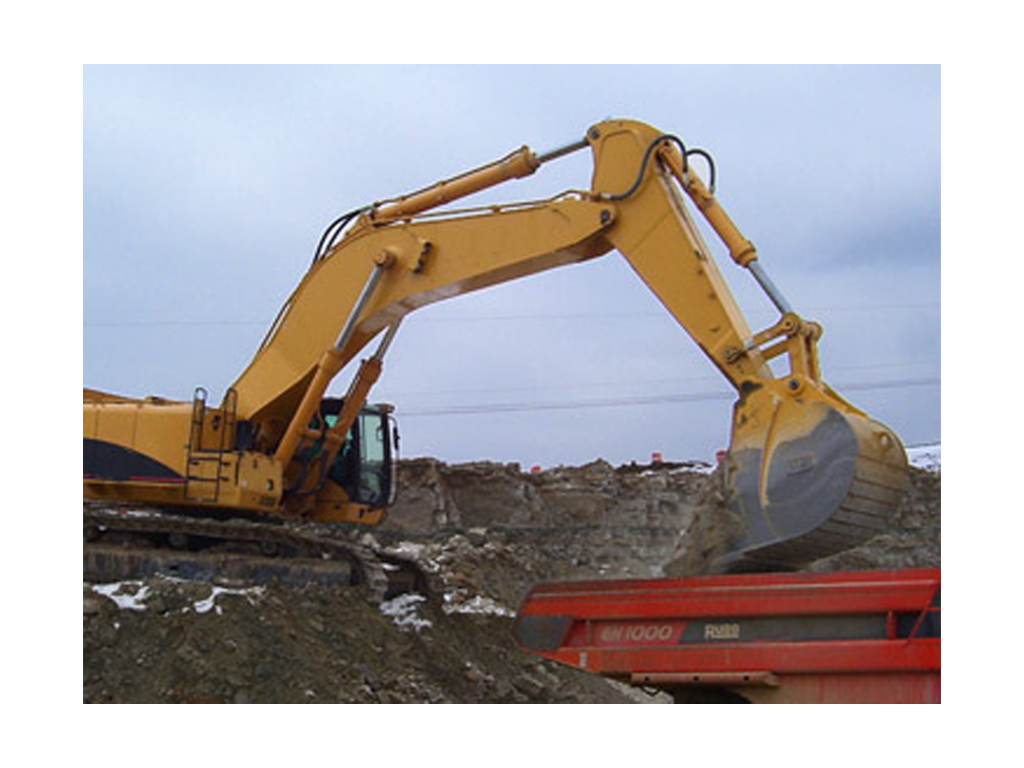

Werk-Brau's severe duty buckets are specifically designed with an aggressive dig angle to effectively excavate in the toughest conditions. Ideal applications for this bucket include but are not limited to demolition work, shot rock, high abrasive applications, and moderate prying. When paired with a thumb, this bucket can also be used for material handling.

Quality Construction

T-1 steel is utilized in all critical or high wear components. This bucket features tapered side plates, horizontal wear straps, and an extra thick cutting edge is backed by a wear plate that covers the entire bucket bottom. Side wear plates protect the bucket sides in the high wear areas and extend the buckets operation life. The tip radius on the severe duty excavator bucket is to or within O.E.M. specifications. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping. the cutter bit is made from heavy duty cast material.

Cutting Equipment Options

Equipped with industry standard teeth for extra durability. In most cases, the tooth size is increased to tolerate the more severe digging application. A selection of quality brand teeth are available to choose from. Box rippers available and installed upon request.

Standard Sizes

3/8 cubic yds. to 4 cubic yds. of various widths are available. Special designs and capacities available upon request.

Additional Features

Bolt-on side cutters are highly recommended for added endurance. Box rippers are available and can be installed upon request.

****PRICES DO NOT INCLUDE BUCKET PINS

PART # WIDTH CAPACITY NO. TEETH WEIGHT
EX15SD18 18" 0.36 3 1,150
EX15SD24 24"
0.48 4 1,325
EX15SD30 30" 0.60 4 1,500
EX15SD36 36" 0.72 5 1,700
EX15SD42 42" 0.84 5 1,850
MAKE / WEIGHT CLASS 15MT (33,000 - 42,000 LBS.)
CASE CX160, CX170E, CX190E
CAT 315D, 316F, 318F, M318F
DOOSAN DX180LC-5, DX190W-5
HITACHI ZX160
HYUNDAI HX160, HX180
JOHN DEERE 160G, 160P
KOBELCO ED195, SK170
KOMATSU PC170
LIEBHERR
LINK BELT 160X4
SANY
TAKEUCHI
VOLVO EW160, EW180, EC160, EC180
