EX35SD24

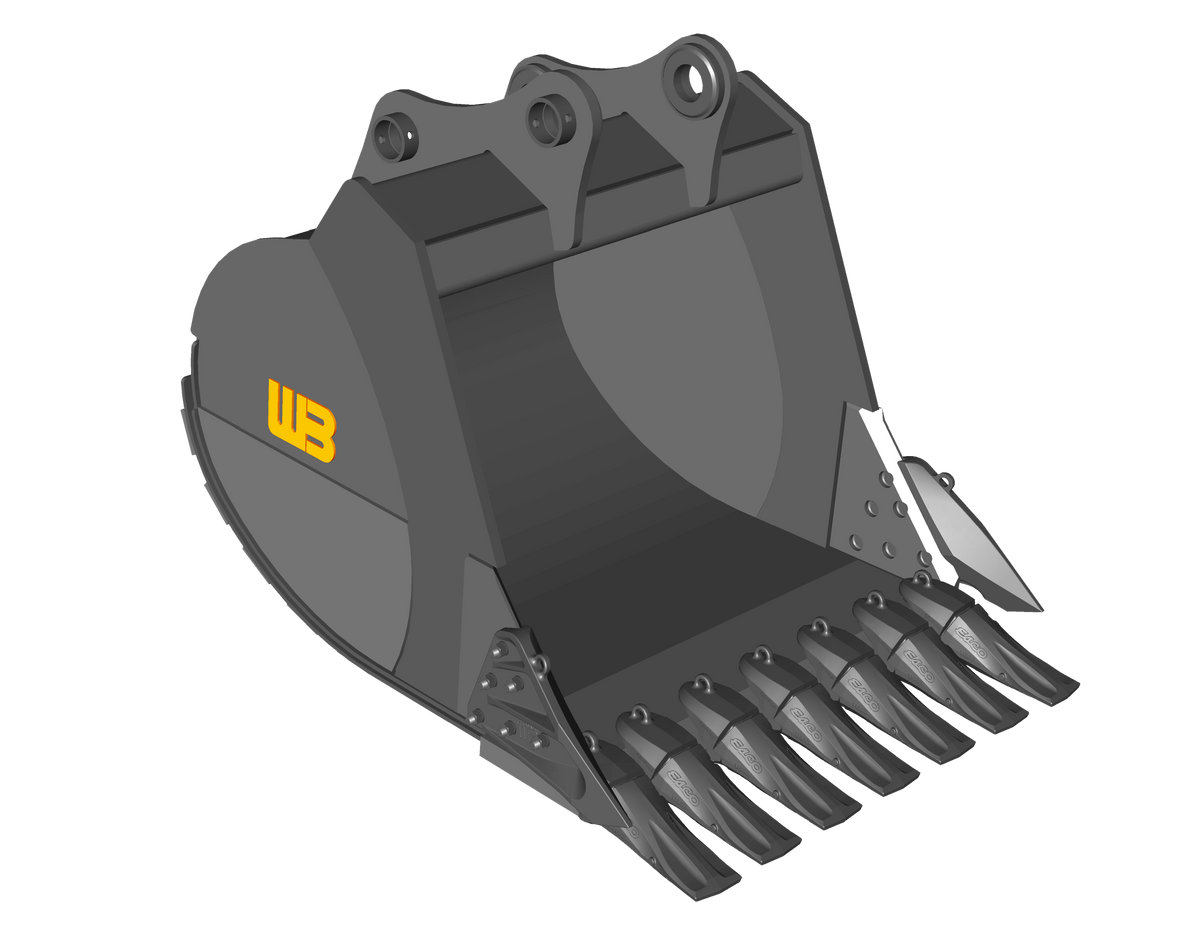

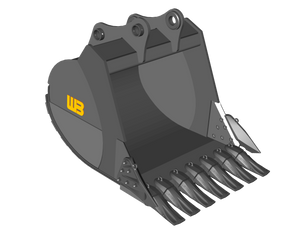

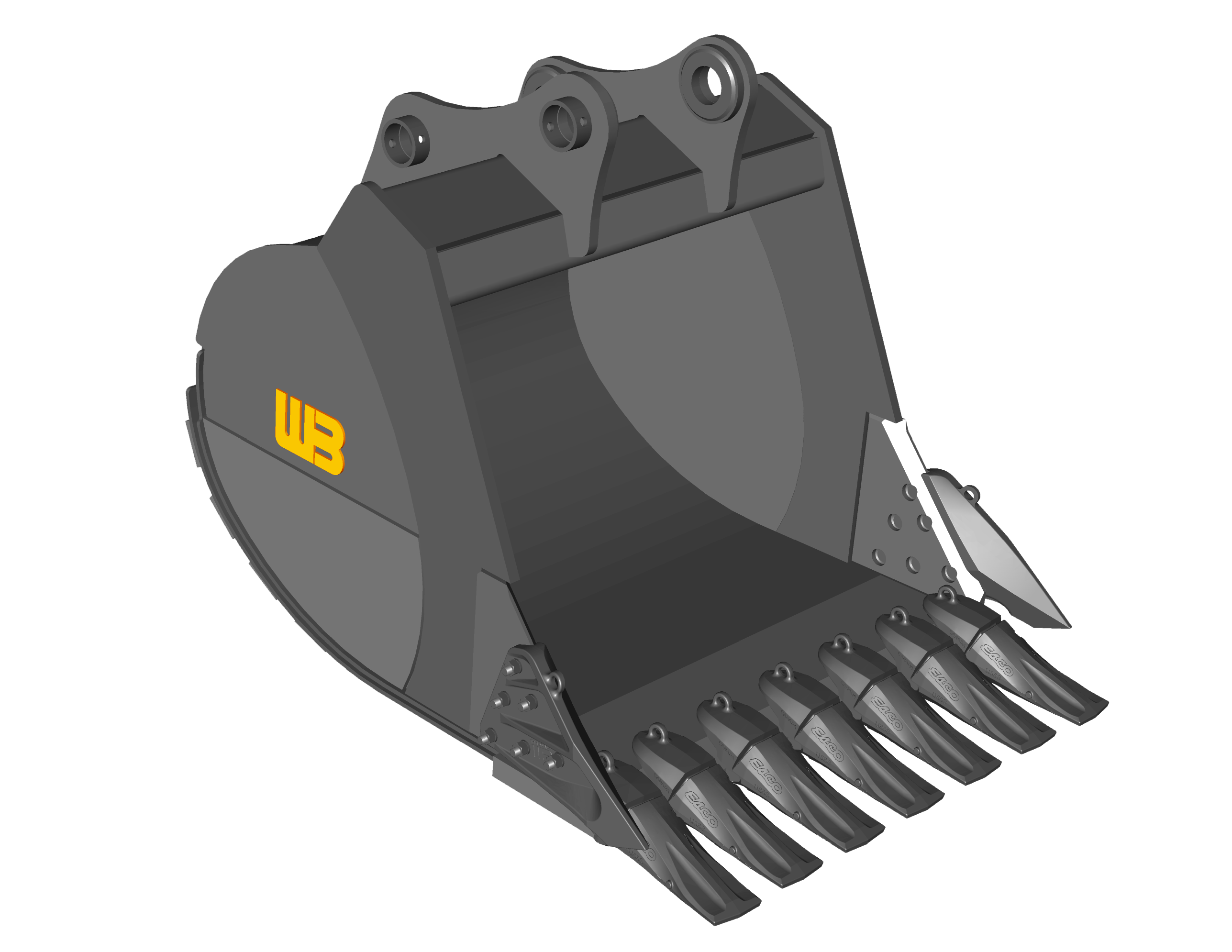

WERK-BRAU Severe duty Rock Buckets for 68,000 - 82,000 lbs. Excavators (35MT)

Style
Size

1/24

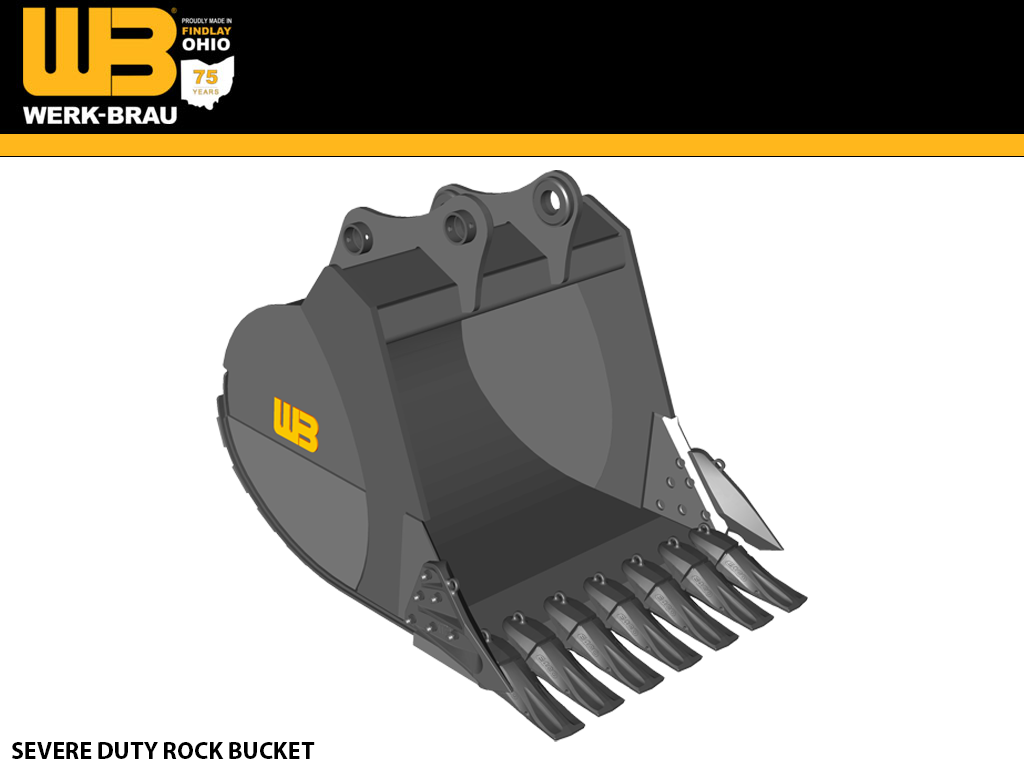

SEVERE DUTY ROCK BUCKETS

Recommended Applications

Werk-Brau's severe duty buckets are specifically designed with an aggressive dig angle to effectively excavate in the toughest conditions. Ideal applications for this bucket include but are not limited to demolition work, shot rock, high abrasive applications, and moderate prying. When paired with a thumb, this bucket can also be used for material handling.

Quality Construction

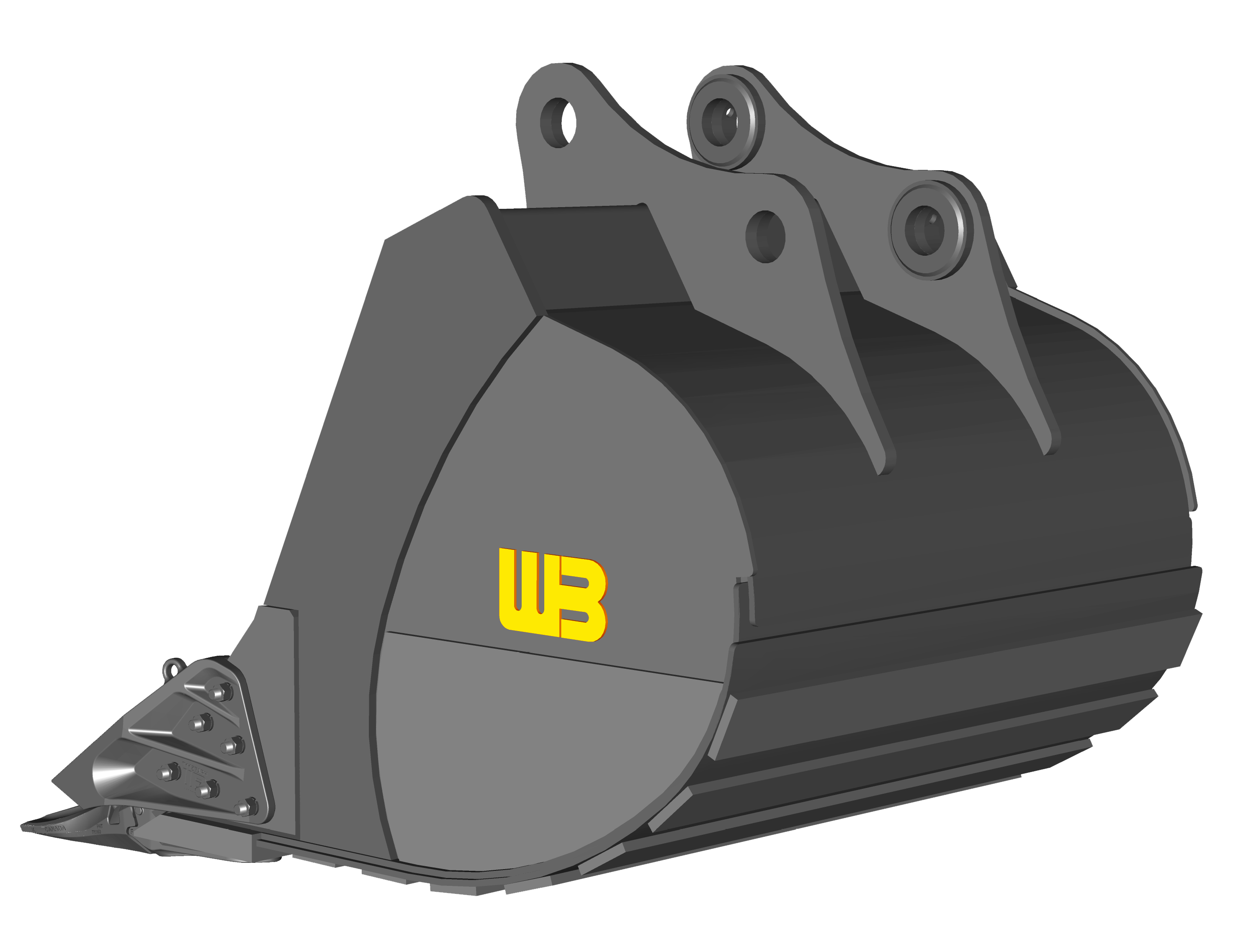

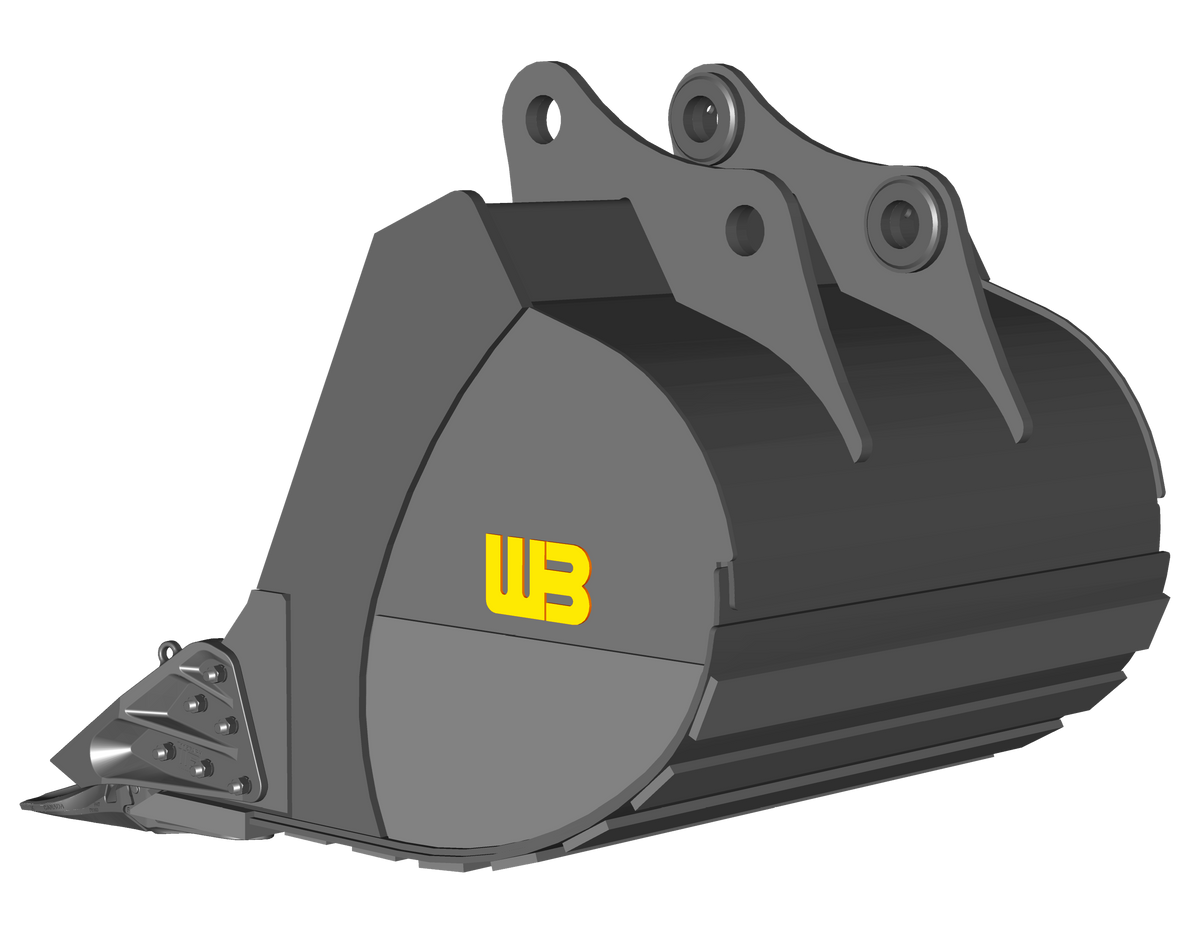

T-1 steel is utilized in all critical or high wear components. This bucket features tapered side plates, horizontal wear straps, and an extra thick cutting edge is backed by a wear plate that covers the entire bucket bottom. Side wear plates protect the bucket sides in the high wear areas and extend the buckets operation life. The tip radius on the severe duty excavator bucket is to or within O.E.M. specifications. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping. the cutter bit is made from heavy duty cast material.

Cutting Equipment Options

Equipped with industry standard teeth for extra durability. In most cases, the tooth size is increased to tolerate the more severe digging application. A selection of quality brand teeth are available to choose from. Box rippers available and installed upon request.

Standard Sizes

3/8 cubic yds. to 4 cubic yds. of various widths are available. Special designs and capacities available upon request.

Additional Features

Bolt-on side cutters are highly recommended for added endurance. Box rippers are available and can be installed upon request.

****PRICES DO NOT INCLUDE BUCKET PINS

PART # WIDTH CAPACITY NO. TEETH WEIGHT
EX35SD24 24"
0.80
3 2,625
EX35SD30 30" 1.00 4 2,925
EX35SD36 36" 1.20
4 3,225
EX35SD42 42" 1.40
5 3,600
EX35SD48 48" 1.60
5 3,850
EX35SD54 54" 1.80
6 4,225
EX35SD60 60" 2.00
6 4,475
MAKE / WEIGHT CLASS 35MT (68,500 - 82,000 LBS.)
CASE CX350
CAT 330, 335, 336F DB-LINKAGE
DOOSAN DX350LC-5, DX420LC-5
HITACHI ZX350, ZX380
HYUNDAI HX330, HX350, HX380
JOHN DEERE 350G, 380G, 350P
KOBELCO SK350
KOMATSU PC300, PC350, PC360, PC390
LIEBHERR R 934 CL, R 924 C, R936
LINK BELT 350X4
SANY SY365
TAKEUCHI
VOLVO EC330, EC340, EC350, EC360, EC380
