WL3R100-2.50

WERK-BRAU Severe Duty Rock buckets for Wheel loaders 20,000 - 30,000 lbs. (class 2 & 3)

Capacity
Lip

2/24

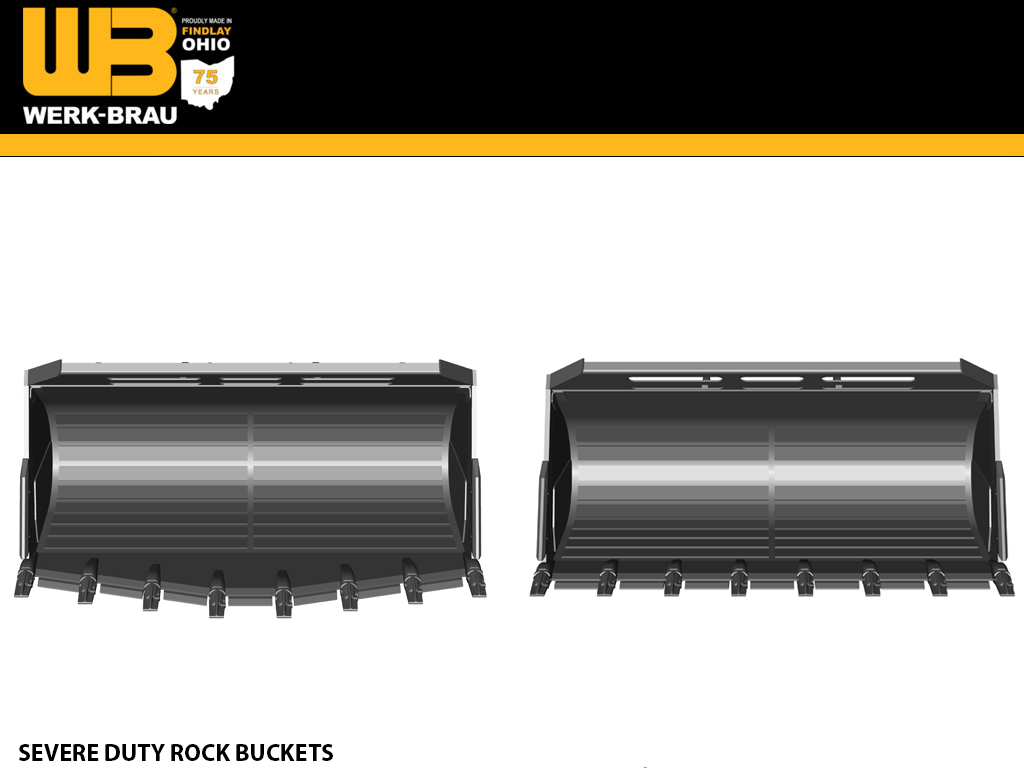

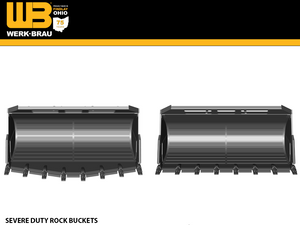

SEVERE DUTY ROCK BUCKET

Recommended Applications

Specifically designed to penetrate severe digging applications or re-handle loose rock.

Quality Construction

High strength, T-1 steel is utilized in all critical wear points of the bucket. Abrasion-resistant steel is used in wear-straps to reinforce bottom of bucket. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.

Standard Sizes

2.00 cu. yd to 10.00 cu. yd. Widths range from 100" - 144". Other capacities and widths are available upon quotation. Available in spade nose or straight edge options.

Additional Features

Available with replaceable bolt-on cutting edge upon request. Weld-on teeth are standard equipment. Other tooth selections available. Easily mounts up to Werk-Brau front coupler or available with pin-up connection. Special designs and capacities are available.

  • Internal double bottom
  • Lifting loops
  • Bolt on side cutters standard
  • Slotted spill guard for better vision
  • Standard with weld on teeth, shrouds and segments
  •  Bolt on cutting edge optional replacement

PART # WIDTH # OF TEETH  CAPACITY WEIGHT
WL3R100-2.50 100" 7 2.50 2,700
WL3R100-2.50SP 100" 7 2.50 3,000
WL3R100-3.00 100" 7 3.00 3,500
WL3R100-3.00SP 100" 7 3.00 3,900
CLASS 2

CLASS 2 (20,000 - 26,000 LBS) MODEL
CASE 521G
CAT 924, 928, 930, IT24-28
DEVELON DL200-5, DL200TC-5, DL200-7
HITACHI ZW140
HYUNDAI HL730, HL740, HL940
JCB 416
JOHN DEERE 444
KOMATSU WA150, WA200
KUBOTA
LIEBHERR L526
LINK-BELT
NEW HOLLAND LW110
SANY
TAKEUCHI
VOLVO L60
WACKER NEUSON
YANMAR

CLASS 3
CLASS 3 (26,000 - 30,000 LBS) MODEL
CASE 621G
CAT 935, 936
DEVELON DL220-5, DL220-7
HITACHI ZW150
HYUNDAI HL750
JCB 426, 427
JOHN DEERE 524, 544
KOMATSU WA250, WA270
KUBOTA
LIEBHERR L538
LINK-BELT L140
NEW HOLLAND LW130
SANY SW305
TAKEUCHI
VOLVO L70
WACKER NEUSON
YANMAR
