WL6R138-6.50

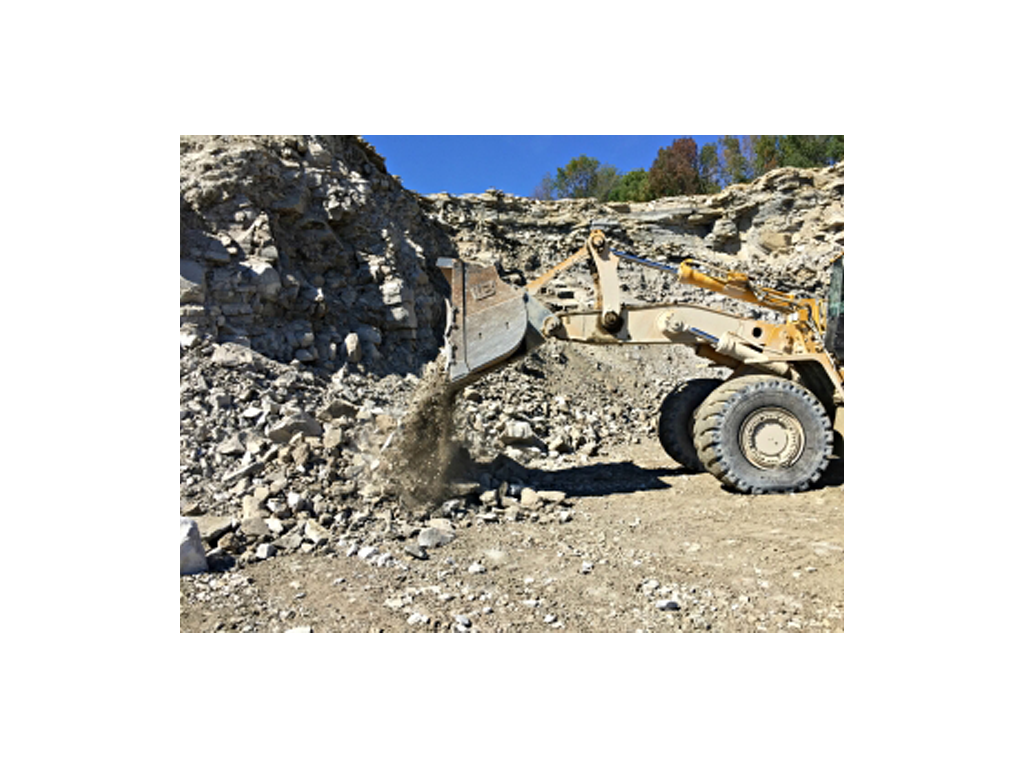

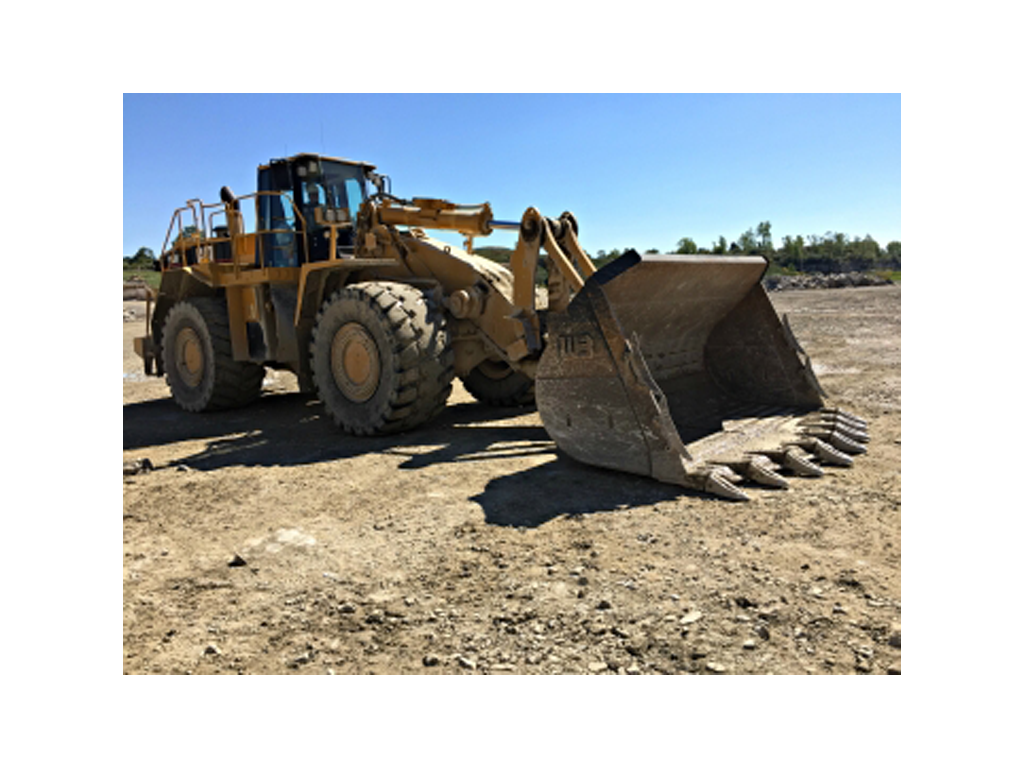

WERK-BRAU Severe Duty Rock buckets for Wheel loaders 51,000 - 68,000 lbs. (class 6)

Capacity
Lip

2/24

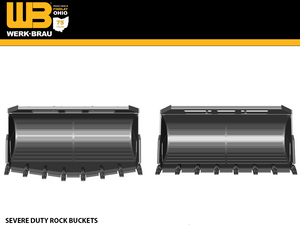

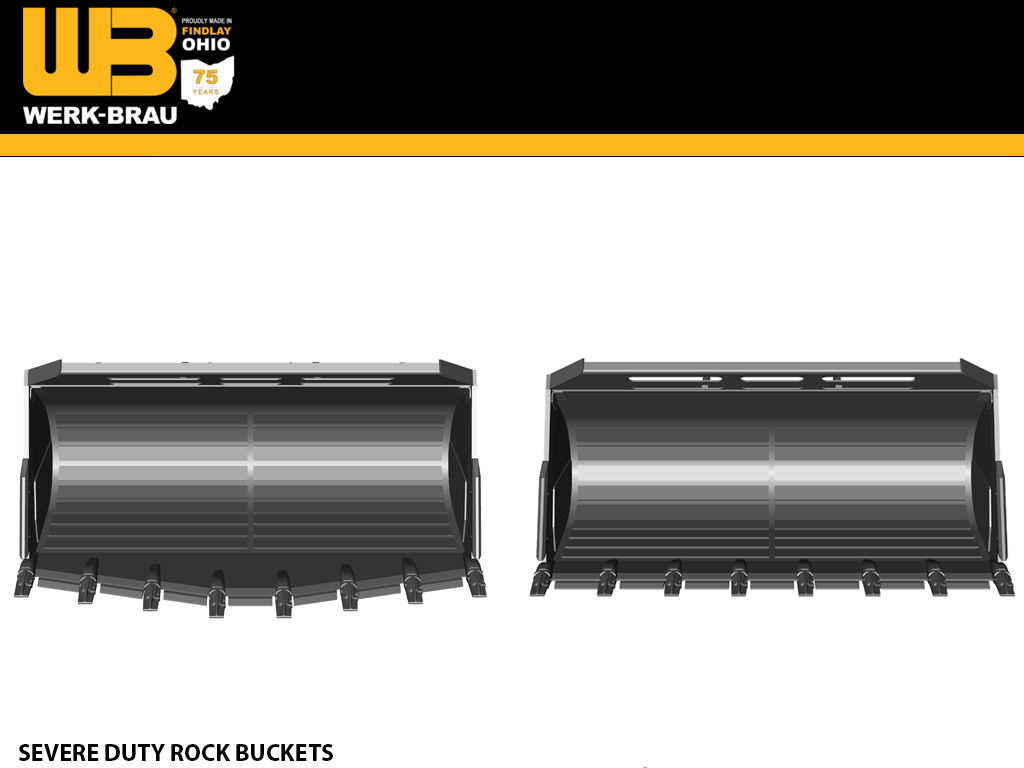

SEVERE DUTY ROCK BUCKET

Recommended Applications

Specifically designed to penetrate severe digging applications or re-handle loose rock.

Quality Construction

High strength, T-1 steel is utilized in all critical wear points of the bucket. Abrasion-resistant steel is used in wear-straps to reinforce bottom of bucket. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.

Standard Sizes

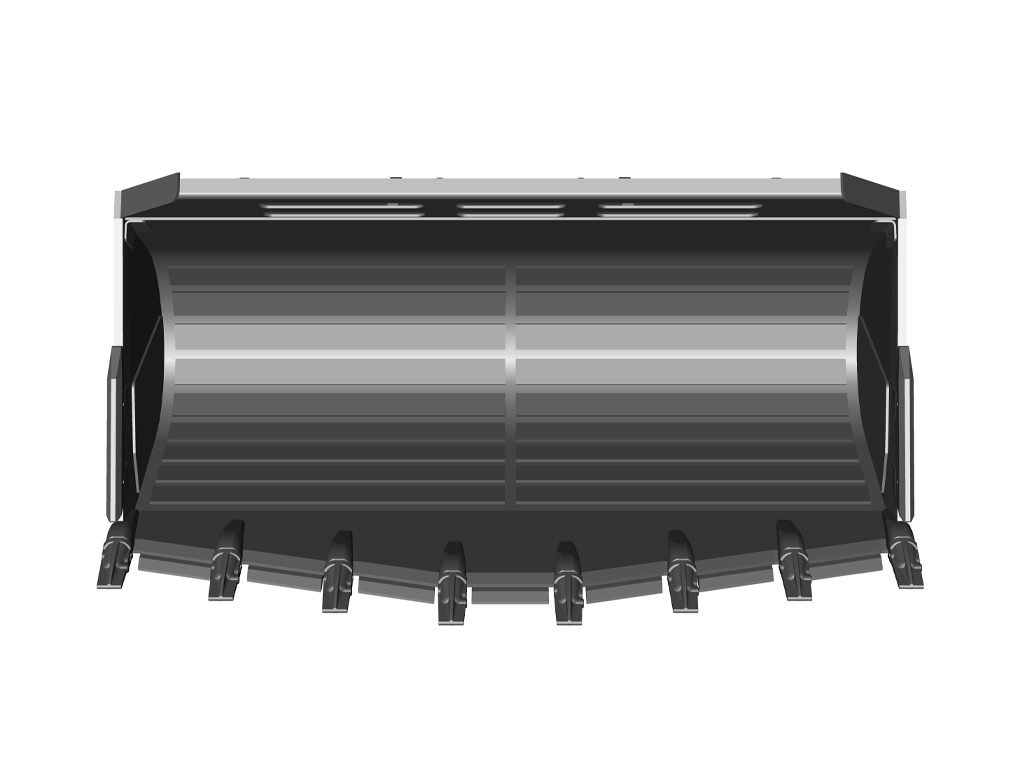

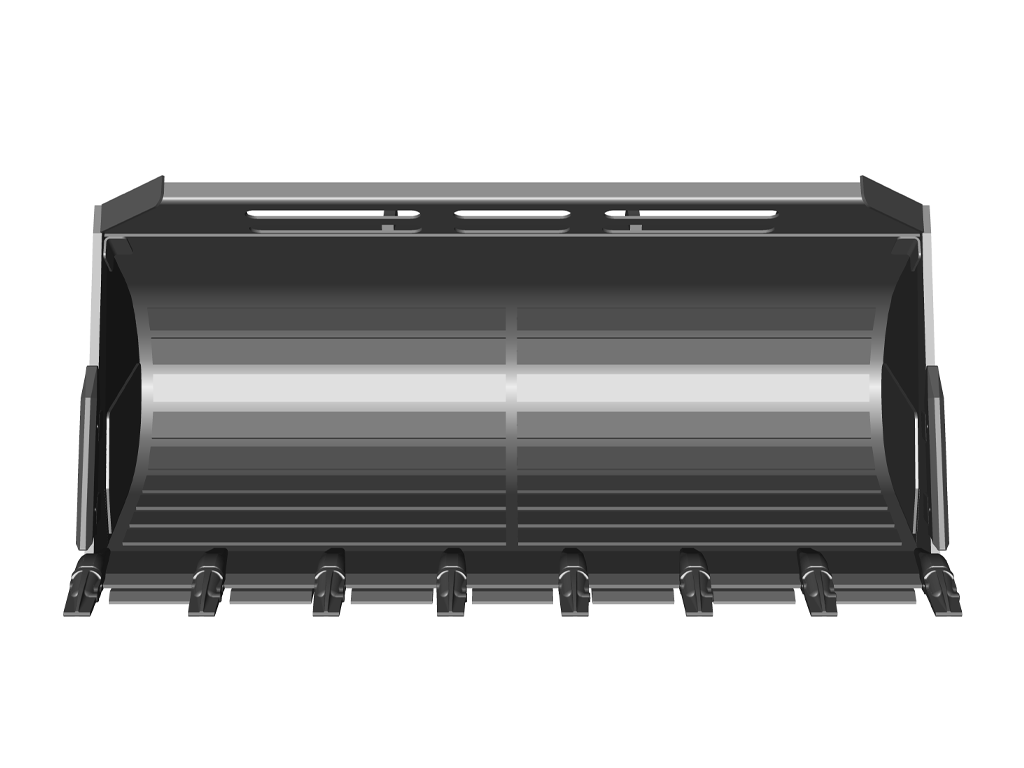

2.00 cu. yd to 10.00 cu. yd. Widths range from 100" - 144". Other capacities and widths are available upon quotation. Available in spade nose or straight edge options.

Additional Features

Available with replaceable bolt-on cutting edge upon request. Weld-on teeth are standard equipment. Other tooth selections available. Easily mounts up to Werk-Brau front coupler or available with pin-up connection. Special designs and capacities are available.

  • Internal double bottom
  • Lifting loops
  • Bolt on side cutters standard
  • Slotted spill guard for better vision
  • Standard with weld on teeth, shrouds and segments
  •  Bolt on cutting edge optional replacement

PART # WIDTH # OF TEETH  CAPACITY WEIGHT
WL6R138-6.50 138" 9 6.50 8,000
WL6R138-6.50SP 138" 9 6.50 8,500
WL6R138-7.50 138" 9 7.50 9,300
WL6R138-7.50SP 138" 9 7.50 9,800
CLASS 6
CLASS 6 (51,000 - 68,000 LBS) MODEL
CASE 1221
CAT 972, 980
DEVELON DL480-7, DL550-5, DL550-7
HITACHI ZW370
HYUNDAI HL780
JCB
JOHN DEERE 844
KOMATSU WA500
KUBOTA
LIEBHERR L576X, L580X, L586X
LINK-BELT
NEW HOLLAND
SANY
TAKEUCHI
VOLVO L180, L220
WACKER NEUSON
YANMAR
