EX15SK36

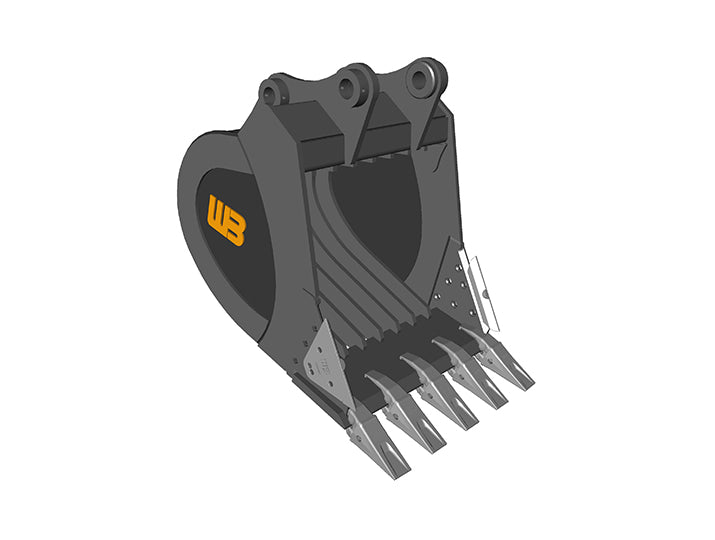

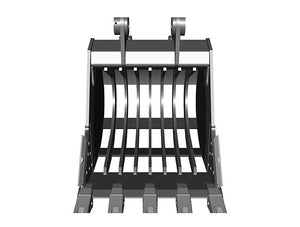

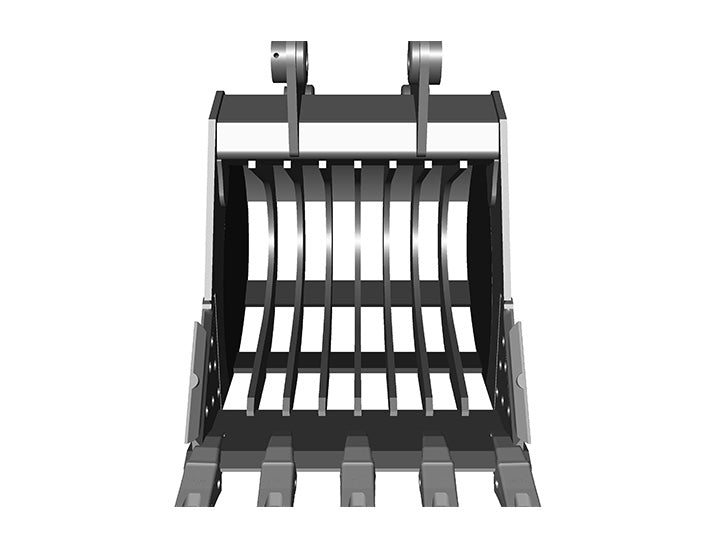

WERK-BRAU skeleton bucket for 33,000 -42,000 lbs (15MT)

Size

10/24

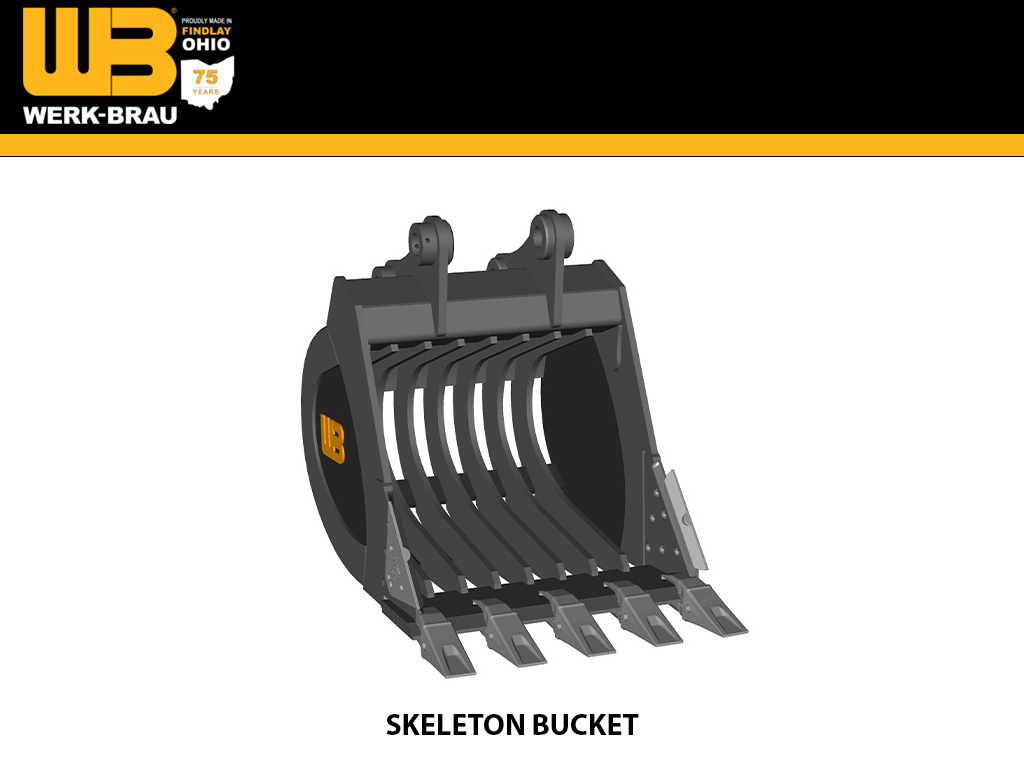

Skeleton Bucket

Recommended Applications

Specifically designed to handle loose rock, separating large rock and or debris from smaller lose material. Engineered to dig in heavy duty rock applications.

Quality Construction

High strength, T-1 steel is utilized in all critical wear points of the bucket. Abrasion-resistant steel is used in wear-straps to reinforce bottom of bucket. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.

Standard Sizes

Various capacities and widths are available.

Additional Features

Available with your choice of Weld-on teeth, standard with this bucket, replaceable bolt-on cutting edge. Other tooth selections available. Please request a quote from your local dealer.


PART NUMBER  WIDTH CAPACITY NO. OF TEETH WEIGHT
EX15SK36
36"
0.82
5
1,550
EX15SK42
42"
0.96
5
1,700
EX15SK48
48"
1.09
6 1,975

15MT

MAKE / WEIGHT CLASS 15MT (33,000 - 42,000 LBS.)
CASE CX160, CX170E, CX190E
CAT 315D, 316F, 318F, M318F
DOOSAN DX180LC-5, DX190W-5
HITACHI ZX160
HYUNDAI HX160, HX180
JOHN DEERE 160G, 160P
KOBELCO ED195, SK170
KOMATSU PC170
LIEBHERR
LINK BELT 160X4
SANY
TAKEUCHI
VOLVO EW160, EW180, EC160, EC180
