15MSK24

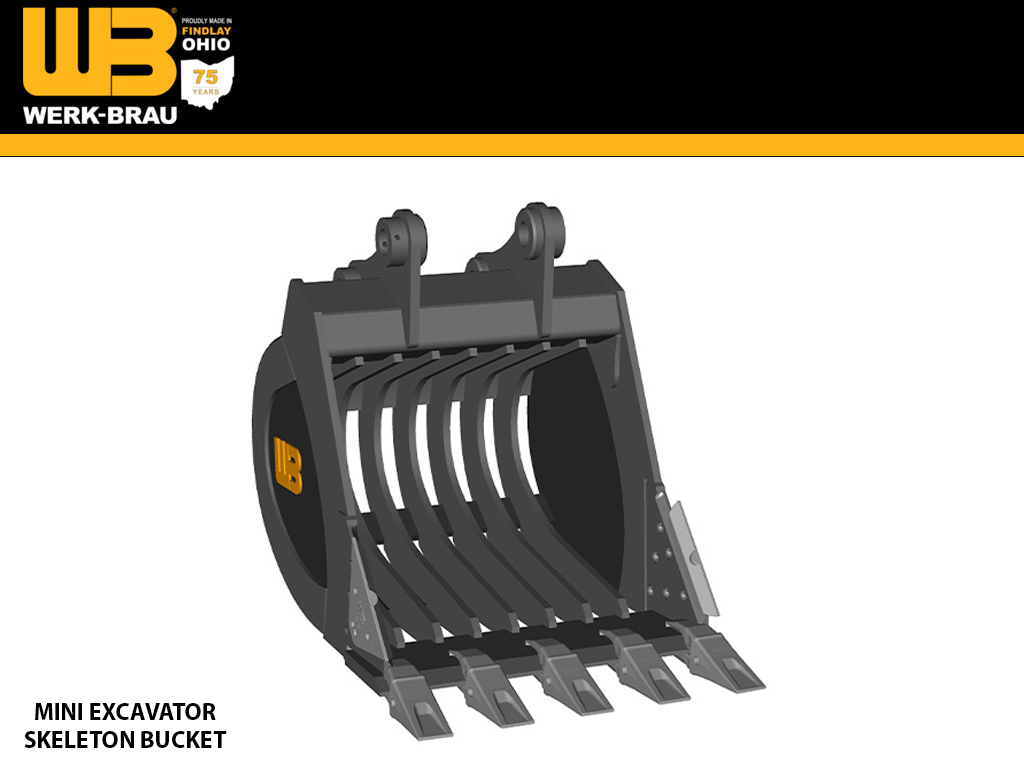

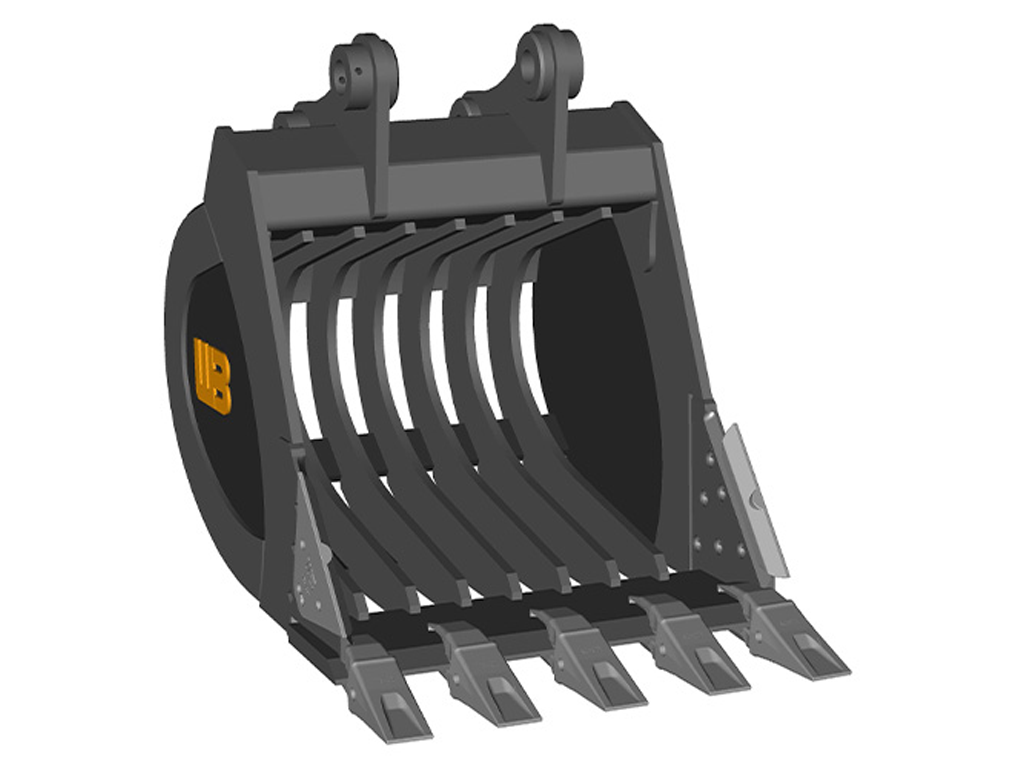

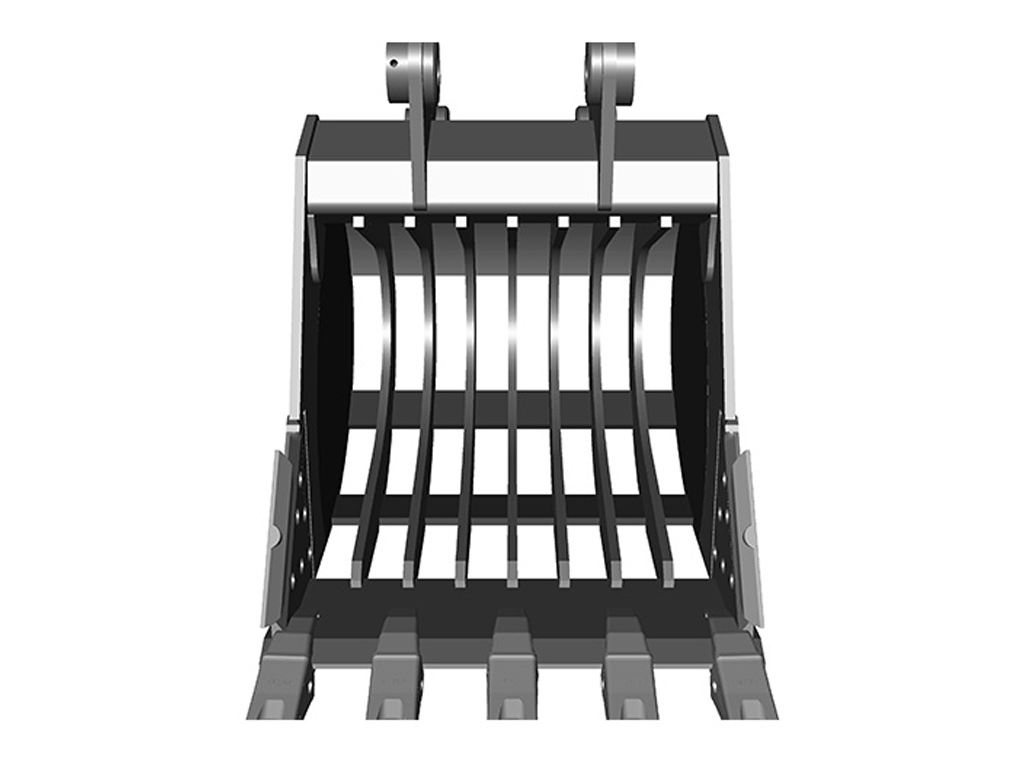

WERK-BRAU Skeleton Bucket for 7,500 - 11,000 lbs. Excavators. (Mini 15)
$2,793.00 - $4,107.00
2/24
SKELETON BUCKETS
Recommended Applications
Specifically designed to handle loose rock, separating large rock and or debris from smaller lose material. Engineered to dig in heavy duty rock applications.
Quality Construction
High strength, T-1 steel is utilized in all critical wear points of the bucket. Abrasion-resistant steel is used in wear-straps to reinforce bottom of bucket. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.
Standard Sizes
Various capacities and widths are available.
Additional Features
Available with your choice of Weld-on teeth, standard with this bucket, replaceable bolt-on cutting edge. Other tooth selections available. Please request a quote from your local dealer.
| PART # | WIDTH | CAPACITY | NO. TEETH | WEIGHT |
| 15MSK24 | 24" | 5.00 |
5 |
398 |
| 15MSK30 | 30" | 6.40 |
5 |
429 |
| 15MSK36 | 36" | 7.80 |
6 |
471 |
| MAKE / WEIGHT CLASS | MINI 15 (7,500 - 11,000 LBS.) |
| BOBCAT | 335, 337, 341, 435, E45, E50, E55, E60 |
| CASE | CX50B, CX55B, CX57C, CX60C |
| CAT | 303.5E2CR, 304E2CR, 304.5E2XTC, 305E2CR, 305.5E2CR |
| DOOSAN | DX60, DX63-3 |
| DITCH WITCH | |
| GEHL | GE503Z, GE603 |
| HITACHI | ZX50, AX60 |
| HYUNDAI | R55, R60 |
| IHI | 40JX, 45JX |
| JCB | 8040, 8045, 8052 |
| JOHN DEERE | 50G |
| KOBELCO | 50SR, 55SRX |
| KOMATSU | PC45MR-3, PC55MR-3, PC58UU-3 |
| KUBOTA | U55, KX057 |
| LINK BELT | |
| MUSTANG | 5003ZT, 6003 |
| NEW HOLLAND | E50, E55BX |
| SANY | SY50, SY60 |
| TAKEUCHI | TB145, TB153FR, TB250, TB260 |
| VOLVO | EC55B, ECR58 |
| YANMAR | Vio55-5 |
| WACKER NEUSON | ET65, EW65, EZ53, 6003 |
