WL4SKL117-4.50
WERK-BRAU Skeleton Rock buckets for Wheel loaders 33,000 - 43,000 lbs. (class 4)
$21,293.00
2/24

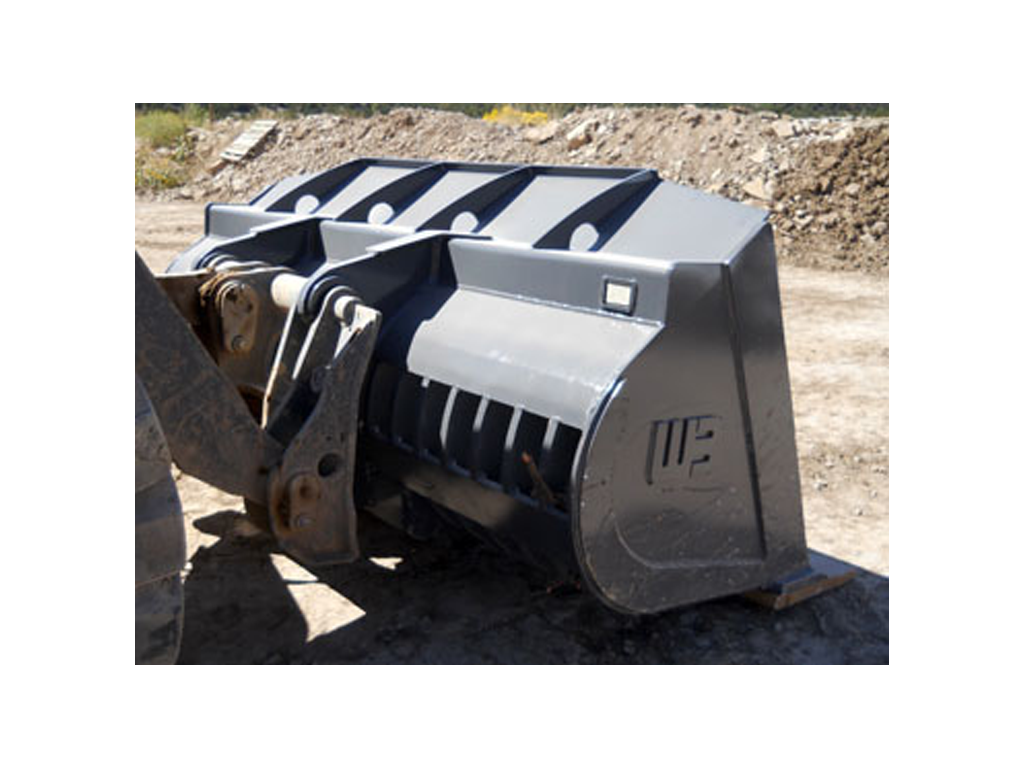

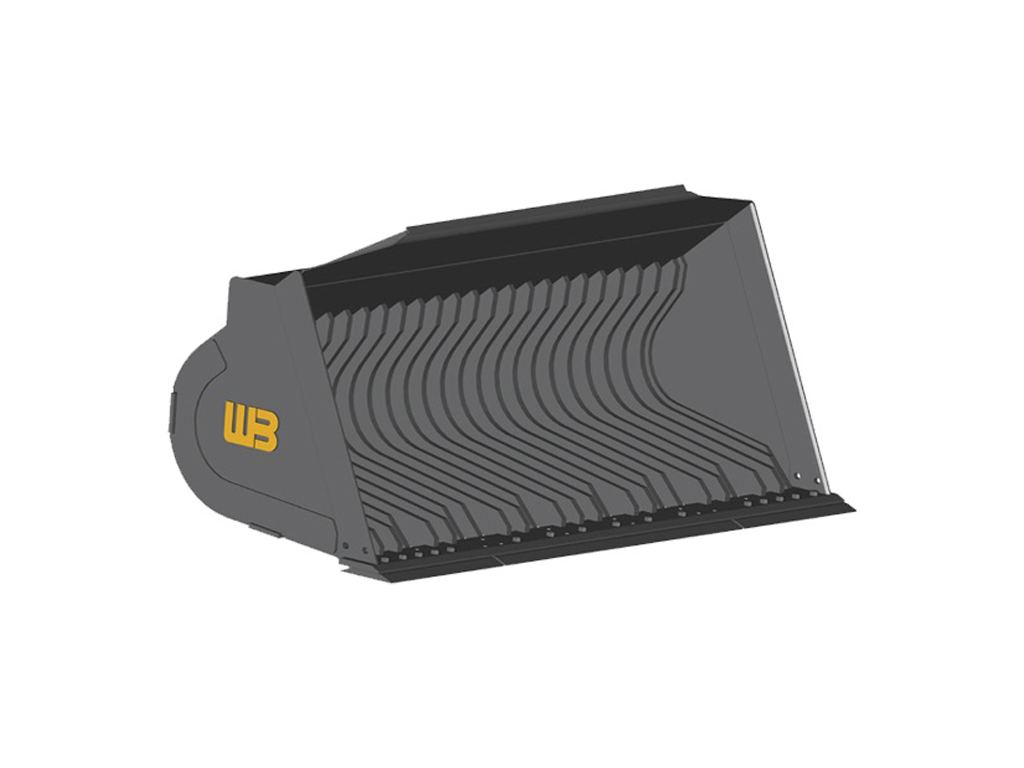

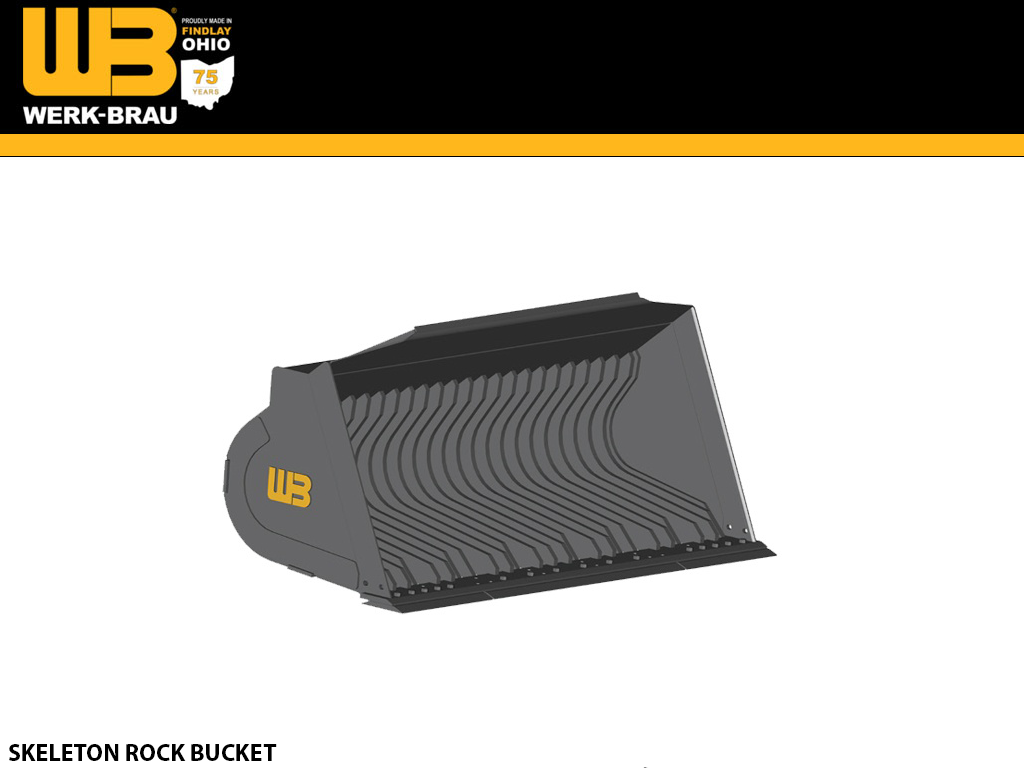

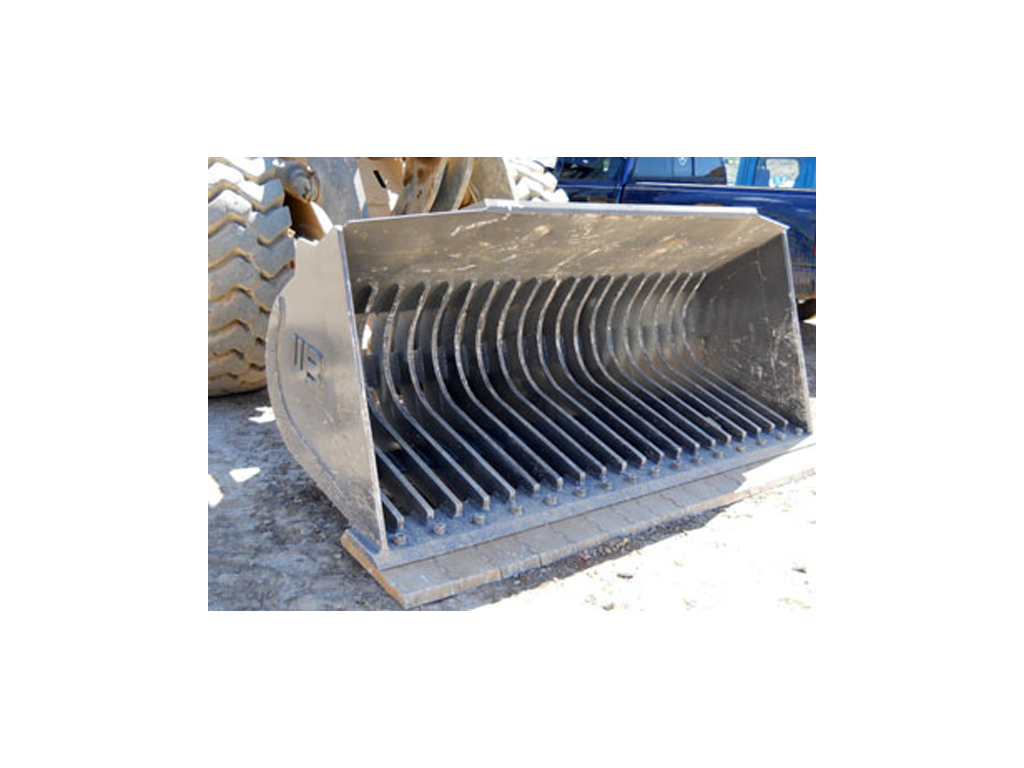

SKELETON ROCK BUCKET
Recommended Applications
Excellent for quarry work, design allows for sifting of loose debris to fall through to keep material load to minimum.
Quality Construction
High strength steel construction for durability and long wear. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.
Standard Sizes
2.75 cu. yd. to 7.0 cu. yd. of various widths available. Special designs or desired tine spacing is available upon request.
Additional Features
Available with Werk-Brau front coupler or pin-up connection. Special designs and capacities are available
Features
- Engineered to handle loose rock and sift larger debris from loose materials like sand
- Abrasion-resistant steel used in wear straps to reinforce bucket bottom
- includes bolt on cutting edge
- commonly used for scraping, cleanup, concrete recycling and beach reclamation
| PART # | WIDTH | RIB SPACING | CAPACITY | WEIGHT |
| WL4SKL117-4.50 | 117" | 5" | 4.50 | 4,250 |
CLASS 4
| CLASS 4 (33,000 - 43,000 LBS) | MODEL |
| CASE | 821G, 921G |
| CAT | 950, 960, 962, IT62 |
| DEVELON | DL300-5, DL320-7, DL350-5, DL380-7 |
| HITACHI | ZW220, ZW250 |
| HYUNDAI | HL960, HL760 |
| JCB | 456, 457 |
| JOHN DEERE | 644, 724 |
| KOMATSU | WA380, WA430 |
| KUBOTA | |
| LIEBHERR | L556X |
| LINK-BELT | L150 |
| NEW HOLLAND | LW190 |
| SANY | SW405 |
| TAKEUCHI | |
| VOLVO | L110, L120 |
| WACKER NEUSON | |
| YANMAR |
