WL5SKL124.5.50
2/24

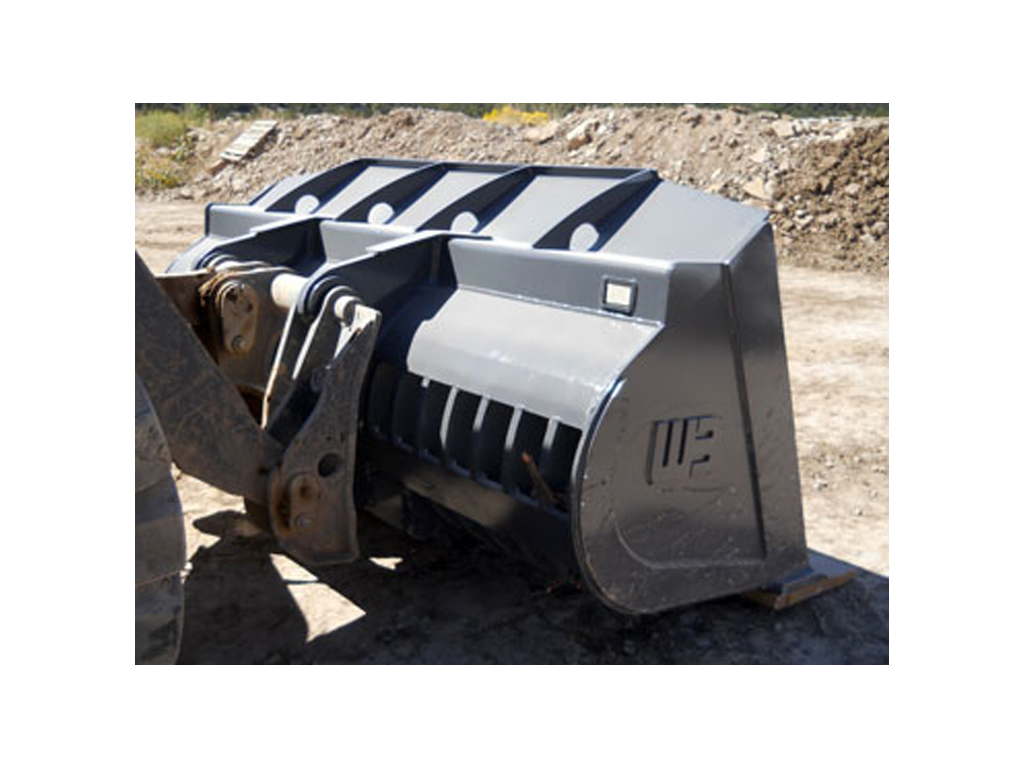

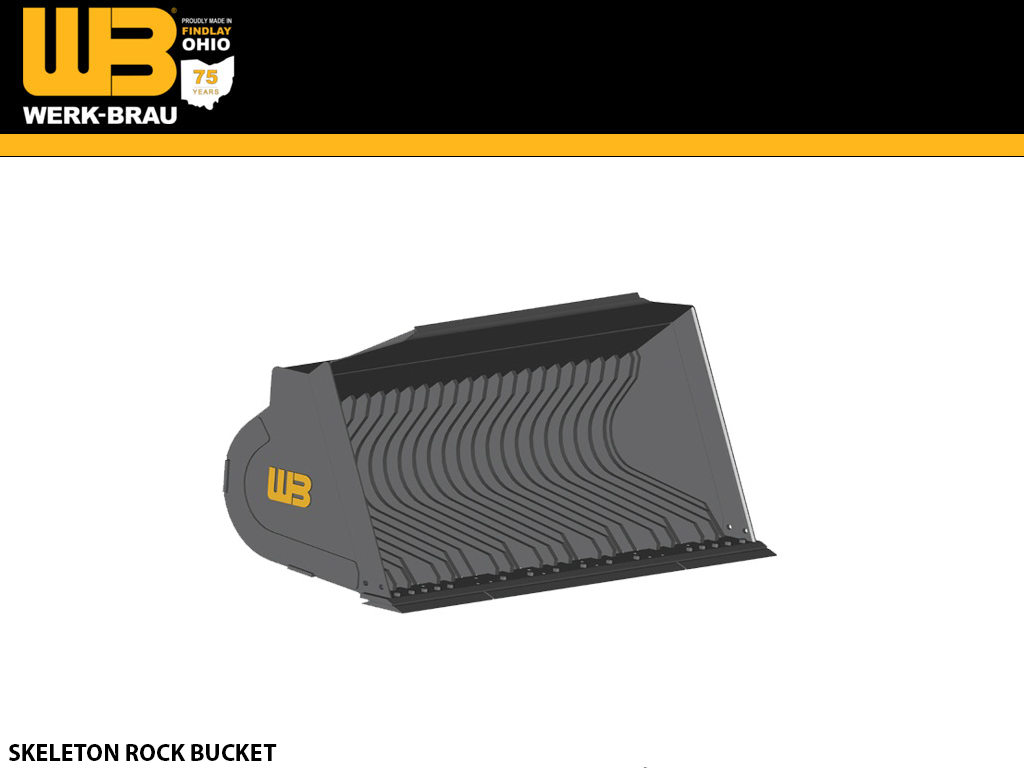

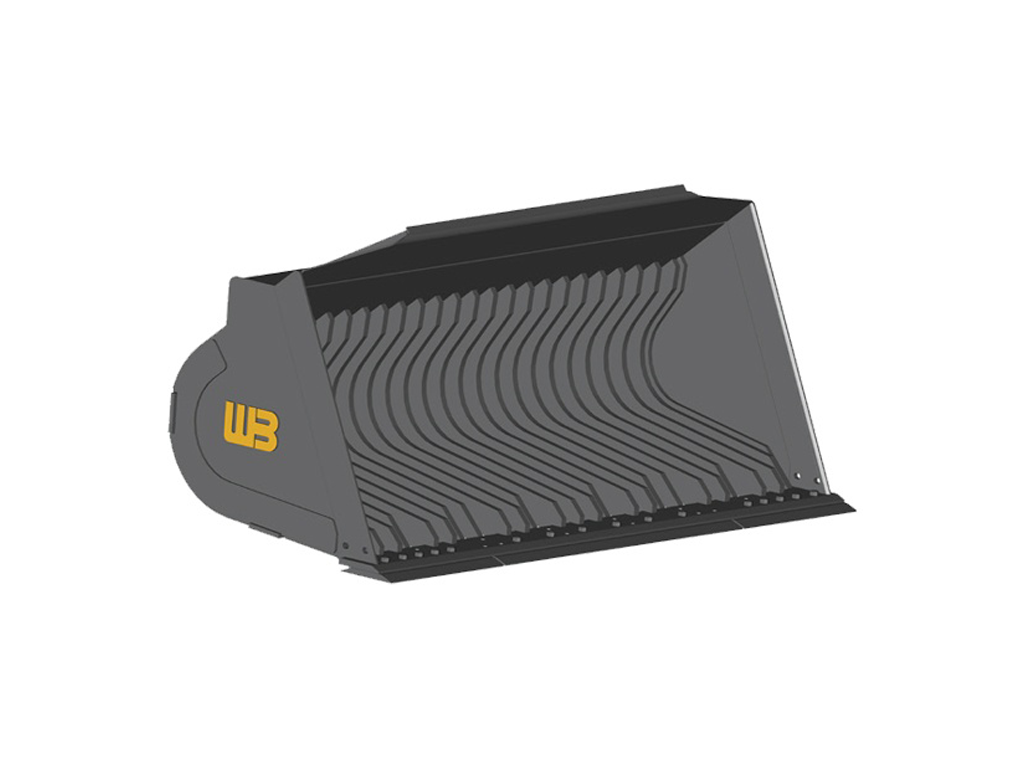

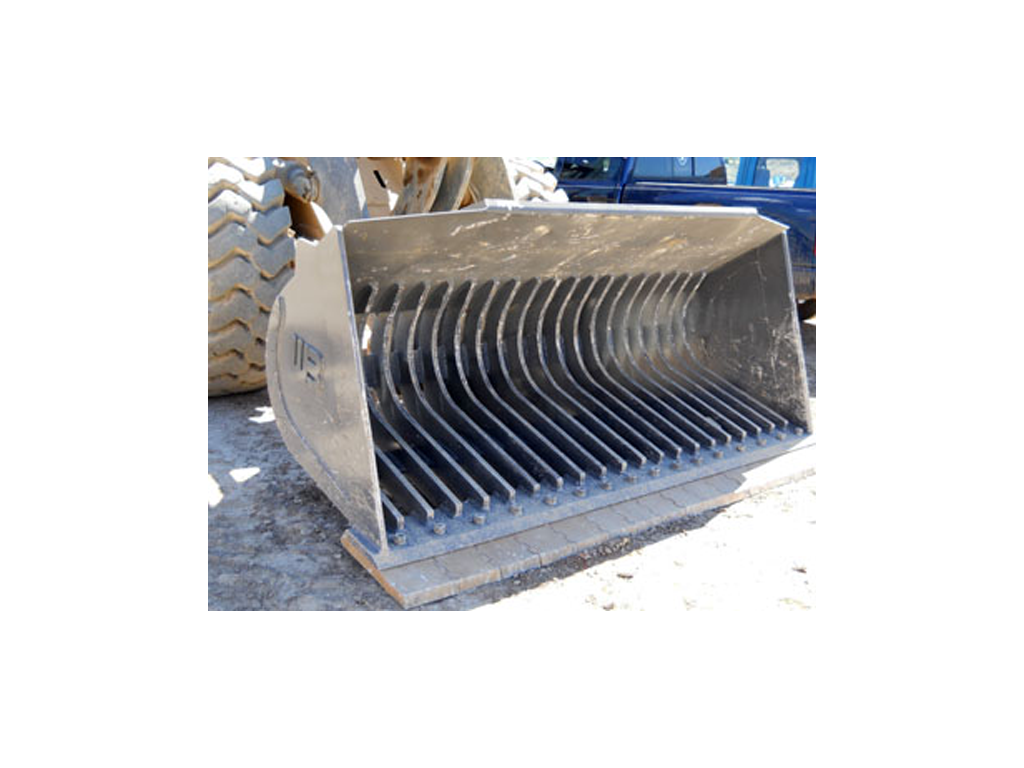

Excellent for quarry work, design allows for sifting of loose debris to fall through to keep material load to minimum.
High strength steel construction for durability and long wear. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.
2.75 cu. yd. to 7.0 cu. yd. of various widths available. Special designs or desired tine spacing is available upon request.
Available with Werk-Brau front coupler or pin-up connection. Special designs and capacities are available
PART # | WIDTH | RIB SPACING | CAPACITY | WEIGHT |
WL5SKL124-5.50 | 124" | 5" | 5.50 | 6,900 |
CLASS 5 (43,000 - 51,000 LBS) | MODEL |
CASE | 1021G, 1121G |
CAT | 966, 970 |
DEVELON | DL420-5, DL420-7, DL450-5, DL450-7 |
HITACHI | ZW310, ZX330 |
HYUNDAI | HL970, HL770 |
JCB | |
JOHN DEERE | 744, 824 |
KOMATSU | WA470, WA480 |
KUBOTA | |
LIEBHERR | L566X |
LINK-BELT | |
NEW HOLLAND | LW230 |
SANY | |
TAKEUCHI | |
VOLVO | L150 |
WACKER NEUSON | |
YANMAR |
