SQC-EX30

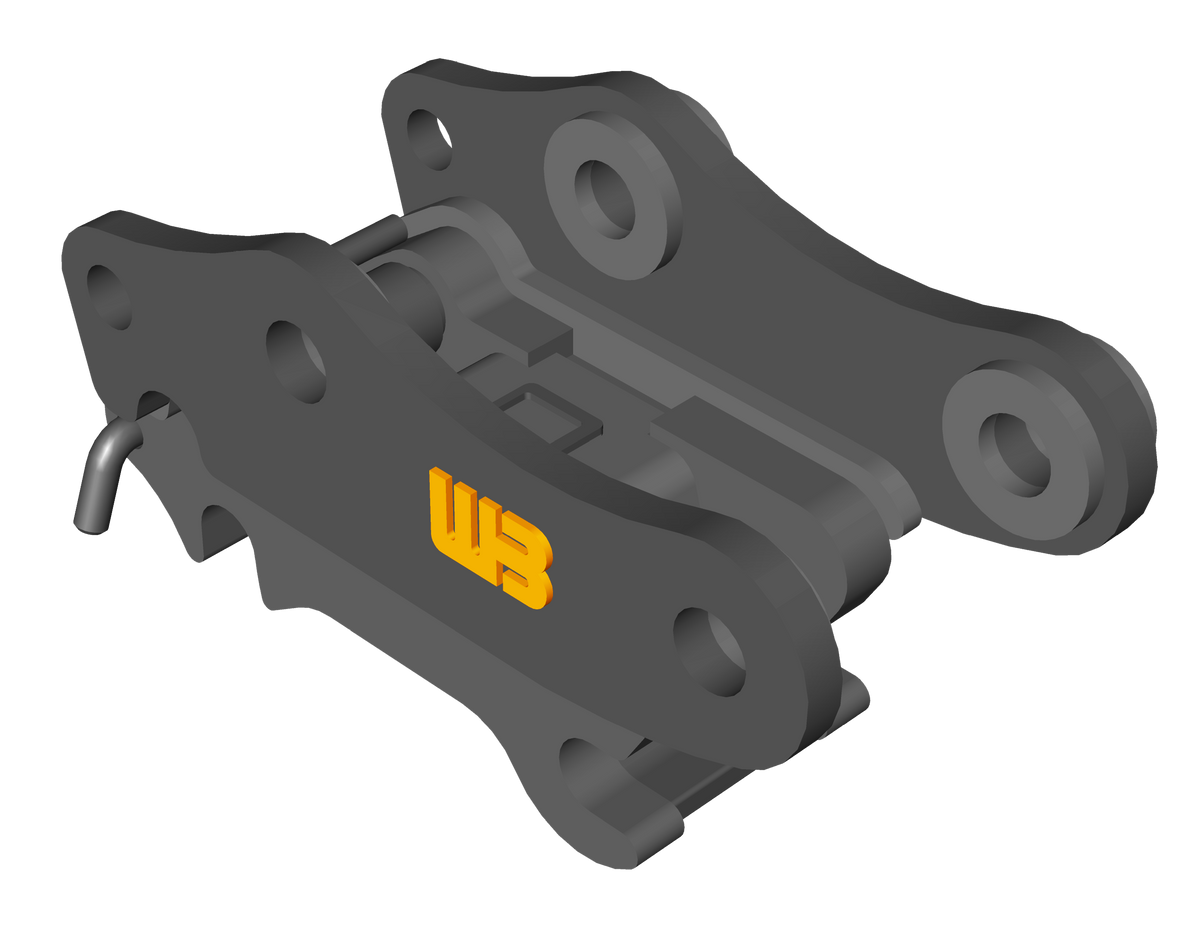

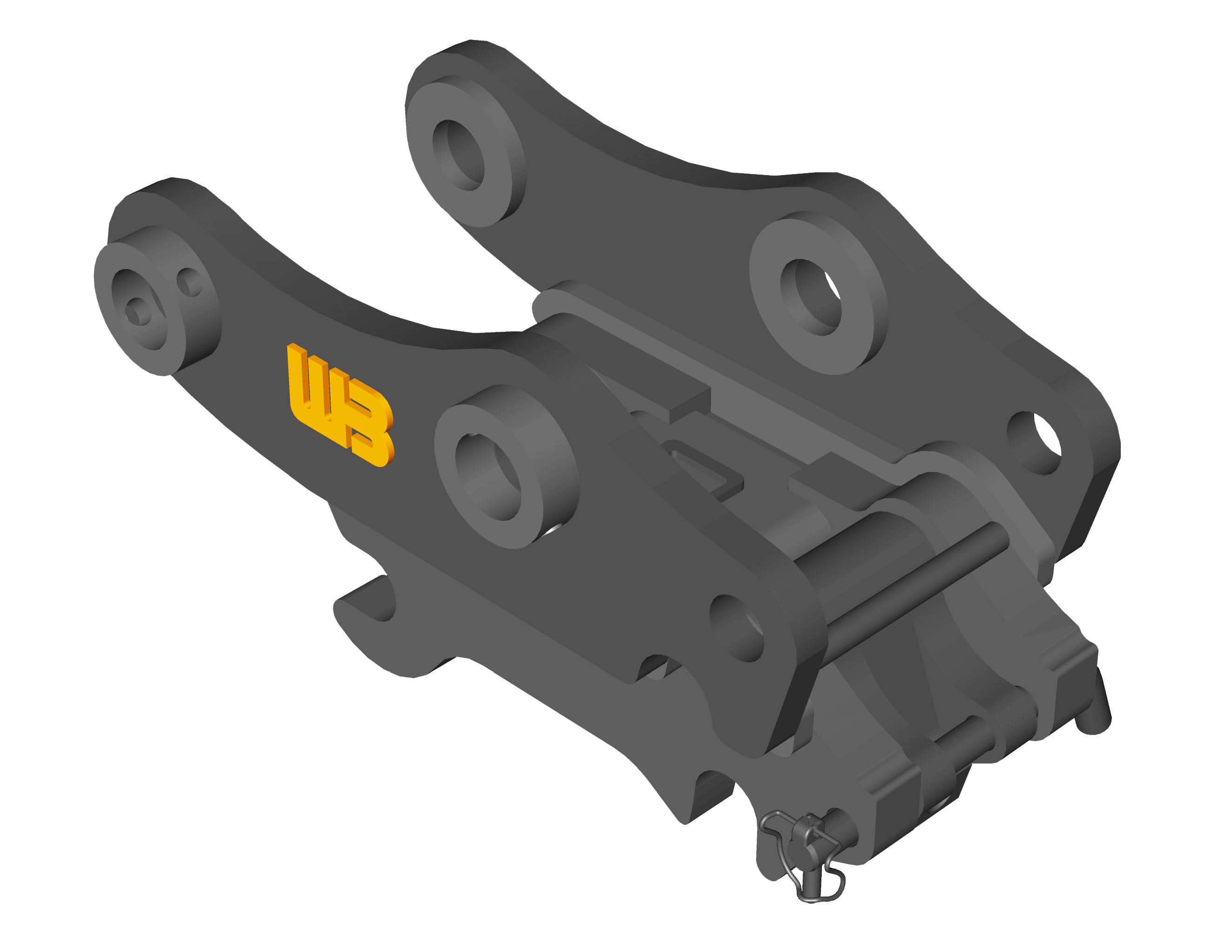

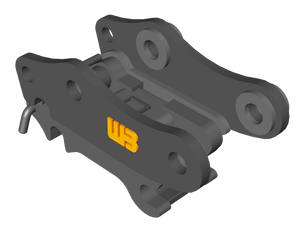

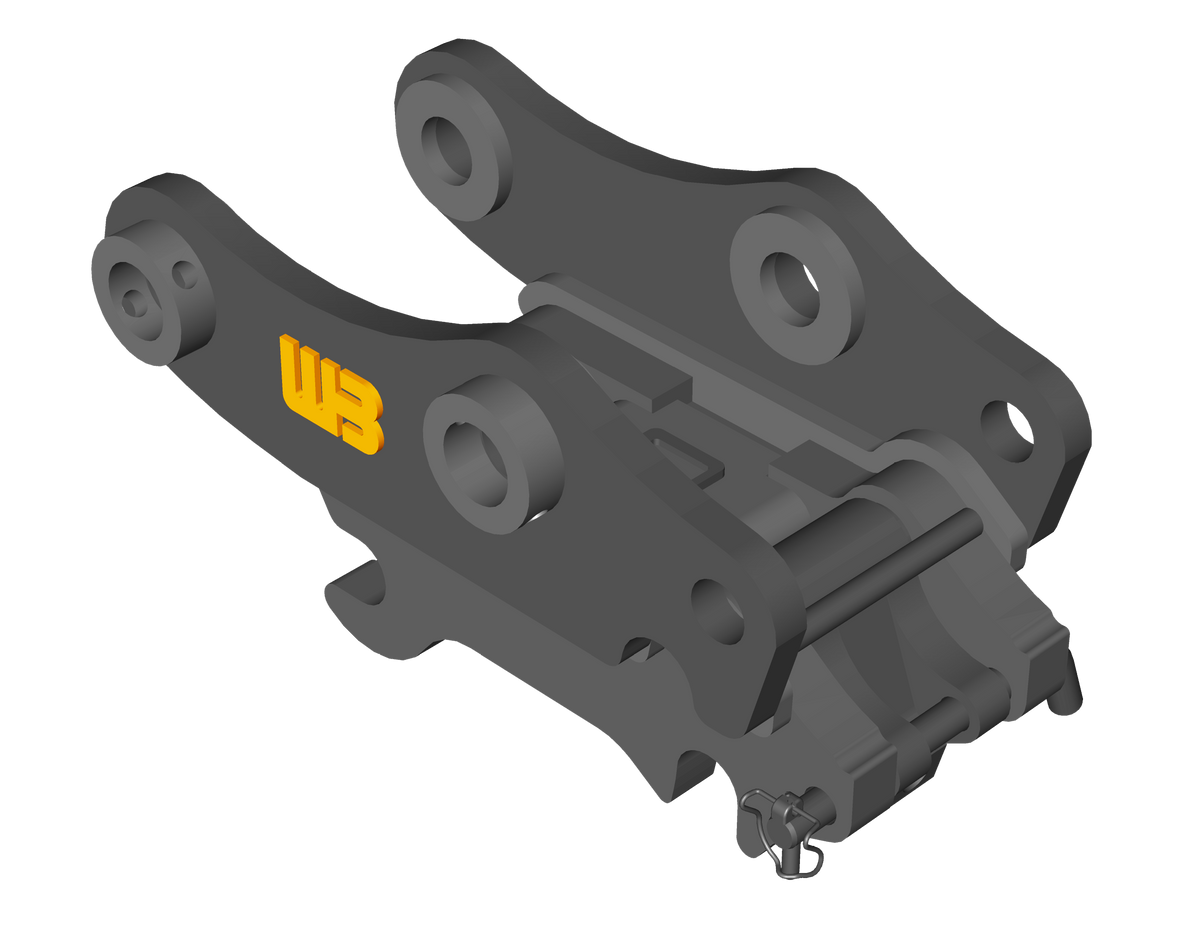

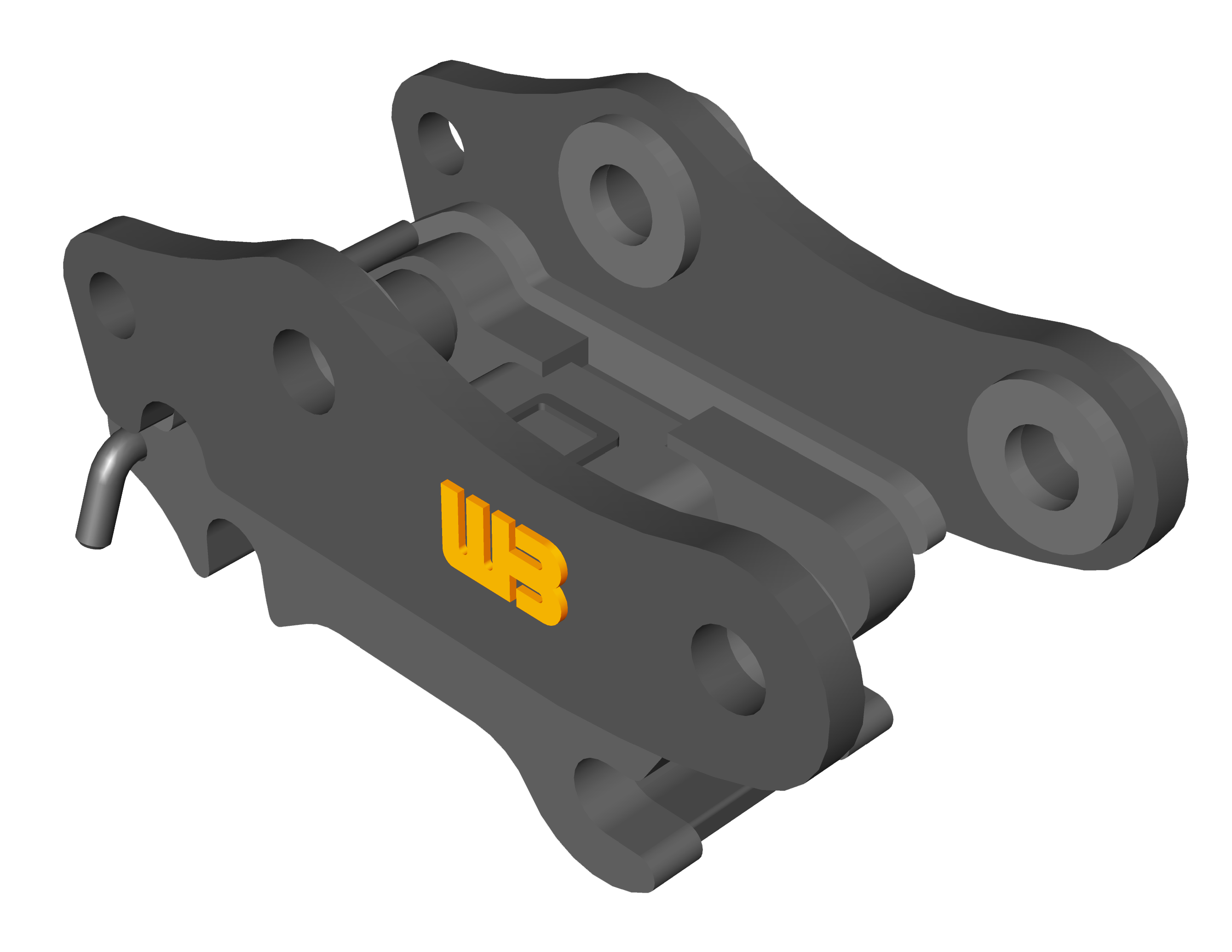

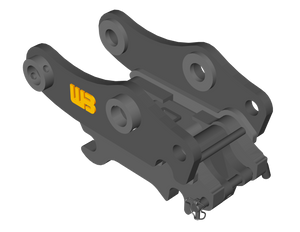

WERK-BRAU Spring Loaded Manual Coupler for 59,000 - 82,000 lbs. Excavators (30 & 35MT)

Type

1/24

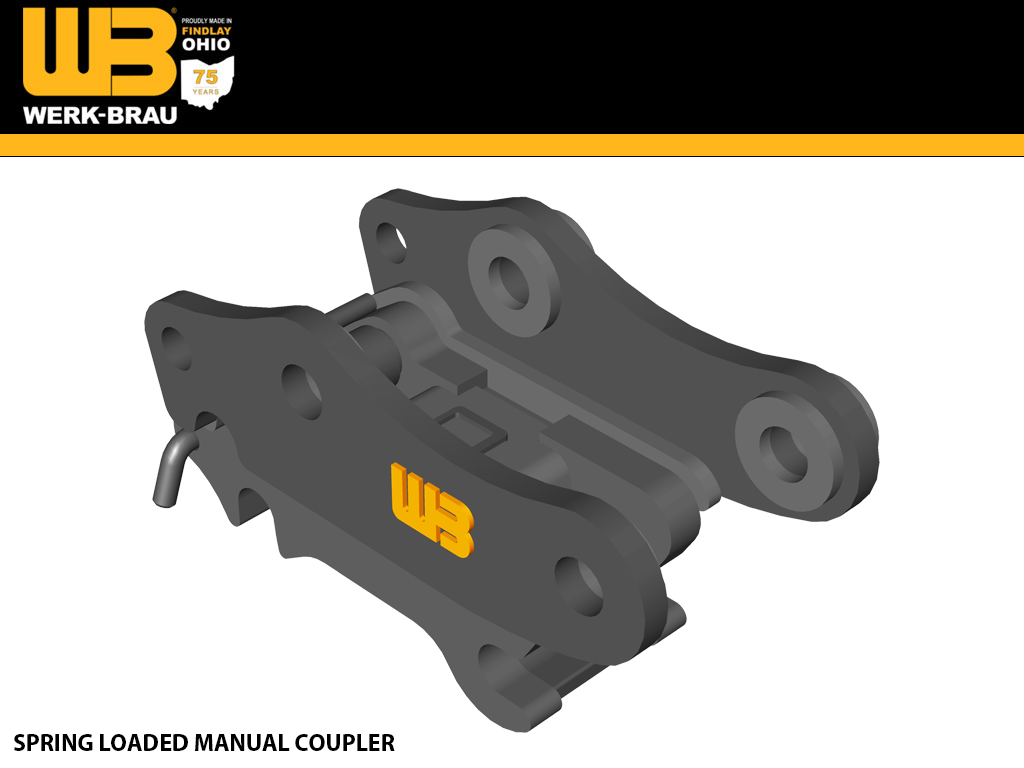

SPRING LOADED MANUAL COUPLER

Recommended Applications

Werk-Brau offers a complete range of manual couplers for all major brands and most machines. Werk-Brau's couplers are known for their tough build, versatility for pairing with any brand of attachments, safety features, tight lock, and ease of operator use. The Werk-Brau spring loaded manual coupler will work with any attachment from any manufacturer meeting OEM fit-up specifications. Each coupler features a heavy duty lift loop on the top hangers.

Quality Construction

Werk-Brau manufactures the coupler using the highest quality T-1 steel in all critical or high wear components to ensure that this coupler has a long operating life. Werk-Brau's couplers are constructed using a solid one piece, front cross member which provides more wear service than most other competitive couplers available. A heavy duty lift loop is featured on the top hangers. Spring loaded manual couplers feature adjustable springs.

Safety Pin Notice

Never operate a Werk-Brau coupler without it's approved safety pin in place. For additional information, please review the owners installation manual for this coupler. Additional, or replacement safety pins maybe ordered through a Werk-Brau Dealer.

HEAVY DUTY

PART # TYPE STYLE WEIGHT
SQC-EX30
Striaght
Spring Loaded
1,400
SQX-EX30C Combo
Spring Loaded 1,400



30MT

MAKE / WEIGHT CLASS 30MT (59,500 - 68,000 LBS.)
CASE CX300, CX365E
CAT 326, 328, 329, 335F, CB-LINKAGE
DOOSAN DX300LC-5, DX300LC-5SLR
HITACHI ZX300, ZX345
HYUNDAI HX300
JOHN DEERE 300G, 345G, 300P
KOBELCO SK300
KOMATSU PC270, PC290, PC308
LIEBHERR
LINK BELT 300X3, 300X4, 355X4
SANY SY365
TAKEUCHI
VOLVO EC330, EC340, EC350, EC360, EC380



35MT

MAKE / WEIGHT CLASS 35MT (68,500 - 82,000 LBS.)
CASE CX350
CAT 330, 335, 336F DB-LINKAGE
DOOSAN DX350LC-5, DX420LC-5
HITACHI ZX350, ZX380
HYUNDAI HX330, HX350, HX380
JOHN DEERE 350G, 380G, 350P
KOBELCO SK350
KOMATSU PC300, PC350, PC360, PC390
LIEBHERR R 934 CL, R 924 C, R936
LINK BELT 350X4
SANY SY365
TAKEUCHI
VOLVO EC330, EC340, EC350, EC360, EC380
