QT-04MN
WERK-BRAU Manual Coupler for excavators 1,500 - 4,900 lbs. Excavators (Mini 04 & 05)
$1,939.00
8/25

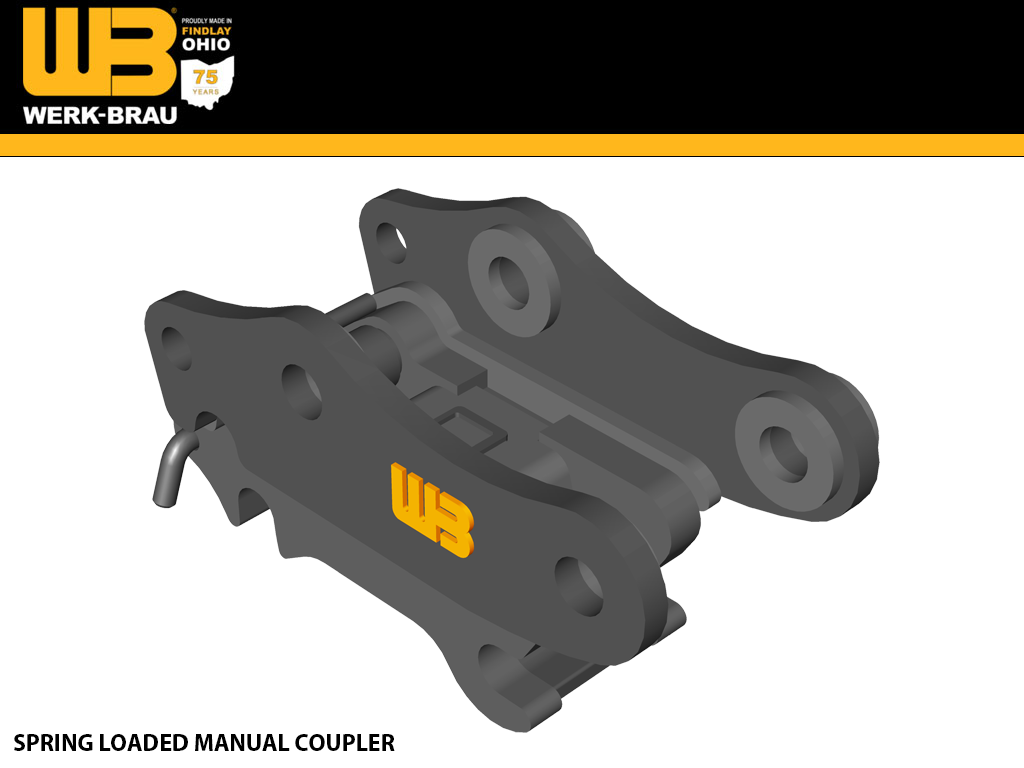

SPRING LOADED MANUAL COUPLER
Recommended Applications
Werk-Brau offers a complete range of manual couplers for all major brands and most machines. Werk-Brau's couplers are known for their tough build, versatility for pairing with any brand of attachments, safety features, tight lock, and ease of operator use. The Werk-Brau spring loaded manual coupler will work with any attachment from any manufacturer meeting OEM fit-up specifications. Each coupler features a heavy duty lift loop on the top hangers.
Quality Construction
Werk-Brau manufactures the coupler using the highest quality T-1 steel in all critical or high wear components to ensure that this coupler has a long operating life. Werk-Brau's couplers are constructed using a solid one piece, front cross member which provides more wear service than most other competitive couplers available. A heavy duty lift loop is featured on the top hangers. Spring loaded manual couplers feature adjustable springs.
Safety Pin Notice
Never operate a Werk-Brau coupler without it's approved safety pin in place. For additional information, please review the owners installation manual for this coupler. Additional, or replacement safety pins maybe ordered.
| PART # | TYPE | STYLE | WEIGHT |
| QT-04MN |
Straight |
Pull pin |
50 |
| MAKE / WEIGHT CLASS | MINI 04 (1,500 - 2,100 LBS.) |
| BOBCAT | 316 |
| CASE | |
| CAT | 300.9D |
| DOOSAN | S010 |
| DITCH WITCH | |
| GEHL | |
| HITACHI | ZX17U-2 |
| HYUNDAI | |
| IHI | 9NX-2 |
| JCB | MICRO 8008 |
| JOHN DEERE | |
| KOBELCO | |
| KOMATSU | PC09-1 |
| KUBOTA | K008 |
| LINK BELT | |
| MUSTANG | |
| NEW HOLLAND | |
| SANY | |
| TAKEUCHI | TB108 |
| VOLVO | |
| YANMAR | |
| WACKER NEUSON | 803 |
| MAKE / WEIGHT CLASS | MINI 05 (2,100 - 4,900 LBS.) |
| BOBCAT | 323 |
| CASE | CX17B |
| CAT | 301.5, 301.7CR, 301.8, 302CR |
| DOOSAN | S015 |
| DITCH WITCH | XT850 |
| GEHL | GE153 |
| HITACHI | EX17U |
| HYUNDAI | R16 |
| IHI | 15NX-2 |
| JCB | 8018 |
| JOHN DEERE | 17G |
| KOBELCO | 17SR |
| KOMATSU | PC18MR-3 |
| KUBOTA | KX018, U17 |
| LINK BELT | ME1503 |
| MUSTANG | E15, E18B |
| NEW HOLLAND | SY16 |
| SANY | TB016, TB216 |
| TAKEUCHI | EC15B |
| VOLVO | EC20B |
| YANMAR | Vio17, SV08-1, Vio20-3 |
| WACKER NEUSON | EZ17, 1404, ET20 |
