WTB3-48

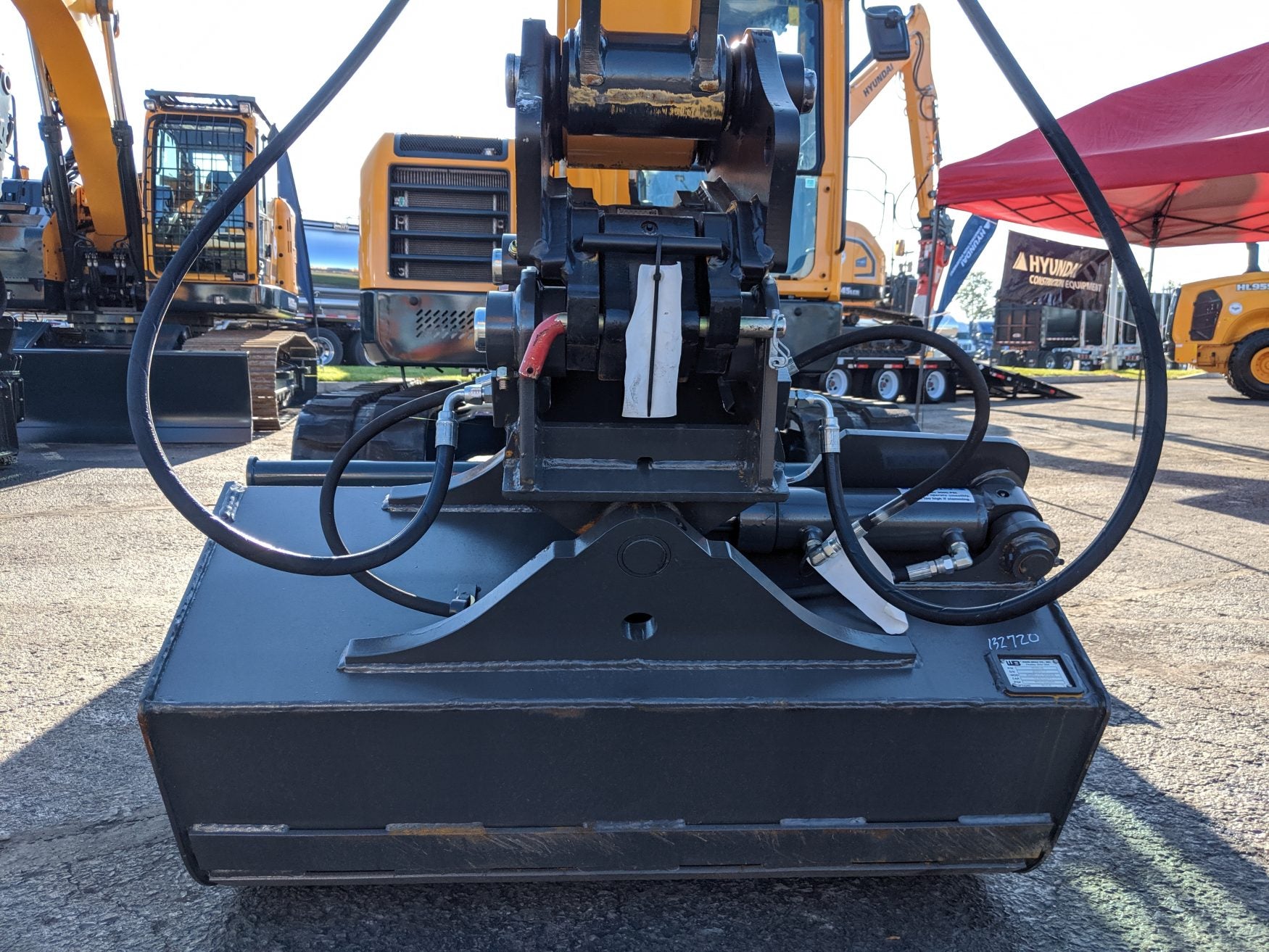

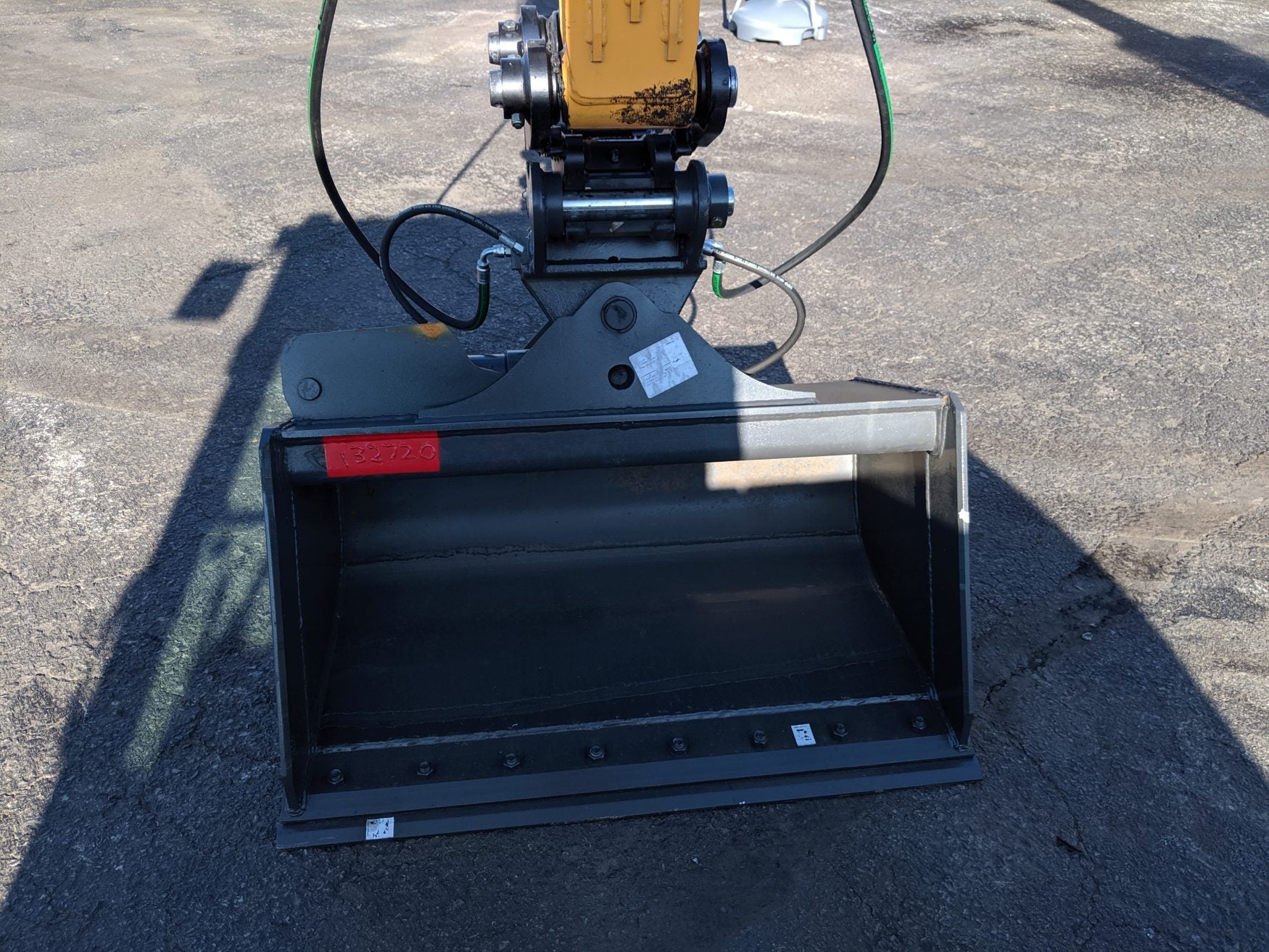

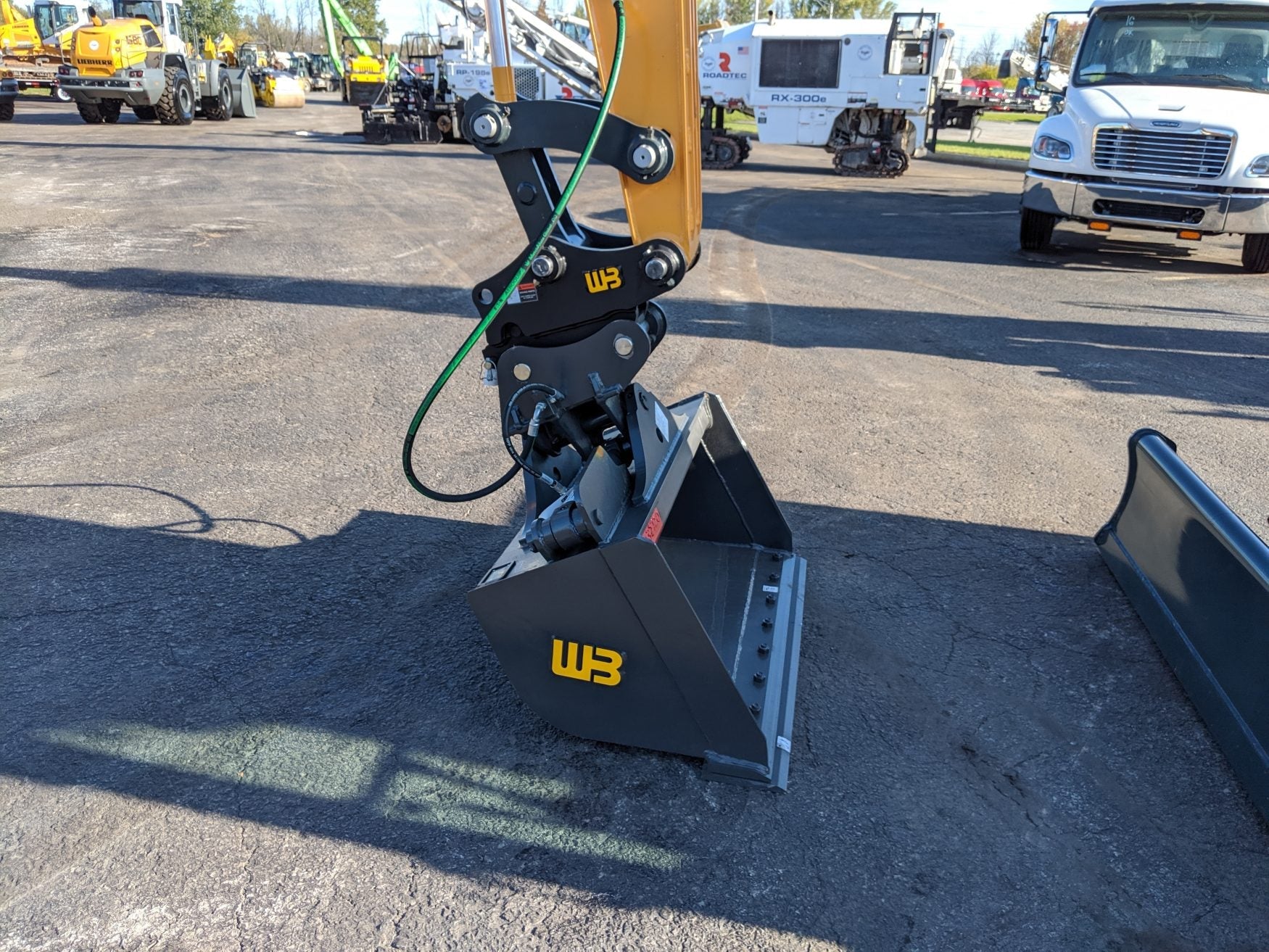

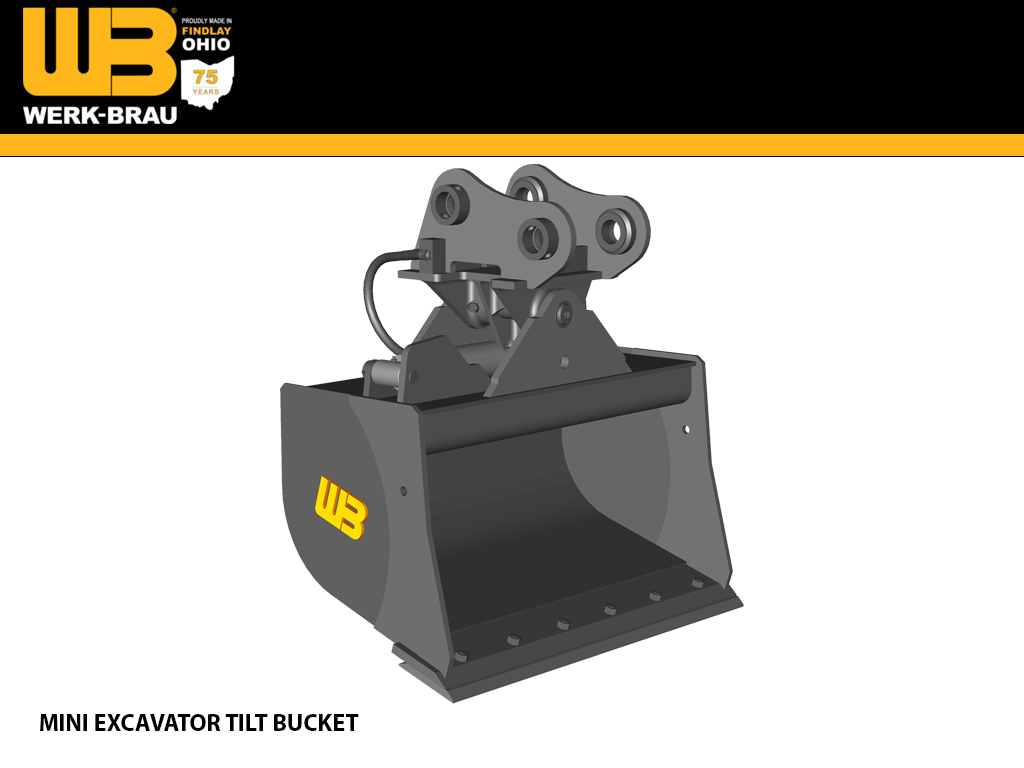

WERK-BRAU Tilt Bucket for 11,000 -14,000 lbs. Excavators. (Mini 3)

Size

1/24

WERK-BRAU TILT BUCKETS


Recommended Applications

Specifically designed to enhance a machines grading capabilities in ditch cleaning and/or sloping applications. Capable of tilting 45 degrees in either direction to increase productivity and eliminate the need for a separate tilting attachment.

Quality Construction

High strength steel is used throughout the weldment. Hardened greasable bushings are utilized at all pivot points. High quality cylinders complement the attachments rugged design. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.

Cutting Equipment Options

Replaceable bolt-on edge is optional equipment on bucket.

Standard Sizes

Widths range from 36" up to 60". Capacities range from 3.45 cu ft. up to 15.7 cu ft. Additional sizes are available for quotation.

Additional Features

Eliminates the need for any additional attachment and can be utilized along with a mechanical or hydraulic coupler, also available. Special designs and capacities are available, please request a quote from your local dealer.


PART # WIDTH CAPACITY WEIGHT
WTB3-48 48" 10.00
934

MINI 3

MAKE / WEIGHT CLASS MINI 3 (11,000 - 14,000 LBS.)
BOBCAT E80, E85
CASE
CAT 306CR
DOOSAN DX80
DITCH WITCH
GEHL GE753Z, GE803
HITACHI
HYUNDAI R75
IHI 55N-2, 55NX, 65NX, 80NX
JCB 8060
JOHN DEERE
KOBELCO
KOMATSU PC78, PC95, PC88MR-8
KUBOTA
LINK BELT
MUSTANG 8003, 7503ZT
NEW HOLLAND
SANY
TAKEUCHI HR32
VOLVO
YANMAR
WACKER NEUSON ET90, EW100, 8003
