WTB05-36

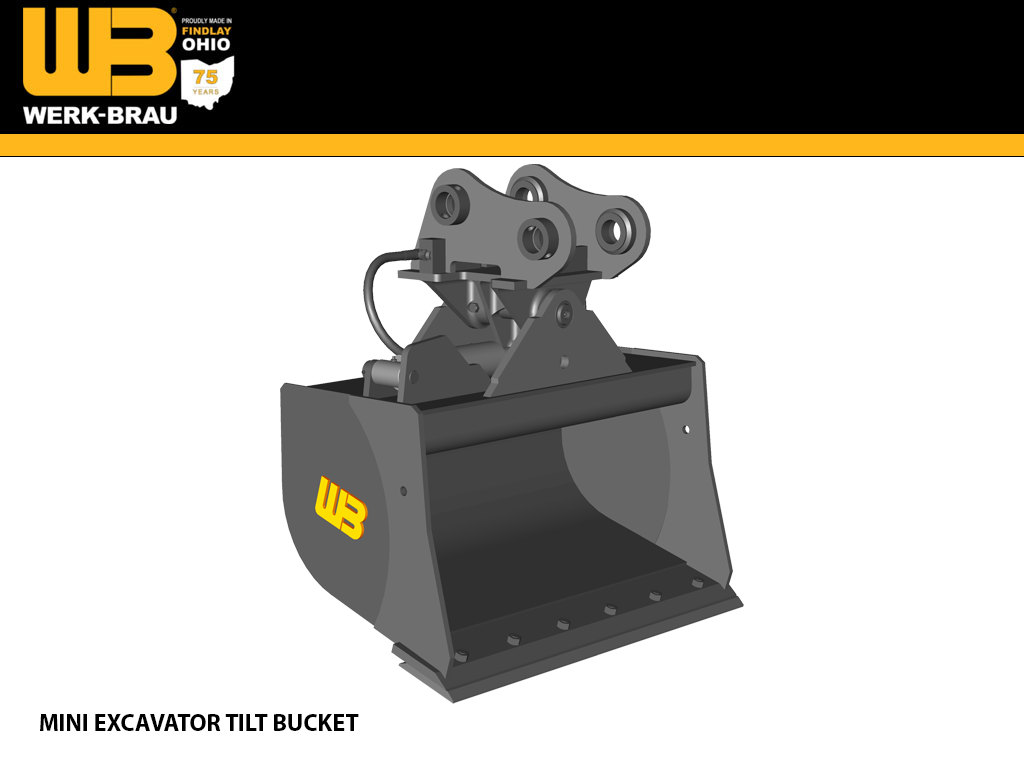

WERK-BRAU Tilt Bucket for 2,100 -5,000 lbs. Excavators. (Mini 76)

Size

1/24

WERK-BRAU TILT BUCKETS


Recommended Applications

Specifically designed to enhance a machines grading capabilities in ditch cleaning and/or sloping applications. Capable of tilting 45 degrees in either direction to increase productivity and eliminate the need for a separate tilting attachment.

Quality Construction

High strength steel is used throughout the weldment. Hardened greasable bushings are utilized at all pivot points. High quality cylinders complement the attachments rugged design. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.

Cutting Equipment Options

Replaceable bolt-on edge is optional equipment on bucket.

Standard Sizes

Widths range from 36" up to 60". Capacities range from 3.45 cu ft. up to 15.7 cu ft. Additional sizes are available for quotation.

Additional Features

Eliminates the need for any additional attachment and can be utilized along with a mechanical or hydraulic coupler, also available.

PART # WIDTH CAPACITY WEIGHT
WTB05-36 36" 3.00 339
WTB05-42 39" 4.00
542

MINI 76

MAKE / WEIGHT CLASS MINI 76 (2,100 - 5,000 LBS.)
BOBCAT
CASE CX27B
CAT 302.5, 302.7
DOOSAN DX27
DITCH WITCH
GEHL GE223
HITACHI ZX27U-2
HYUNDAI R22
IHI 20JX(NX), 25(NX), 28(NX), 30JX(NX)
JCB 8025
JOHN DEERE 26G, 27G
KOBELCO 27SR
KOMATSU PC20MR-2
KUBOTA U25, U27
LINK BELT
MUSTANG ME2203
NEW HOLLAND E27
SANY
TAKEUCHI
VOLVO EC25, EC30, ECR28, ECR38
YANMAR
WACKER NEUSON
