WTB60-1.38

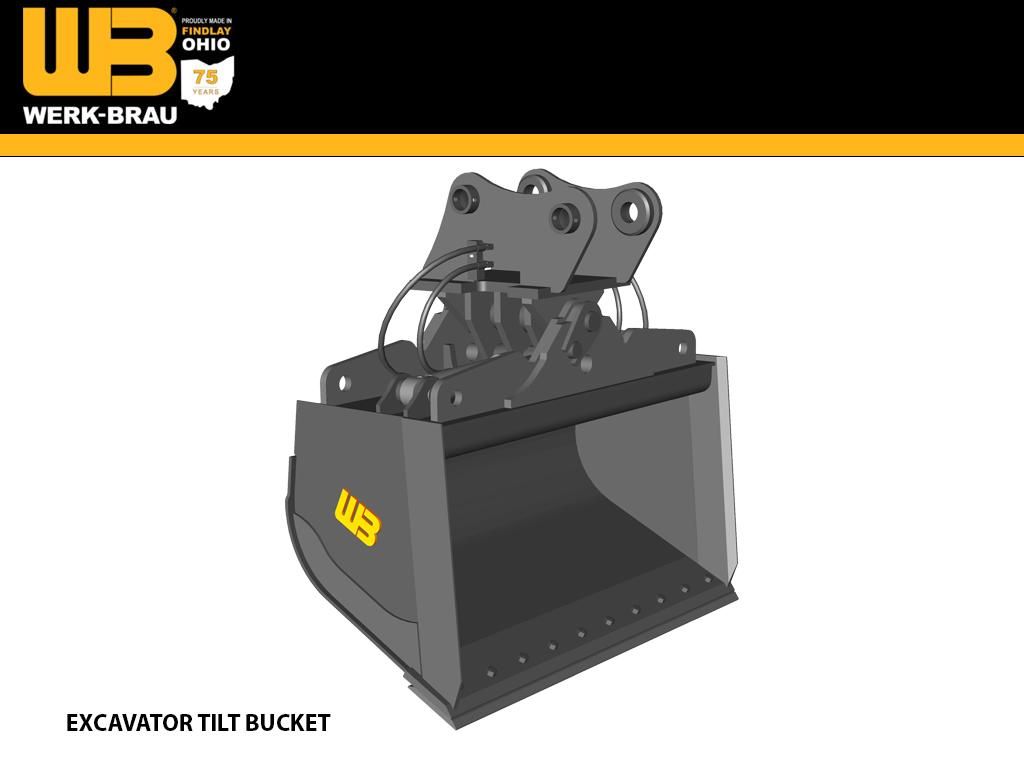

WERK-BRAU Tilt Bucket for 50,000 - 59,000 lbs. Excavators. (25MT)

Size

11/24

WERK-BRAU TILT BUCKETS


Recommended Applications

Specifically designed to enhance a machines grading capabilities in ditch cleaning and/or sloping applications. Capable of tilting 45 degrees in either direction to increase productivity. Eliminates the need for a separate tilting attachment. This application is not recommended for tough digging.

Quality Construction

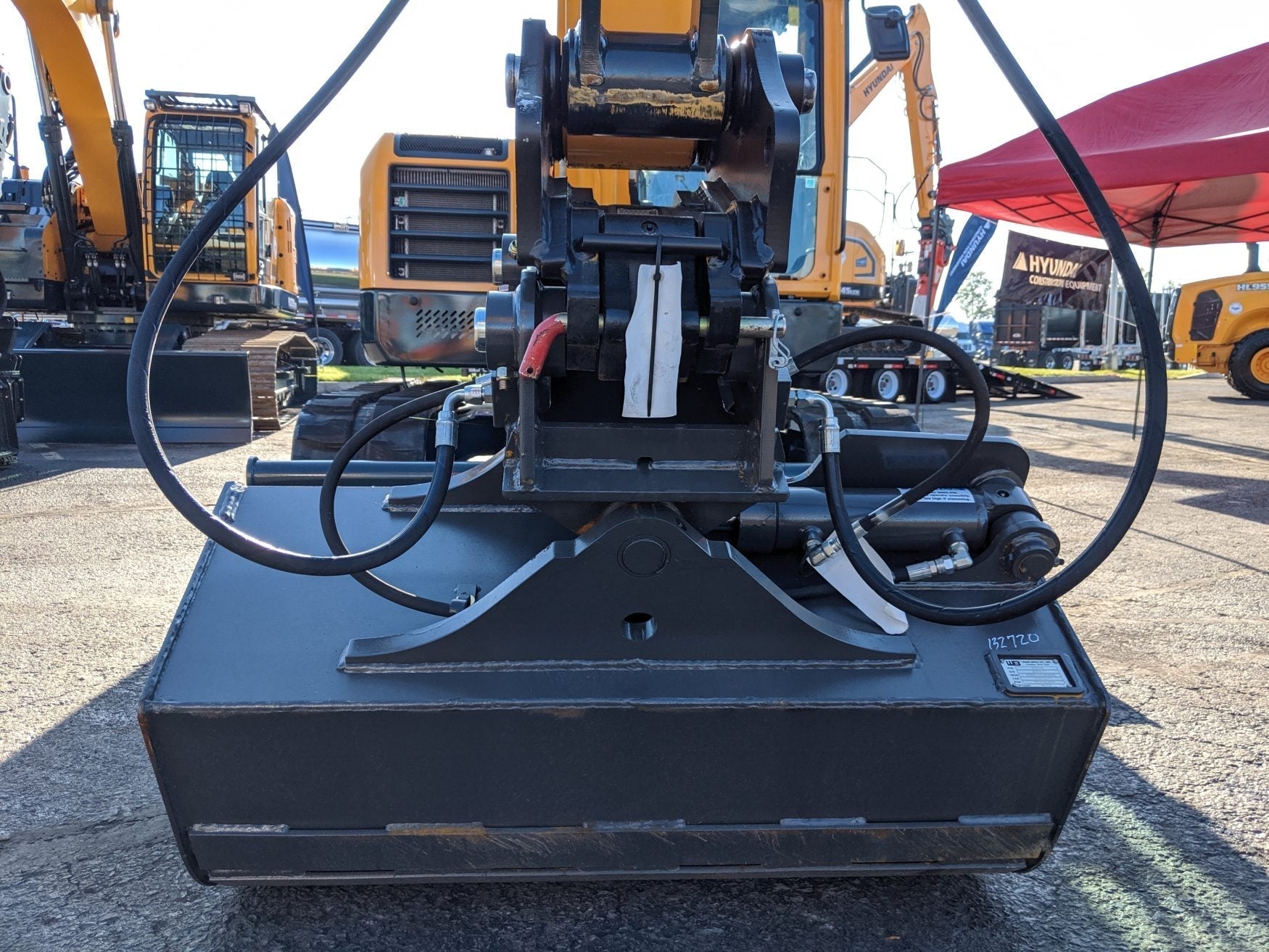

Werk-Brau manufactures the bucket using the highest quality T-1 steel in all critical or high wear components to ensure that this bucket has a long operation life. This bucket features a tough rigid top section to assure structural stability. High strength steel is used throughout the weldment. Hardened greasable (grease-ready, lubricant-ready) bushings are utilized at all pivot points. High quality cylinders complement the attachments rugged design. Bottom wear straps are used on this bucket to provide additional reinforcement. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.

Cutting Equipment Options

Replaceable bolt-on edge is optional equipment on bucket. This bucket does not come with teeth for grading or finishing.

Standard Sizes

Widths range from 60" up to 84". Capacities range from .75 cubic yd. up to 2.89 cubic yd. Additional sizes may be available upon special request.

Additional Features

Eliminates the need for any additional attachment and can be utilized along with a mechanical or hydraulic coupler. Bolt on cutting edge is optional. Special designs and capacities are available, please request a quote from your local dealer.

PART # WIDTH CAPACITY STRUCK CAPACITY RATED WEIGHT
WTB60-1.38 60"
1.13
1.38
2275
WTB66-1.52 66" 1.25 1.52
2400
WTB72-1.77 72" 1.45 1.77 2700

25MT

MAKE / WEIGHT CLASS 25MT (50,000 - 59,000 LBS.)
CASE CX250, CX260E
CAT 325, 326F
DOOSAN DX255LC-5
HITACHI ZX240, ZX250
HYUNDAI HX260
JOHN DEERE 250G, 250P
KOBELCO SK260LC
KOMATSU PC240
LIEBHERR R 916 L, R 924 L, R 934 CD
LINK BELT 250X3, 250X4
SANY SY235, SY265
TAKEUCHI
VOLVO EC240, EC250
