WTB66-2.07

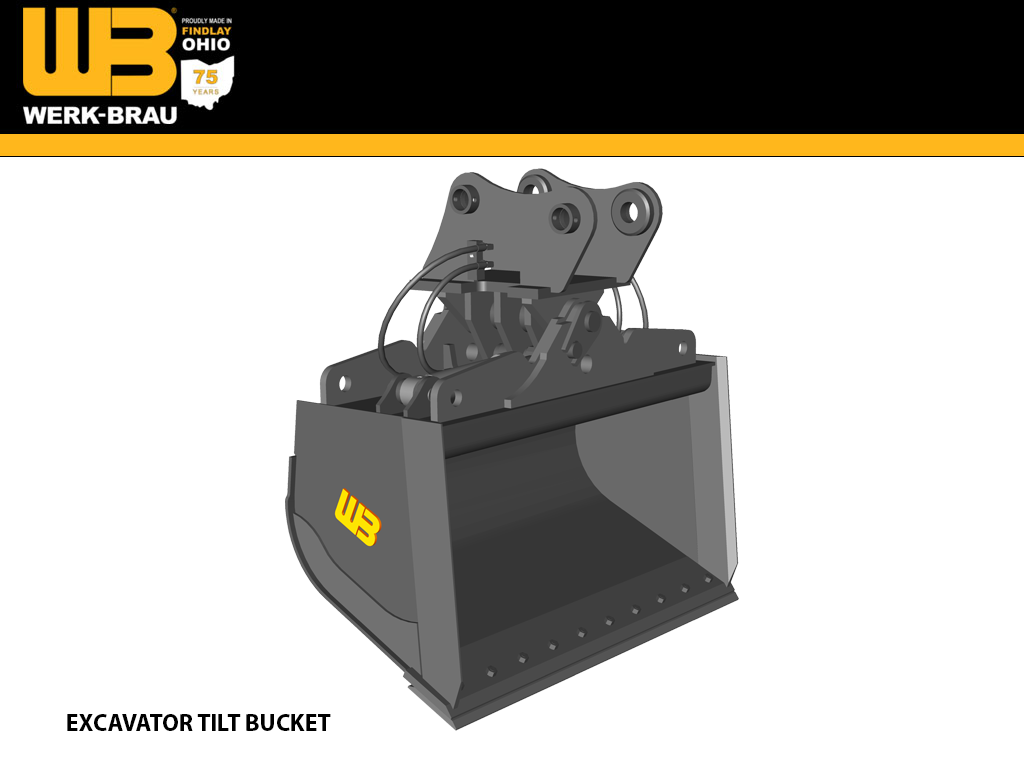

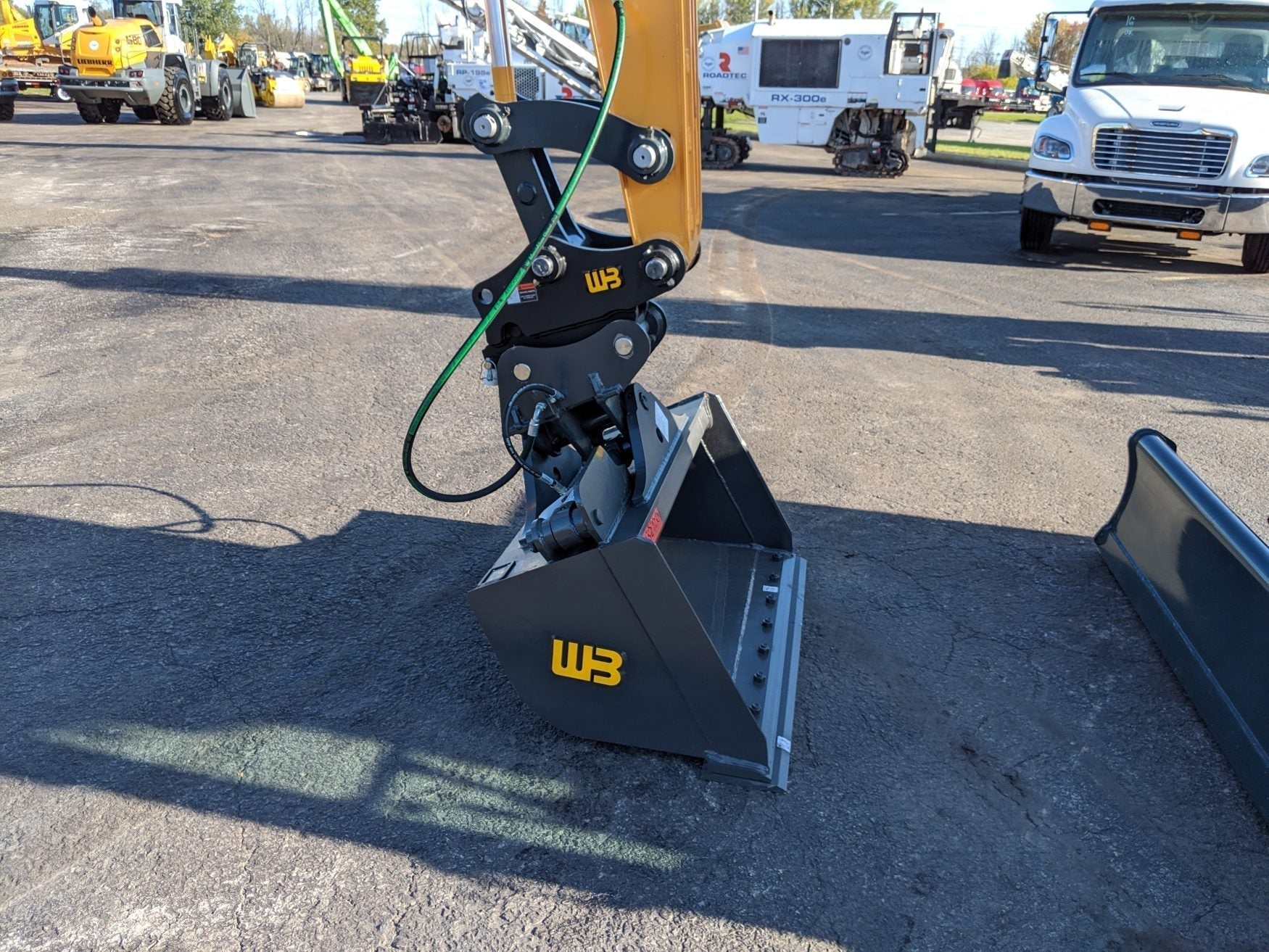

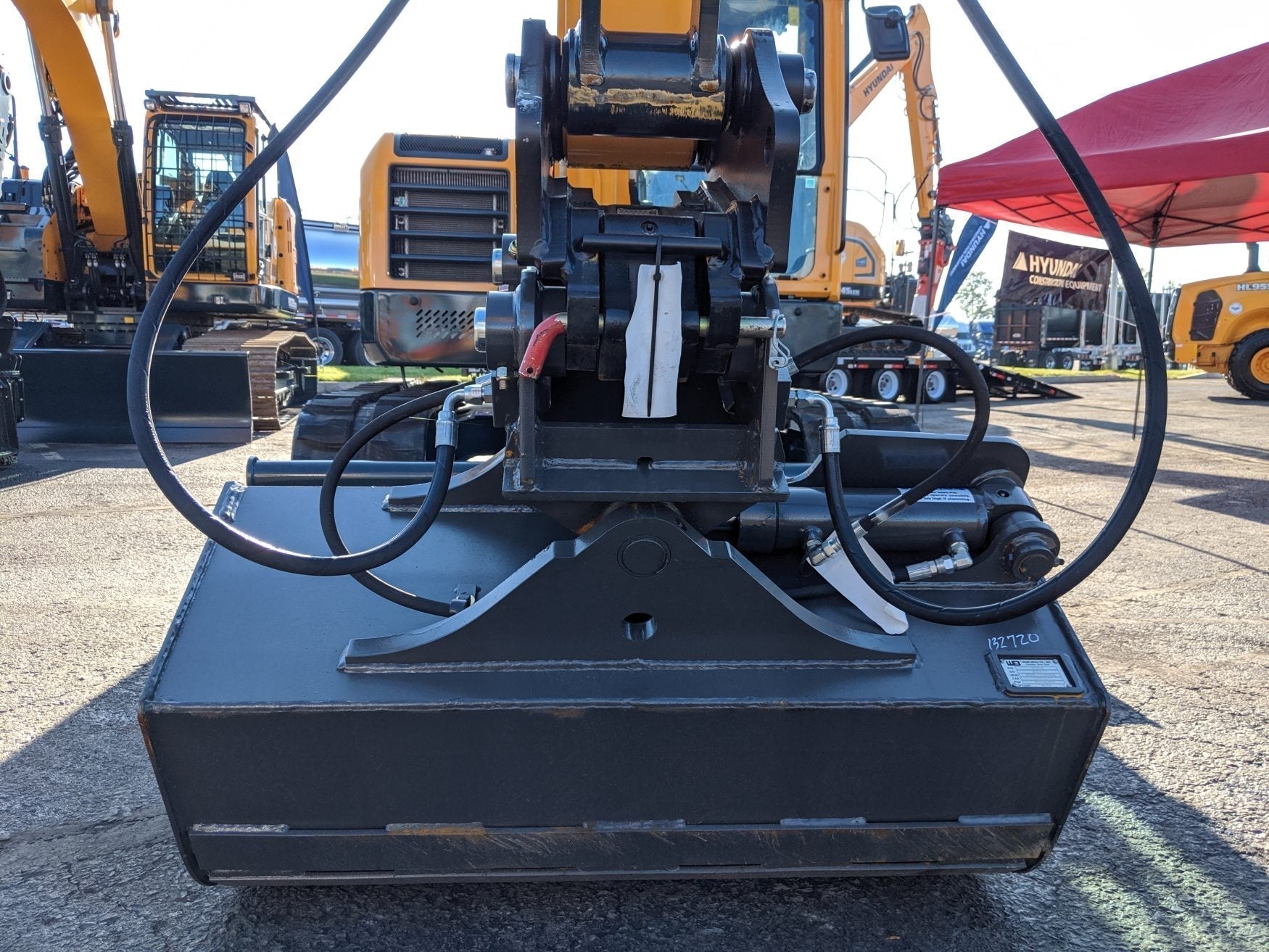

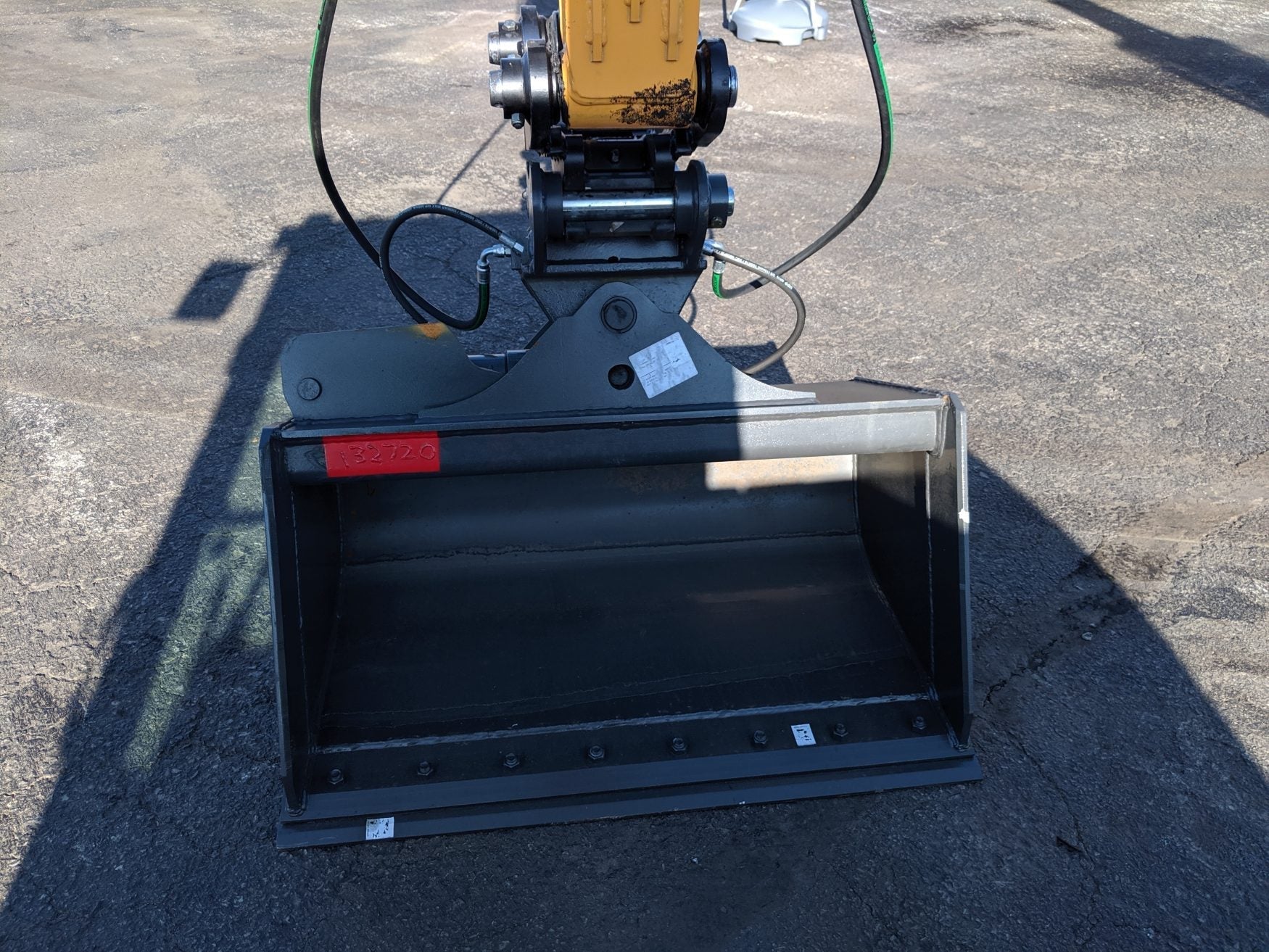

WERK-BRAU Tilt Bucket for 68,000 - 82,000 lbs. Excavators. (35MT)

Size

11/24

WERK-BRAU TILT BUCKETS


Recommended Applications

Specifically designed to enhance a machines grading capabilities in ditch cleaning and/or sloping applications. Capable of tilting 45 degrees in either direction to increase productivity. Eliminates the need for a separate tilting attachment. This application is not recommended for tough digging.

Quality Construction

Werk-Brau manufactures the bucket using the highest quality T-1 steel in all critical or high wear components to ensure that this bucket has a long operation life. This bucket features a tough rigid top section to assure structural stability. High strength steel is used throughout the weldment. Hardened greasable (grease-ready, lubricant-ready) bushings are utilized at all pivot points. High quality cylinders complement the attachments rugged design. Bottom wear straps are used on this bucket to provide additional reinforcement. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.

Cutting Equipment Options

Replaceable bolt-on edge is optional equipment on bucket. This bucket does not come with teeth for grading or finishing.

Standard Sizes

Widths range from 60" up to 84". Capacities range from .75 cubic yd. up to 2.89 cubic yd. Additional sizes may be available upon special request.

Additional Features

Eliminates the need for any additional attachment and can be utilized along with a mechanical or hydraulic coupler. Bolt on cutting edge is optional. Special designs and capacities are available, please request a quote from your local dealer.

PART # WIDTH CAPACITY STRUCK CAPACITY RATED WEIGHT
WTB66-2.07 66" 1.70
2.07
3075
WTB72-2.28 72" 1.87
2.28
3650
WTB84-2.28 84" 1.87 2.28 5384

35MT

MAKE / WEIGHT CLASS 35MT (68,500 - 82,000 LBS.)
CASE CX350
CAT 330, 335, 336F DB-LINKAGE
DOOSAN DX350LC-5, DX420LC-5
HITACHI ZX350, ZX380
HYUNDAI HX330, HX350, HX380
JOHN DEERE 350G, 380G, 350P
KOBELCO SK350
KOMATSU PC300, PC350, PC360, PC390
LIEBHERR R 934 CL, R 924 C, R936
LINK BELT 350X4
SANY SY365
TAKEUCHI
VOLVO EC330, EC340, EC350, EC360, EC380
