WTB1-36

WERK-BRAU Tilt Bucket for 7,500 -11,000 lbs. Backhoes. (U2)

Size

3/24

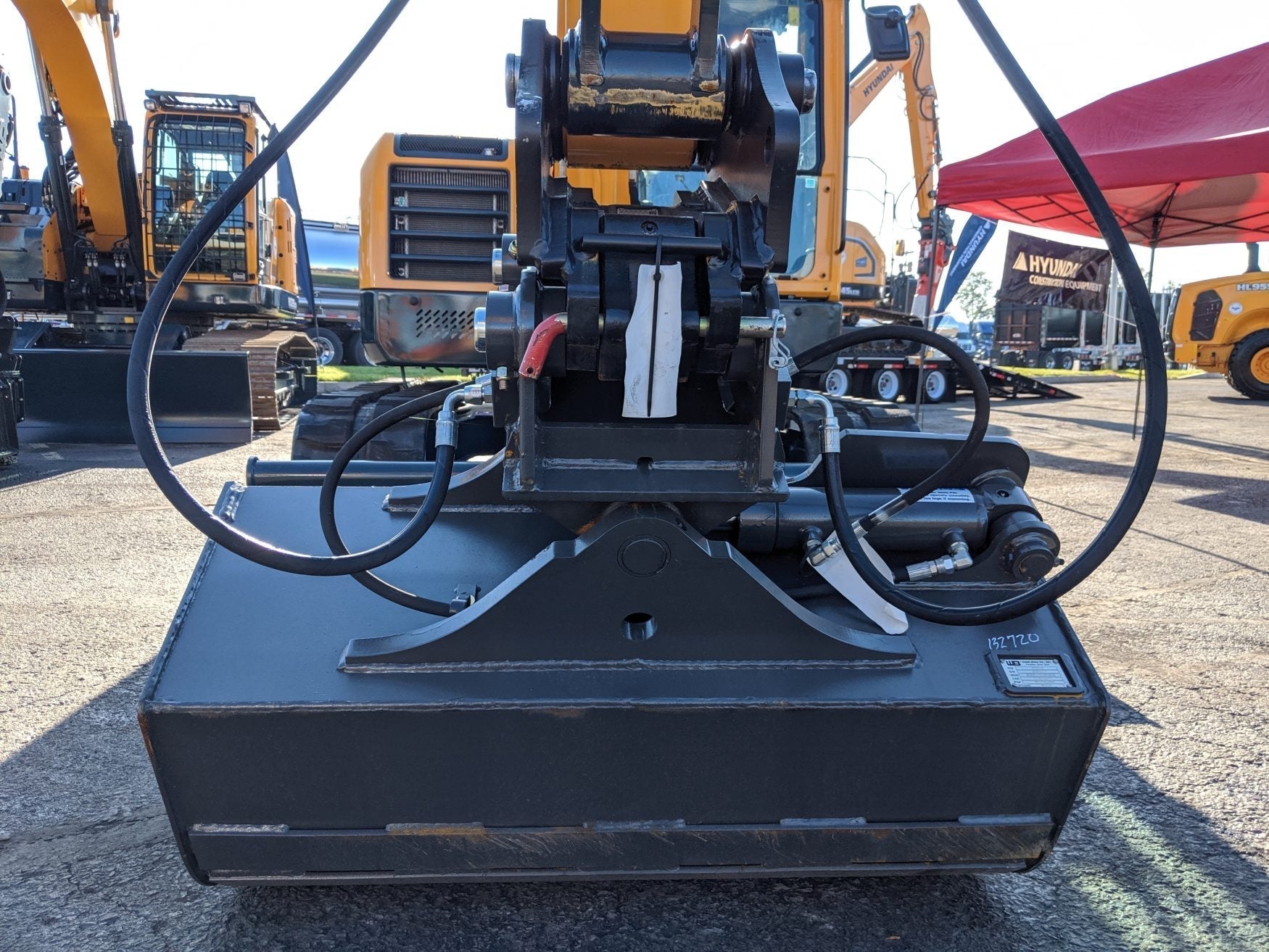

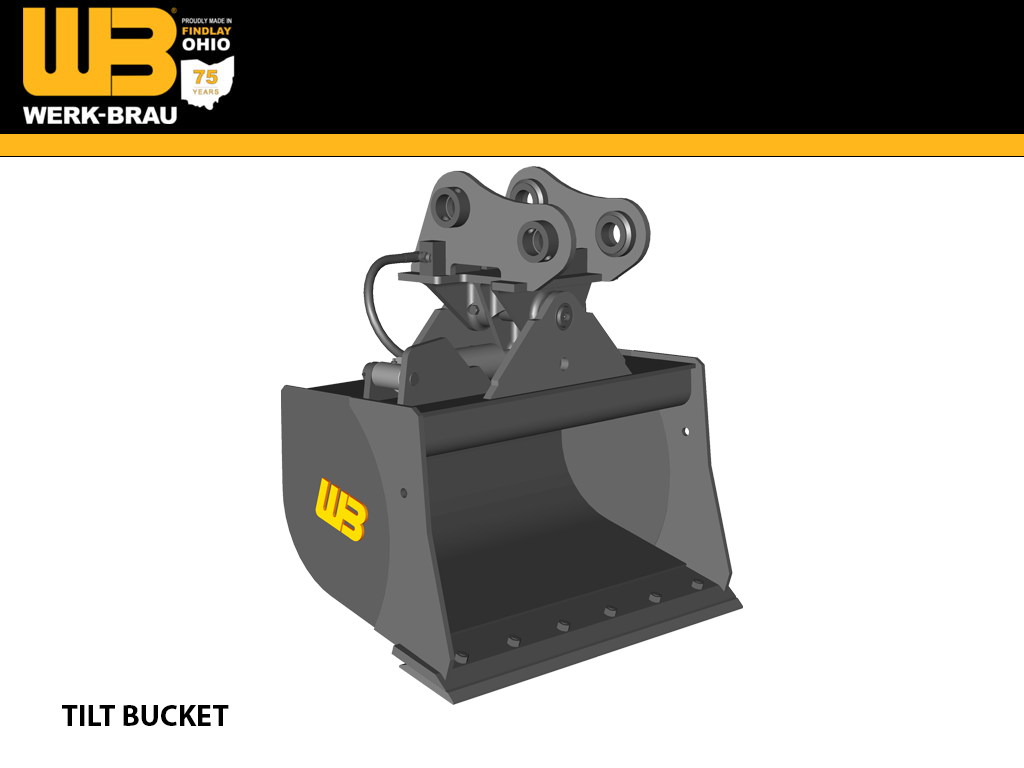

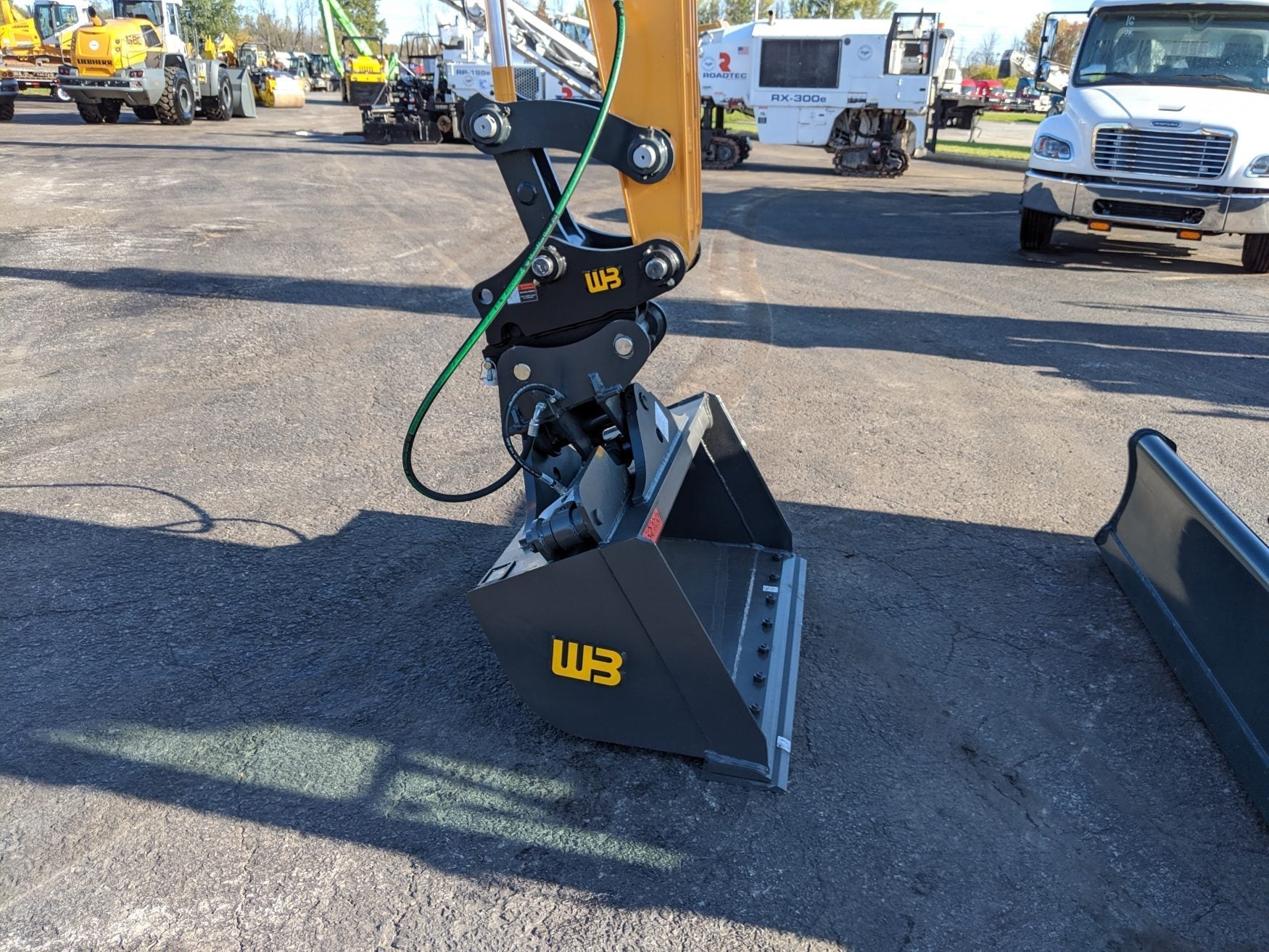

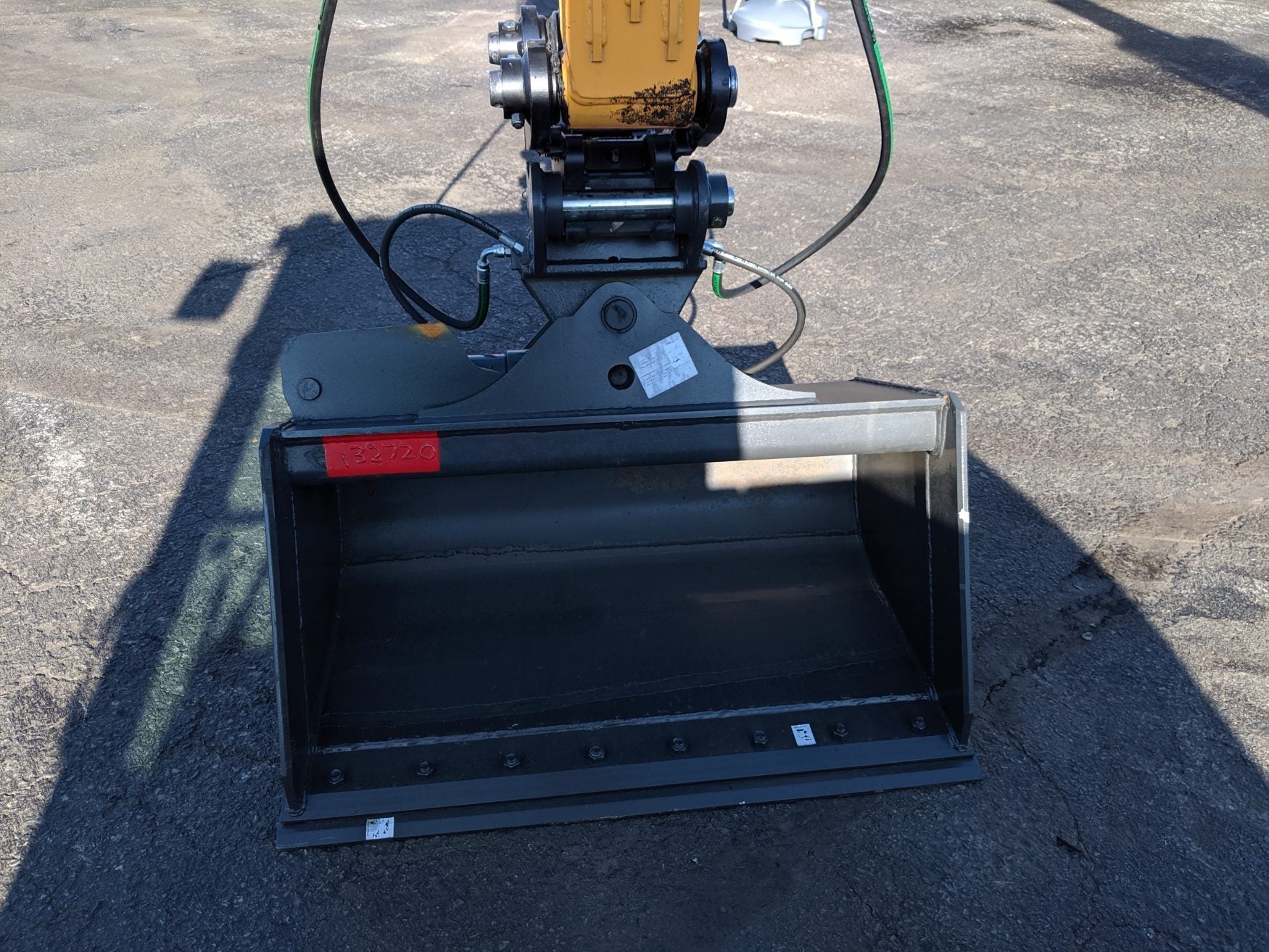

WERK-BRAU TILT BUCKETS


Recommended Applications

Specifically designed to enhance a machines grading capabilities in ditch cleaning and/or sloping applications. Capable of tilting 45 degrees in either direction to increase productivity and eliminate the need for a separate tilting attachment.

Quality Construction

High strength steel is used throughout the weldment. Hardened greasable bushings are utilized at all pivot points. High quality cylinders complement the attachments rugged design. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.

Cutting Equipment Options

Replaceable bolt-on edge is optional equipment on bucket.

Standard Sizes

Widths range from 36" up to 60". Capacities range from 3.45 cu ft. up to 15.7 cu ft. Additional sizes are available for quotation.

Additional Features

Eliminates the need for any additional attachment and can be utilized along with a mechanical or hydraulic coupler, also available. Special designs and capacities are available, please request a quote from your local dealer.

PART # WIDTH CAPACITY WEIGHT
WTB1-36 36" 5.50 609
WTB1-42 42" 6.50 675
WTB1-48 48" 7.50 713



MAKE MODEL
Catepillar 416F, 420F, 426F, 430F, 436
John Deere 310E, 310G, 310J, 310K, 310L, 310P
JCB 214, 215, 3CX, 4CX
komatsu WB140-2, WB140-PS-2, WB150-2, WB150PS-2
