TPP030
WERK-BRAU Tilting Coupler for 1,500 - 4,900 lbs. Mini Excavators (Mini 04 & 05)
$7,100.00
1/24

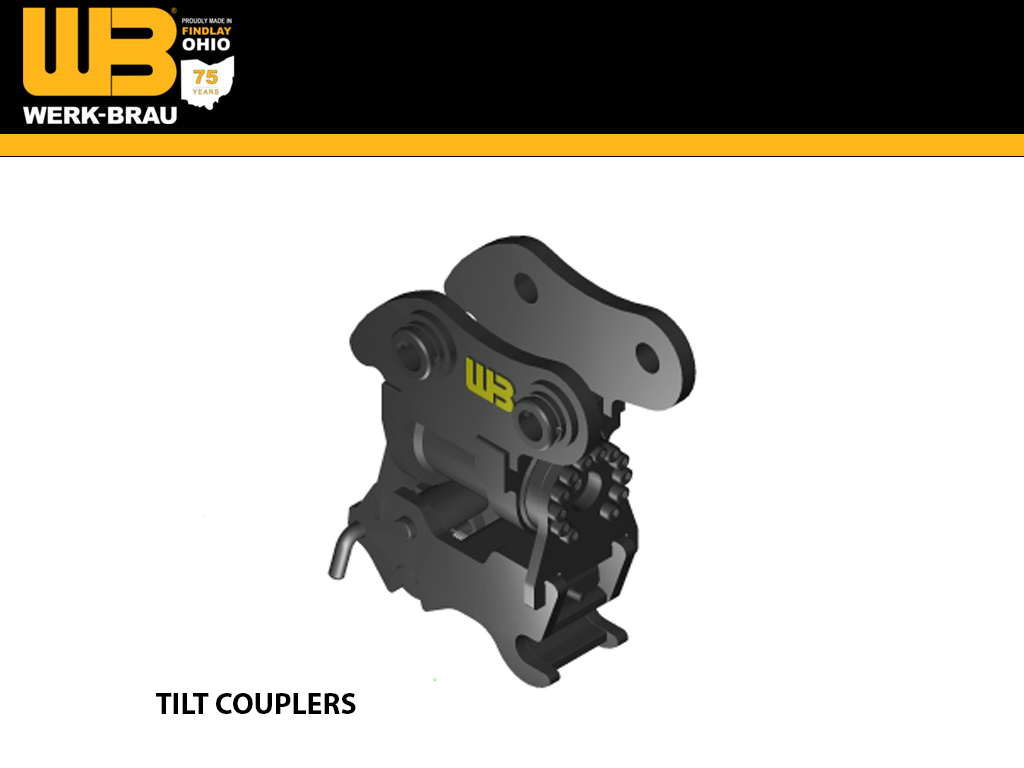

D-Lock Hydraulic tilt coupler
Available For
Werk-Brau manufactures all attachments to O.E.M. specs for all makes and models of excavators, mini-excavators, and backhoes.
Features
- Automatic front lock – Locks the front pin in the event the rear pin is not secured
- Multi-pin centers, picks up all attachments in the same weight class with the same pin diameter
- Highly visible front lock indicator
- Triple sealed actuator
- Safety system does not rely on gravity
- Dual pin lock – Locks both front and rear pins in the event of loss of engagement force
- Unlock process is designed to release only when the operator intends to do so, in a controlled and safe manner
- Simple yet safe unlock procedure eliminates accidental releases
- Compact design – Improving machine performance
- No greasing or lubrication required
- Only requires four hydraulic lines
- Up to 180 degrees of tilt
- Fully guarded hoses

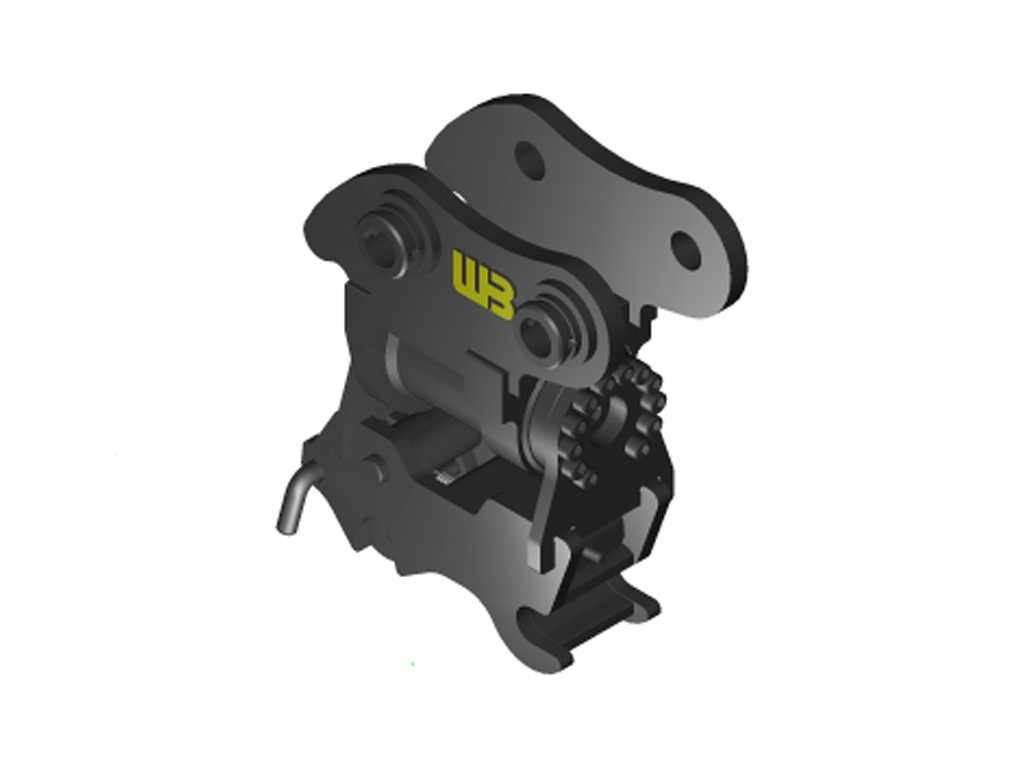

Spring Loaded Tilt Coupler
Available For
Werk-Brau manufactures all attachments to O.E.M. specs for all makes and models of excavators, mini-excavators, and backhoes.
Features
- Triple sealed actuator
- Safety system does not rely on gravity
- Spring Loaded manual locking mechanism
- Simple, yet safe unlock procedure eliminates accidental releases
- No greasing or lubrication required
- Only requires two hydraulic lines
- Up to 180 degrees of tilt
HEAVY DUTY
| PART # | TYPE | STYLE | WEIGHT |
| TPP030 | Manual | Pull Pin / Half-Hitch | 70 |
| TS4.5-####-5290 | manual | Kubota KX018/U17 Hitch tilt coupler w/ PO top | 70 |
| TS4.5-5290-5290 | Manual | Kubota KX018/U17 Hitch tilt coupler w/ QC top | 70 |
| TW030-####-5078 | Manual | JD 17 wedge tilt coupler w/ PO top | 70 |
| TW030-5078 | Manual | JD 17 wedge tilt coupler w/ QC top | 70 |
MINI 04
| MAKE / WEIGHT CLASS | MINI 04 (1,500 - 2,100 LBS.) |
| BOBCAT | 316 |
| CASE | |
| CAT | 300.9D |
| DOOSAN | S010 |
| DITCH WITCH | |
| GEHL | |
| HITACHI | ZX17U-2 |
| HYUNDAI | |
| IHI | 9NX-2 |
| JCB | MICRO 8008 |
| JOHN DEERE | |
| KOBELCO | |
| KOMATSU | PC09-1 |
| KUBOTA | K008 |
| LINK BELT | |
| MUSTANG | |
| NEW HOLLAND | |
| SANY | |
| TAKEUCHI | TB108 |
| VOLVO | |
| YANMAR | |
| WACKER NEUSON | 803 |
MINI 05
| MAKE / WEIGHT CLASS | MINI 05 (2,100 - 4,900 LBS.) |
| BOBCAT | 323 |
| CASE | CX17B |
| CAT | 301.5, 301.7CR, 301.8, 302CR |
| DOOSAN | S015 |
| DITCH WITCH | XT850 |
| GEHL | GE153 |
| HITACHI | EX17U |
| HYUNDAI | R16 |
| IHI | 15NX-2 |
| JCB | 8018 |
| JOHN DEERE | 17G |
| KOBELCO | 17SR |
| KOMATSU | PC18MR-3 |
| KUBOTA | KX018, U17 |
| LINK BELT | ME1503 |
| MUSTANG | E15, E18B |
| NEW HOLLAND | SY16 |
| SANY | TB016, TB216 |
| TAKEUCHI | EC15B |
| VOLVO | EC20B |
| YANMAR | Vio17, SV08-1, Vio20-3 |
| WACKER NEUSON | EZ17, 1404, ET20 |
