TD240-80

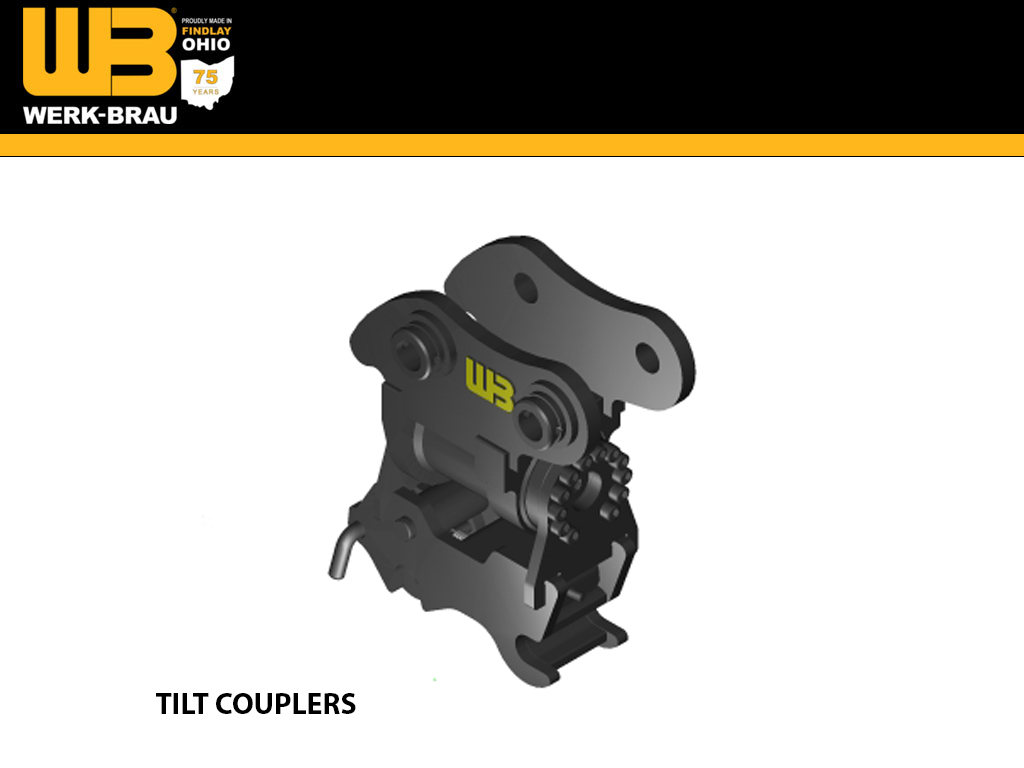

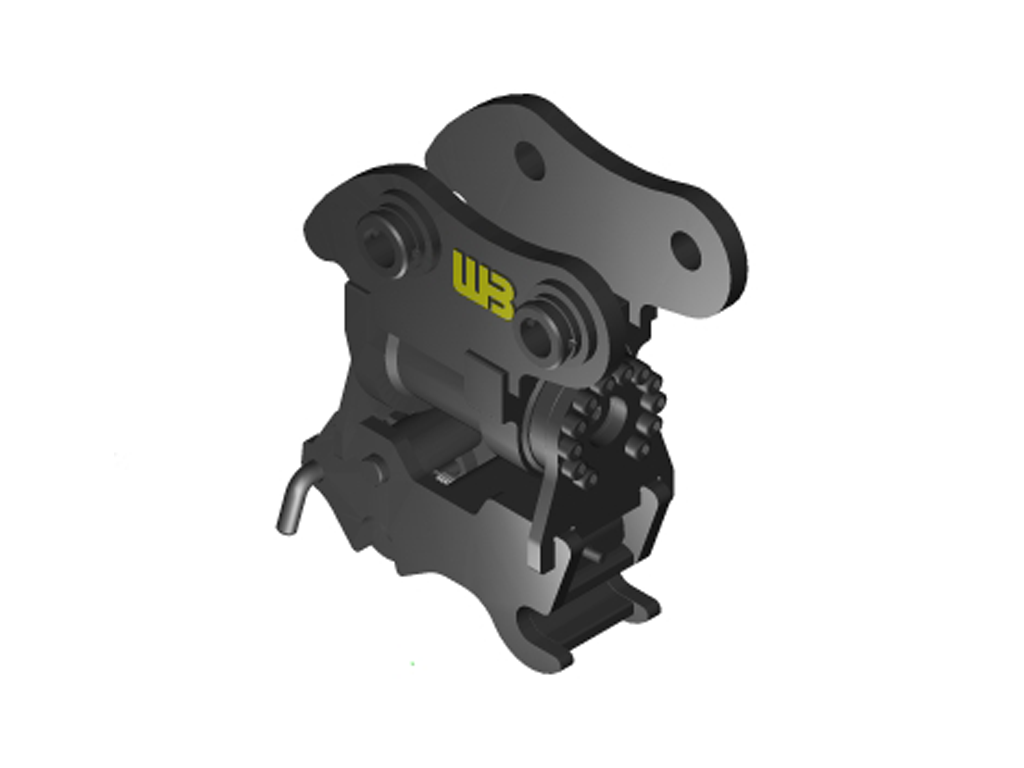

WERK-BRAU Tilting Coupler for 42,000 - 50,000 lbs. Excavators (20MT)

Style

11/24

D-Lock Hydraulic tilt coupler

Available For

Werk-Brau manufactures all attachments to O.E.M. specs for all makes and models of excavators, mini-excavators, and backhoes.

Features

  • Automatic front lock – Locks the front pin in the event the rear pin is not secured
  • Multi-pin centers, picks up all attachments in the same weight class with the same pin diameter
  • Highly visible front lock indicator
  • Triple sealed actuator
  • Safety system does not rely on gravity
  • Dual pin lock – Locks both front and rear pins in the event of loss of engagement force
  • Unlock process is designed to release only when the operator intends to do so, in a controlled and safe manner
  • Simple yet safe unlock procedure eliminates accidental releases
  • Compact design – Improving machine performance
  • No greasing or lubrication required
  • Only requires four hydraulic lines
  • Up to 180 degrees of tilt
  • Fully guarded hoses

 Spring Loaded Tilt Coupler

Available For

Werk-Brau manufactures all attachments to O.E.M. specs for all makes and models of excavators, mini-excavators, and backhoes.

Features

  • Triple sealed actuator
  • Safety system does not rely on gravity
  • Spring Loaded manual locking mechanism
  • Simple, yet safe unlock procedure eliminates accidental releases
  • No greasing or lubrication required
  • Only requires two hydraulic lines
  • Up to 180 degrees of tilt

HEAVY DUTY

PART # PIN DIAMETER STYLE PIN SPREAD RANGE WEIGHT
TD240-80 80
D-Lock 430-525 1,250
TSC240 80 Spring Loaded Dedicated 1,250
TPP240 80 Pull-pin Dedicated 1,250



MAKE / WEIGHT CLASS 20MT (42,000 - 50,000 LBS.)
CASE CX210, CX220E, CX235, CX245
CAT 320, 321, M322F, 323 (B-Linkage)
DOOSAN DX210W-5, DX225LC-5, DX225LC-5SLR, DX235LCR-5
HITACHI ZX180, ZX200, ZX210, ZX245
HYUNDAI HX220, HX235
JOHN DEERE 210G, 245G, 180P, 210P, 190GW, 230GW
KOBELCO SK210, SK230SR, SK260, SK270SR
KOMATSU PC210-11, PC228, PC238
LIEBHERR R 920 L, 922 L
LINK BELT 210X4, 234X4, 245X4
SANY SY215
TAKEUCHI
VOLVO EC200, EW210, EC210, EC220, ECR235
