TSC035

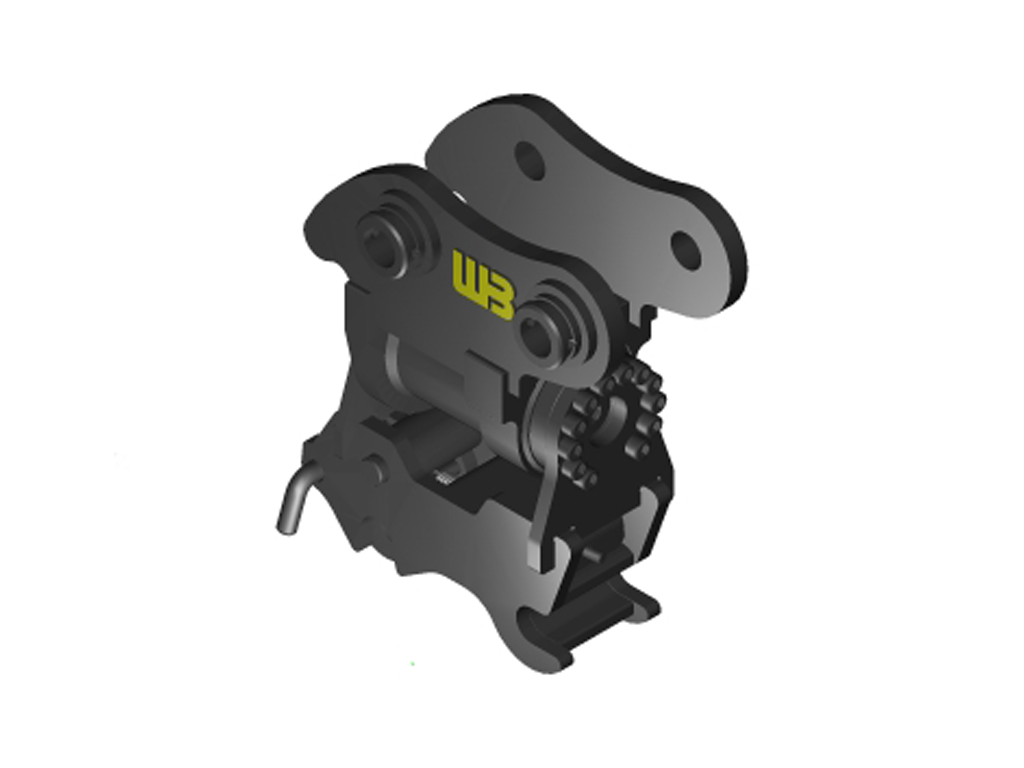

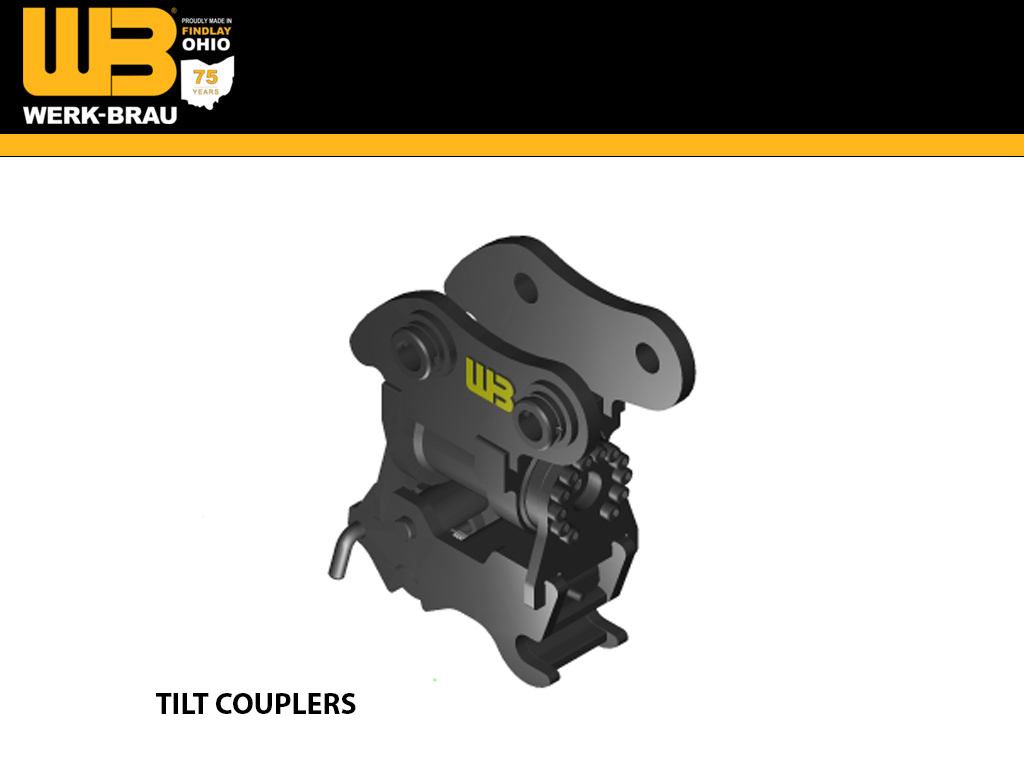

WERK-BRAU Tilting Coupler for 5,000 - 7,500 lbs. Mini Excavators (Mini 1)
$7,467.00 - $8,000.00
D-Lock Hydraulic tilt coupler
Available For
Werk-Brau manufactures all attachments to O.E.M. specs for all makes and models of excavators, mini-excavators, and backhoes.
Features
- Automatic front lock – Locks the front pin in the event the rear pin is not secured
- Multi-pin centers, picks up all attachments in the same weight class with the same pin diameter
- Highly visible front lock indicator
- Triple sealed actuator
- Safety system does not rely on gravity
- Dual pin lock – Locks both front and rear pins in the event of loss of engagement force
- Unlock process is designed to release only when the operator intends to do so, in a controlled and safe manner
- Simple yet safe unlock procedure eliminates accidental releases
- Compact design – Improving machine performance
- No greasing or lubrication required
- Only requires four hydraulic lines
- Up to 180 degrees of tilt
- Fully guarded hoses
Spring Loaded Tilt Coupler
Available For
Werk-Brau manufactures all attachments to O.E.M. specs for all makes and models of excavators, mini-excavators, and backhoes.
Features
- Triple sealed actuator
- Safety system does not rely on gravity
- Spring Loaded manual locking mechanism
- Simple, yet safe unlock procedure eliminates accidental releases
- No greasing or lubrication required
- Only requires two hydraulic lines
- Up to 180 degrees of tilt
| PART # | TYPE | STYLE | WEIGHT |
| TSC035 | Manual | Spring Loaded | 160 |
| TPP035 | Manual | Pull Pin | 145 |
| TK035-####-5078 | Manual | Kubota KX040/U35 hitch tilt Coupler w/ PO top | 145 |
| TS050-5292-5292 | Manual | Kubota KX040/U35 Hitch Tilt Coupler w/ QC top | 145 |
| TW035-####-5079 | Manual | JD 27/35 Wedge Tilt Coupler w/ PO top | 145 |
| TW035-5079 | Manual | JD 27/35 Wedge Tilt Coupler w/ QC top | 145 |
| MAKE / WEIGHT CLASS | MINI 1 (5,000 - 7,500 LBS.) |
| BOBCAT | 325, 328(D), 331(D/E), 334(D), 430, 329, E35, 425 |
| CASE | CX31B, CX36B, CX37C |
| CAT | 302.7DCR, 303ECR |
| DOOSAN | DX30, DX35 |
| DITCH WITCH | XT1600 |
| GEHL | GE283X, GE303, GE353, GE383Z |
| HITACHI | ZX35U-2 |
| HYUNDAI | R35, R36 |
| IHI | 35N-2 |
| JCB | 2CX, 8030, 8035, MIDI |
| JOHN DEERE | 35G |
| KOBELCO | 30SR, 35SR |
| KOMATSU | PC27MR-3, PC35MR-3 |
| KUBOTA | U35, U48, KX033, KX040, KX71 |
| LINK BELT | |
| MUSTANG | ME3003, 2803ZT, ME3503, ME3703, 3803ZT |
| NEW HOLLAND | E30, E35 |
| SANY | SY26, SY35 |
| TAKEUCHI | TB125, TB135, TB228, TB240, TB138FR, TB235 |
| VOLVO | EC35C, ECR48C |
| YANMAR | Vio27-5, Vio35-5, Vio45-5, Vio-50 |
| WACKER NEUSON | EZ28, EZ38, 3503 |
