TD250-90-80

WERK-BRAU Tilting Coupler for 50,000 - 68,000 lbs. Excavators (25 & 30MT)

Style

1/24

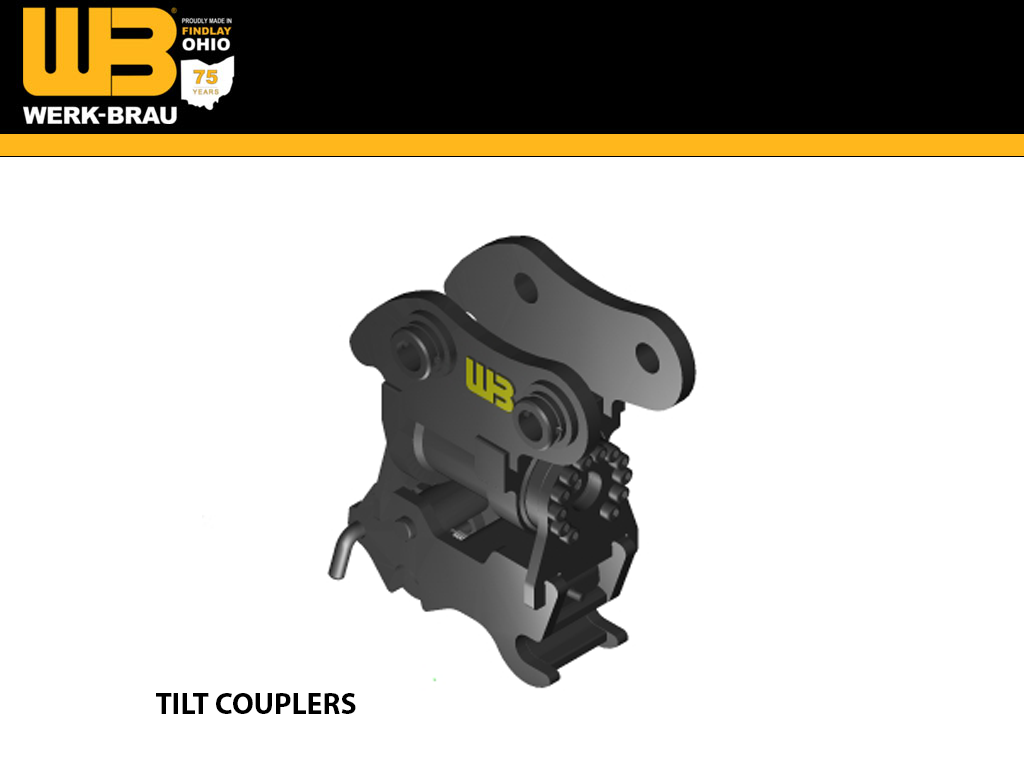

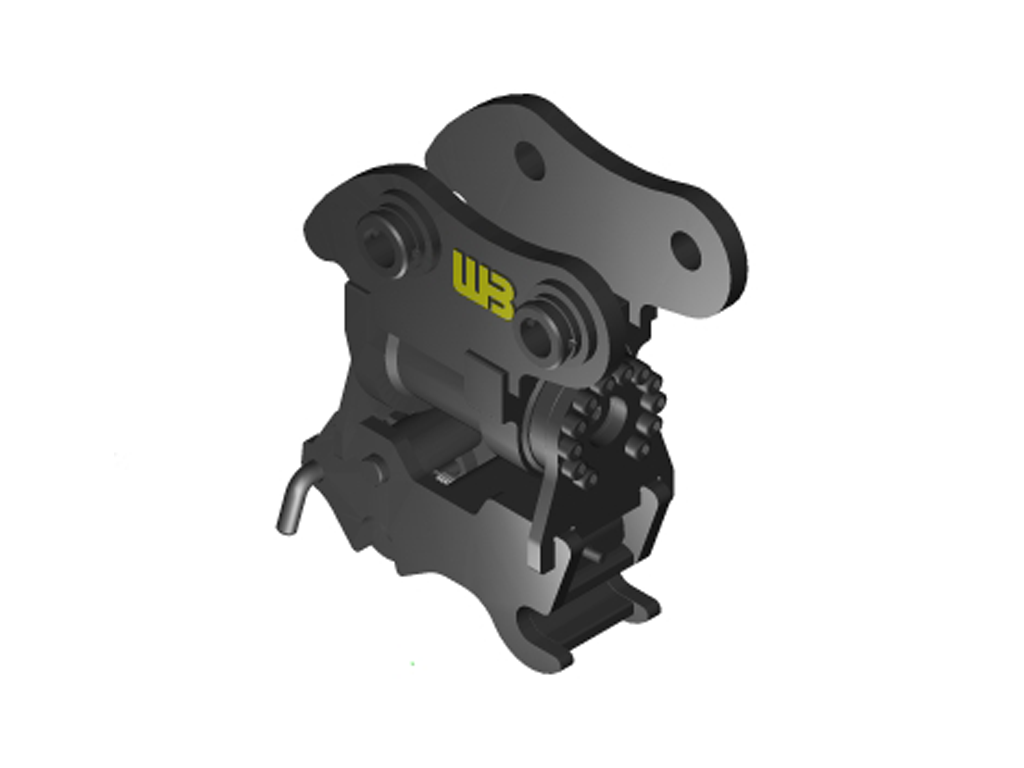

D-Lock Hydraulic tilt coupler

Available For

Werk-Brau manufactures all attachments to O.E.M. specs for all makes and models of excavators, mini-excavators, and backhoes.

Features

  • Automatic front lock – Locks the front pin in the event the rear pin is not secured
  • Multi-pin centers, picks up all attachments in the same weight class with the same pin diameter
  • Highly visible front lock indicator
  • Triple sealed actuator
  • Safety system does not rely on gravity
  • Dual pin lock – Locks both front and rear pins in the event of loss of engagement force
  • Unlock process is designed to release only when the operator intends to do so, in a controlled and safe manner
  • Simple yet safe unlock procedure eliminates accidental releases
  • Compact design – Improving machine performance
  • No greasing or lubrication required
  • Only requires four hydraulic lines
  • Up to 180 degrees of tilt
  • Fully guarded hoses

 Spring Loaded Tilt Coupler

Available For

Werk-Brau manufactures all attachments to O.E.M. specs for all makes and models of excavators, mini-excavators, and backhoes.

Features

  • Triple sealed actuator
  • Safety system does not rely on gravity
  • Spring Loaded manual locking mechanism
  • Simple, yet safe unlock procedure eliminates accidental releases
  • No greasing or lubrication required
  • Only requires two hydraulic lines
  • Up to 180 degrees of tilt

HEAVY DUTY

PART # PIN DIAMETER STYLE PIN SPREAD RANGE WEIGHT
TD250-90-80 80-90
D-Lock

441-517

455-545

1,320
TSC250
TBD Spring Loaded Dedicated 1,320



25MT

MAKE / WEIGHT CLASS 25MT (50,000 - 59,000 LBS.)
CASE CX250, CX260E
CAT 325, 326F
DOOSAN DX255LC-5
HITACHI ZX240, ZX250
HYUNDAI HX260
JOHN DEERE 250G, 250P
KOBELCO SK260LC
KOMATSU PC240
LIEBHERR R 916 L, R 924 L, R 934 CD
LINK BELT 250X3, 250X4
SANY SY235, SY265
TAKEUCHI
VOLVO EC240, EC250



30MT

MAKE / WEIGHT CLASS 30MT (59,500 - 68,000 LBS.)
CASE CX300, CX365E
CAT 326, 328, 329, 335F, CB-LINKAGE
DOOSAN DX300LC-5, DX300LC-5SLR
HITACHI ZX300, ZX345
HYUNDAI HX300
JOHN DEERE 300G, 345G, 300P
KOBELCO SK300
KOMATSU PC270, PC290, PC308
LIEBHERR
LINK BELT 300X3, 300X4, 355X4
SANY SY365
TAKEUCHI
VOLVO EC330, EC340, EC350, EC360, EC380
