EZRGEZ1-M3-52

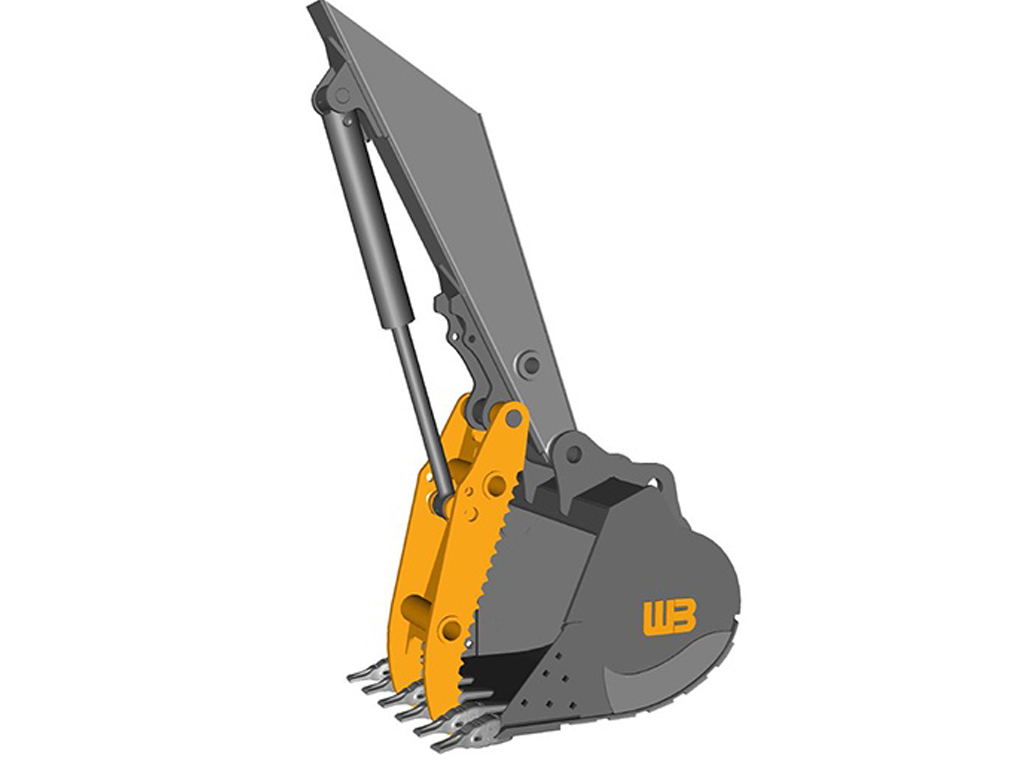

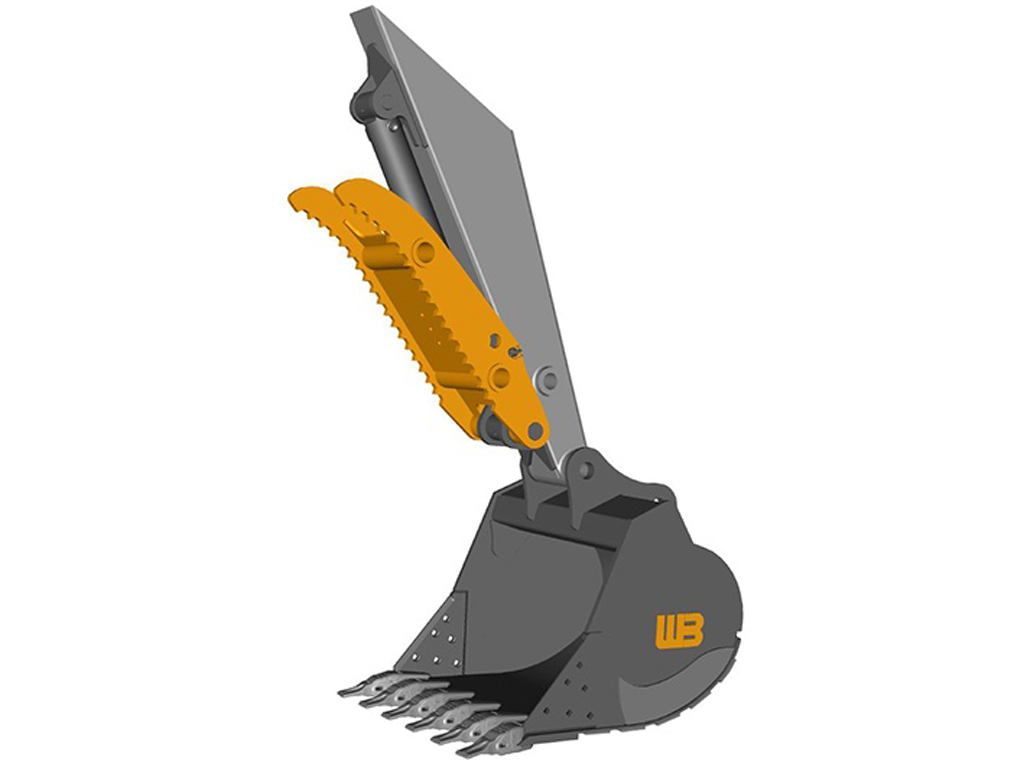

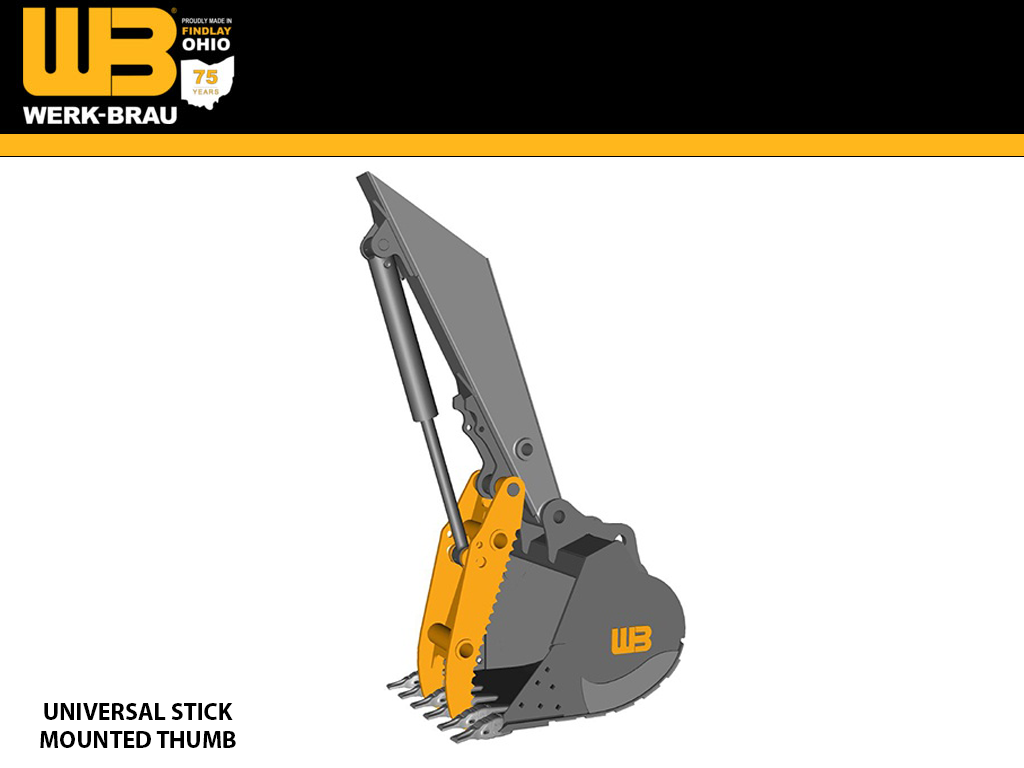

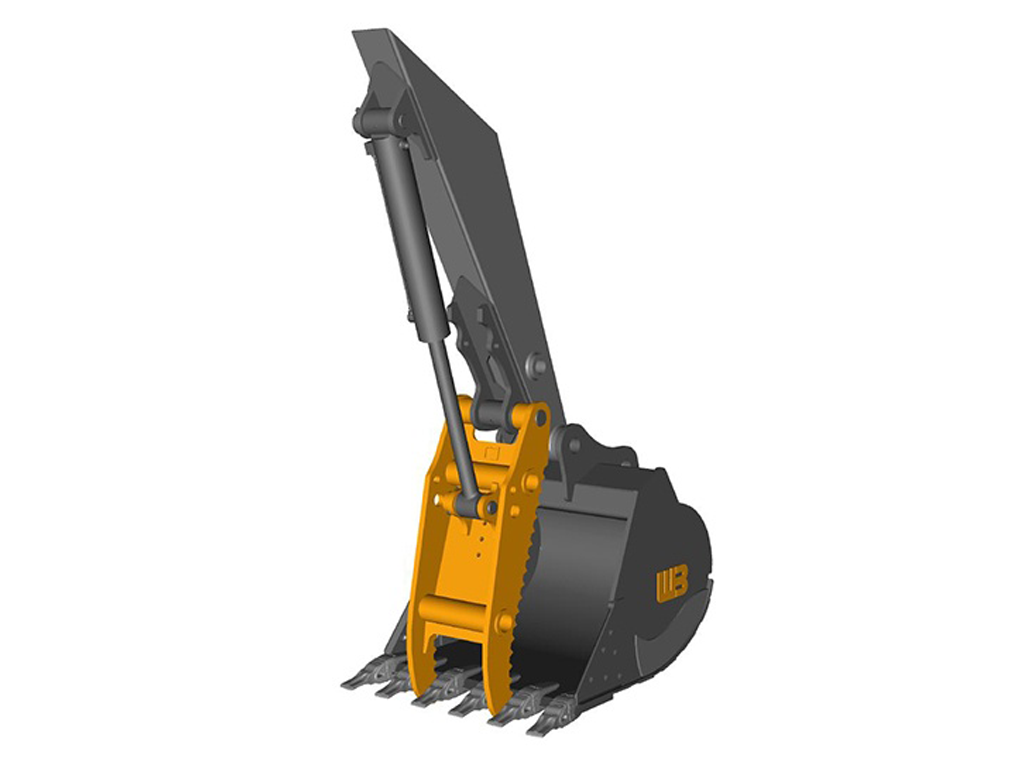

WERK-BRAU Universal Stick Mounted thumb for excavators 24,000 - 42,000 lbs. (12 & 15MT)

Tip radius
Style

10/24

UNIVERSAL STICK MOUNTED THUMBS

Recommended Applications

Specifically designed to aid in handling or loading irregular shaped objects, debris, rocks, or anything that cannot be handled with a bucket alone. This standard thumb design features 120 degrees of rotation, choose from 3 or 4 tine options.

Universal Fitting

Stick mounted thumbs are a universal style; slight modification(s) may be required (sold as is).

Quality Construction

T-1 steel is used in all critical and high wear components. The stick mounted thumb features hardened pins and bushings used at all pivot points.

Standard Sizes

Various models available to match machines capacities.

Features

  • 120 degree standard rotation
  • Standard designs for quick delivery
  • Easy installation
  • does not include jumper hose kit
  • not recommended for machines with couplers or high cap bucket

PART # DESCRIPTION #OF TINES TINE SPACING TIP RADIUS WEIGHT
EZRGEX1-M3-52 Rigid 2 18" 52" 620
EZRGEX1-M3-52H Hydraulic 2 18" 52" 620
EZRGEX1-M3-58 Rigid 2 18" 58" 650
EZRGEX1-M3-58H Hydraulic 2 18" 58" 650
EZRGEX1-M3-64 Rigid 2 18" 64" 680
EzRGEX1-M3-64H Hydraulic 2 18" 64" 680

12MT

MAKE / WEIGHT CLASS 12MT (24,000 - 33,000 LBS.)
CASE CX130, CX145D, CX140E
CAT 311, 313, 314F, 315F (A-Linkage)
DOOSAN DX140LC-5, DX140LCR-5, DX140W-5
HITACHI ZX130
HYUNDAI HX140, HX145, HX220 LR
JOHN DEERE 130G, 135G, 130P
KOBELCO SK140, ED160
KOMATSU PC138
LIEBHERR
LINK BELT 130X4, 145X4, 210X4 LR
SANY SY135, SY235 LR, SY265 LR
TAKEUCHI TB1140, TB2150
VOLVO EW140, EC140, ECR145

15MT
MAKE / WEIGHT CLASS 15MT (33,000 - 42,000 LBS.)
CASE CX160, CX170E, CX190E
CAT 315D, 316F, 318F, M318F
DOOSAN DX180LC-5, DX190W-5
HITACHI ZX160
HYUNDAI HX160, HX180
JOHN DEERE 160G, 160P
KOBELCO ED195, SK170
KOMATSU PC170
LIEBHERR
LINK BELT 160X4
SANY
TAKEUCHI
VOLVO EW160, EW180, EC160, EC180
